Horizon
Elliptical Machine

Model # E51 Official Horizon elliptical machine

Here are the diagrams and repair parts for Official Horizon E51 elliptical machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Nut MZE0204005
Nut

Part #MZE0204005

Replaced by #004926-00

?
Manufacturer substitution
This part replaces MZE0204005. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Washer MZE0505042A
#G23

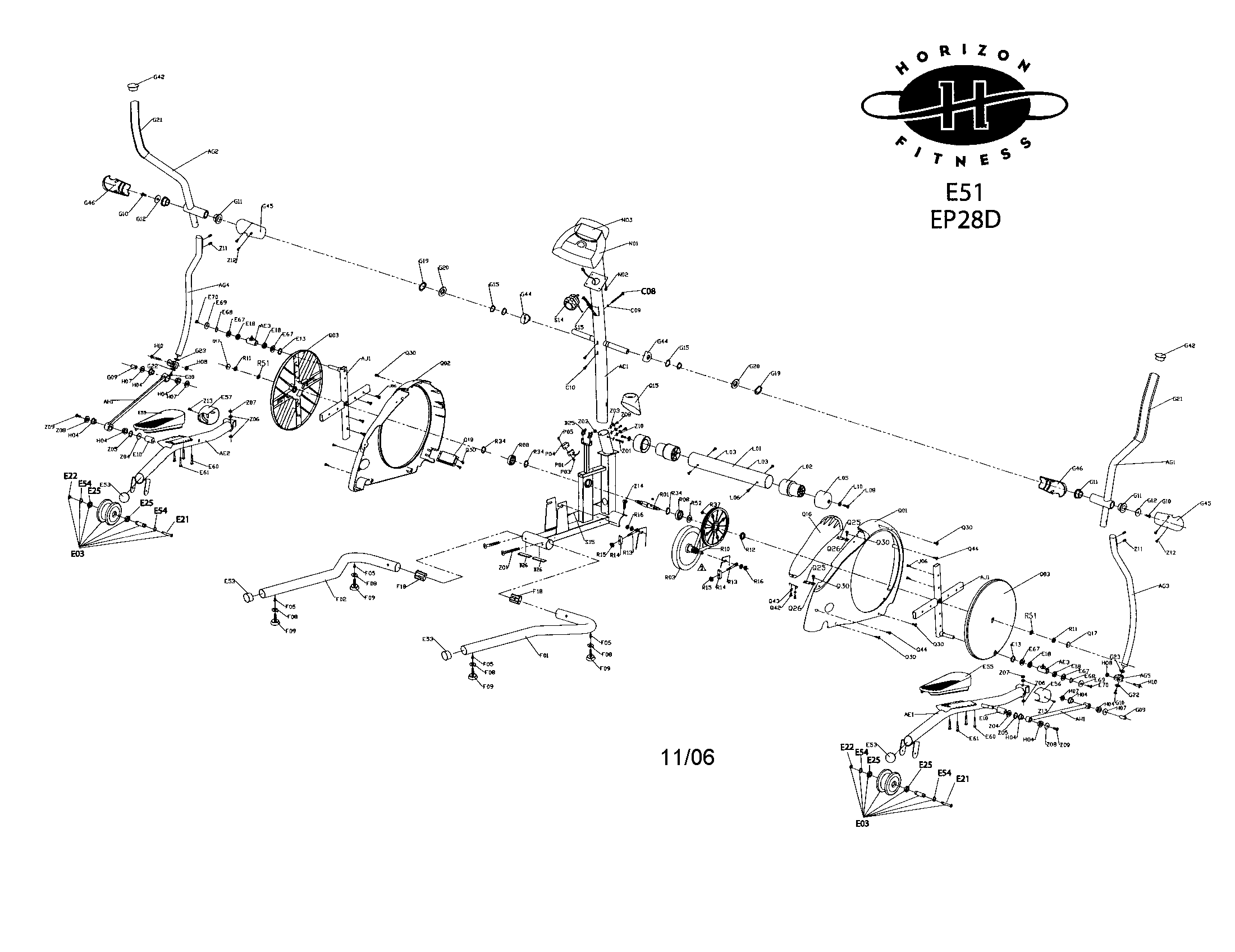

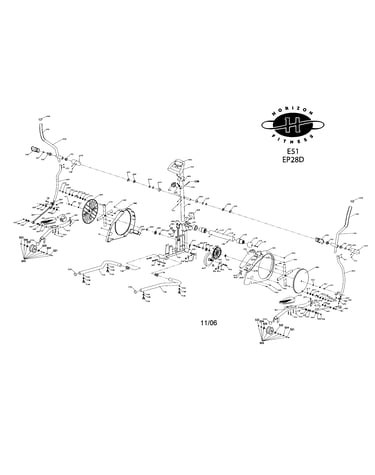

Elliptical assembly diagram

Washer

Part #MZE0505042A

Replaced by #005200-A

?
Manufacturer substitution
This part replaces MZE0505042A. Substitute parts can look different from the original.
This item is not returnable
$2.50
In Stock
Swivel Bracket SP0340002AA
#AG5

Elliptical assembly diagram

Swivel bracket

Part #SP0340002AA

Replaced by #015621-AB

?
Manufacturer substitution
This part replaces SP0340002AA. Substitute parts can look different from the original.
$25.49
In Stock
Nut MZE0201012
#R16

Elliptical assembly diagram

Nut

Part #MZE0201012

Replaced by #004891-00

?
Manufacturer substitution
This part replaces MZE0201012. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw MZE0121004
#J06

Elliptical assembly diagram

Screw

Part #MZE0121004

Replaced by #004865-00

?
Manufacturer substitution
This part replaces MZE0121004. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Wheel MB0102003
#L05

Elliptical assembly diagram

Wheel

Part #MB0102003

Replaced by #000014-00

?
Manufacturer substitution
This part replaces MB0102003. Substitute parts can look different from the original.
$7.76
In Stock
Sleeve ML0105003A
#H04

Elliptical assembly diagram

Sleeve

Part #ML0105003A

Replaced by #103299

?
Manufacturer substitution
This part replaces ML0105003A. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Sleeve MB0667001
#L02

Elliptical assembly diagram

Sleeve

Part #MB0667001

Replaced by #001360-00

?
Manufacturer substitution
This part replaces MB0667001. Substitute parts can look different from the original.
This item is not returnable
$3.88
In Stock
Bolt ME0101027
#L08

Elliptical assembly diagram

Bolt

Part #ME0101027

Replaced by #004331-AB

?
Manufacturer substitution
This part replaces ME0101027. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Foam Grip MB0401109A
#G21

Elliptical assembly diagram

Foam grip

Part #MB0401109A

Replaced by #000609-A

?
Manufacturer substitution
This part replaces MB0401109A. Substitute parts can look different from the original.
This item is not returnable
$5.66
In Stock
