Model # AZHS07DRXXAW1 Official GE air-conditioner/heat pump

Here are the diagrams and repair parts for Official GE AZHS07DRXXAW1 air-conditioner/heat pump, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
AZHS07DRXXAW1 Air-conditioner/heat pump
Thermistor I WP26X20982
#318

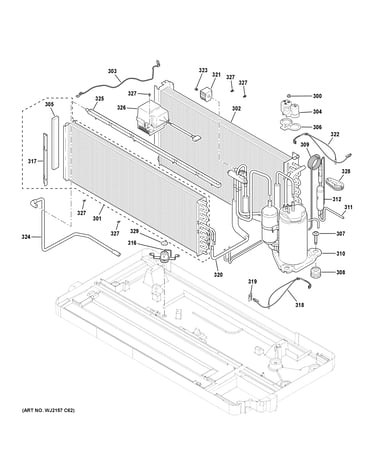

Sealed system diagram

Thermistor i

Part #WP26X20982

$20.28 |
23% OFF Phone Price : $26.28
In Stock
Harness Main WP35X34317
#114

Grille & control parts diagram

Harness main

Part #WP35X34317

$68.69
In Stock
Housing Asm WP76X34343
#116

Grille & control parts diagram

Housing asm

Part #WP76X34343

$22.24
In Stock
Dryer WP56X22820
#312

Sealed system diagram

Dryer

Part #WP56X22820

$22.61
In Stock
Door Asm Ven WP76X20853
#212

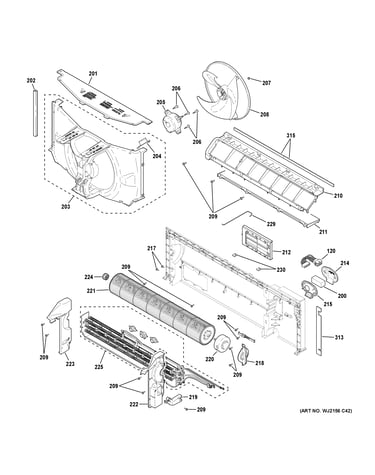

Motor & chassis parts diagram

Door asm ven

Part #WP76X20853

$30.80
In Stock
Motor Id Dc WP94X34347
#220

Motor & chassis parts diagram

Motor id dc

Part #WP94X34347

$73.09
In Stock
15a Direct Connect Kit RAK315D
#405

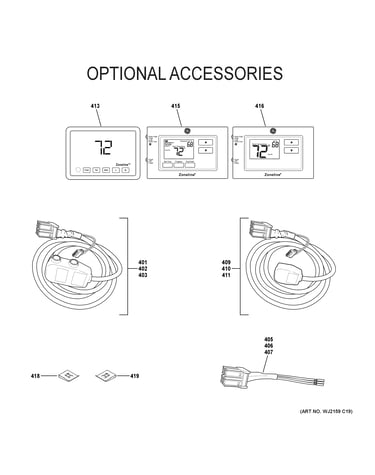

Optional accessories diagram

15a direct connect kit

Part #RAK315D

$48.89
In Stock
Harness Ui J WP35X34318
#118

Grille & control parts diagram

Harness ui j

Part #WP35X34318

$9.11
In Stock
Bushing Id Fan Asm (replaces Wp01x20843) WP01X21826
#224

Motor & chassis parts diagram

Bushing id fan asm (replaces wp01x20843)

Part #WP01X21826

$9.11 |
10% OFF Phone Price : $10.11
In Stock
Pump Icr Asm WP94X34348
#326

Sealed system diagram

Pump icr asm

Part #WP94X34348

$82.87
In Stock
