Model # CHS950P2M5S1 Official GE slide-in electric range

Here are the diagrams and repair parts for Official GE CHS950P2M5S1 slide-in electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

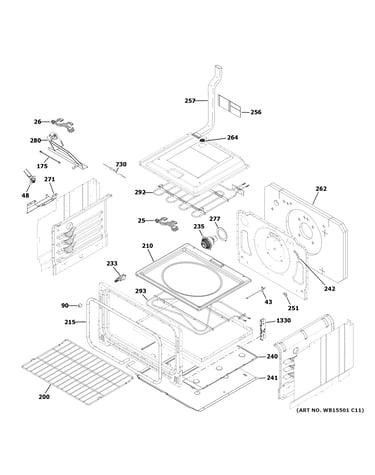

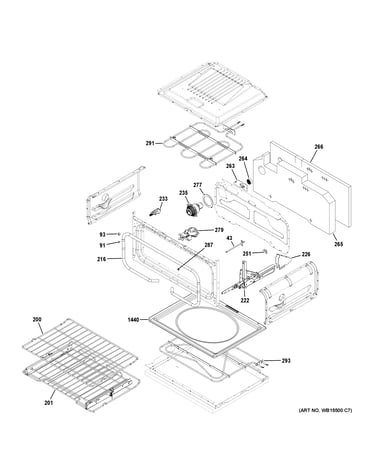

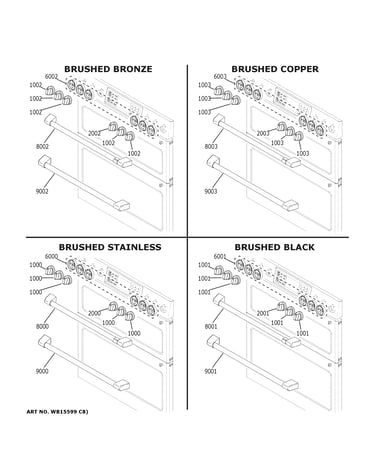

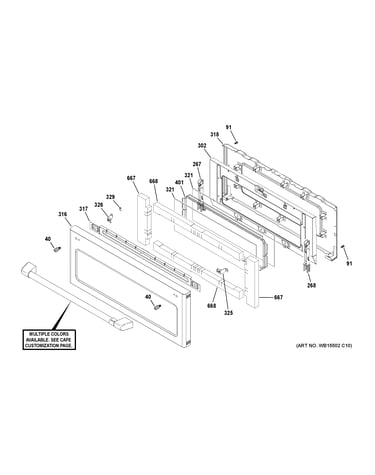

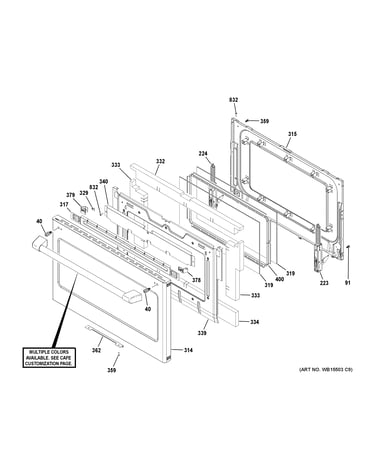

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |
Range Cooling Fan Sensor Board (replaces Wb27t11451, Wb27x23614) WB27X28659
#902

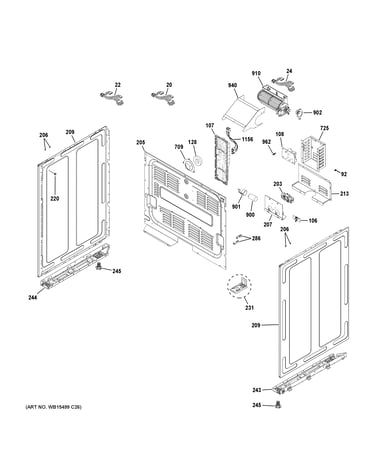

Body parts diagram

Range cooling fan sensor board (replaces wb27t11451, wb27x23614)

Part #WB27X28659

BEST SELLER
This item is not returnable
$25.09 |
19% OFF Phone Price : $31.09
In Stock
Wall Oven Temperature Sensor (replaces Wb20k5035, Wb20k5040, Wb23t10002, Wb24x5340) WB23X5340
Wall oven temperature sensor (replaces wb20k5035, wb20k5040, wb23t10002, wb24x5340)

Part #WB23X5340

BEST SELLER
$129.99 |
8% OFF Phone Price : $141.99
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut WB02T10017
#729

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Control Ind & Gasket WB27X44506
#137

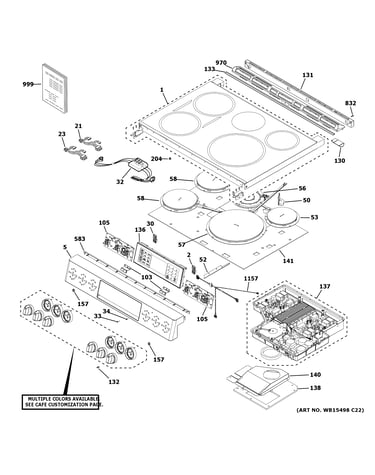

Control panel & cooktop diagram

Control ind & gasket

Part #WB27X44506

$711.90
In Stock
Element WB30X21490
#58

Control panel & cooktop diagram

Element

Part #WB30X21490

Replaced by #WB30X38226

?
Manufacturer substitution
This part replaces WB30X21490. Substitute parts can look different from the original.
$100.60
In Stock
Range Main Top (stainless) (replaces Wb34x28739, Wb34x31939) WB34X37386
#1

Control panel & cooktop diagram

Range main top (stainless) (replaces wb34x28739, wb34x31939)

Part #WB34X37386

$596.35
In Stock
Range Convection Fan Blade WB2X8351
#721

Convection fan diagram

Range convection fan blade

Part #WB2X8351

This item is not returnable
$24.28 |
20% OFF Phone Price : $30.28
In Stock
Board Wifi Cat Module WB27X29798
#2

Control panel & cooktop diagram

Board wifi cat module

Part #WB27X29798

Replaced by #WB27X33353

?
Manufacturer substitution
This part replaces WB27X29798. Substitute parts can look different from the original.
$46.78 |
11% OFF Phone Price : $52.78
In Stock
Element Induction 3700w WB30X28699
#57

Control panel & cooktop diagram

Element induction 3700w

Part #WB30X28699

$223.36
In Stock
