DeWalt
Angle Grinder

Model # DCG413B TYPE 1 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt DCG413B-TYPE-1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Guard N136731
#45

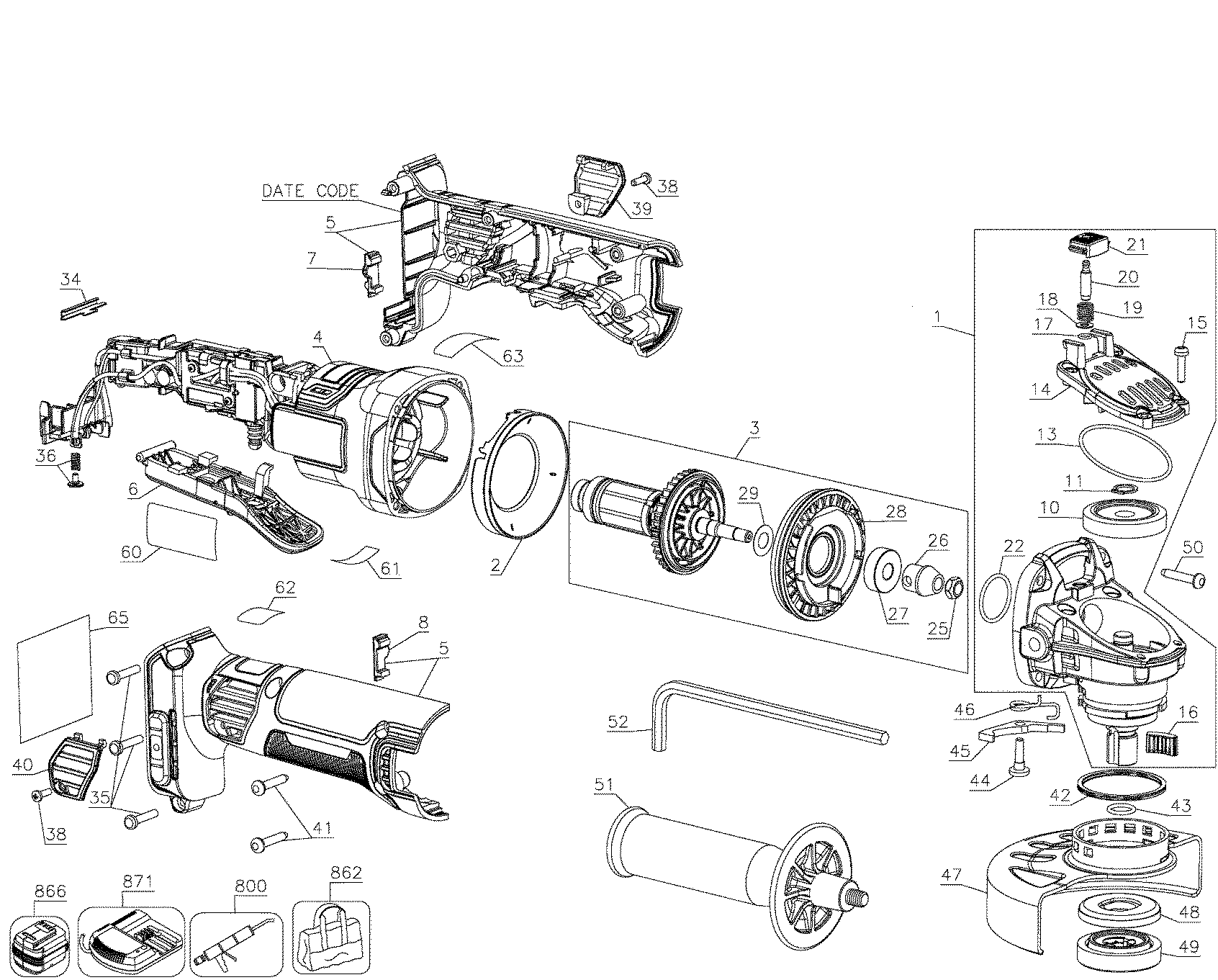

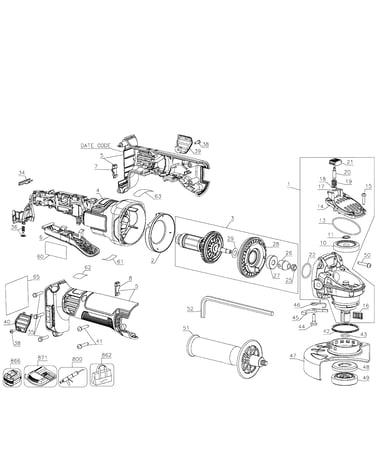

Angle grinder diagram

Guard

Part #N136731

The manufacturer no longer makes this part, and there's no substitute part

O N094012
#17

Angle grinder diagram

O

Part #N094012

The manufacturer no longer makes this part, and there's no substitute part

Gear N097361
#10

Angle grinder diagram

Gear

Part #N097361

The manufacturer no longer makes this part, and there's no substitute part

Flanged Hex Nut N484249
#49

Angle grinder diagram

Flanged hex nut

Part #N484249

The manufacturer no longer makes this part, and there's no substitute part

Spring N105579
#46

Angle grinder diagram

Spring

Part #N105579

The manufacturer no longer makes this part, and there's no substitute part

Screw 330065-31
#50

Angle grinder diagram

Screw

Part #330065-31

The manufacturer no longer makes this part, and there's no substitute part

Hex Wrench N107295
#52

Angle grinder diagram

Hex wrench

Part #N107295

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Spring N453948
#36

Angle grinder diagram

Dewalt spring

Part #N453948

The manufacturer no longer makes this part, and there's no substitute part

O-ring 633044-00
#43

Angle grinder diagram

O-ring

Part #633044-00

The manufacturer no longer makes this part, and there's no substitute part

Pinion N095840
#26

Angle grinder diagram

Pinion

Part #N095840

The manufacturer no longer makes this part, and there's no substitute part
