Model # JEM18F01 Official GE countertop microwave

Here are the diagrams and repair parts for Official GE JEM18F01 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

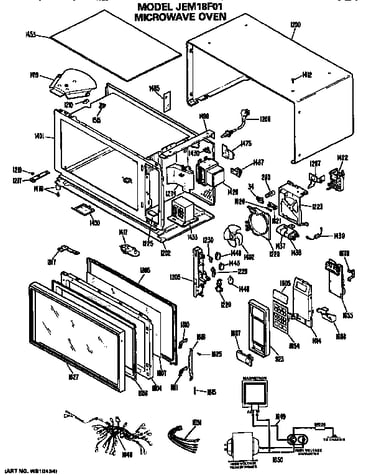

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Diode WB27X5333

#1439

All parts diagram

Diode

Part #WB27X5333

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X5333. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Ge Jem18f Uc 49-4756

#LITR

All parts diagram

Ge jem18f uc

Part #49-4756

$8.49
In Stock
Frame WB56X1767

#46

All parts diagram

Frame

Part #WB56X1767

$18.49
In Stock
Frame WB56X1766

#50

All parts diagram

Frame

Part #WB56X1766

$16.99
In Stock
Outer Case WB56X1760

#1

All parts diagram

Outer case

Part #WB56X1760

$82.99
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Spacer Hood WB1X845

#28

All parts diagram

Spacer hood

Part #WB1X845

The manufacturer no longer makes this part, and there's no substitute part

Bracket-fan Motor WB2X4652

#16

All parts diagram

Bracket-fan motor

Part #WB2X4652

The manufacturer no longer makes this part, and there's no substitute part

Orifice WB2X4645

#19

All parts diagram

Orifice

Part #WB2X4645

The manufacturer no longer makes this part, and there's no substitute part

Door Film WB2X1104

#61

All parts diagram

Door film

Part #WB2X1104

The manufacturer no longer makes this part, and there's no substitute part
