Side-By-Side Refrigerator

Model # OEM3-GD27DIXHT01 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool OEM3-GD27DIXHT01 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
OEM3-GD27DIXHT01 Refrigerators
Refrigerator Inlet Valve 2205762
#10

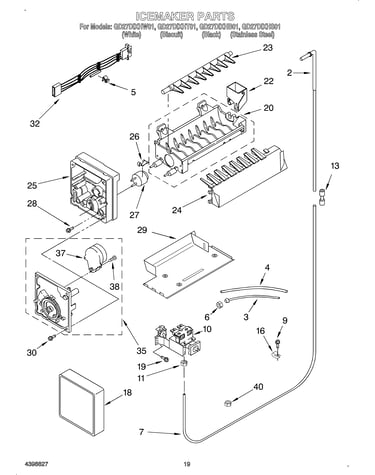

Ice maker/optional diagram

Refrigerator inlet valve

Part #2205762

Replaced by #W10408179

?
Manufacturer substitution
This part replaces 2205762. Substitute parts can look different from the original.
4.08 (83)
BEST SELLER
$63.66 |
9% OFF Phone Price : $69.66
In Stock
Refrigerator Crisper Pan 2196232
#10

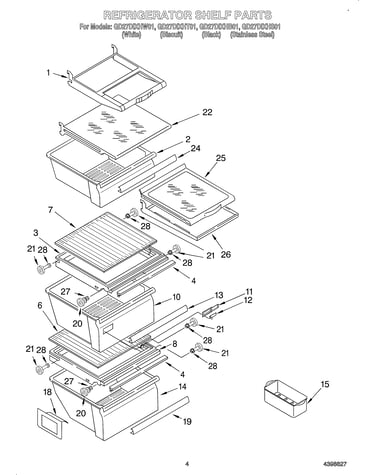

Refrigerator shelf diagram

Refrigerator crisper pan

Part #2196232

Replaced by #WP2188656

?
Manufacturer substitution
This part replaces 2196232. Substitute parts can look different from the original.
4.49 (270)
BEST SELLER
$63.16 |
9% OFF Phone Price : $69.16
In Stock
Refrigerator Thermostat 2198202
#9

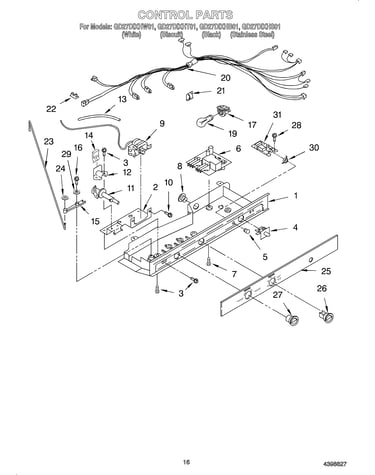

Control diagram

Refrigerator thermostat

Part #2198202

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 2198202. Substitute parts can look different from the original.
4.33 (21)
BEST SELLER
$71.98 |
8% OFF Phone Price : $77.98
In Stock
Refrigerator Defrost Bi-metal 2196155
#35

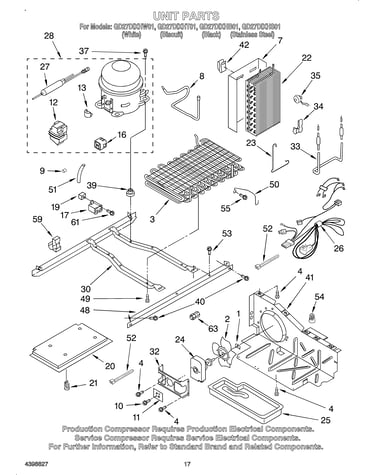

Unit diagram

Refrigerator defrost bi-metal

Part #2196155

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2196155. Substitute parts can look different from the original.
4.53 (17)
BEST SELLER
$30.39 |
16% OFF Phone Price : $36.39
In Stock
Refrigerator Door Cam (black) 2182178
#10

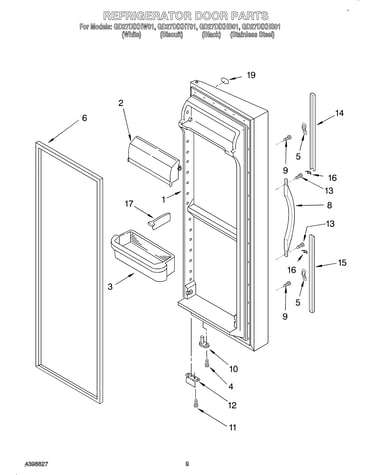

Refrigerator door diagram

Refrigerator door cam (black)

Part #2182178

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182178. Substitute parts can look different from the original.
3.98 (56)
BEST SELLER
$10.01 |
17% OFF Phone Price : $12.01
In Stock
Refrigerator Door Closer Cam 2182179
#12

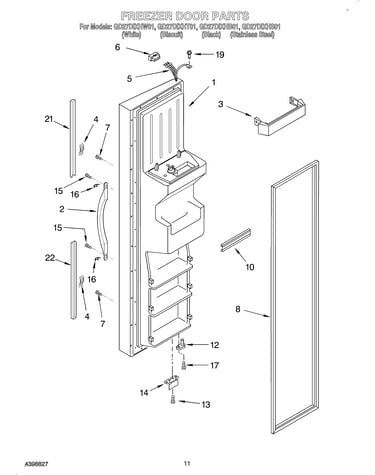

Freezer door diagram

Refrigerator door closer cam

Part #2182179

Replaced by #WP2182179

?
Manufacturer substitution
This part replaces 2182179. Substitute parts can look different from the original.
3.98 (56)
BEST SELLER
$10.01 |
17% OFF Phone Price : $12.01
In Stock
Refrigerator Meat Pan 2196162
#14

Refrigerator shelf diagram

Refrigerator meat pan

Part #2196162

Replaced by #WP2188664

?
Manufacturer substitution
This part replaces 2196162. Substitute parts can look different from the original.
4.39 (89)
BEST SELLER
$53.65 |
10% OFF Phone Price : $59.65
In Stock
Light Bulb 527949
Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$15.31 |
12% OFF Phone Price : $17.31
In Stock
Refrigerator Door Closer Cam 2155311
#26

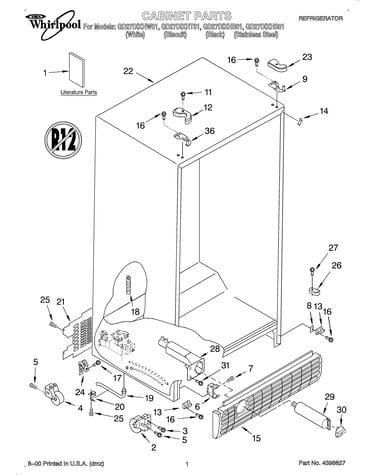

Cabinet/literature diagram

Refrigerator door closer cam

Part #2155311

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155311. Substitute parts can look different from the original.
4.21 (29)
BEST SELLER
$8.54 |
10% OFF Phone Price : $9.54
In Stock
Refrigerator Emitter Control Board 2198585
#26

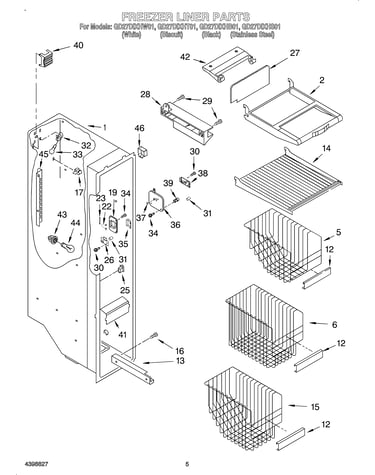

Freezer liner diagram

Refrigerator emitter control board

Part #2198585

Replaced by #W11629974

?
Manufacturer substitution
This part replaces 2198585. Substitute parts can look different from the original.
BEST SELLER
$246.87 |
5% OFF Phone Price : $258.87
In Stock
