Frigidaire
Dishwasher

Model # FDB1050REQ0 Official Frigidaire dishwasher

Here are the diagrams and repair parts for Official Frigidaire FDB1050REQ0 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

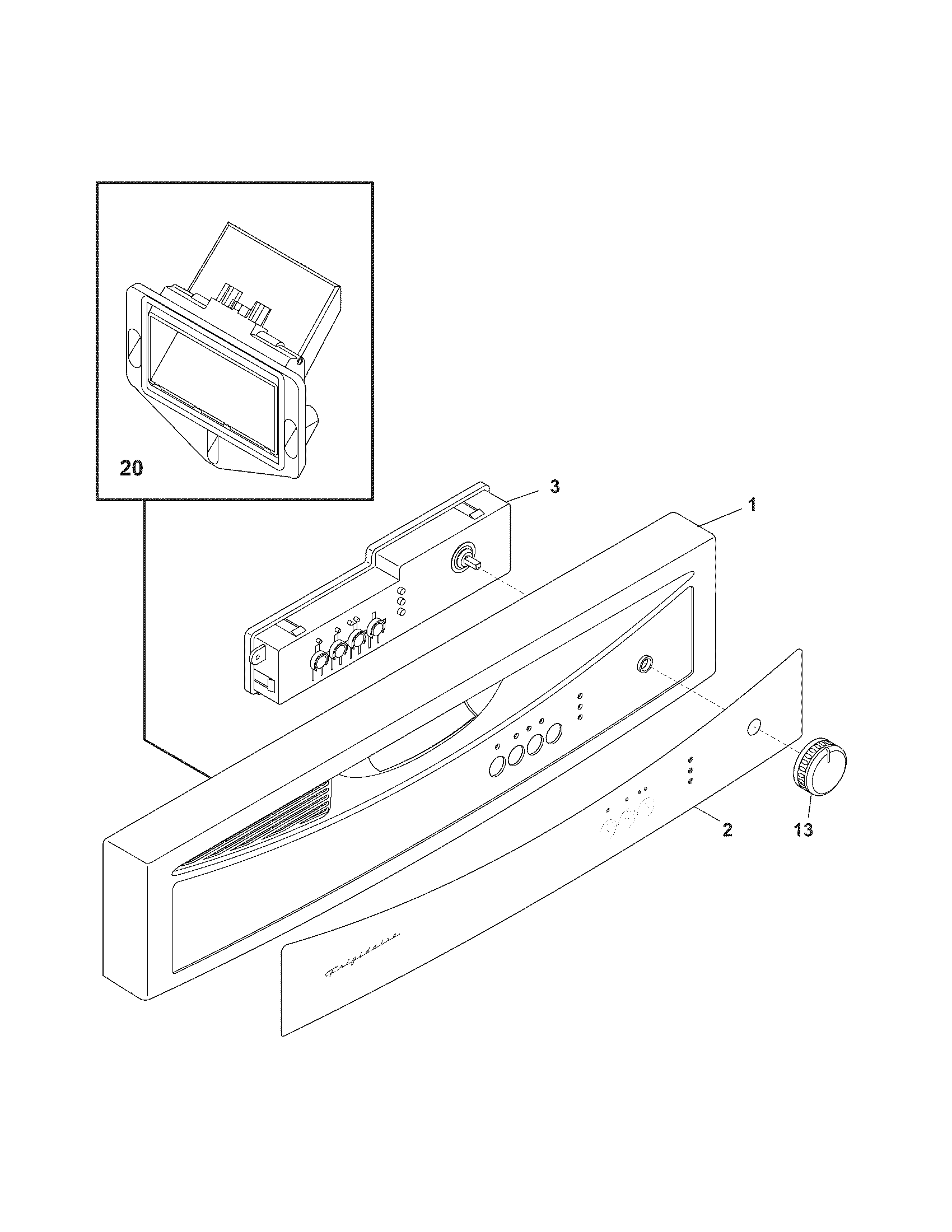

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Gasket 154211801
#3

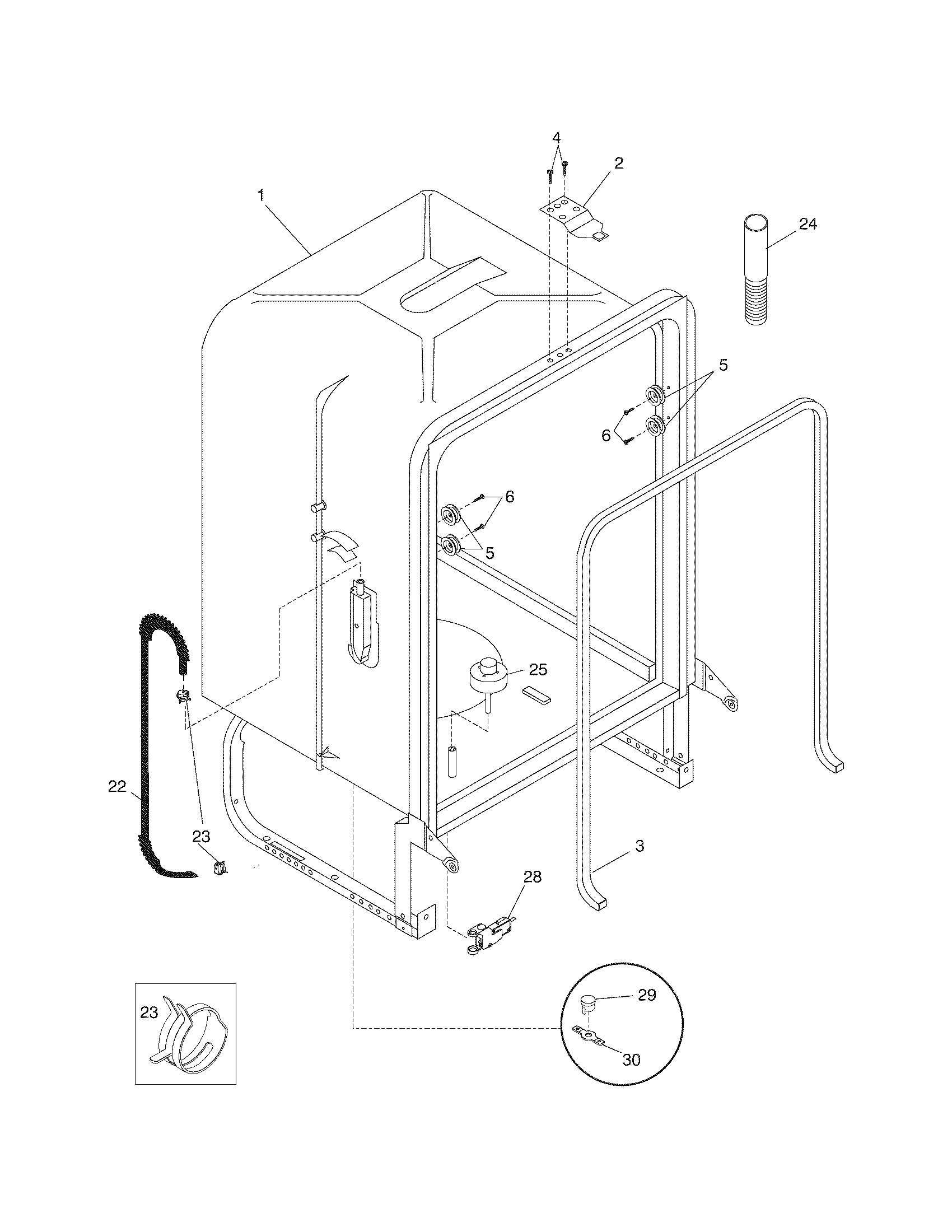

Tub diagram

Gasket

Part #154211801

Replaced by #154827601

?
Manufacturer substitution
This part replaces 154211801. Substitute parts can look different from the original.
BEST SELLER
$31.02 |
16% OFF Phone Price : $37.02
In Stock
Dishwasher Spray Arm 154414101
#24

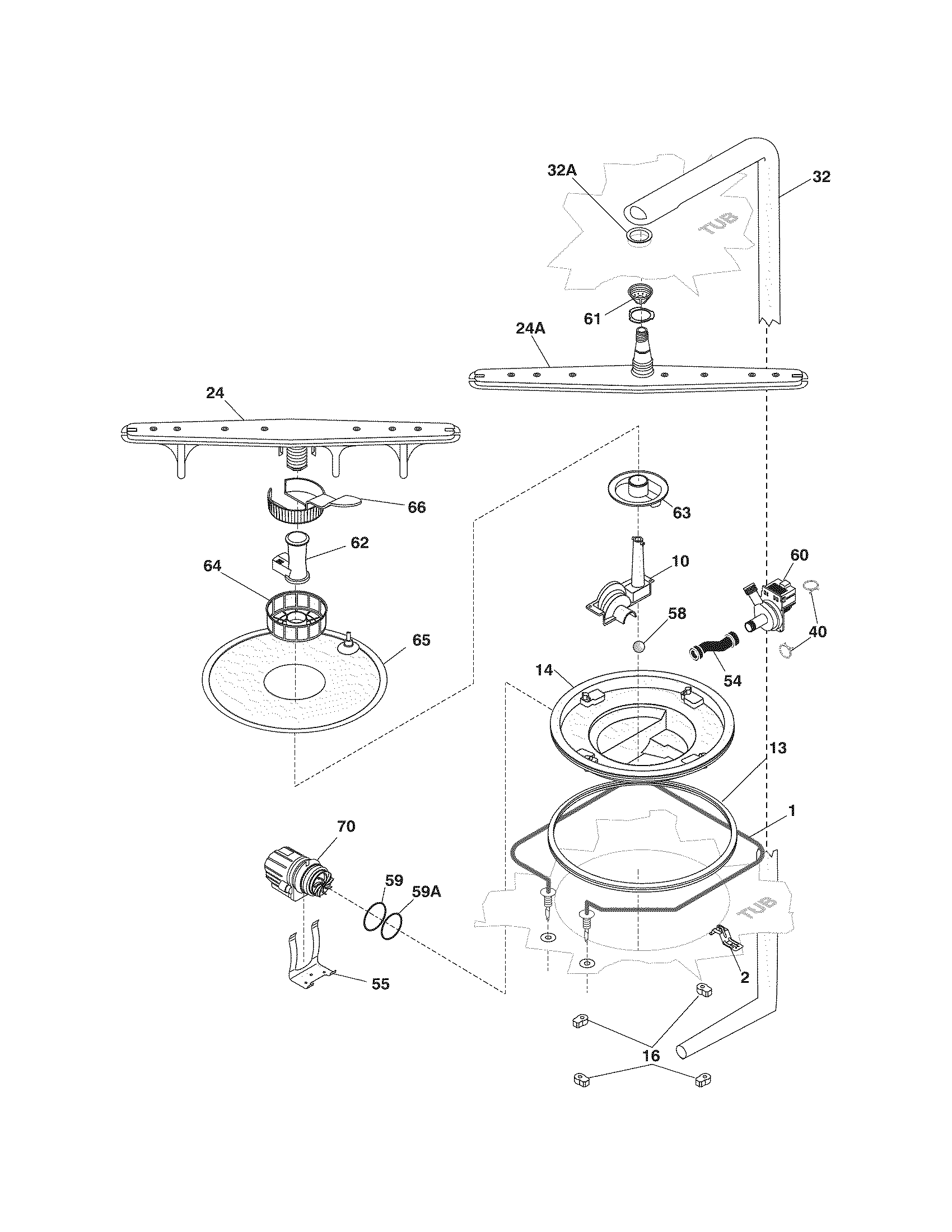

Motor & pump diagram

Dishwasher spray arm

Part #154414101

Replaced by #5304517203

?
Manufacturer substitution
This part replaces 154414101. Substitute parts can look different from the original.
BEST SELLER
$39.00 |
13% OFF Phone Price : $45.00
In Stock
Gasket 154297603
#49

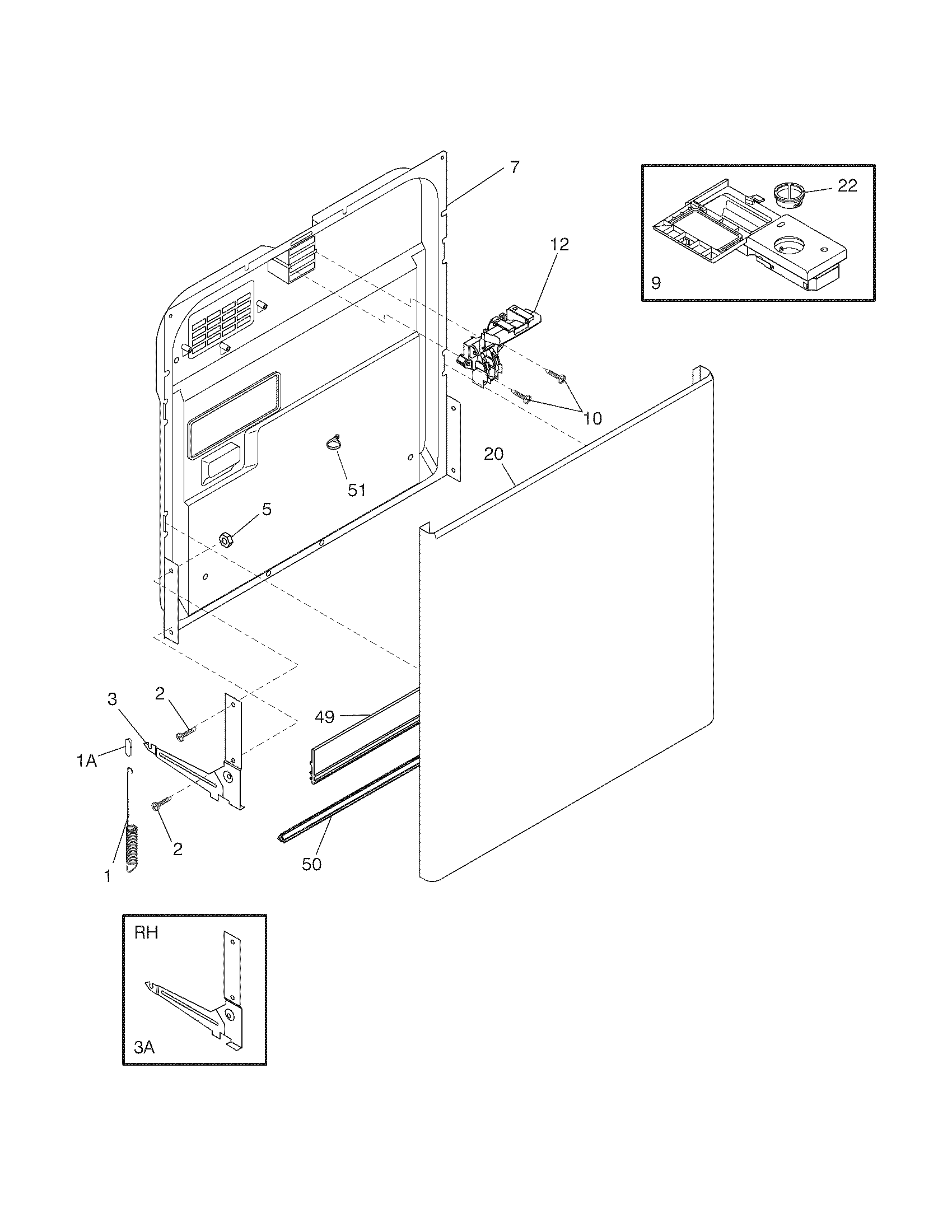

Door diagram

Gasket

Part #154297603

Replaced by #809006501

?
Manufacturer substitution
This part replaces 154297603. Substitute parts can look different from the original.
BEST SELLER
$22.58 |
21% OFF Phone Price : $28.58
In Stock
Valve 154476101
#3

Frame diagram

Valve

Part #154476101

Replaced by #154637401

?
Manufacturer substitution
This part replaces 154476101. Substitute parts can look different from the original.
BEST SELLER
$60.54 |
9% OFF Phone Price : $66.54
In Stock
Dishwasher Pump O-ring, Front 154247001
#59A

Motor & pump diagram

Dishwasher pump o-ring, front

Part #154247001

BEST SELLER
$38.87 |
13% OFF Phone Price : $44.87
In Stock
Dishwasher Dishrack Roller, Lower 154174502
#7

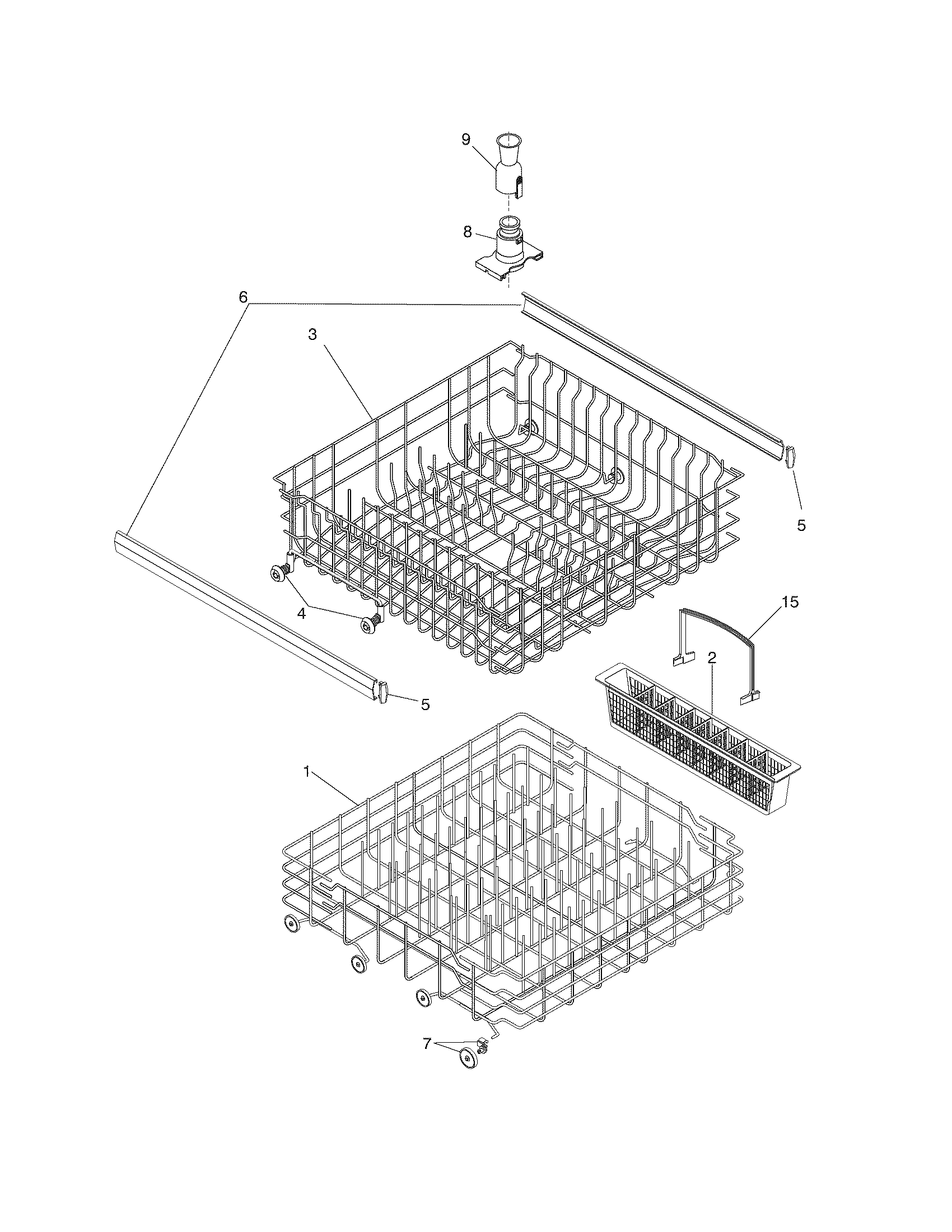

Racks diagram

Dishwasher dishrack roller, lower

Part #154174502

Replaced by #5304532229

?
Manufacturer substitution
This part replaces 154174502. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.74 |
17% OFF Phone Price : $5.74
In Stock
Dishwasher Filter 154252401
#65

Motor & pump diagram

Dishwasher filter

Part #154252401

Replaced by #5304506525

?
Manufacturer substitution
This part replaces 154252401. Substitute parts can look different from the original.
BEST SELLER
$22.84 |
21% OFF Phone Price : $28.84
In Stock
Base 154252201
#63

Motor & pump diagram

Base

Part #154252201

Replaced by #5304506533

?
Manufacturer substitution
This part replaces 154252201. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.64 |
10% OFF Phone Price : $20.64
In Stock
Dishwasher Filter 154252301
#64

Motor & pump diagram

Dishwasher filter

Part #154252301

Replaced by #5304506533

?
Manufacturer substitution
This part replaces 154252301. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$18.64 |
10% OFF Phone Price : $20.64
In Stock
Dishwasher Door Spring (replaces 154226002, 154345901, 154345902, 154413301) 154430501
#1

Door diagram

Dishwasher door spring (replaces 154226002, 154345901, 154345902, 154413301)

Part #154430501

BEST SELLER
$28.73 |
17% OFF Phone Price : $34.73
In Stock
