GE
Electric Range

Model # JBS60DK4WW Official GE electric range

Here are the diagrams and repair parts for Official GE JBS60DK4WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

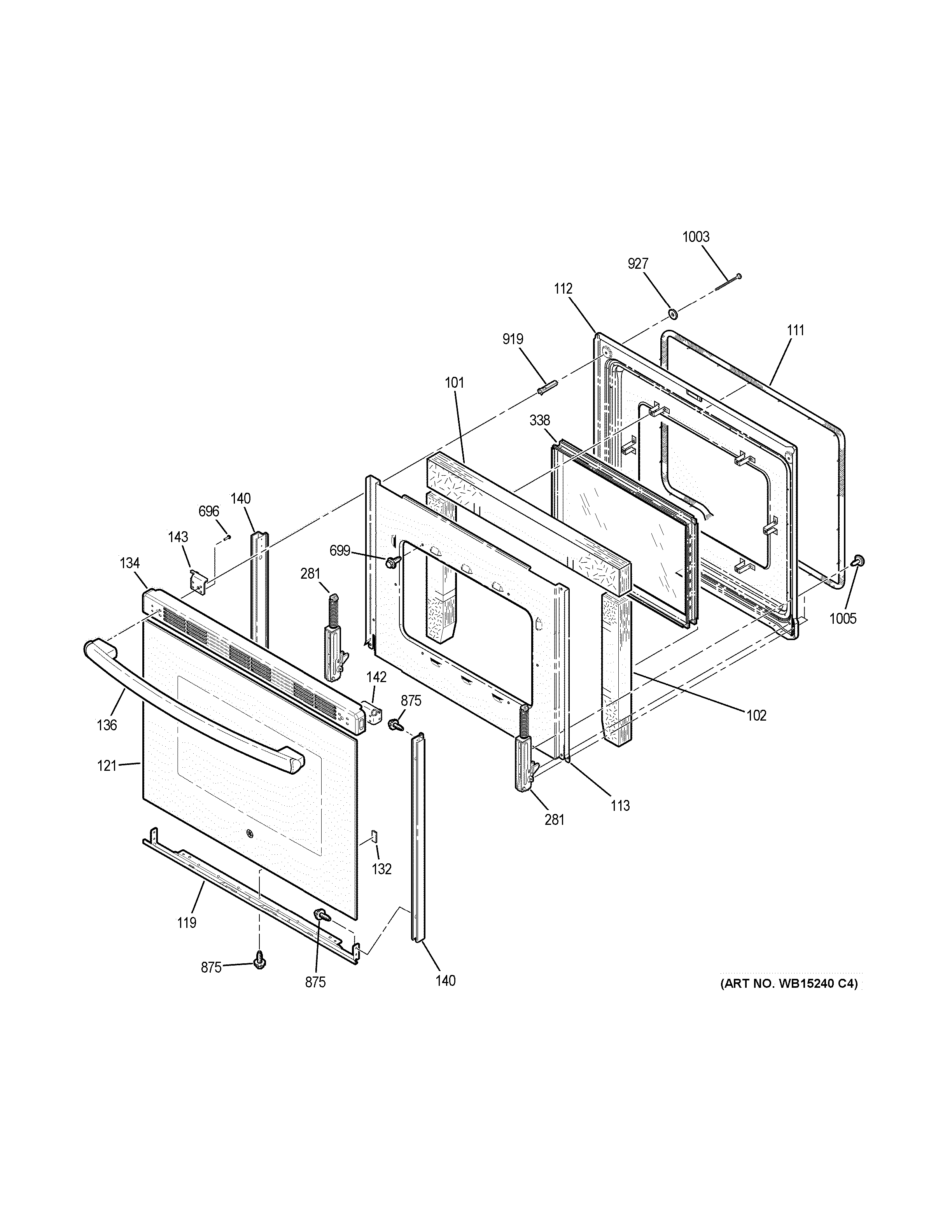

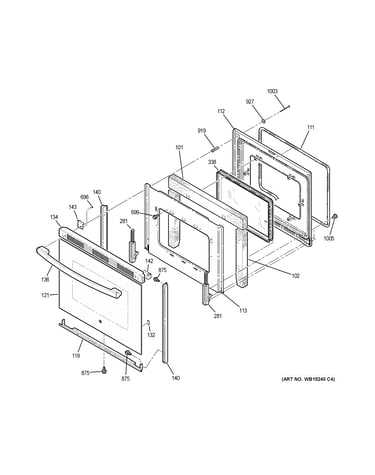

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 105 parts  |
Range Surface Element Control Switch WB24X25013
#24

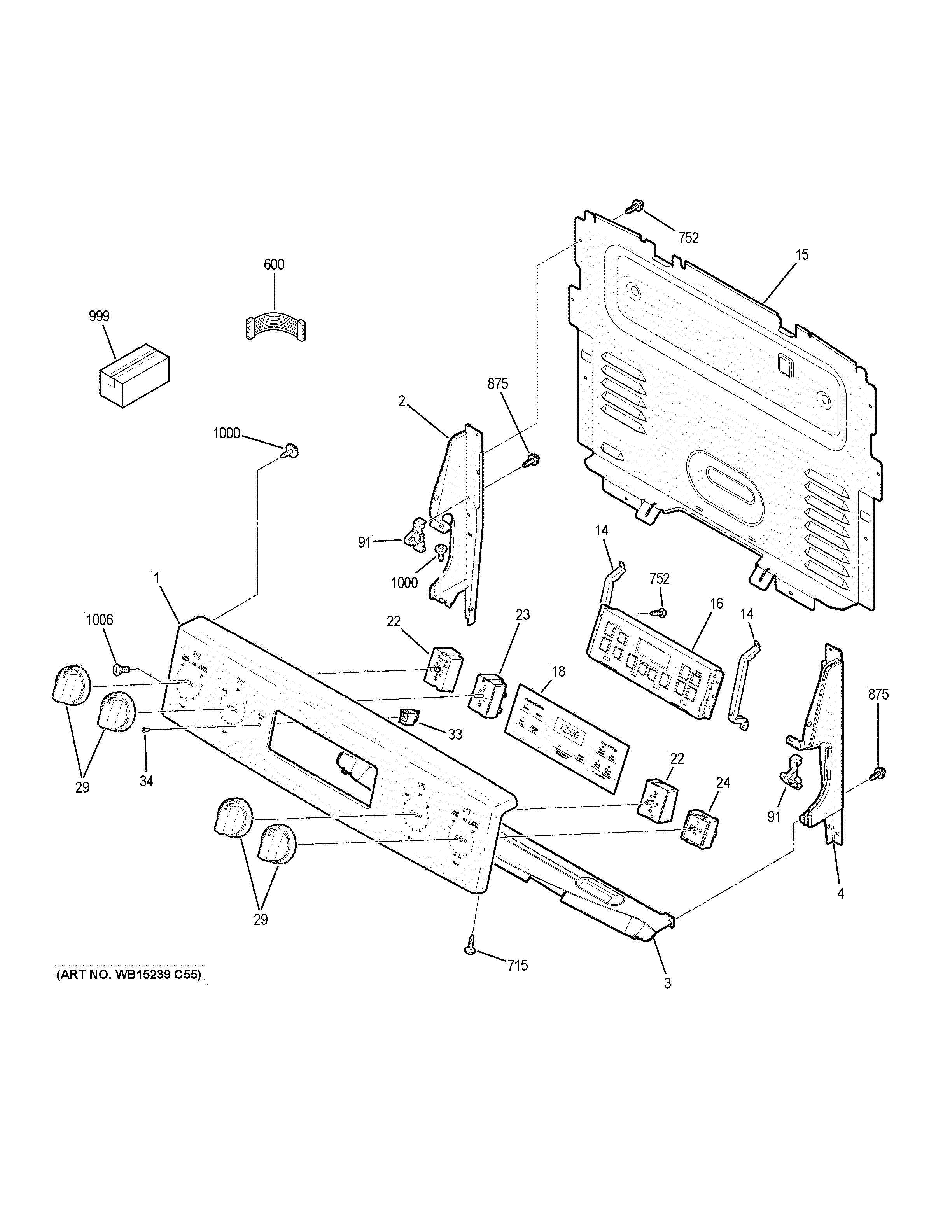

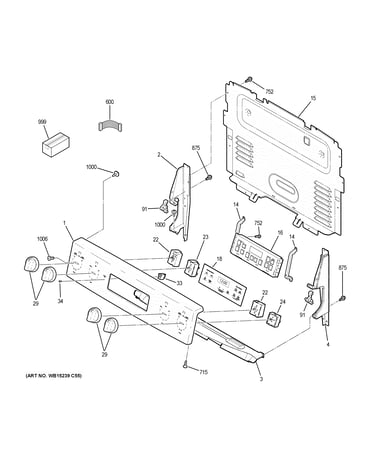

Control panel diagram

Range surface element control switch

Part #WB24X25013

BEST SELLER
$41.32 |
13% OFF Phone Price : $47.32
In Stock
Range Oven Light Bulb WX12X1510
#257

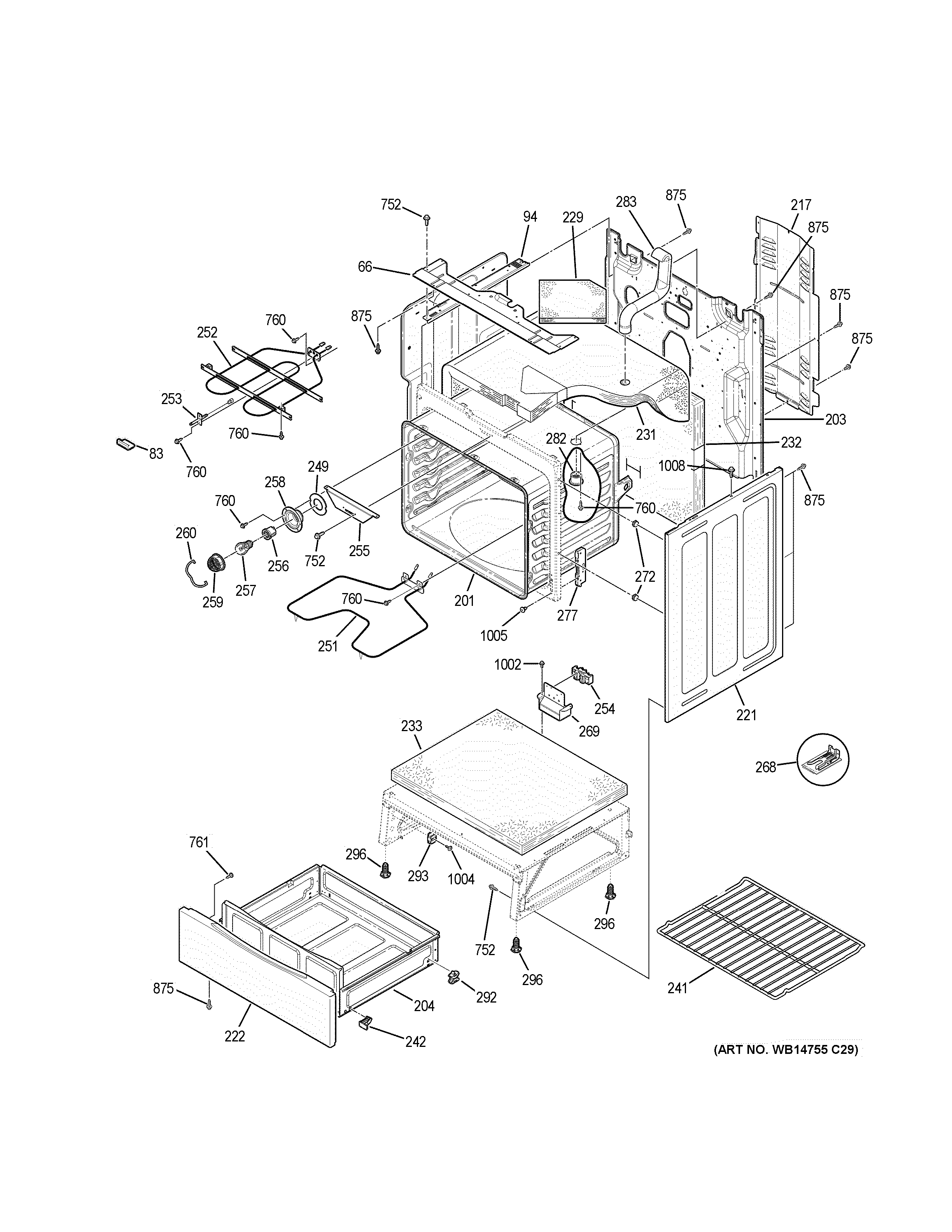

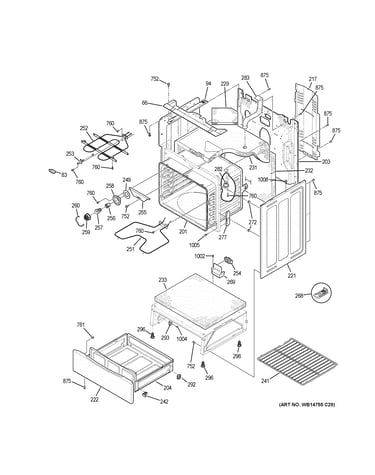

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Dual Radiant Surface Element, 6 To 9-in WB30X24111
#57

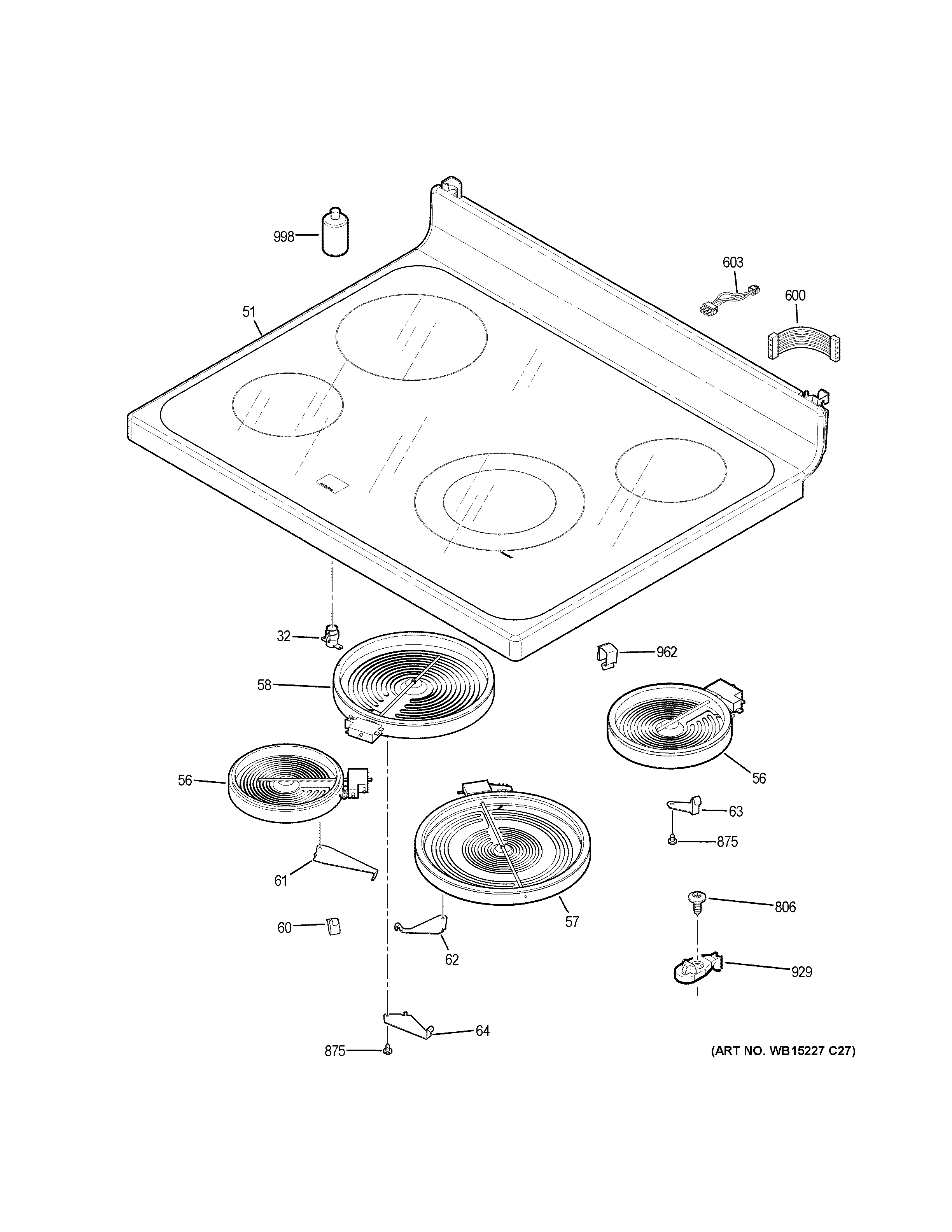

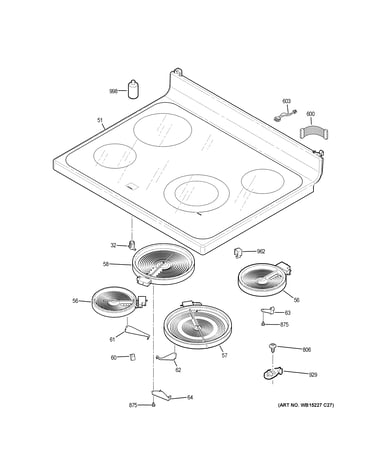

Cooktop diagram

Range dual radiant surface element, 6 to 9-in

Part #WB30X24111

BEST SELLER
$94.70 |
6% OFF Phone Price : $100.70
In Stock
Range Oven Control Board WB27X29089
#16

Control panel diagram

Range oven control board

Part #WB27X29089

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27X29089. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$139.52 |
8% OFF Phone Price : $151.52
In Stock
Kenmore Range Oven Temperature Sensor (replaces Wb21t10007) WB21X22134
#253

Body parts diagram

Kenmore range oven temperature sensor (replaces wb21t10007)

Part #WB21X22134

BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Range Surface Element Control Switch, 1,500-watt WB24T10029
#22

Control panel diagram

Range surface element control switch, 1,500-watt

Part #WB24T10029

BEST SELLER
$43.75 |
12% OFF Phone Price : $49.75
In Stock
Range Surface Element Control Switch WB24T10146
#23

Control panel diagram

Range surface element control switch

Part #WB24T10146

BEST SELLER
$35.14 |
15% OFF Phone Price : $41.14
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#58

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$53.12 |
10% OFF Phone Price : $59.12
In Stock
Cooktop Indicator Light WB27T10668
#32

Cooktop diagram

Cooktop indicator light

Part #WB27T10668

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Bake Element WB44T10060
#251

Body parts diagram

Range bake element

Part #WB44T10060

Replaced by #WB44X45494

?
Manufacturer substitution
This part replaces WB44T10060. Substitute parts can look different from the original.
BEST SELLER
$66.58 |
8% OFF Phone Price : $72.58
In Stock
