Electric Cooktop

Model # CWEA100ACB Official Admiral electric counter unit cooktop

Here are the diagrams and repair parts for Official Admiral CWEA100ACB electric counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

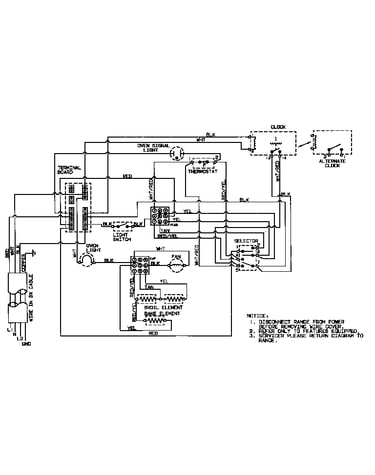

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Oven Bulb 7407P103-60
#19

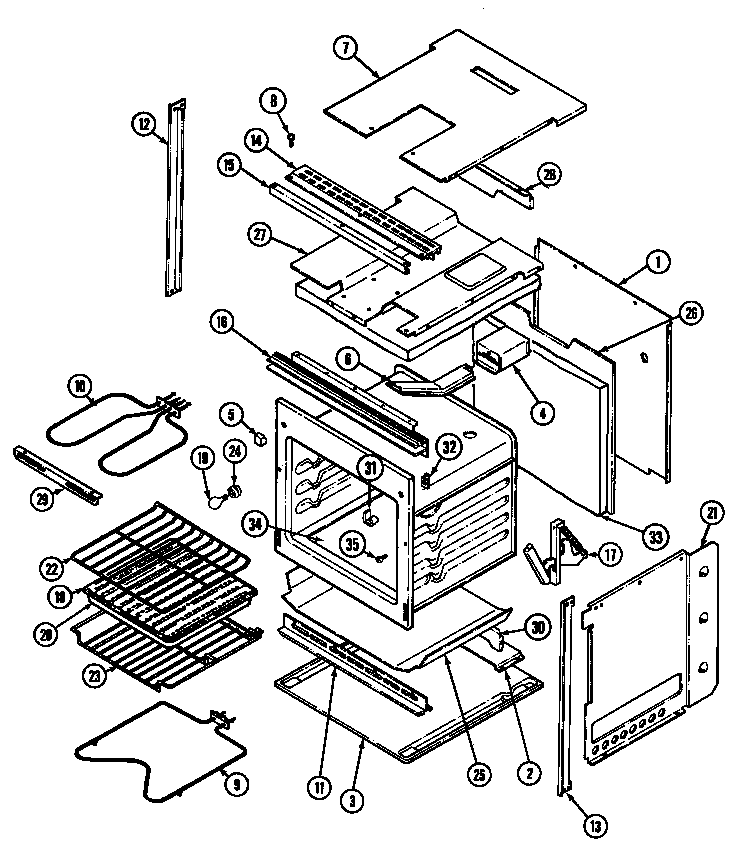

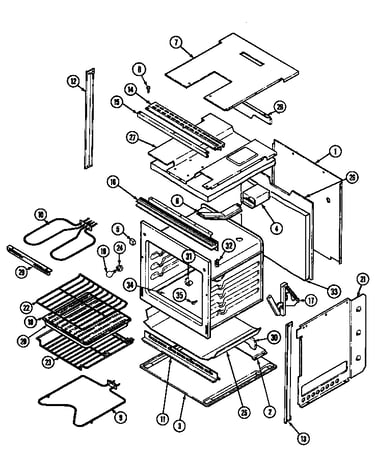

Oven/body diagram

Oven bulb

Part #7407P103-60

Replaced by #40A15

?
Manufacturer substitution
This part replaces 7407P103-60. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Bake Element 04000047
#9

Oven/body diagram

Bake element

Part #04000047

Replaced by #WPY04000066

?
Manufacturer substitution
This part replaces 04000047. Substitute parts can look different from the original.
BEST SELLER
$59.87 |
9% OFF Phone Price : $65.87
In Stock
Screw 7101P115-60
#35

Oven/body diagram

Screw

Part #7101P115-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P115-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Broiler Element 04000048
#10

Oven/body diagram

Broiler element

Part #04000048

Replaced by #WPY04000048

?
Manufacturer substitution
This part replaces 04000048. Substitute parts can look different from the original.
$89.92 |
6% OFF Phone Price : $95.92
In Stock
Screw 7101P068-60
#14

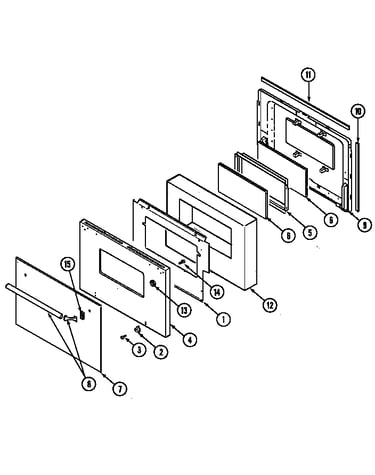

Door diagram

Screw

Part #7101P068-60

Replaced by #WP3400074

?
Manufacturer substitution
This part replaces 7101P068-60. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Broiler Insert 3413F013-19
#18

Oven/body diagram

Broiler insert

Part #3413F013-19

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3413F013-19. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Selector Switch 7403P172-60
#16

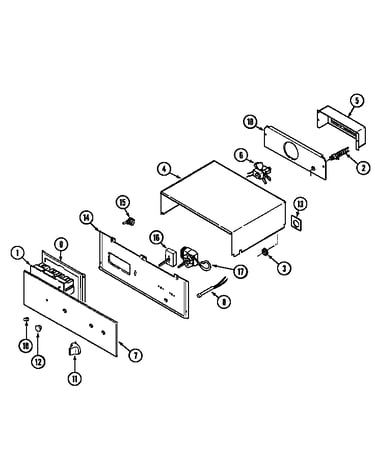

Control panel diagram

Selector switch

Part #7403P172-60

Replaced by #WP7403P172-60

?
Manufacturer substitution
This part replaces 7403P172-60. Substitute parts can look different from the original.
$70.80
In Stock
Range Oven Door Seal 7212P006-60
#11

Door diagram

Range oven door seal

Part #7212P006-60

Replaced by #WP7212P006-60

?
Manufacturer substitution
This part replaces 7212P006-60. Substitute parts can look different from the original.
$47.20 |
11% OFF Phone Price : $53.20
In Stock
Snap Nut 7103P039-60
#13A

Oven/body diagram

Snap nut

Part #7103P039-60

Replaced by #WP7103P114-60

?
Manufacturer substitution
This part replaces 7103P039-60. Substitute parts can look different from the original.
This item is not returnable
$6.14
In Stock
Thermostat Clip 7112P004-60
#31

Oven/body diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
