Model # H4H336GLE100 Official ICP split-system air conditioner
Here are the diagrams and repair parts for Official ICP H4H336GLE100 split-system air conditioner, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manualBy Schematic
SELECT DIAGRAM
Browse Parts for
H4H336GLE100 Split-System Air Conditioner
#26

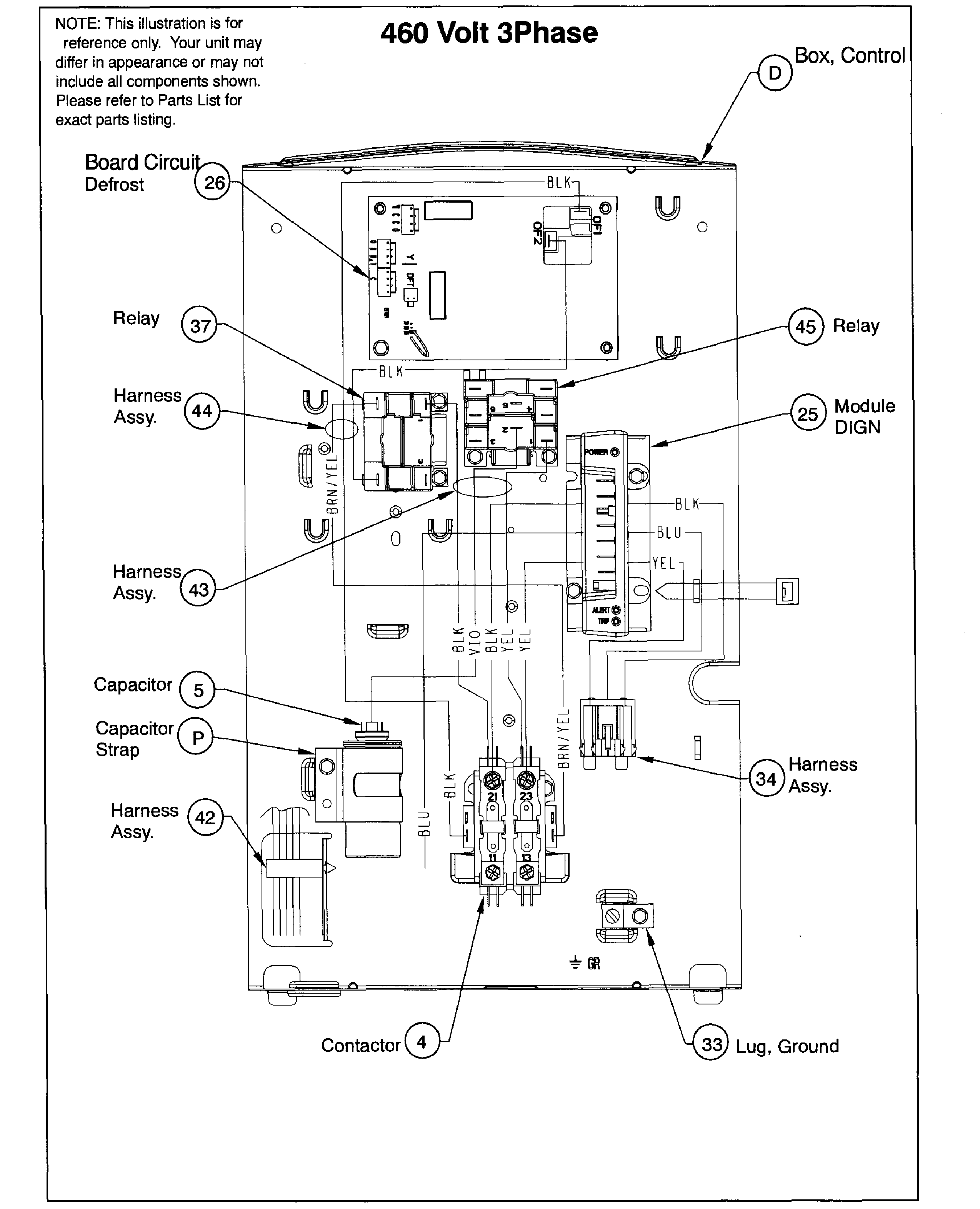

Control panel diagram
Condensing unit defrost control board
Part #1173636
$190.41 |
6% OFF Phone Price : $202.41
Back Order
#22

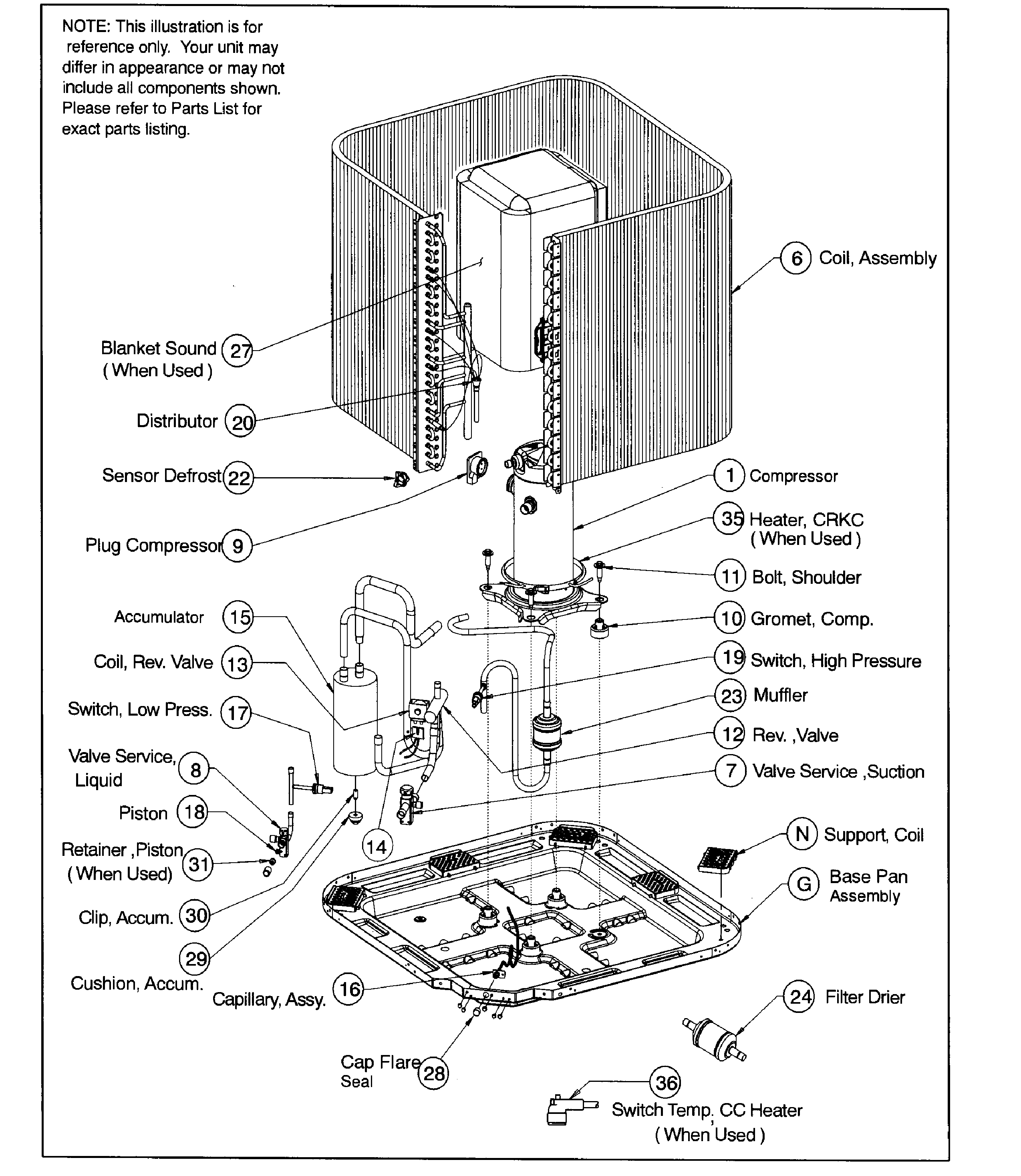

Inner asy diagram
Central air conditioner heat pump defrost control
Part #1173637
$1133.91
In Stock
#J

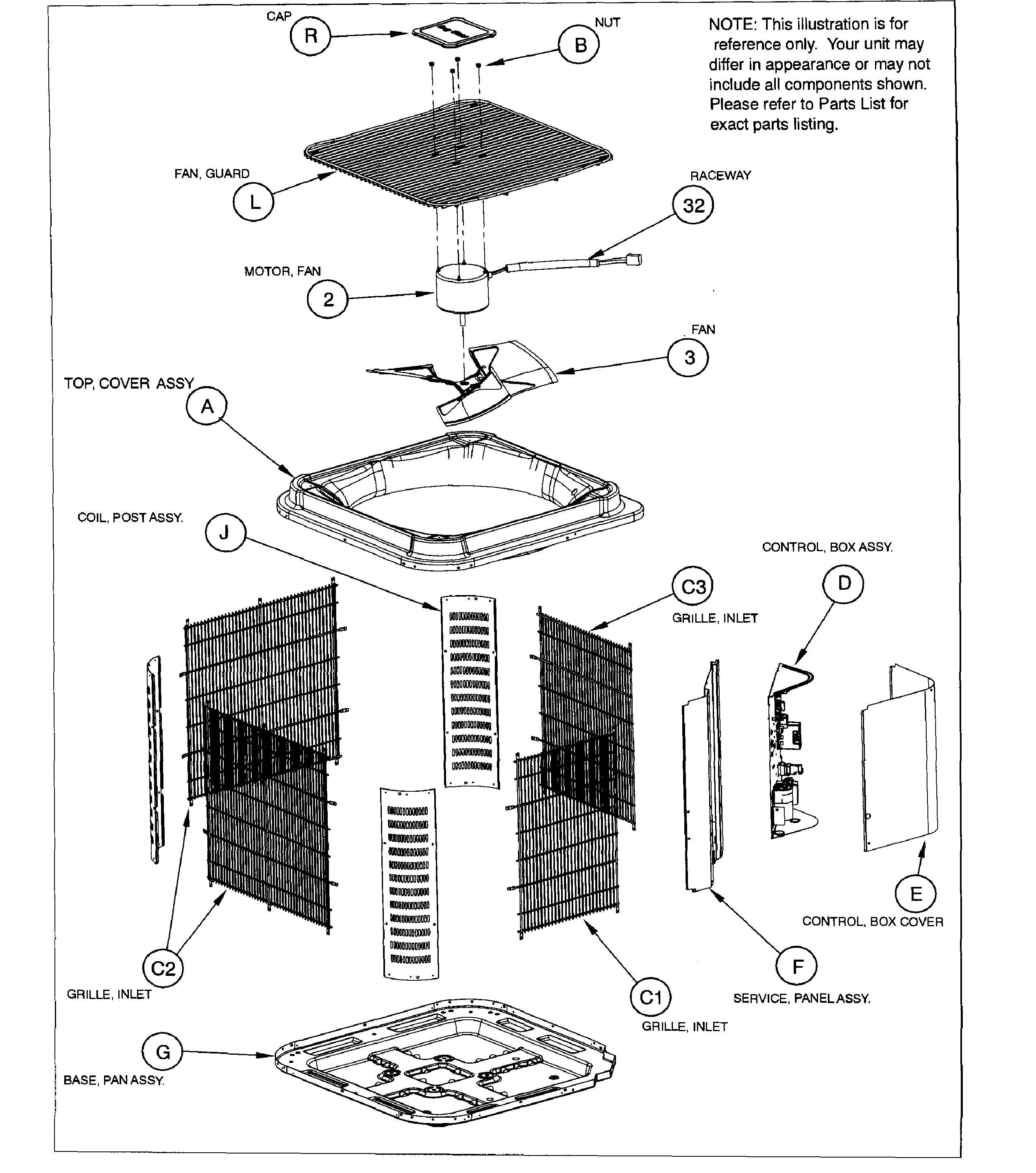

Outer asy diagram
Corn post
Part #1178529
$47.04
In Stock
#N
Inner asy diagram
Support
Part #1174068
$21.40
In Stock
#NI
Outer asy diagram
Kit piston
Part #1175477
$259.71
In Stock
#27
Inner asy diagram
Blanket
Part #1172014
$66.49
In Stock
#30
Inner asy diagram
Clip
Part #1173640
This item is not returnable
$2.16
In Stock
#NI
Outer asy diagram
Central air conditioner filter dryer
Part #1172311
$110.91
In Stock
#3
Outer asy diagram
Fan blade
Part #1177890
$178.21 |
6% OFF Phone Price : $190.21
In Stock
#F
Outer asy diagram
Ser panel
Part #1178528
$68.71
In Stock
