Kenmore
Compact Refrigerator

Model # 56460912100 Official Kenmore compact refrigerator

Here are the diagrams and repair parts for Official Kenmore 56460912100 compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Sanyo Wine Cooler Power Cord 301744
#37

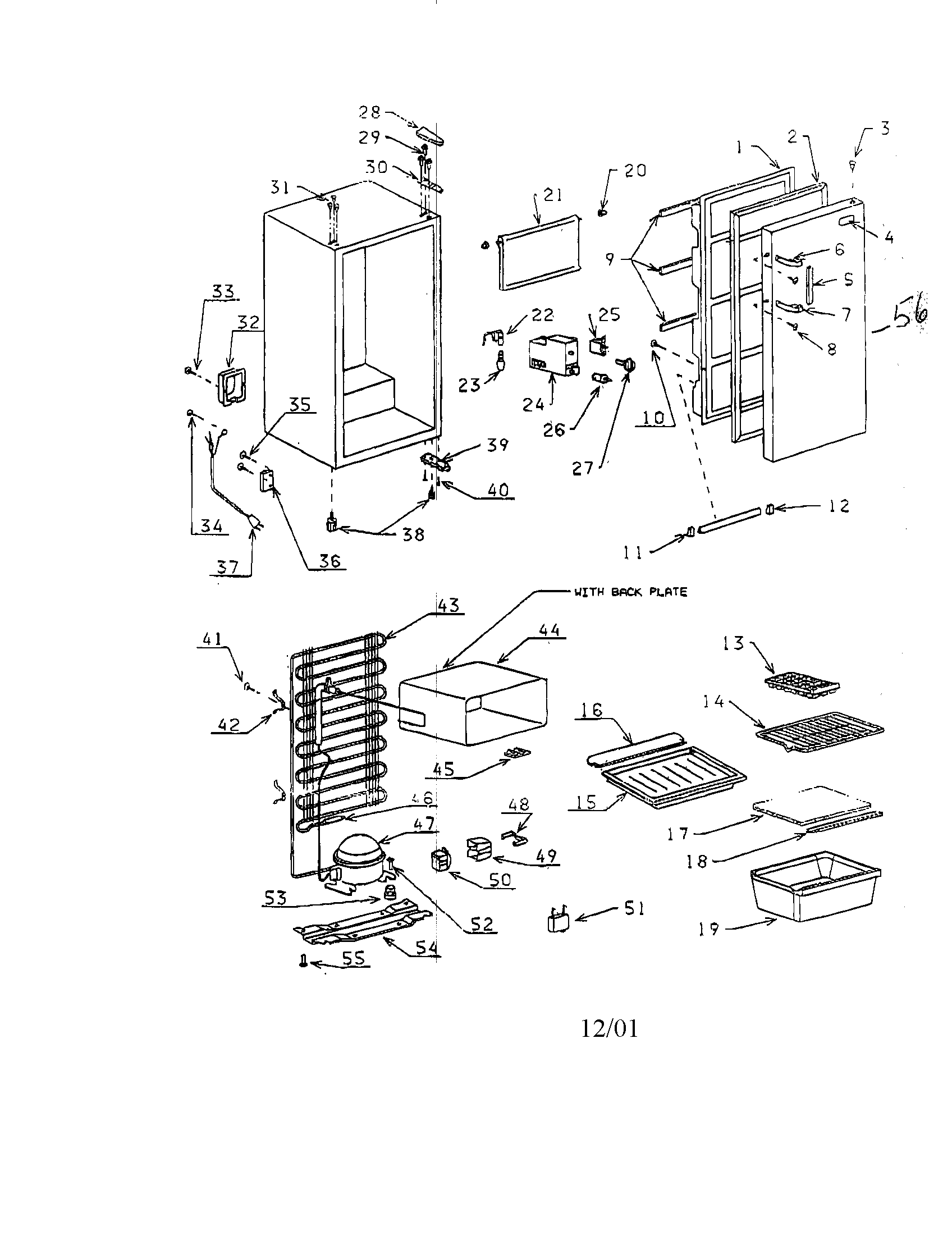

Compact refrigerator diagram

Sanyo wine cooler power cord

Part #301744

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Elite Refrigerator Door Hole Plug 302550
#50

Compact refrigerator diagram

Kenmore elite refrigerator door hole plug

Part #302550

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Elite Wine Cooler Door Hinge Screw 302009
#29

Compact refrigerator diagram

Kenmore elite wine cooler door hinge screw

Part #302009

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Elite Freezer Temperature Control Knob 302175
#27

Compact refrigerator diagram

Kenmore elite freezer temperature control knob

Part #302175

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Hole Plug (white) 302388
#3

Compact refrigerator diagram

Refrigerator door hole plug (white)

Part #302388

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Refrigerator Door Handle End Cap 300063
#6

Compact refrigerator diagram

Craftsman refrigerator door handle end cap

Part #300063

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Leveling Leg 300885
#38

Compact refrigerator diagram

Refrigerator leveling leg

Part #300885

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 300308
Refrigerator screw

Part #300308

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Shelf 300456
#40

Compact refrigerator diagram

Refrigerator shelf

Part #300456

The manufacturer no longer makes this part, and there's no substitute part

Door 200 301668
#55

Compact refrigerator diagram

Door 200

Part #301668

The manufacturer no longer makes this part, and there's no substitute part
