Model # R1211 Official Whirlpool air conditioner heat pump
Here are the diagrams and repair parts for Official Whirlpool R1211 air conditioner heat pump, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for
R1211 Air Conditioner Heat Pump

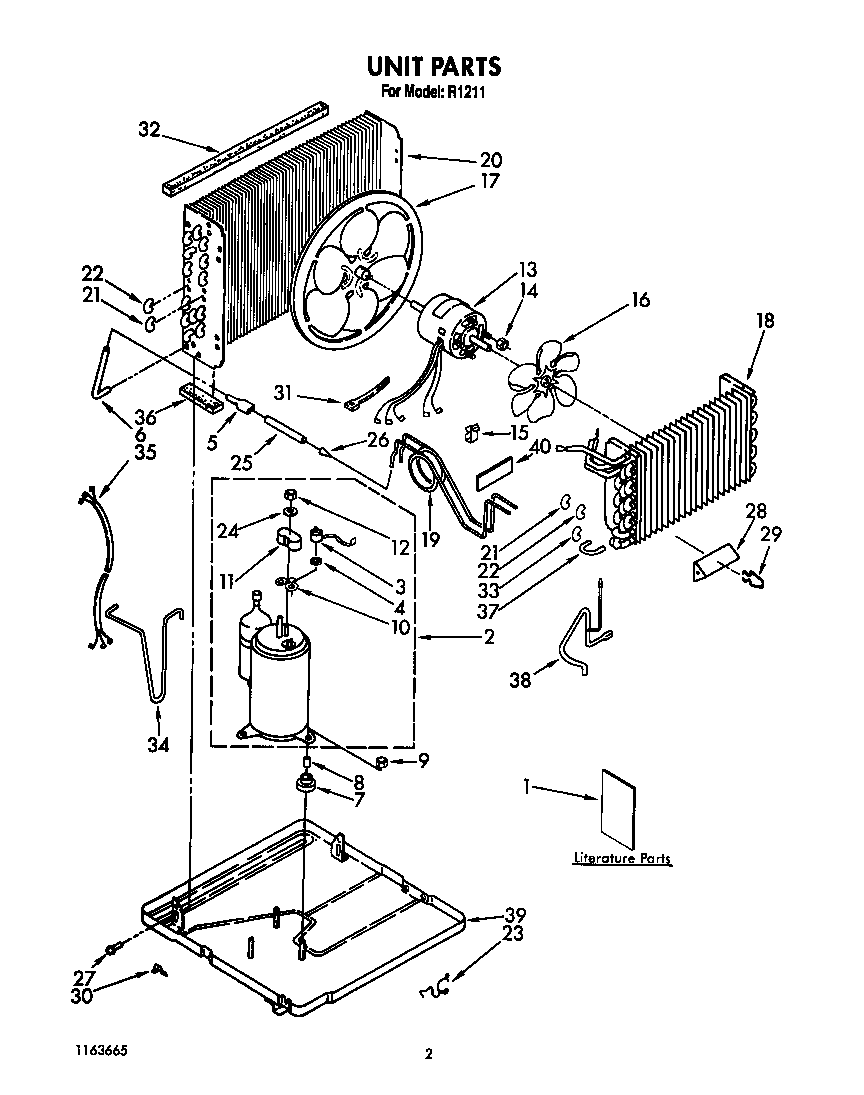

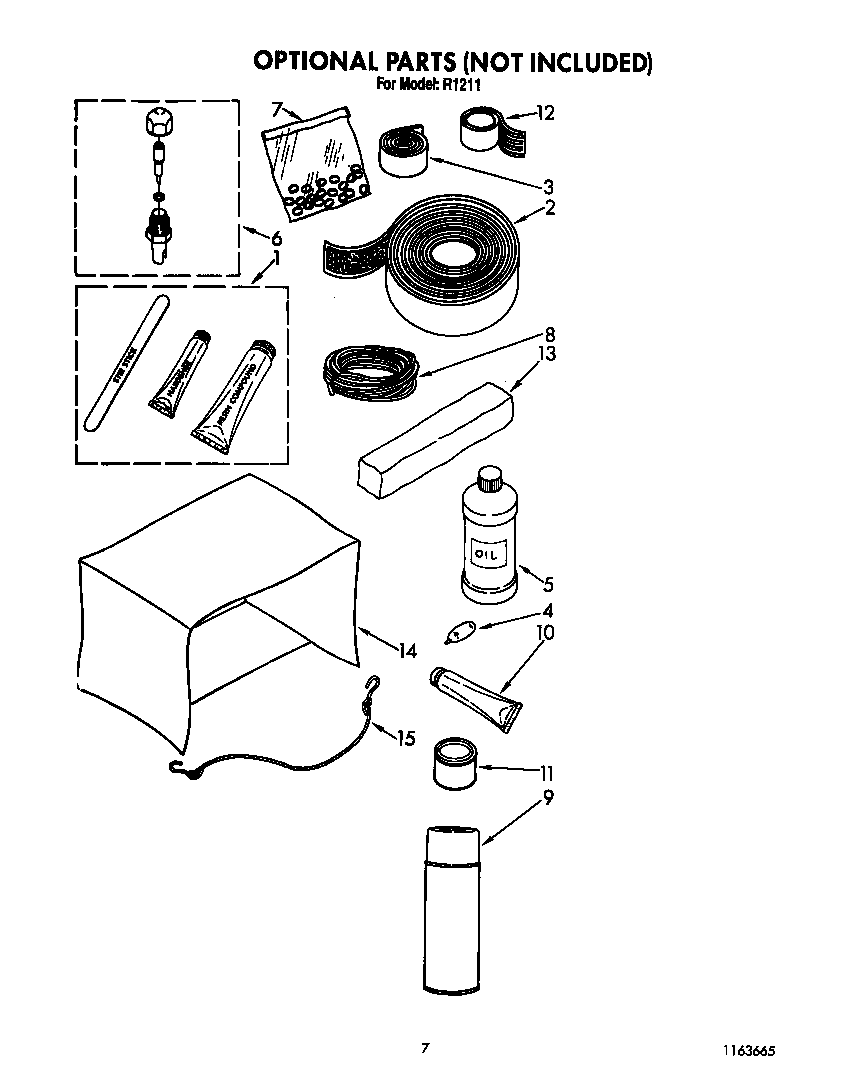

#10
Optional diagram
Cement
Part #279368
Replaced by #WP279368
?
Manufacturer substitution
This part replaces 279368. Substitute parts can look different from the original.
$42.72 |
12% OFF Phone Price : $48.72
In Stock
#6A
Optional diagram
Valve
Part #876764
Replaced by #876764
?
Manufacturer substitution
This part replaces 876764. Substitute parts can look different from the original.
$26.12 |
19% OFF Phone Price : $32.12
In Stock
#6B
Optional diagram
Valve kit
Part #978025
Replaced by #WP978025
?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$29.51 |
17% OFF Phone Price : $35.51
In Stock
#3

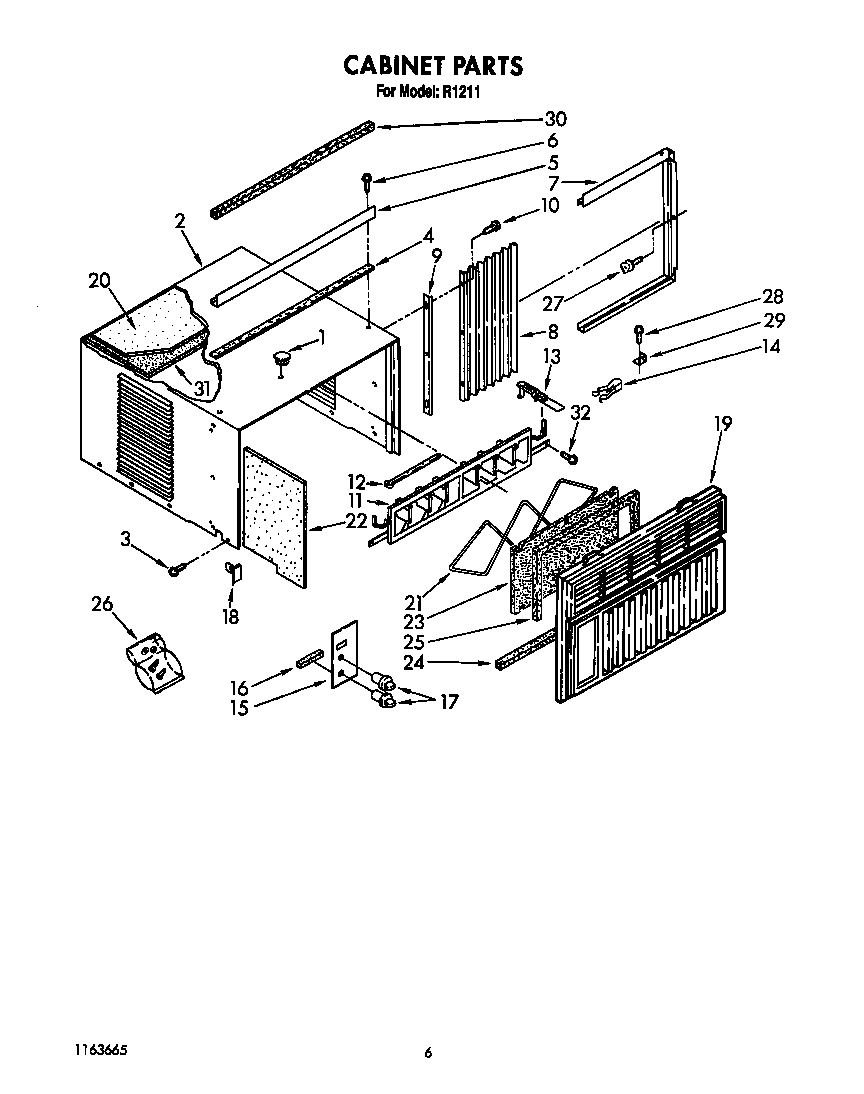

Cabinet diagram
Refrigerator screw
Part #1157158
Replaced by #WP489069
?
Manufacturer substitution
This part replaces 1157158. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw, 8 x 1
Part #488480
Replaced by #WP489069
?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#13
Optional diagram
Sealer
Part #99344
Replaced by #4318168
?
Manufacturer substitution
This part replaces 99344. Substitute parts can look different from the original.
$63.38
In Stock
#6D
Optional diagram
Valve kit
Part #978027
Replaced by #978027
?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69 |
13% OFF Phone Price : $44.69
In Stock
Ge room air conditioner outdoor cover
Part #484184
$54.49 |
10% OFF Phone Price : $60.49
In Stock

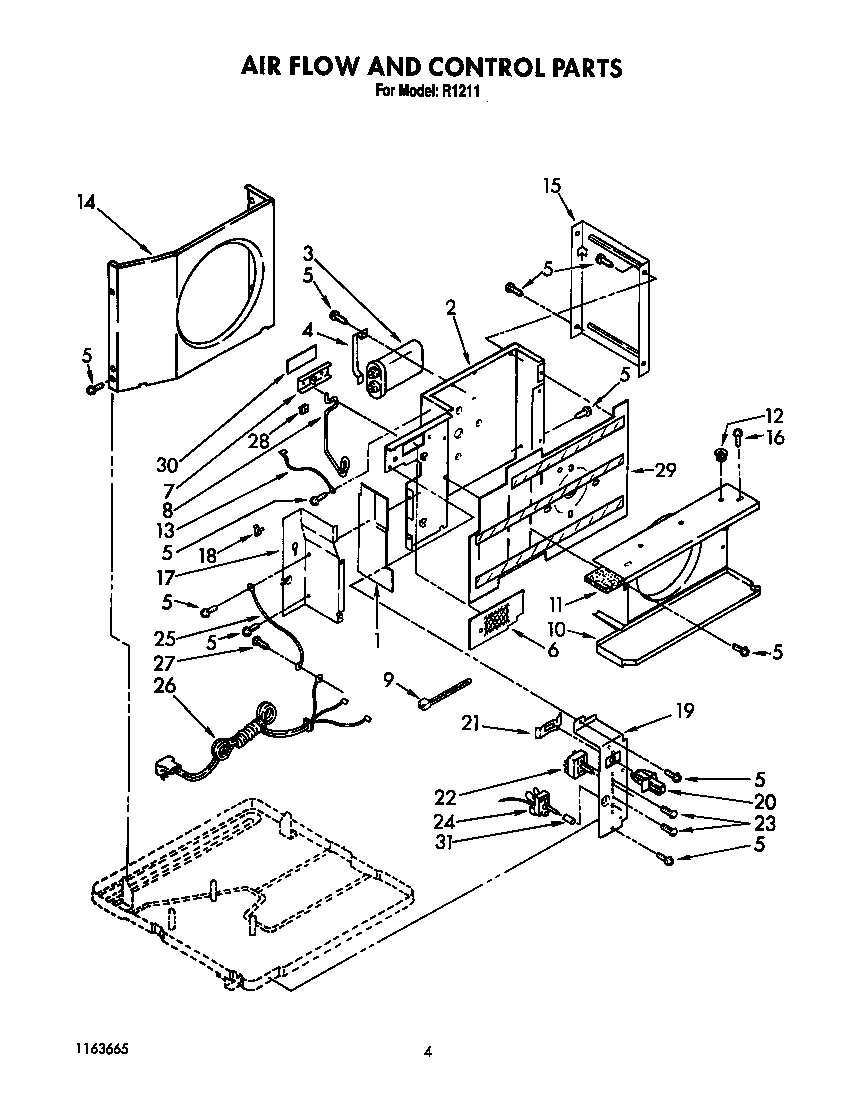

#25
Airflow and control diagram
Ground wire
Part #856094
Replaced by #857078
?
Manufacturer substitution
This part replaces 856094. Substitute parts can look different from the original.
$10.49 |
16% OFF Phone Price : $12.49
In Stock
#14B
Optional diagram
Cover
Part #484067
The manufacturer no longer makes this part, and there's no substitute part
