Model # 595M Official Minn Kota electric fishing motor

Here are the diagrams and repair parts for Official Minn Kota 595M electric fishing motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

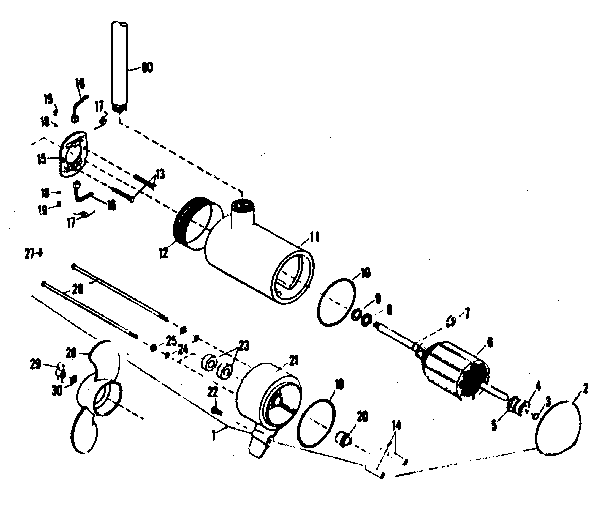

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Sftylck Plug 223670

#48

All parts diagram

Sftylck plug

Part #223670

The manufacturer no longer makes this part, and there's no substitute part

Switch 225403

#103

All parts diagram

Switch

Part #225403

The manufacturer no longer makes this part, and there's no substitute part

Ctr Sec/mgnt 409250

#11

All parts diagram

Ctr sec/mgnt

Part #409250

The manufacturer no longer makes this part, and there's no substitute part

Upper Arm 229380

#45

All parts diagram

Upper arm

Part #229380

The manufacturer no longer makes this part, and there's no substitute part

Screw 207214

#118

All parts diagram

Screw

Part #207214

The manufacturer no longer makes this part, and there's no substitute part

Br Plt Spcr 409150

#14

All parts diagram

Br plt spcr

Part #409150

The manufacturer no longer makes this part, and there's no substitute part

Drive Pin 223056

#124

All parts diagram

Drive pin

Part #223056

The manufacturer no longer makes this part, and there's no substitute part

Frt End Bell 409020

#2

All parts diagram

Frt end bell

Part #409020

The manufacturer no longer makes this part, and there's no substitute part

Propeller 209112

#28

All parts diagram

Propeller

Part #209112

The manufacturer no longer makes this part, and there's no substitute part

Bearing Ret 409301

#5

All parts diagram

Bearing ret

Part #409301

The manufacturer no longer makes this part, and there's no substitute part
