DeWalt
Angle Grinder

Model # D28112 TYPE 2 Official DeWalt angle grinder

Here are the diagrams and repair parts for Official DeWalt D28112-TYPE-2 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Grease 30301914-01
#800B

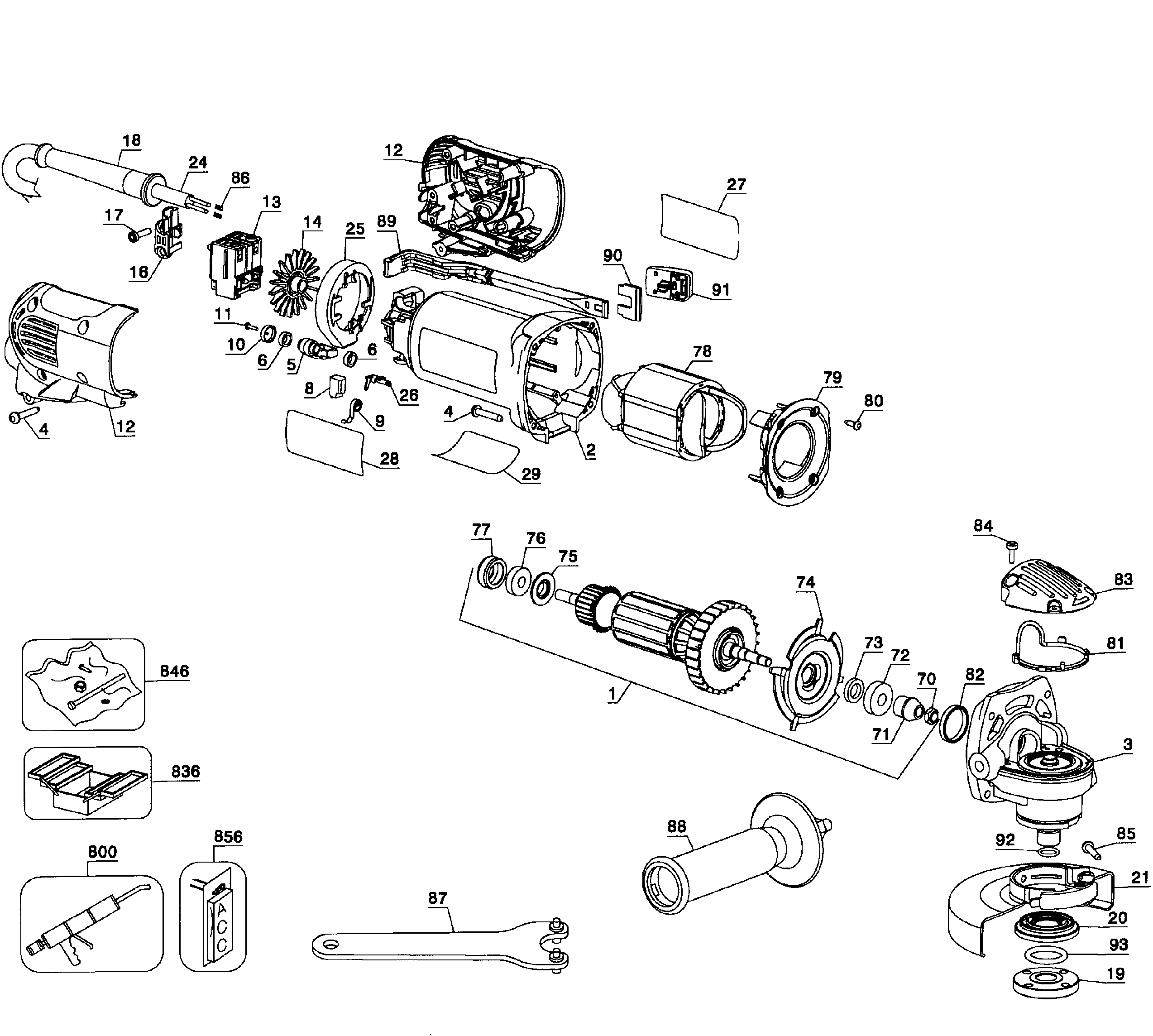

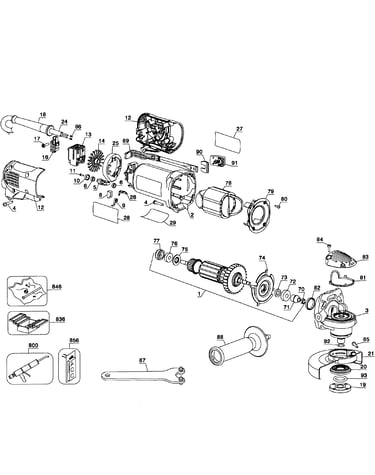

Grinder angle diagram

Grease

Part #30301914-01

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 623608-00
#91

Grinder angle diagram

Switch button

Part #623608-00

The manufacturer no longer makes this part, and there's no substitute part

Shim 5140030-98
#846

Grinder angle diagram

Shim

Part #5140030-98

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Motor Brush Spring 623589-00
#9

Grinder angle diagram

Angle grinder motor brush spring

Part #623589-00

The manufacturer no longer makes this part, and there's no substitute part

Baffle 637616-00
#25

Grinder angle diagram

Baffle

Part #637616-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 611492-00
#82

Grinder angle diagram

Sleeve

Part #611492-00

The manufacturer no longer makes this part, and there's no substitute part

Warning La N119716
#29

Grinder angle diagram

Warning la

Part #N119716

The manufacturer no longer makes this part, and there's no substitute part

Baffle 623572-00
#79

Grinder angle diagram

Baffle

Part #623572-00

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Guard 397661-01
#21

Grinder angle diagram

Angle grinder guard

Part #397661-01

The manufacturer no longer makes this part, and there's no substitute part

Pinion 657180-00
#71

Grinder angle diagram

Pinion

Part #657180-00

The manufacturer no longer makes this part, and there's no substitute part
