Kenmore Elite
Electric Range

Model # 79042563319 Official Kenmore Elite slide-in electric range

Here are the diagrams and repair parts for Official Kenmore Elite 79042563319 slide-in electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

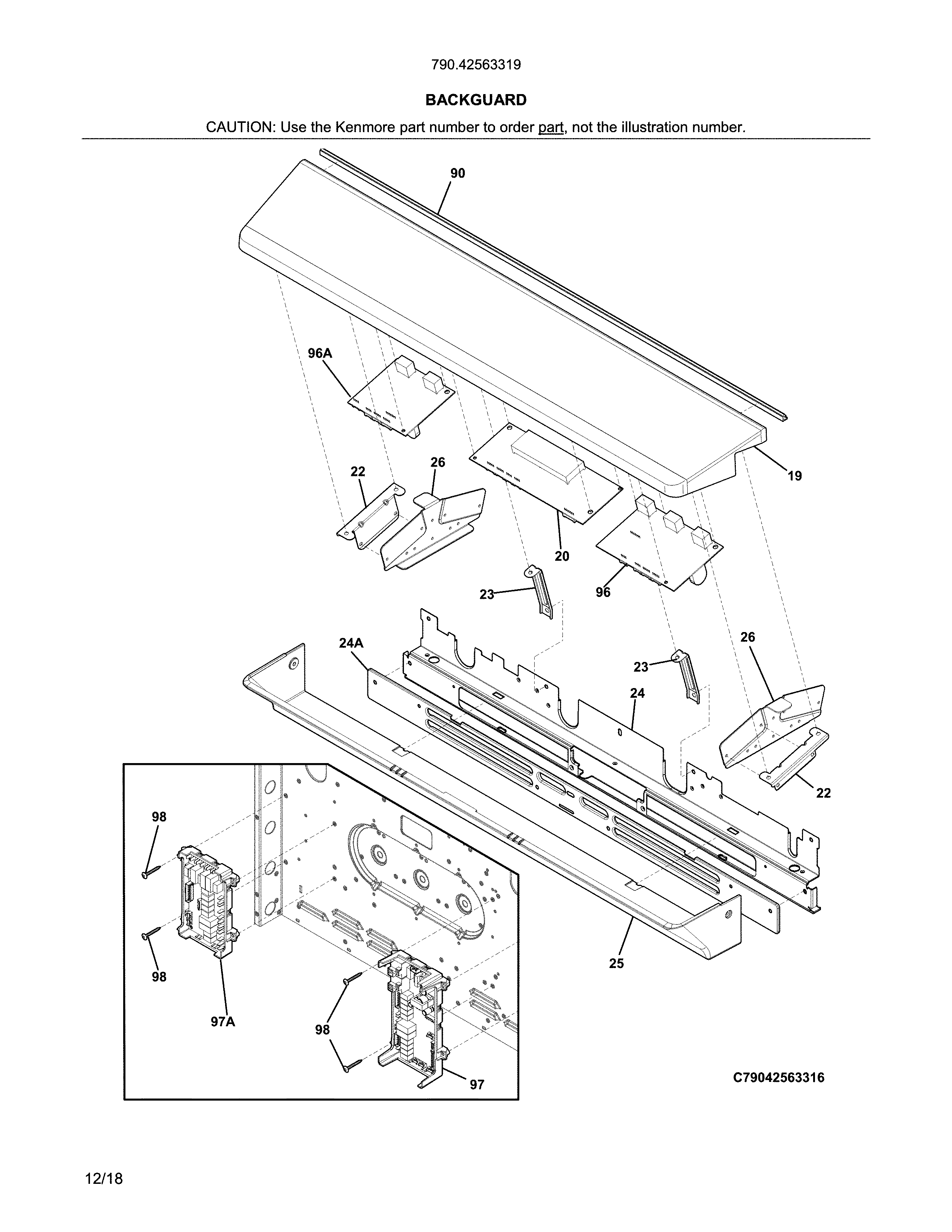

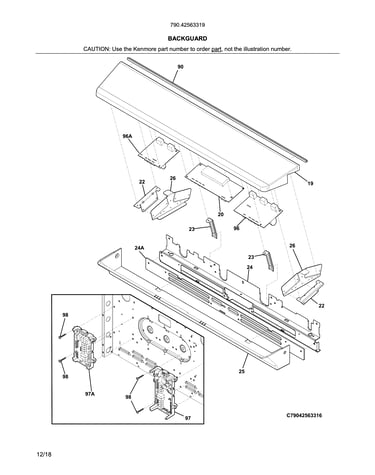

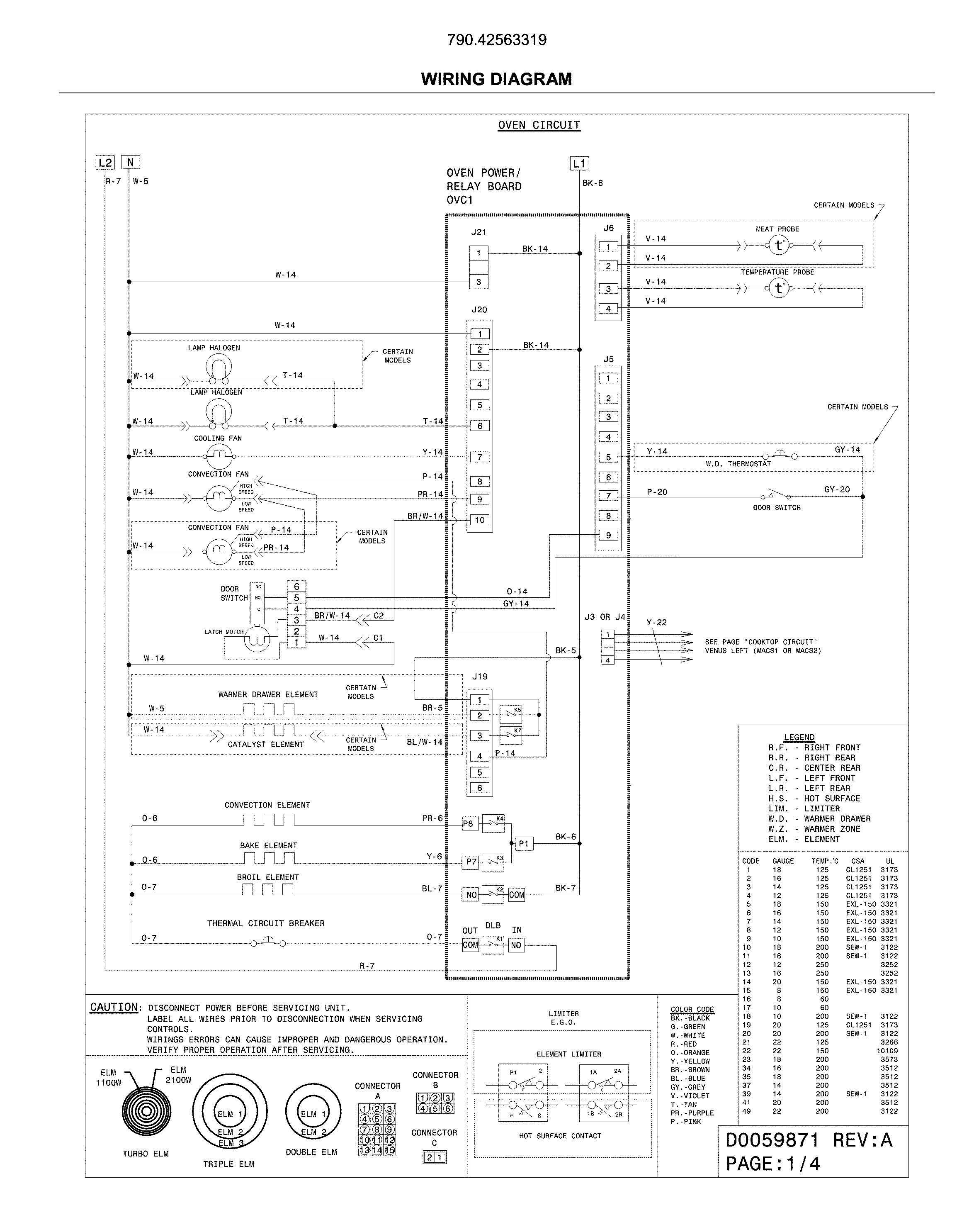

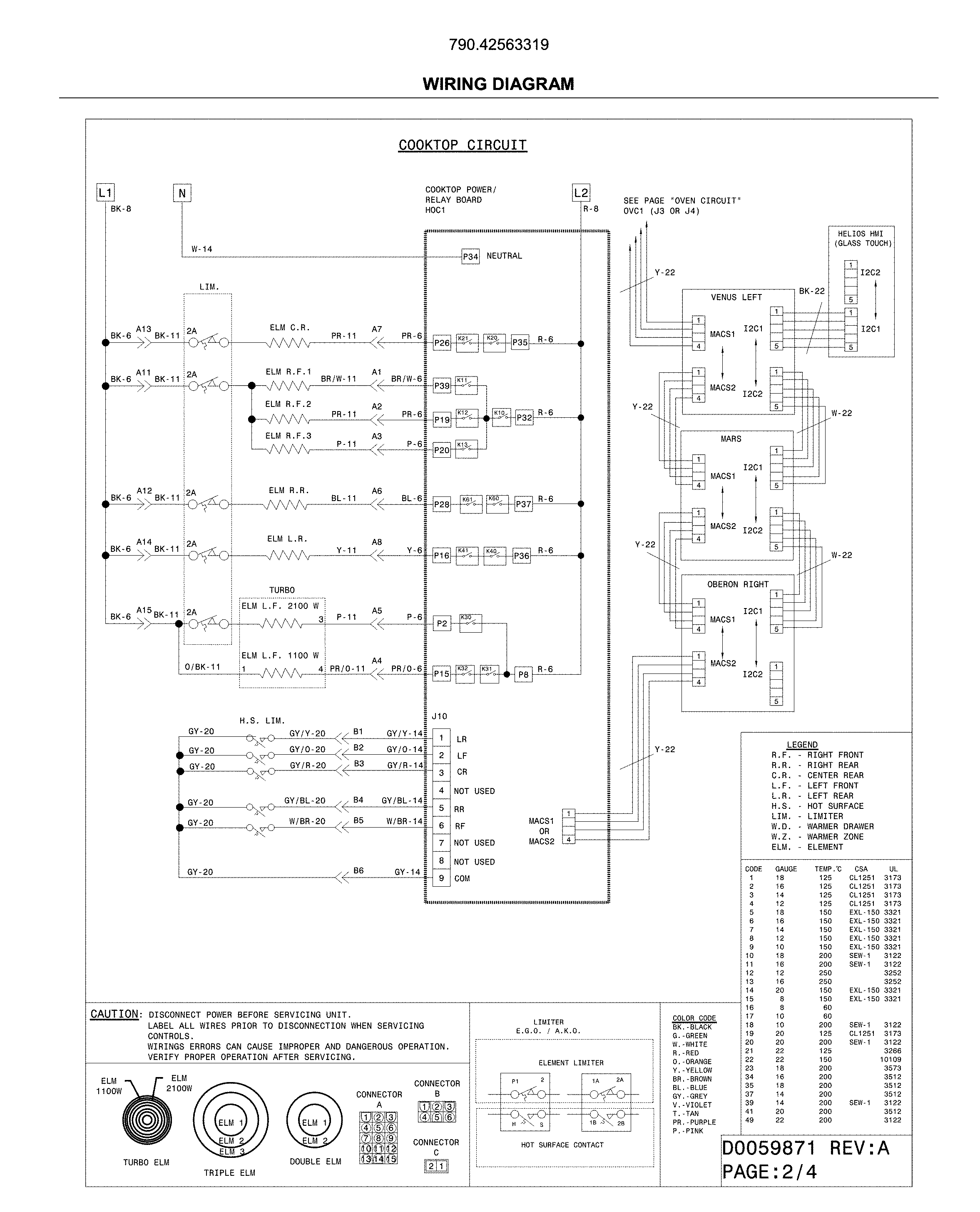

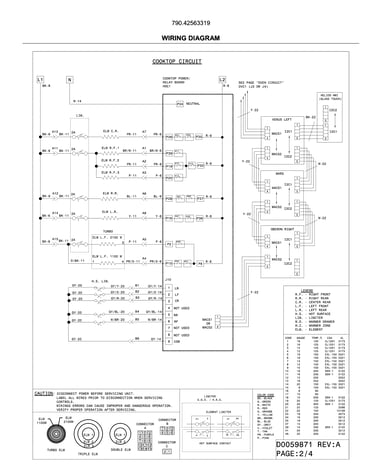

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Range Oven Door Inner Glass 316117503
#8

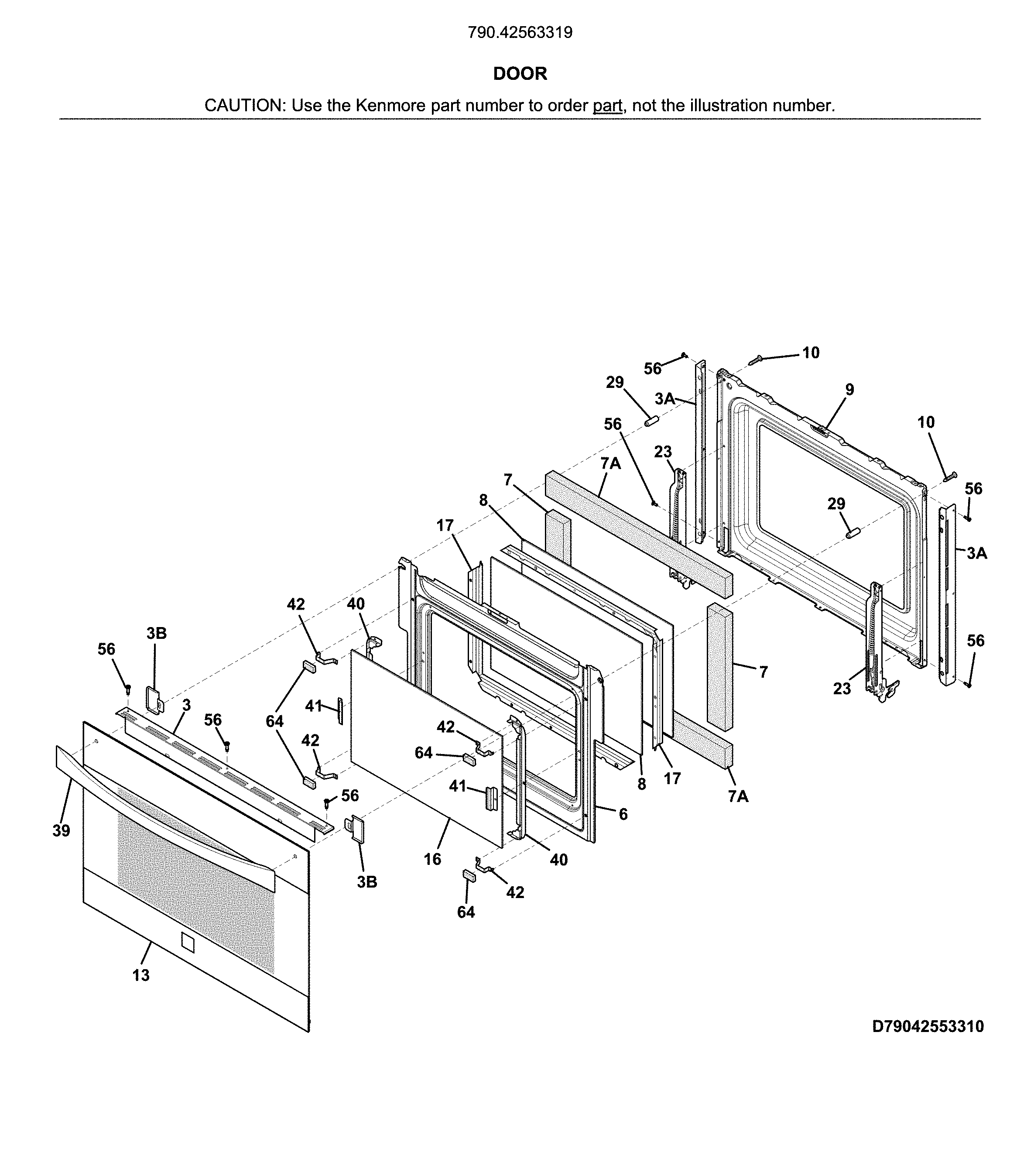

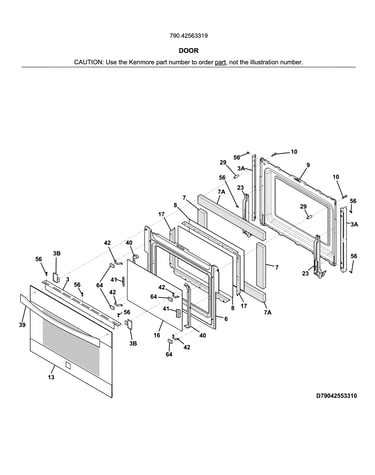

Door diagram

Range oven door inner glass

Part #316117503

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117503. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Ikea Range Radiant Surface Element, 9-in (replaces 316530000) 316530001
#15A

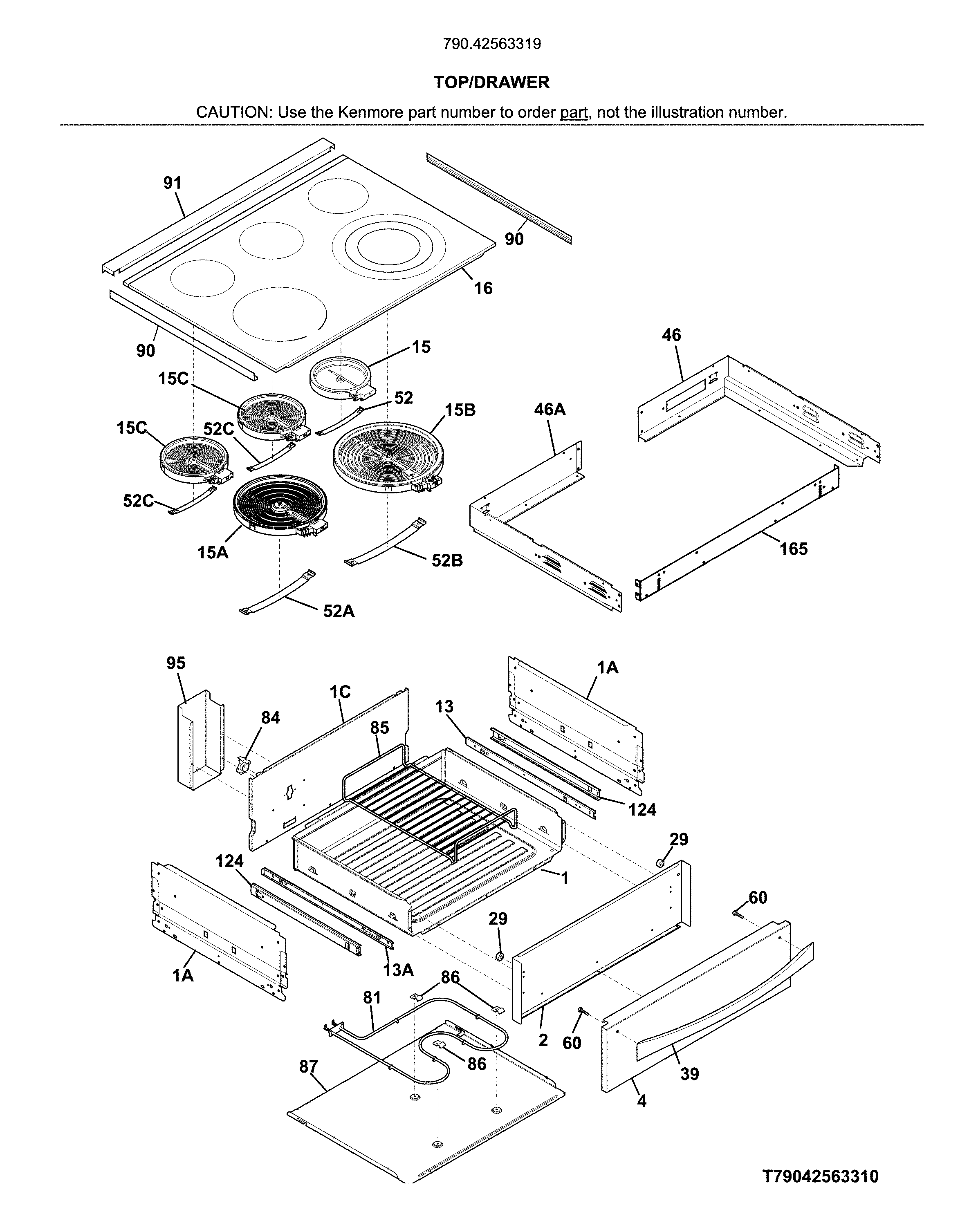

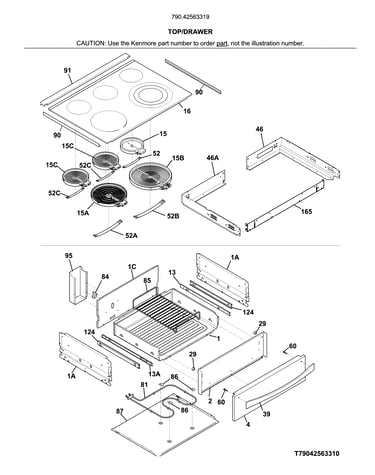

Top/drawer diagram

Ikea range radiant surface element, 9-in (replaces 316530000)

Part #316530001

BEST SELLER
$158.22 |
7% OFF Phone Price : $170.22
In Stock
Terminal Block 5303935061
#62

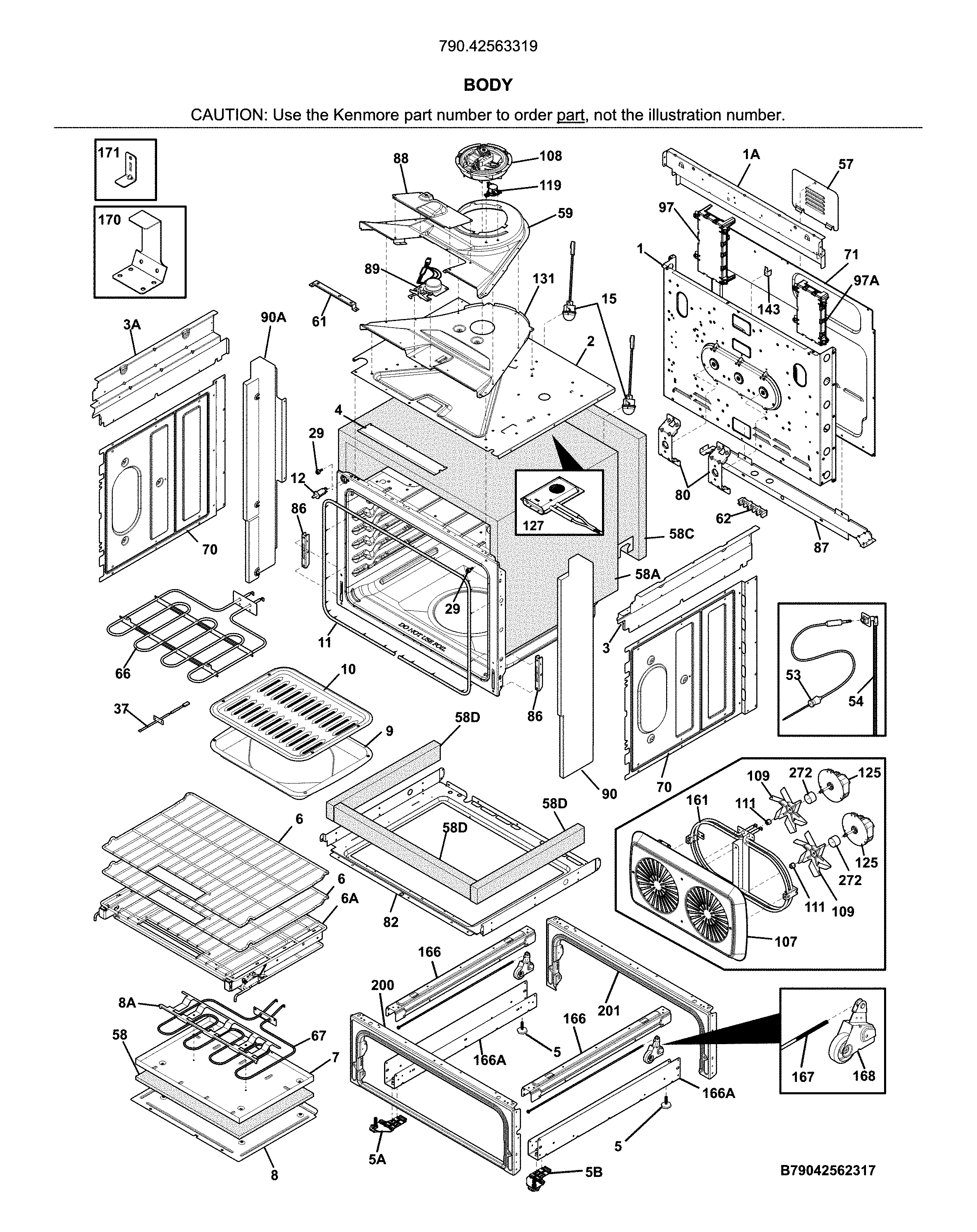

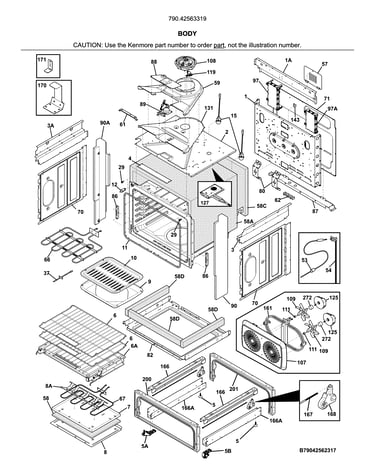

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Cooking Appliance Oven Temperature Sensor 5304504897
#37

Body diagram

Cooking appliance oven temperature sensor

Part #5304504897

BEST SELLER
$32.64 |
16% OFF Phone Price : $38.64
In Stock
Range Oven Relay Control Board 316472802
Range oven relay control board

Part #316472802

Replaced by #316472807

?
Manufacturer substitution
This part replaces 316472802. Substitute parts can look different from the original.
BEST SELLER
$260.79 |
$12.00 OFF Phone Price : $272.79
In Stock
Range Screw, #10-24 X 1.94-in (replaces 316439501, 316513301, 5304502177) 5304507924
#10

Door diagram

Range screw, #10-24 x 1.94-in (replaces 316439501, 316513301, 5304502177)

Part #5304507924

BEST SELLER
This item is not returnable
$7.39 |
12% OFF Phone Price : $8.39
In Stock
Range Oven Door Outer Glass 316446400
#16

Door diagram

Range oven door outer glass

Part #316446400

Replaced by #316446401

?
Manufacturer substitution
This part replaces 316446400. Substitute parts can look different from the original.
BEST SELLER
$53.57 |
10% OFF Phone Price : $59.57
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
#NI

Body diagram

Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Screw 316021110
Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105
Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
