Model # AZ31H15D3CV3 Official GE zoneline air conditioner

Here are the diagrams and repair parts for Official GE AZ31H15D3CV3 zoneline air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forAZ31H15D3CV3 Zoneline Air Conditioner

  • Room Air Conditioner Rotary Switch WP28X56
    #86

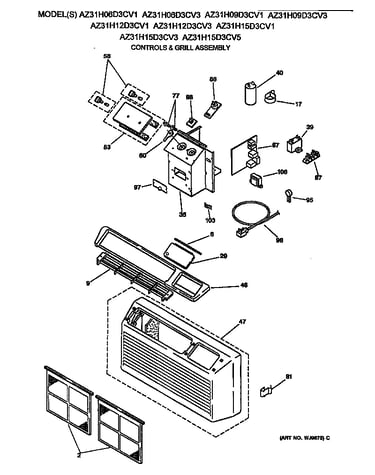

    Controls & grill assembly diagram

    Room air conditioner rotary switch

    Part #WP28X56

    $113.32 |
    10% OFF Phone Price : $125.32
    In Stock
  • Capillary WJ53X130
    #11

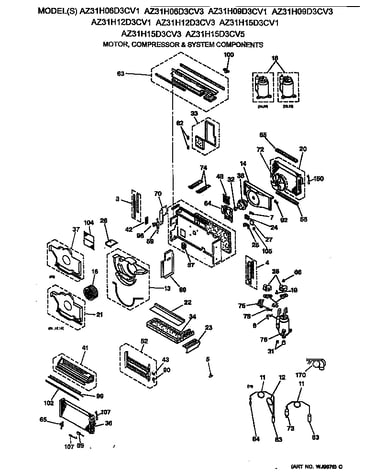

    Motor, compressor & system components diagram

    Capillary

    Part #WJ53X130

    $47.18
    In Stock
  • Technical Data 31-8897

    #NI

    All parts diagram

    Technical data

    Part #31-8897

    $23.50 |
    20% OFF Phone Price : $29.50
    In Stock
  • Technical Data 31-8898

    #NI

    All parts diagram

    Technical data

    Part #31-8898

    $21.99
    In Stock
  • Technical Data 31-8896

    #NI

    All parts diagram

    Technical data

    Part #31-8896

    $21.99
    In Stock
  • Zoneline 210 49-7283

    #NI

    All parts diagram

    Zoneline 210

    Part #49-7283

    Replaced by #49-7365

    ?
    Manufacturer substitution
    This part replaces 49-7283. Substitute parts can look different from the original.
    $8.49
    In Stock
  • Strainer WP56X11
    #73

    Motor, compressor & system components diagram

    Strainer

    Part #WP56X11

    The manufacturer no longer makes this part, and there's no substitute part

  • Capacitor WP20X41
    #40

    Controls & grill assembly diagram

    Capacitor

    Part #WP20X41

    The manufacturer no longer makes this part, and there's no substitute part

  • Out Door Shroud WP76X20
    #14

    Motor, compressor & system components diagram

    Out door shroud

    Part #WP76X20

    The manufacturer no longer makes this part, and there's no substitute part

  • Room Air Conditioner Control Panel And Grille Frame WP71X45
    #46

    Controls & grill assembly diagram

    Room air conditioner control panel and grille frame

    Part #WP71X45

    The manufacturer no longer makes this part, and there's no substitute part

Loading...
