Maytag
Side-By-Side Refrigerator

Model # MSD2355HES Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MSD2355HES refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

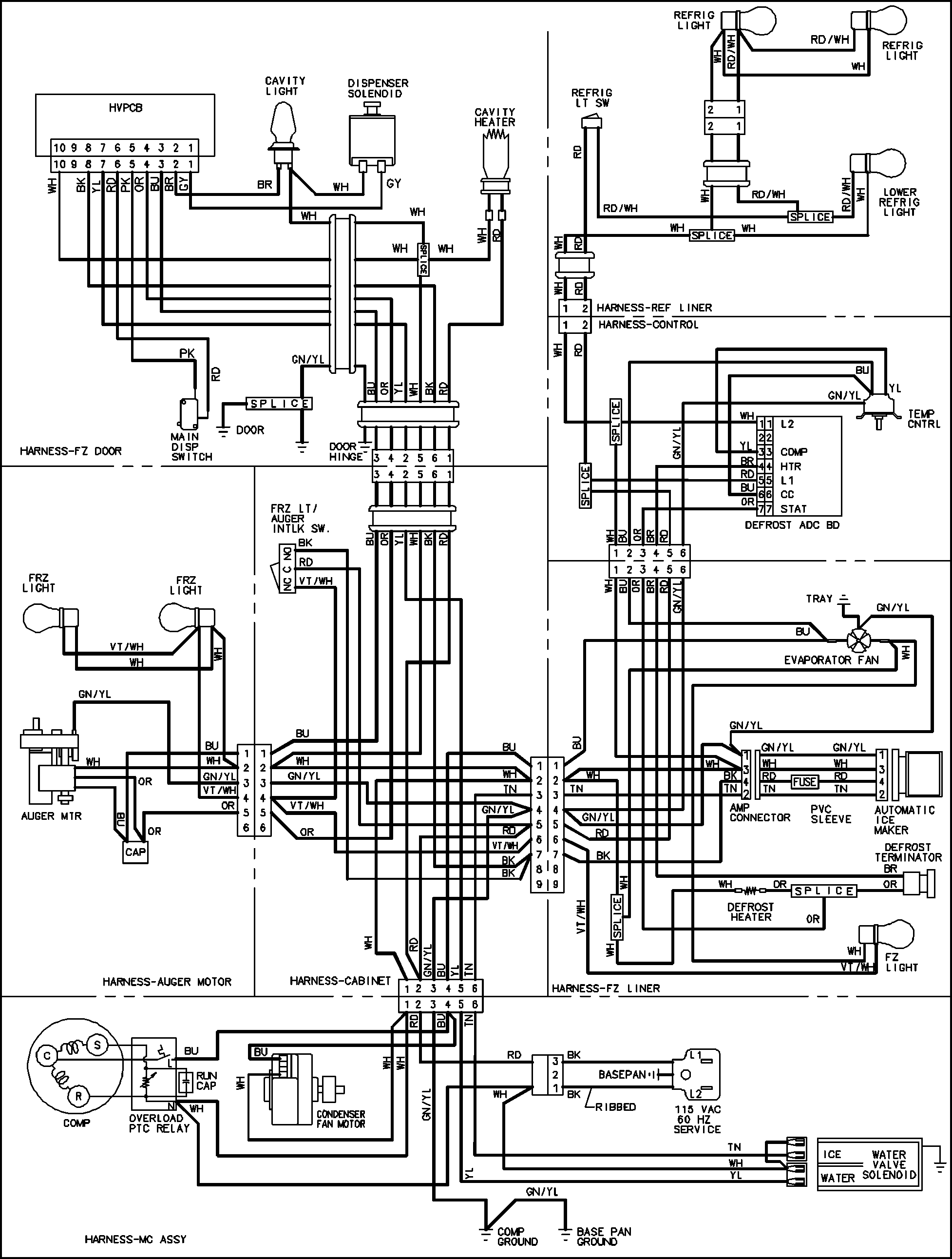

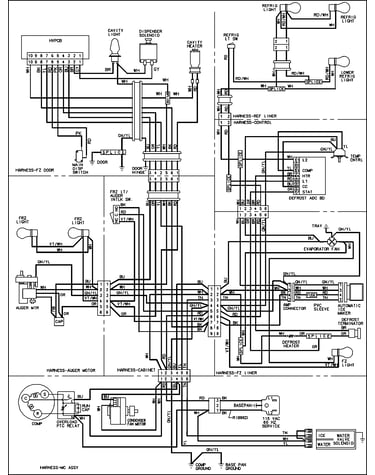

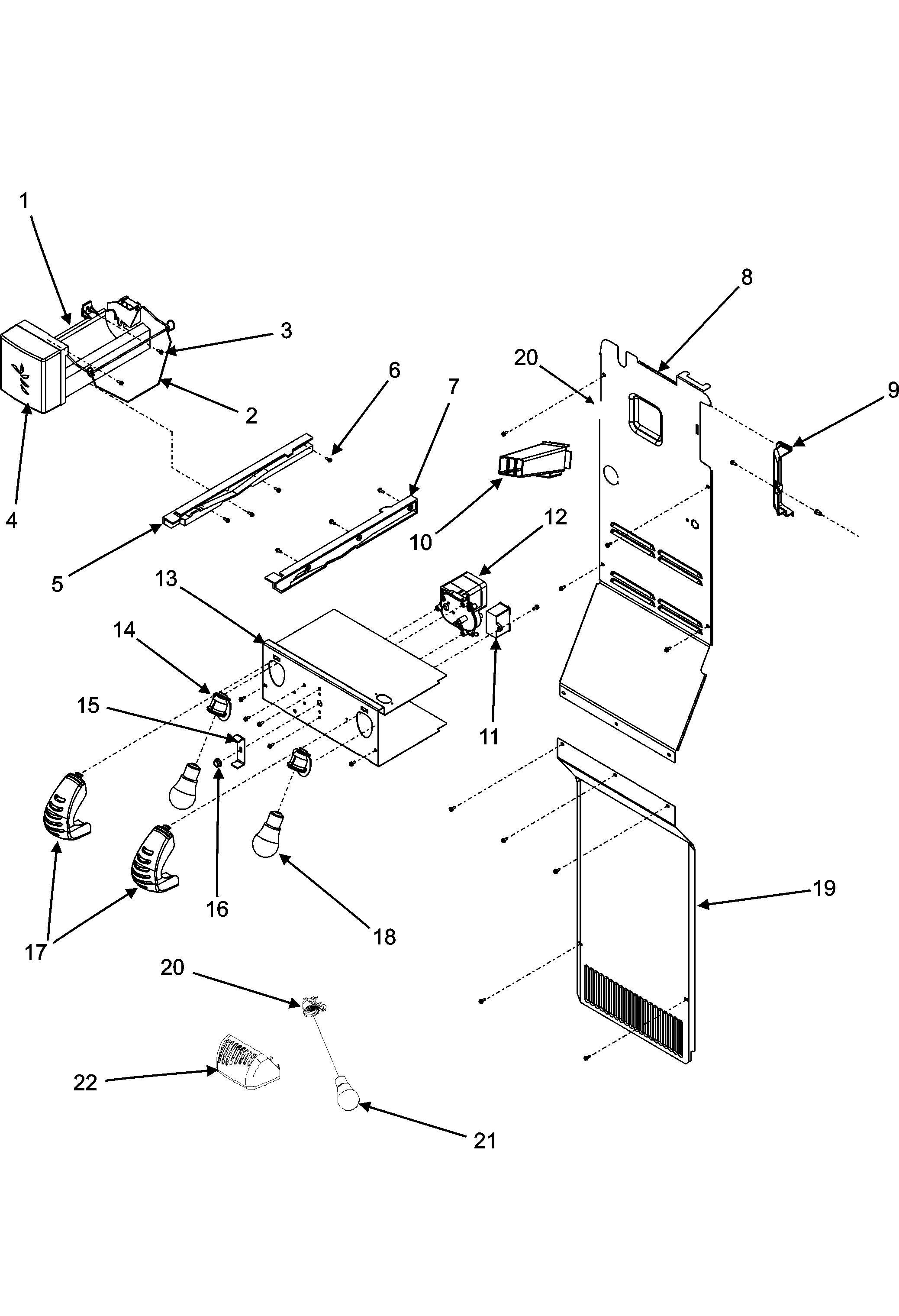

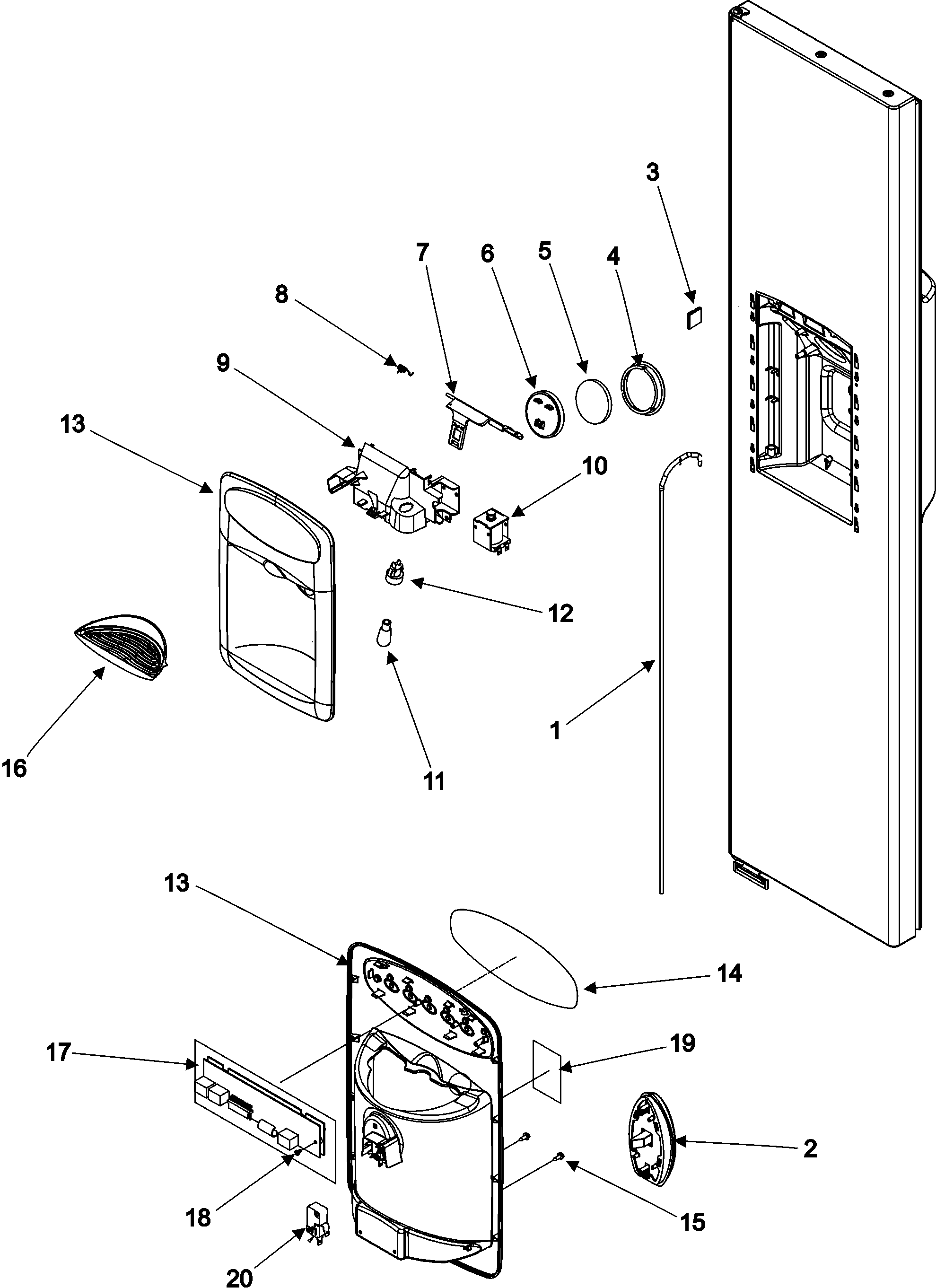

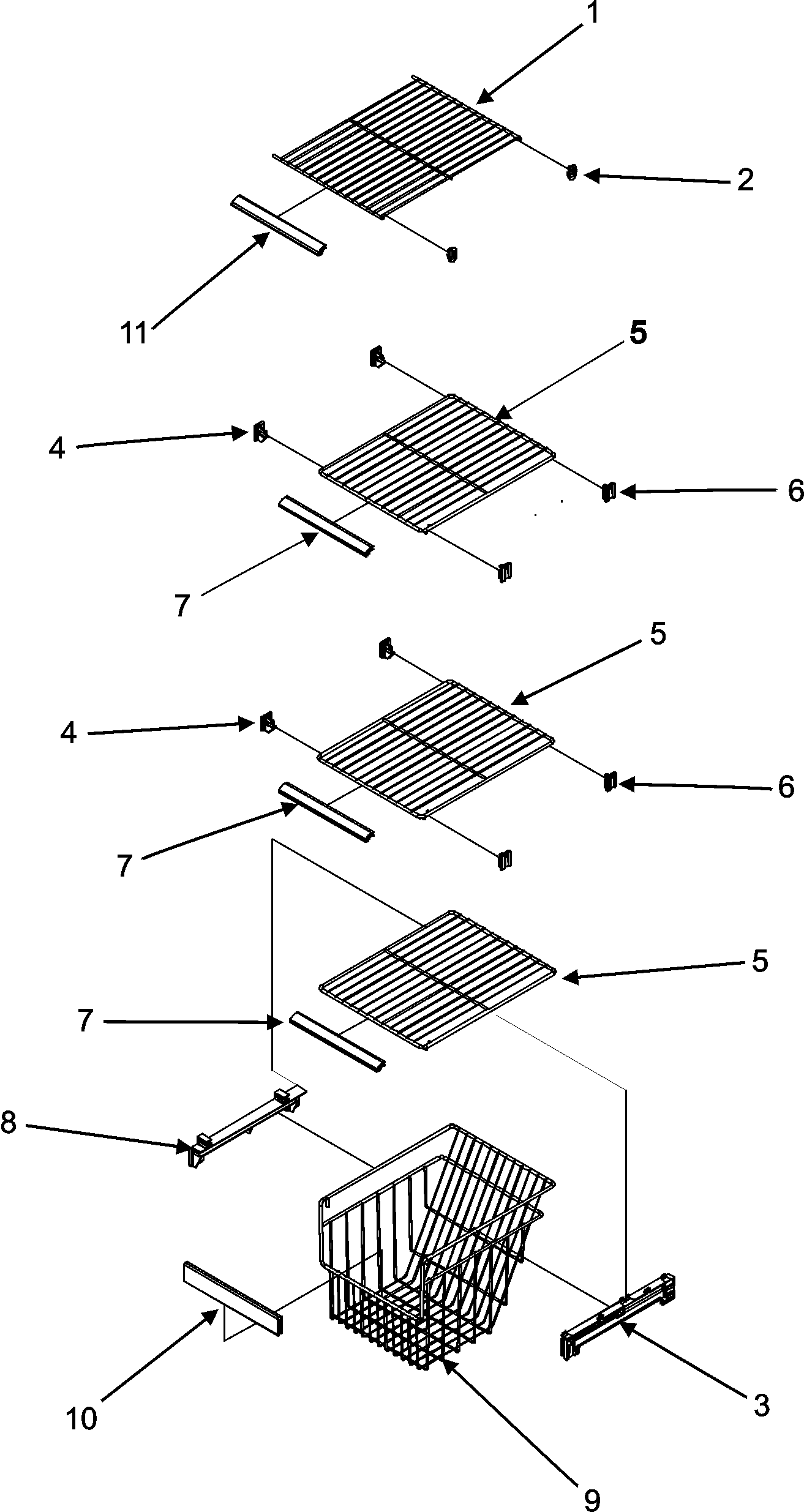

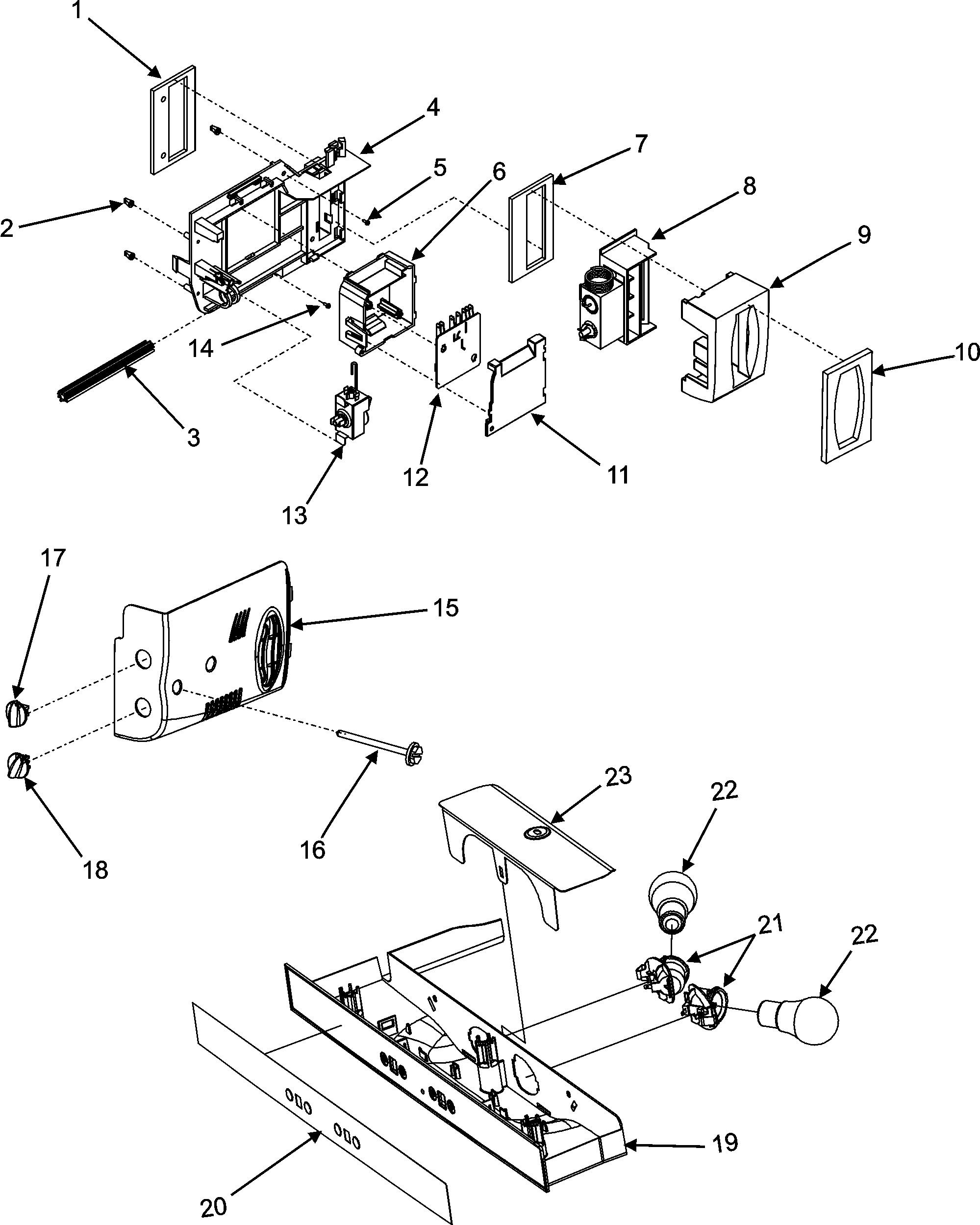

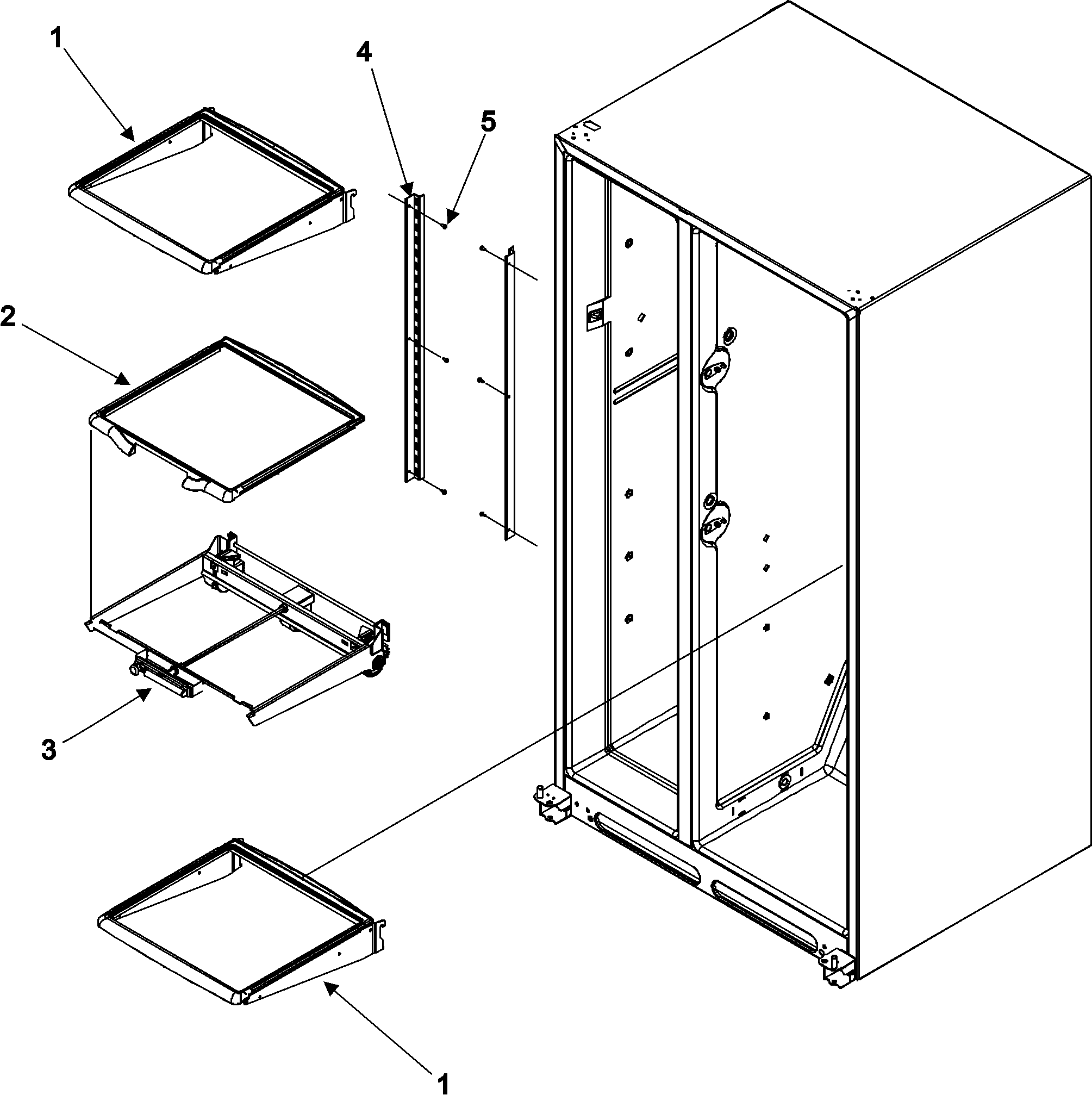

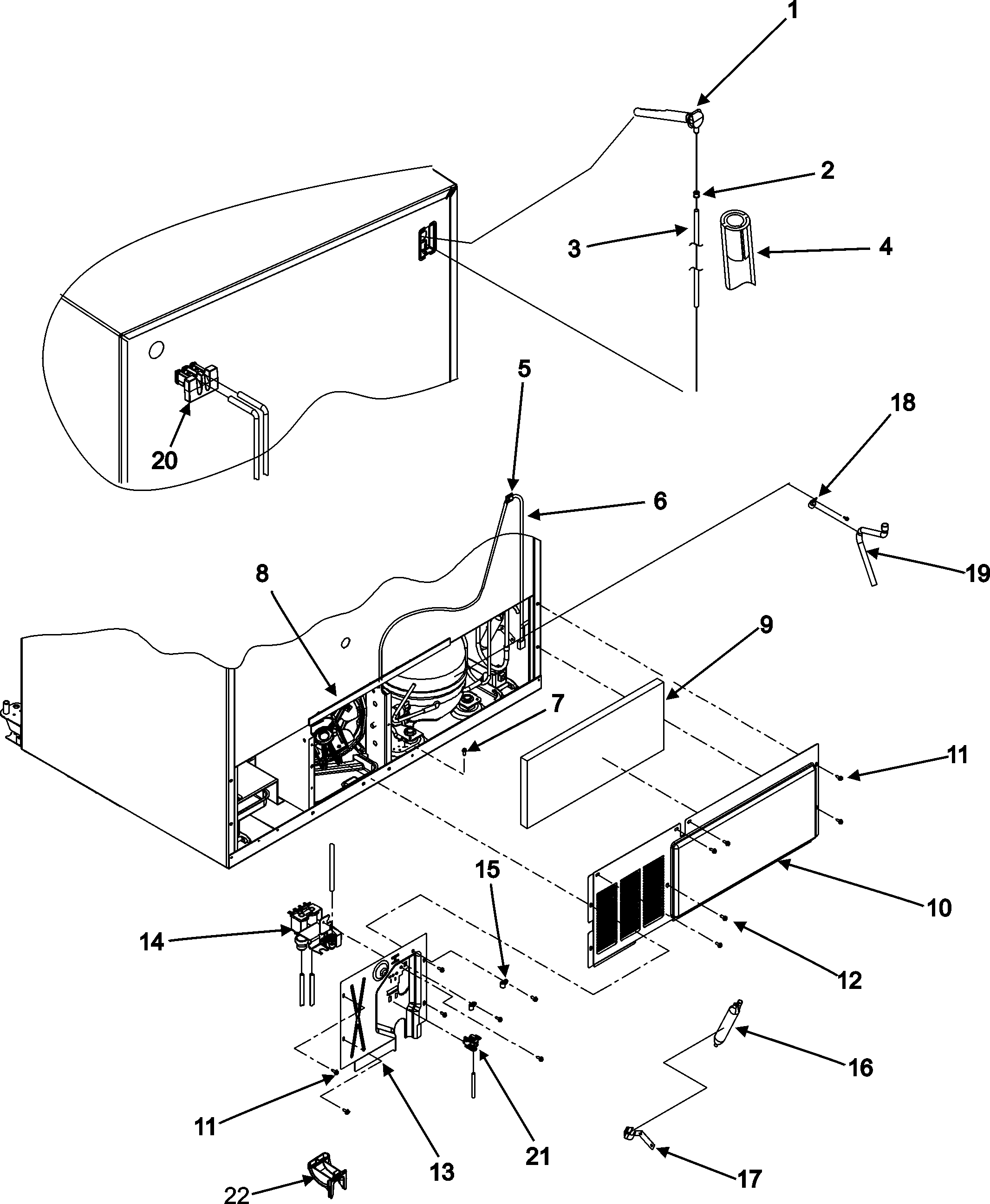

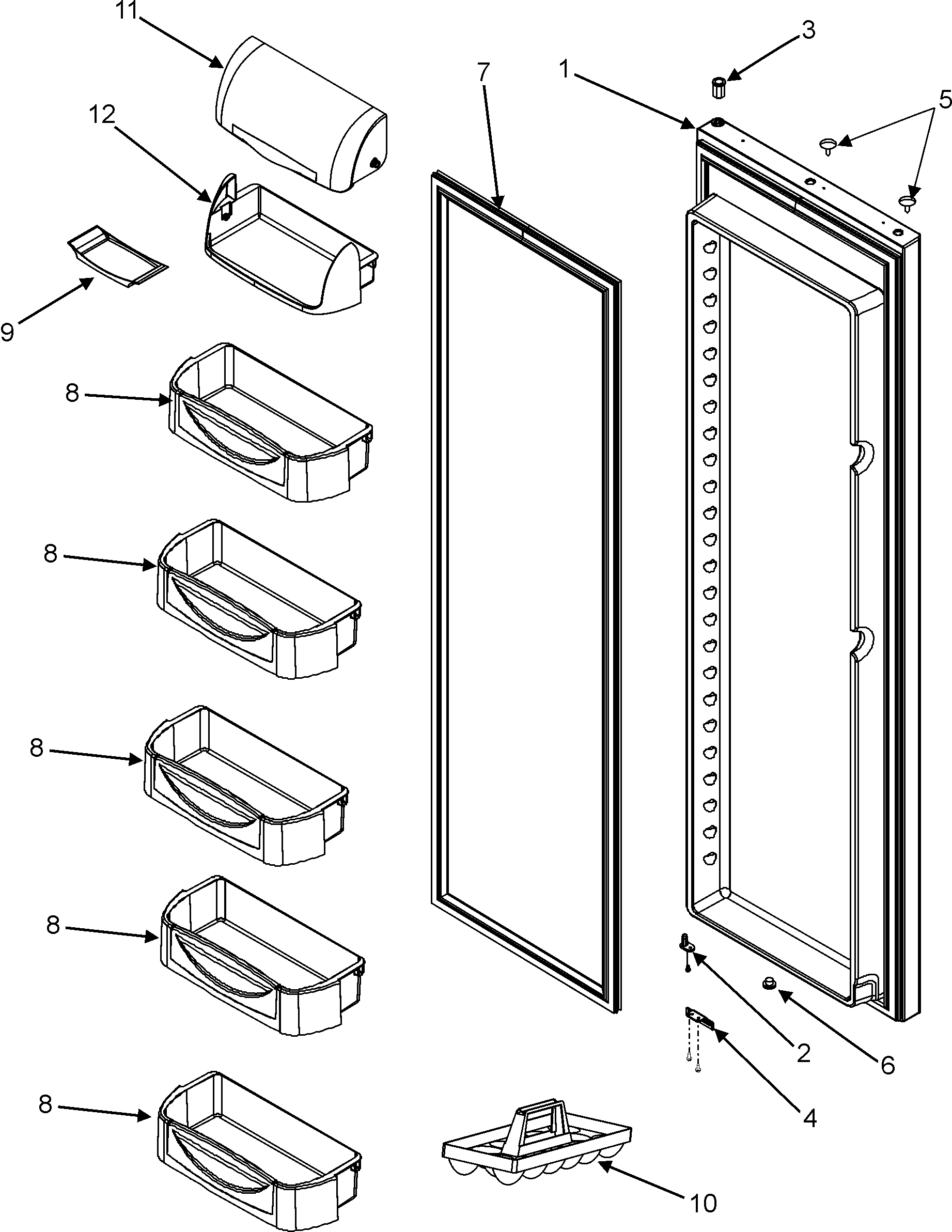

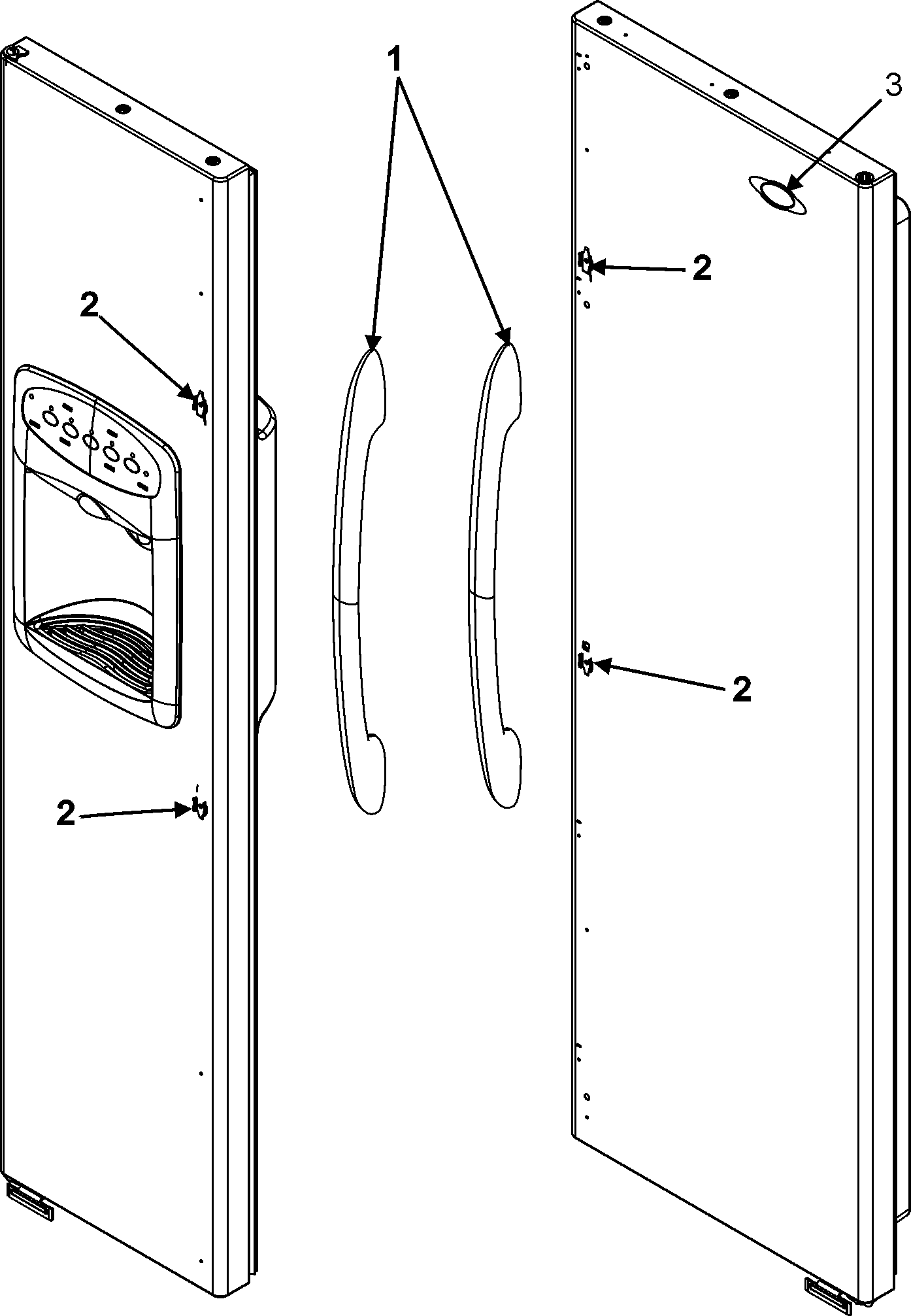

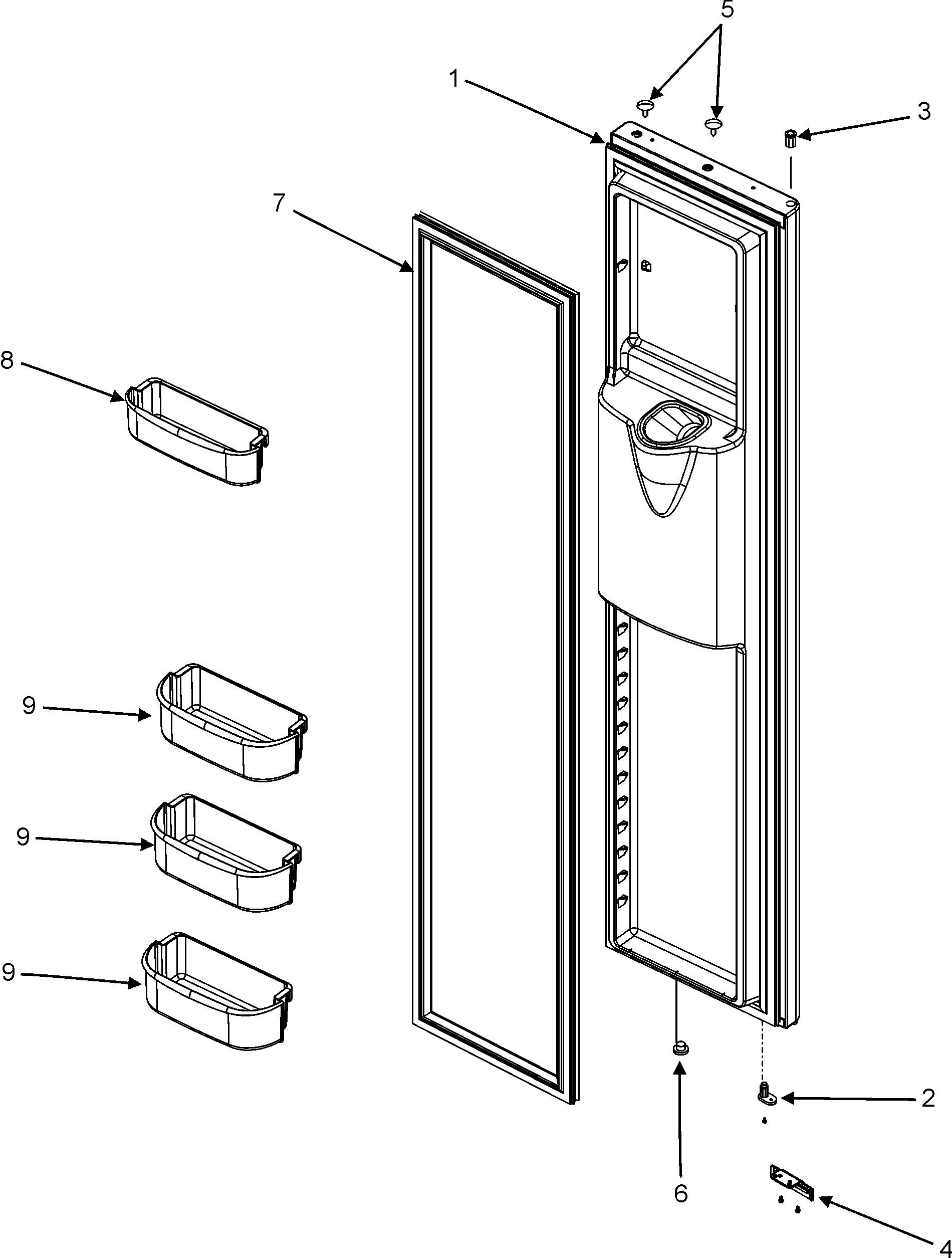

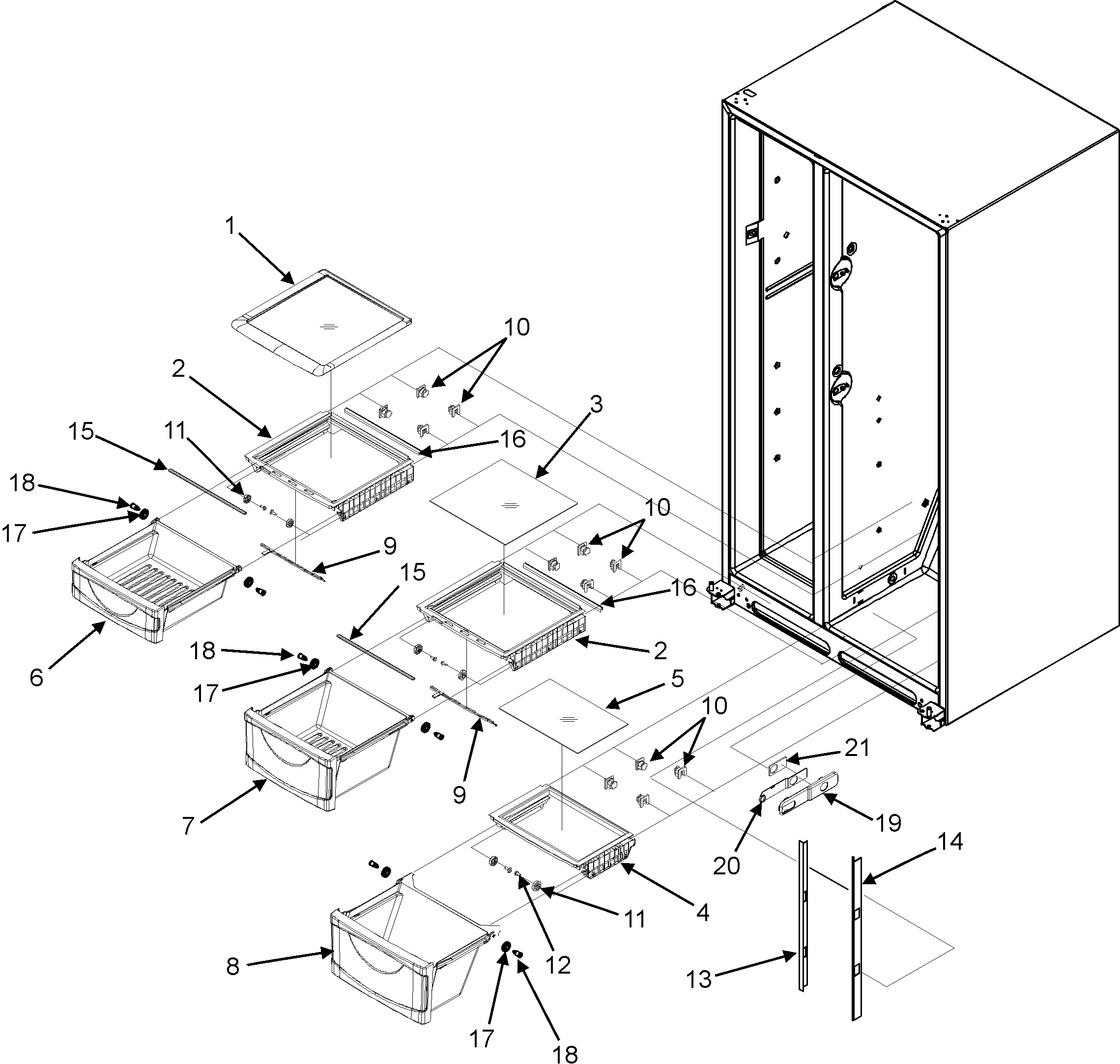

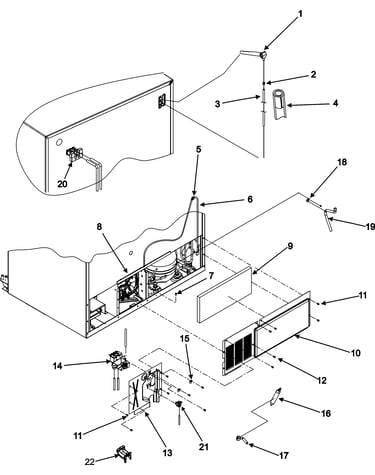

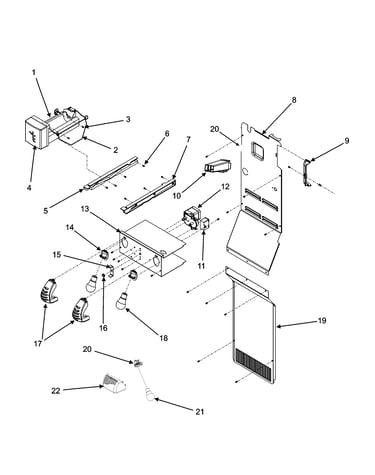

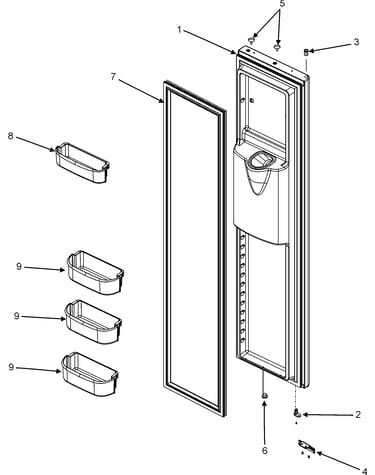

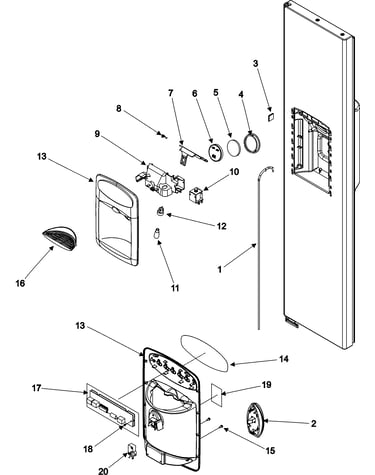

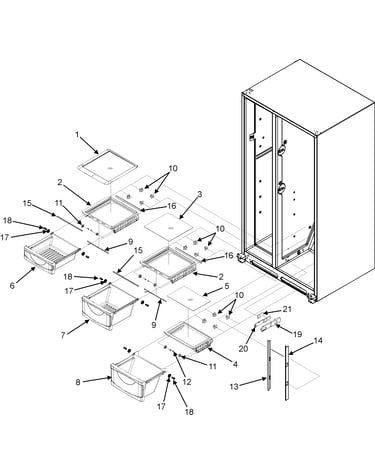

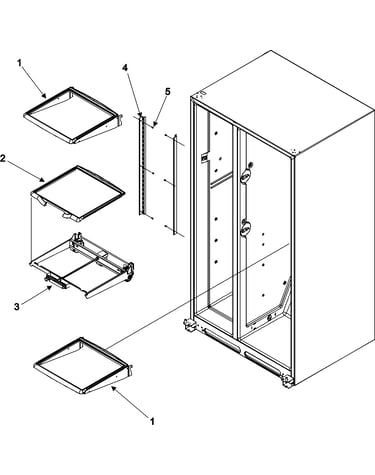

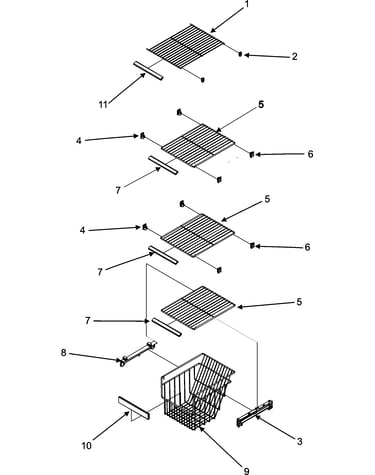

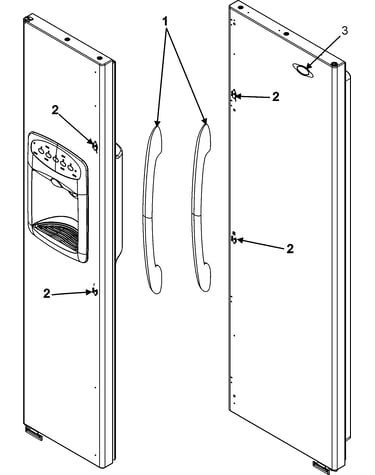

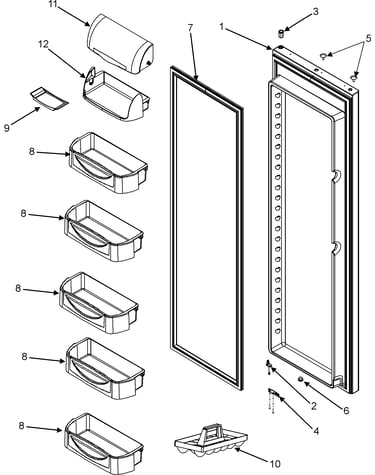

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 269 parts  |
Refrigerator Water Filter 67003591
#15

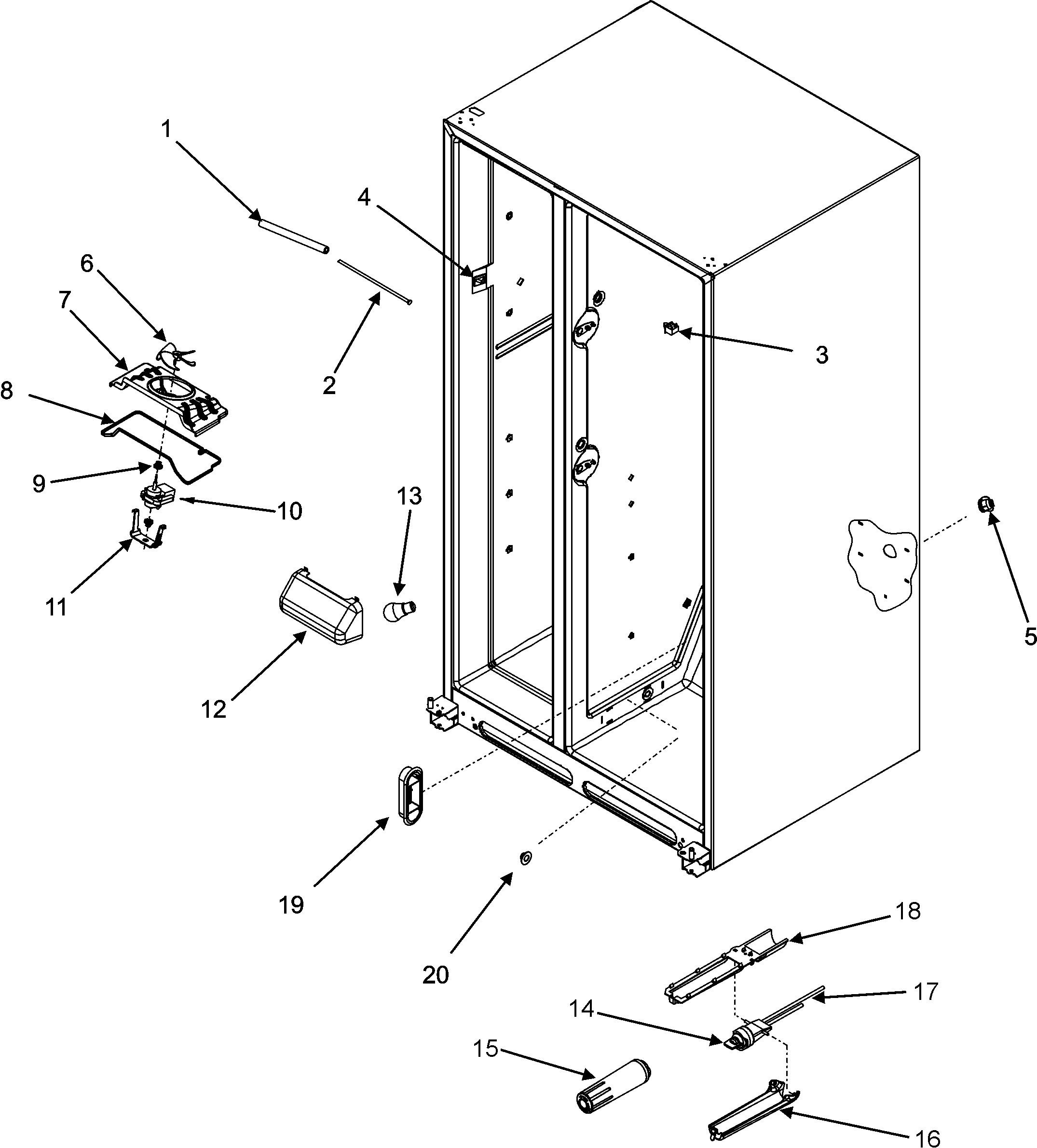

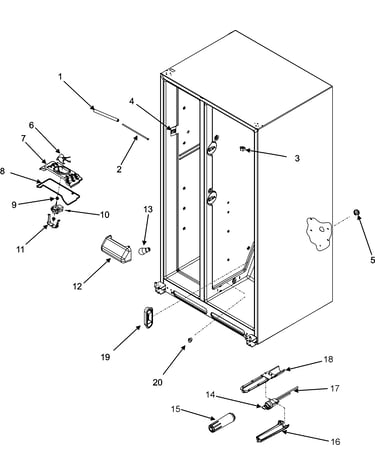

Evap fan assy./crisp light/waterfilter diagram

Refrigerator water filter

Part #67003591

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces 67003591. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock

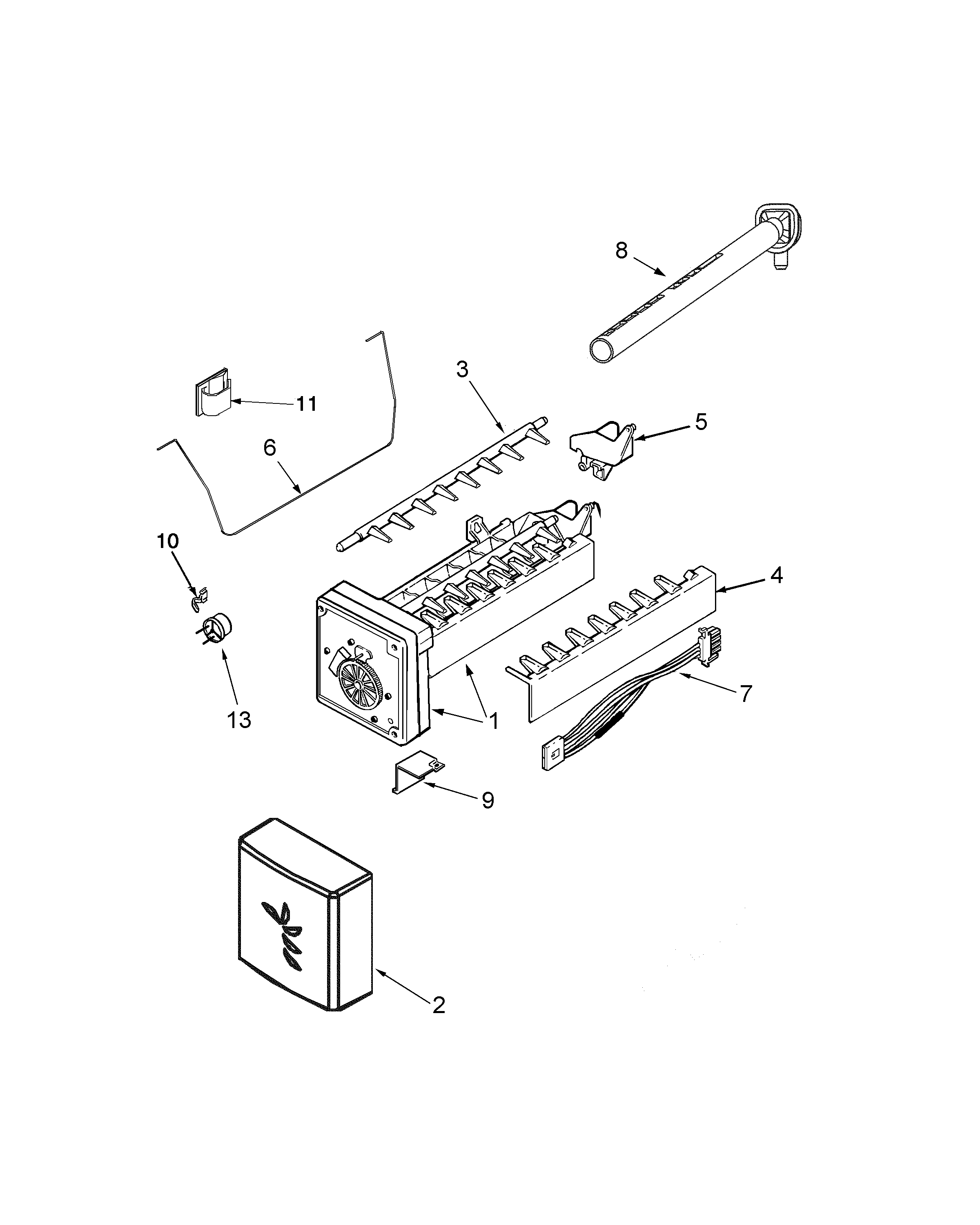

Refrigerator Ice Maker 61005508
Refrigerator ice maker

Part #61005508

Replaced by #D7824706Q

?
Manufacturer substitution
This part replaces 61005508. Substitute parts can look different from the original.
BEST SELLER
$78.39 |
7% OFF Phone Price : $84.39
In Stock
Refrigerator Evaporator Fan Blade 12217201
#6

Evap fan assy./crisp light/waterfilter diagram

Refrigerator evaporator fan blade

Part #12217201

Replaced by #WP2169142

?
Manufacturer substitution
This part replaces 12217201. Substitute parts can look different from the original.
BEST SELLER
$37.11 |
14% OFF Phone Price : $43.11
In Stock
Refrigerator Compressor 67002782
#2

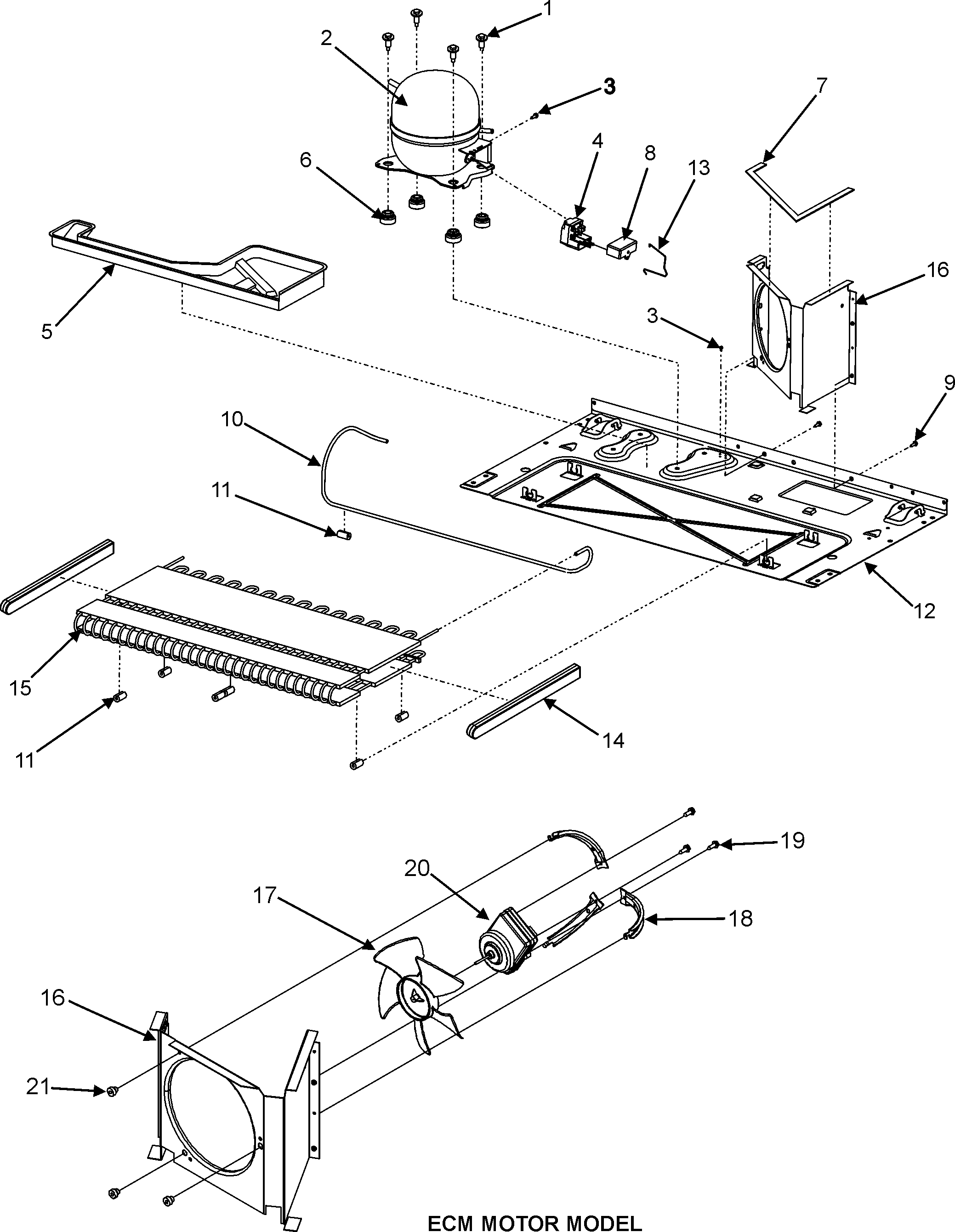

Compressor diagram

Refrigerator compressor

Part #67002782

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 67002782. Substitute parts can look different from the original.
BEST SELLER
$338.61 |
$12.00 OFF Phone Price : $350.61
In Stock
Refrigerator Overload Release 67003764
#4

Compressor diagram

Refrigerator overload release

Part #67003764

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67003764. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Light Switch 12466103
#4

Evap fan assy./crisp light/waterfilter diagram

Refrigerator light switch

Part #12466103

Replaced by #W11396033

?
Manufacturer substitution
This part replaces 12466103. Substitute parts can look different from the original.
BEST SELLER
$20.47 |
23% OFF Phone Price : $26.47
In Stock
Blade, Cond 67004952
#17

Compressor diagram

Blade, cond

Part #67004952

Replaced by #W10156818

?
Manufacturer substitution
This part replaces 67004952. Substitute parts can look different from the original.
BEST SELLER
$41.43 |
13% OFF Phone Price : $47.43
In Stock
Refrigerator Water Filter Housing 12568001
#16

Evap fan assy./crisp light/waterfilter diagram

Refrigerator water filter housing

Part #12568001

Replaced by #WP12568001

?
Manufacturer substitution
This part replaces 12568001. Substitute parts can look different from the original.
BEST SELLER
$50.76 |
11% OFF Phone Price : $56.76
In Stock
Refrigerator Water Supply Tube Union, 5/16 X 5/16-in 61006182
#8

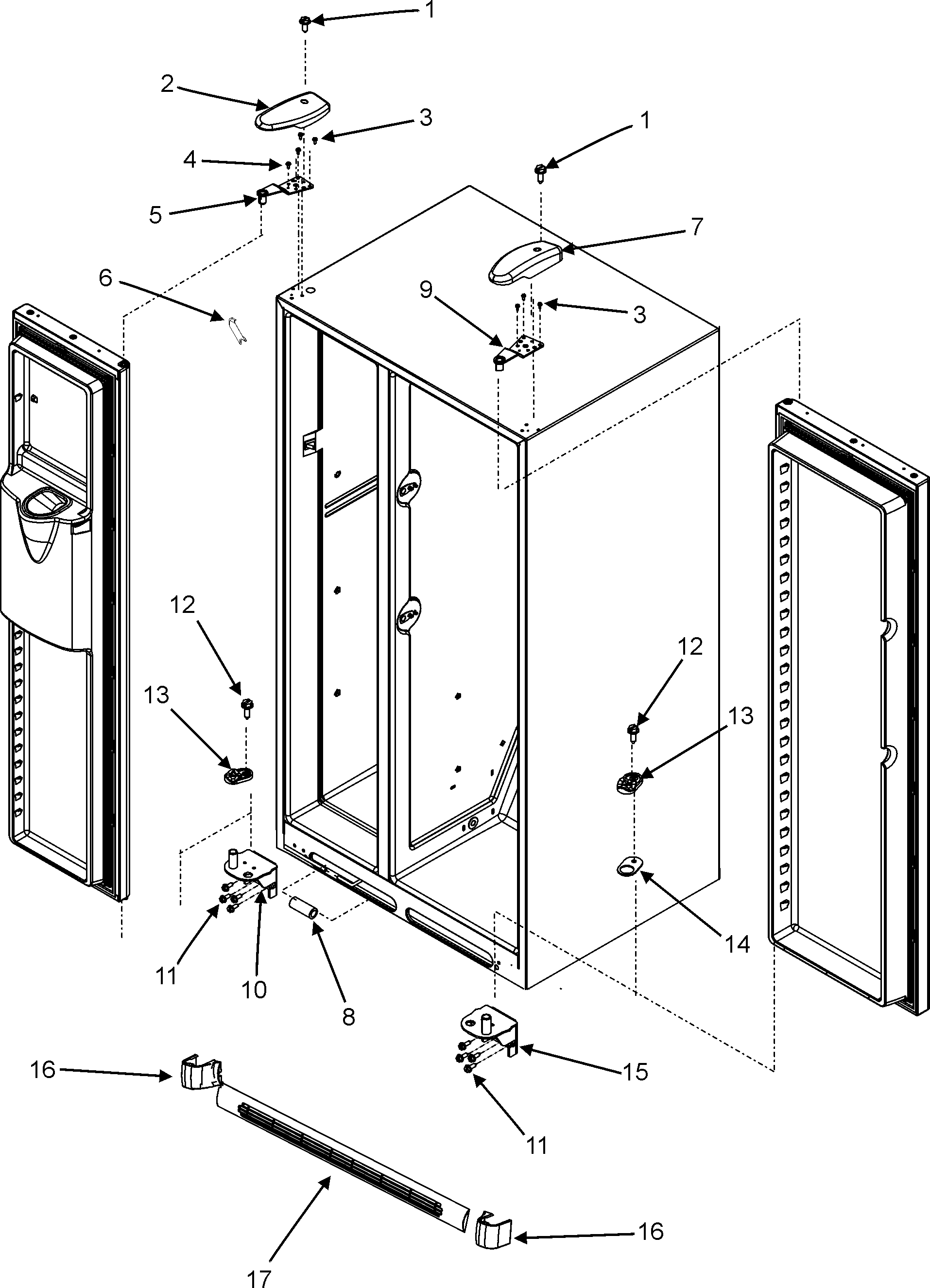

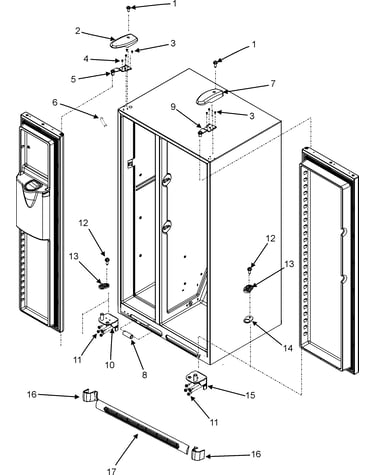

Hinges diagram

Refrigerator water supply tube union, 5/16 x 5/16-in

Part #61006182

Replaced by #WP2300868

?
Manufacturer substitution
This part replaces 61006182. Substitute parts can look different from the original.
BEST SELLER
$16.37 |
11% OFF Phone Price : $18.37
In Stock
Refrigerator Thermostat 67003964
#3

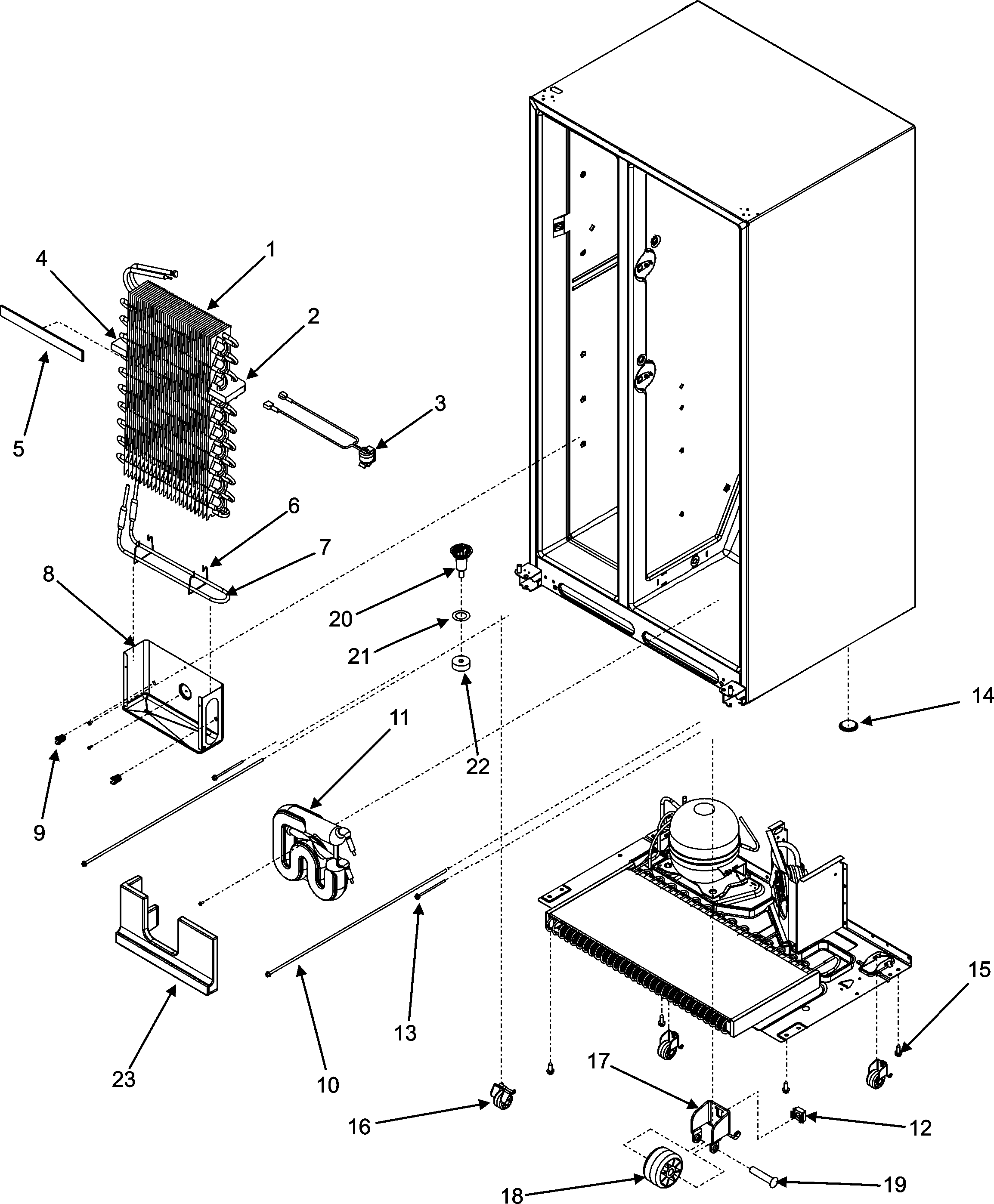

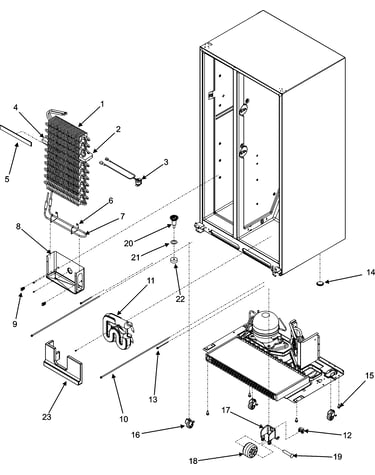

Evaporator assy./rollers/water tank diagram

Refrigerator thermostat

Part #67003964

Replaced by #WP67004757

?
Manufacturer substitution
This part replaces 67003964. Substitute parts can look different from the original.
BEST SELLER
$64.18 |
9% OFF Phone Price : $70.18
In Stock
