Model # FFTH0822R10 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire FFTH0822R10 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

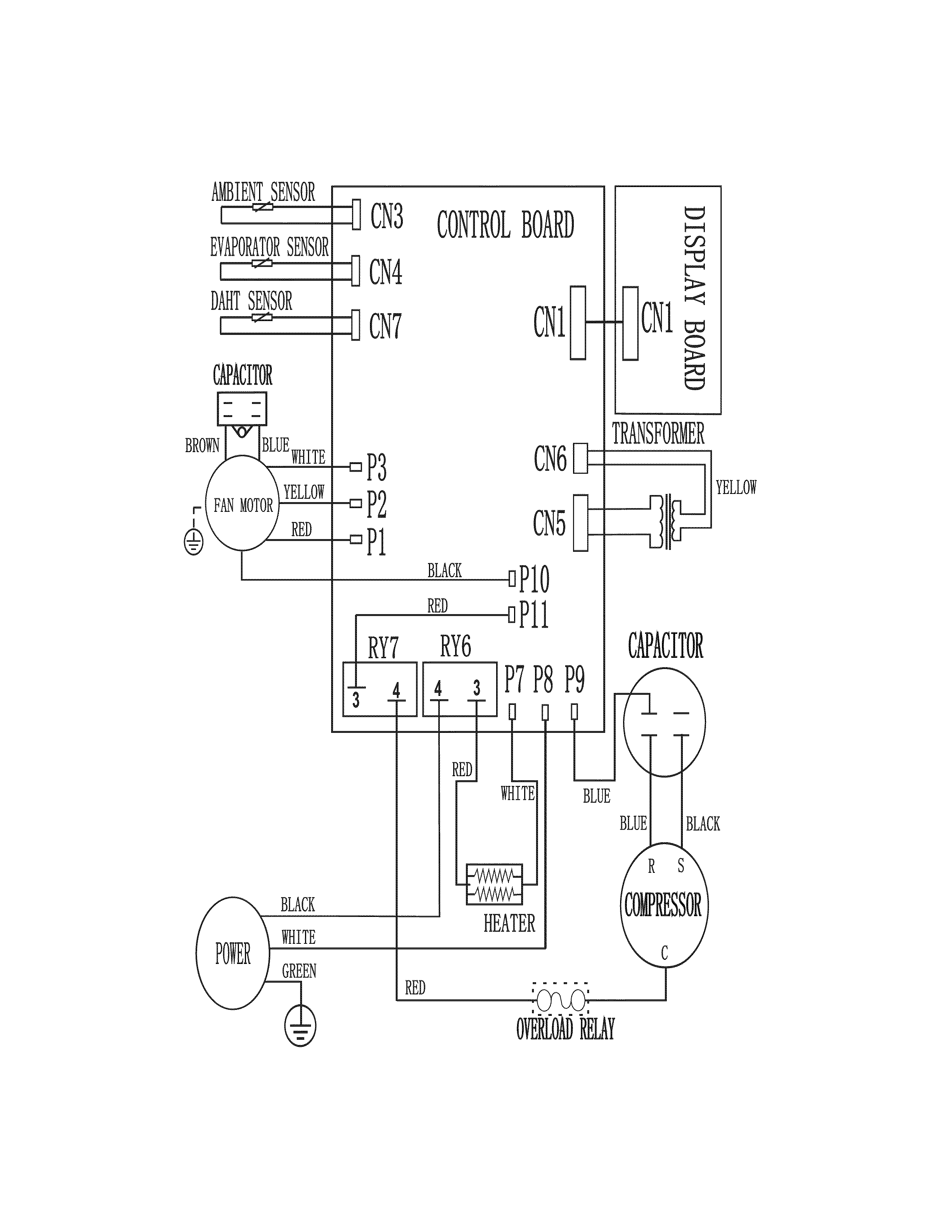

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Room Air Conditioner Filter Dryer 5304476367
#30

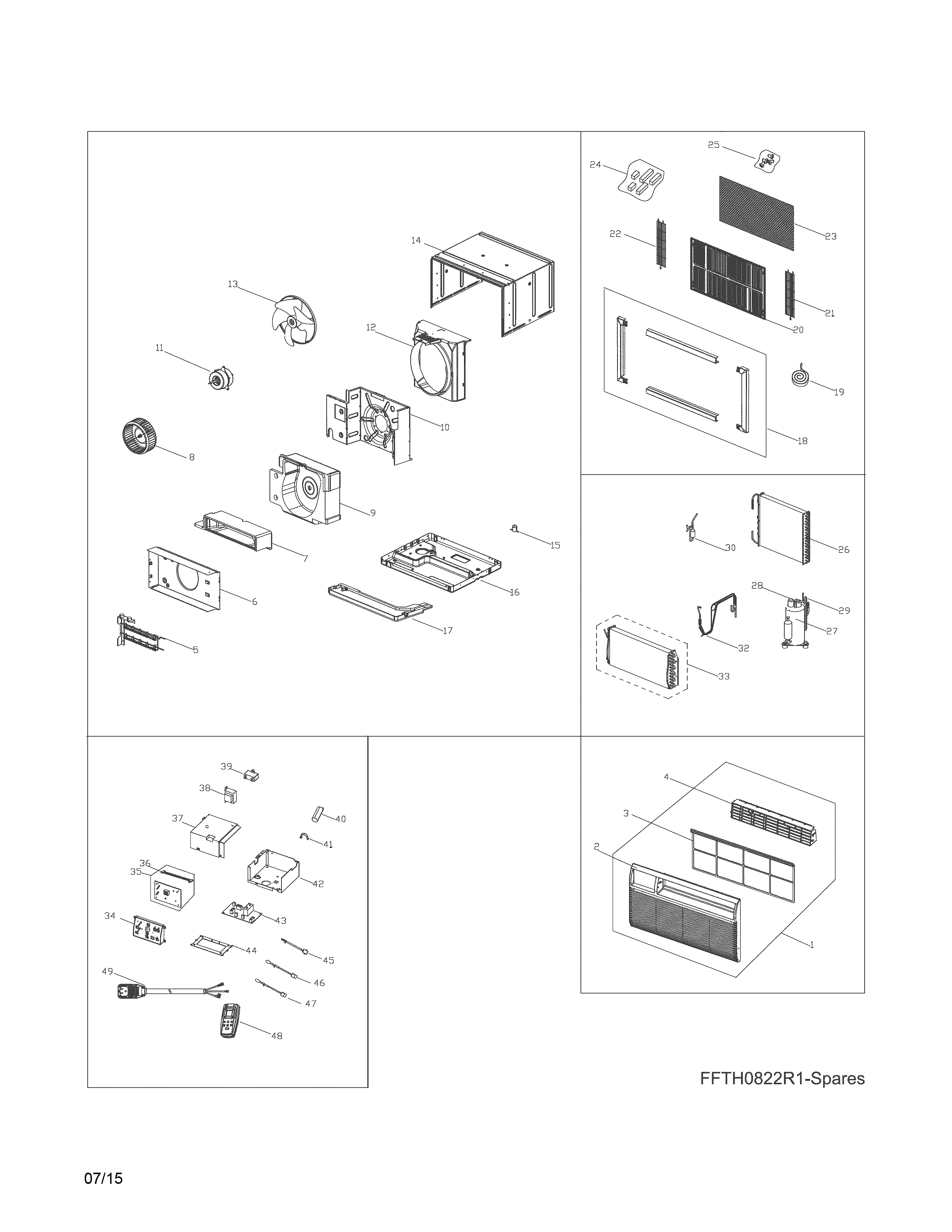

Recommended spare parts diagram

Room air conditioner filter dryer

Part #5304476367

$34.29
In Stock
Room Air Conditioner Rear Grille 5304470975
#23

Recommended spare parts diagram

Room air conditioner rear grille

Part #5304470975

$20.69 |
22% OFF Phone Price : $26.69
In Stock
Bulkhead 5304501086
#10

Recommended spare parts diagram

Bulkhead

Part #5304501086

$109.62
In Stock
Overload Protector 5304492022
#28

Recommended spare parts diagram

Overload protector

Part #5304492022

$102.89
In Stock
Louver 5304492062
#4

Recommended spare parts diagram

Louver

Part #5304492062

$62.82
In Stock
Strap 5304501098
#41

Recommended spare parts diagram

Strap

Part #5304501098

$11.63
In Stock
Valve 5304476624
#15

Recommended spare parts diagram

Valve

Part #5304476624

$51.18
In Stock
Cover 5304501097
#37

Recommended spare parts diagram

Cover

Part #5304501097

$27.82
In Stock
Room Air Conditioner Foam Seal 5304470974
#19

Recommended spare parts diagram

Room air conditioner foam seal

Part #5304470974

$74.51
In Stock
Crosley Room Air Conditioner Electronic Control Board 5304501982
#35

Recommended spare parts diagram

Crosley room air conditioner electronic control board

Part #5304501982

$91.89 |
6% OFF Phone Price : $97.89
In Stock
