Black & Decker
Circular Saw

Model # CS1010K TYPE 2 Official Black & Decker 7-1/4" circular saw

Here are the diagrams and repair parts for Official Black & Decker CS1010K-TYPE-2 7-1/4" circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Guard 396564-00
#2

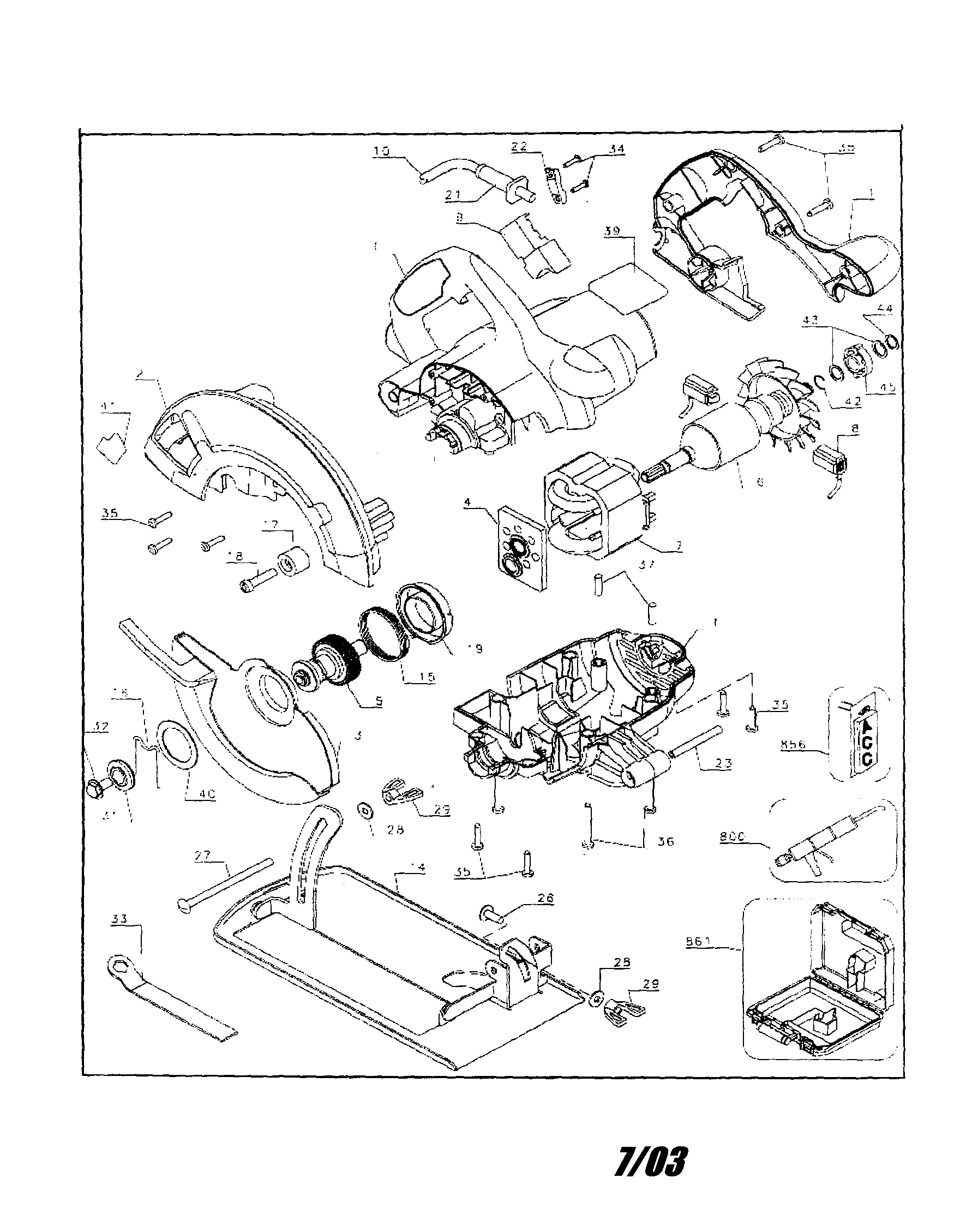

7-1/4" circular saw diagram

Guard

Part #396564-00

The manufacturer no longer makes this part, and there's no substitute part

Field 398467-00
#7

7-1/4" circular saw diagram

Field

Part #398467-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 605448-00
#40

7-1/4" circular saw diagram

Washer

Part #605448-00

The manufacturer no longer makes this part, and there's no substitute part

Carriage Bol 38910-00
#26

7-1/4" circular saw diagram

Carriage bol

Part #38910-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Switch 604957-00
#9

7-1/4" circular saw diagram

Black & decker switch

Part #604957-00

The manufacturer no longer makes this part, and there's no substitute part

Bolt 679139-00
#27

7-1/4" circular saw diagram

Bolt

Part #679139-00

The manufacturer no longer makes this part, and there's no substitute part

Wire Clip 397514-00
#16

7-1/4" circular saw diagram

Wire clip

Part #397514-00

The manufacturer no longer makes this part, and there's no substitute part

Wrench 398341-00
#33

7-1/4" circular saw diagram

Wrench

Part #398341-00

The manufacturer no longer makes this part, and there's no substitute part

Shoe Assembly 397780-00
#14

7-1/4" circular saw diagram

Shoe assembly

Part #397780-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 397507-00
#45

7-1/4" circular saw diagram

Sleeve

Part #397507-00

The manufacturer no longer makes this part, and there's no substitute part
