Model # GH9115XEB1 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool GH9115XEB1 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 153 parts  |
Light Bulb 4358971
#25

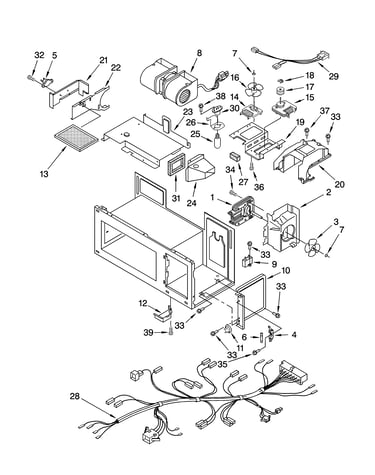

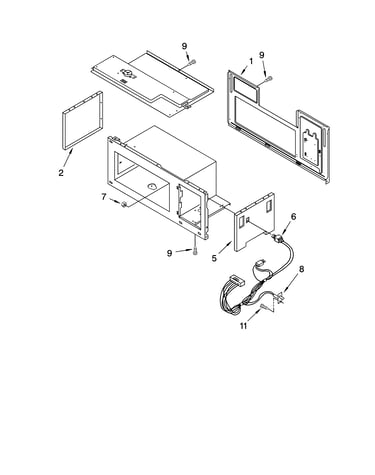

Interior parts diagram

Light bulb

Part #4358971

Replaced by #WPA3073101

?
Manufacturer substitution
This part replaces 4358971. Substitute parts can look different from the original.
BEST SELLER
$18.12 |
10% OFF Phone Price : $20.12
In Stock
Screw 4358045
#2

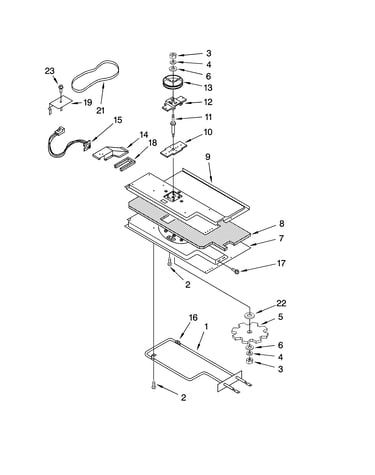

Plate chamber assembly diagram

Screw

Part #4358045

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 4358045. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 4158321
#3

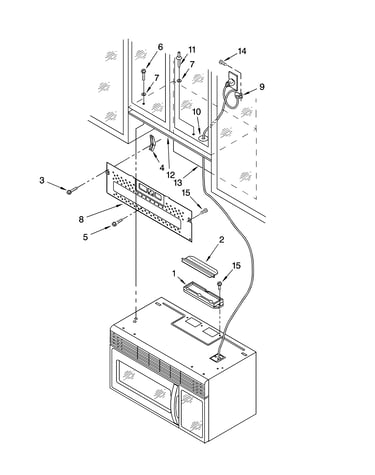

Installation parts diagram

Screw

Part #4158321

Replaced by #WP8169704

?
Manufacturer substitution
This part replaces 4158321. Substitute parts can look different from the original.
This item is not returnable
$5.07 |
16% OFF Phone Price : $6.07
In Stock
Screw 4358479
#11A

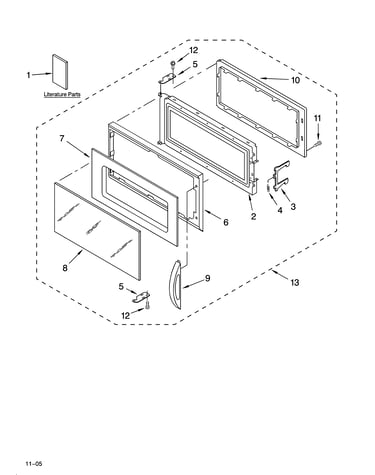

Door parts diagram

Screw

Part #4358479

Replaced by #8169474

?
Manufacturer substitution
This part replaces 4358479. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Microwave Screw 4358380
#19A

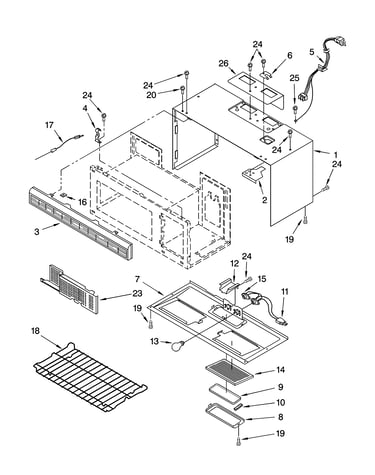

Cabinet parts diagram

Microwave screw

Part #4358380

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358380. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Screw 4358192
Screw

Part #4358192

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358192. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Screw 4158747
#16

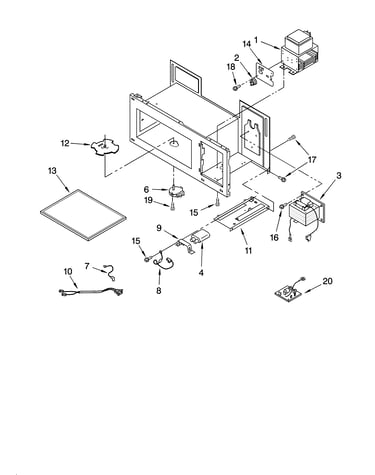

Magnetron and air flow parts diagram

Screw

Part #4158747

Replaced by #WP3400094

?
Manufacturer substitution
This part replaces 4158747. Substitute parts can look different from the original.
This item is not returnable
$3.95 |
20% OFF Phone Price : $4.95
In Stock
Sensor 4358993
#15

Plate chamber assembly diagram

Sensor

Part #4358993

$70.53
In Stock
Microwave Air Filter 4358853
#14

Cabinet parts diagram

Microwave air filter

Part #4358853

This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
Switch 4158941
#4

Latch board parts diagram

Switch

Part #4158941

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158941. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
