Model # SB-TP1000P Official Panasonic audio speaker

Here are the diagrams and repair parts for Official Panasonic SB-TP1000P audio speaker, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

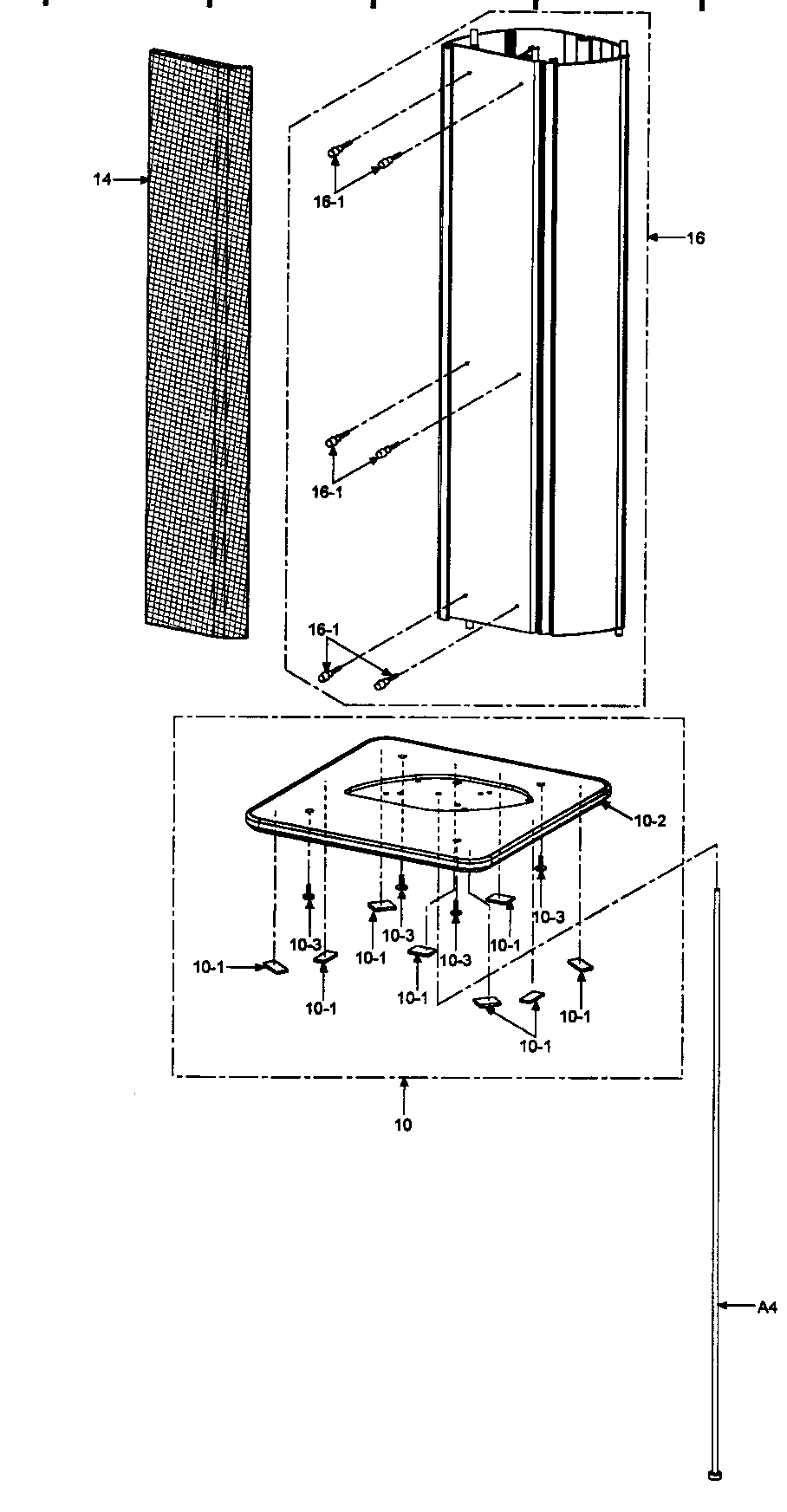

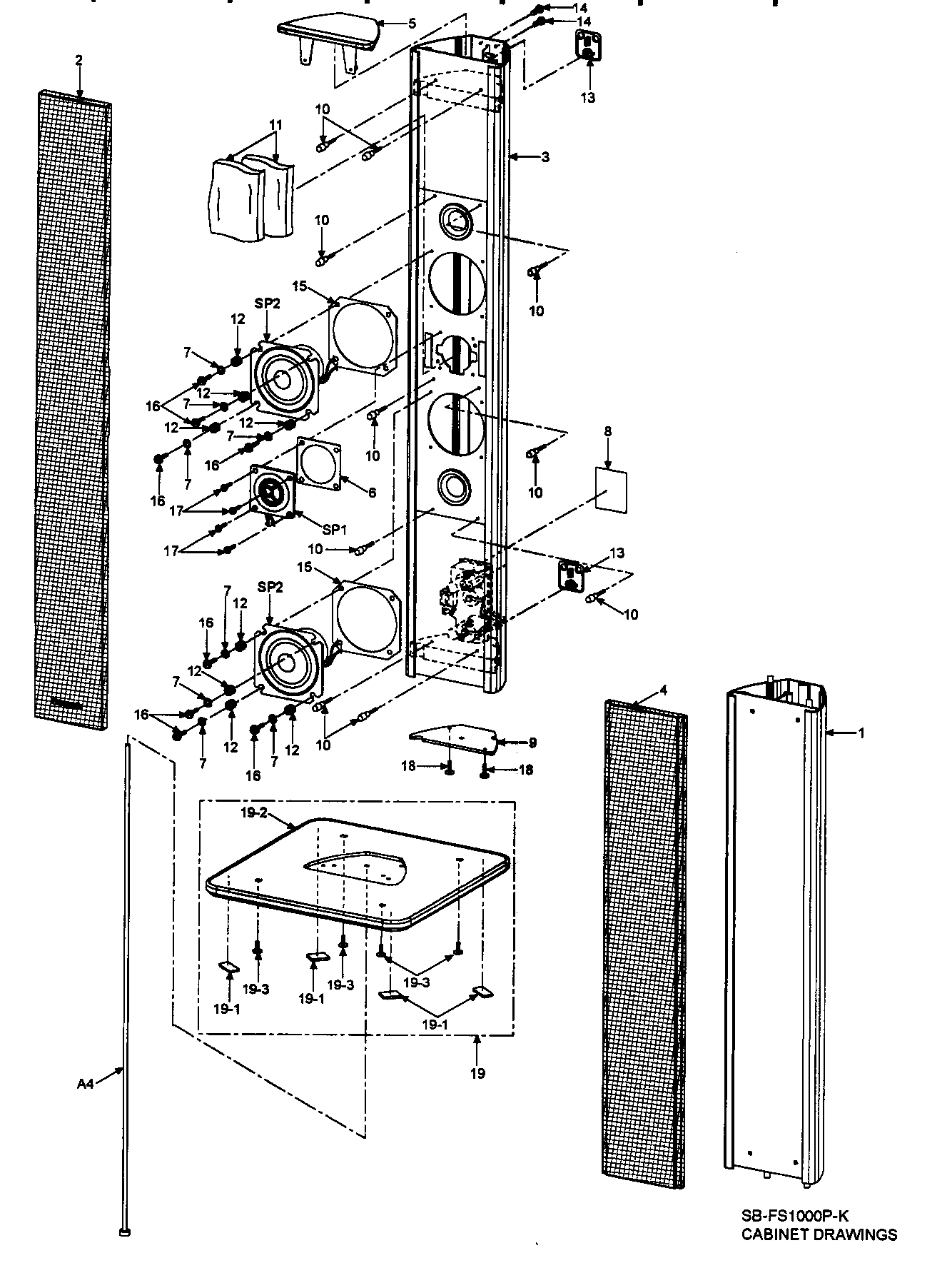

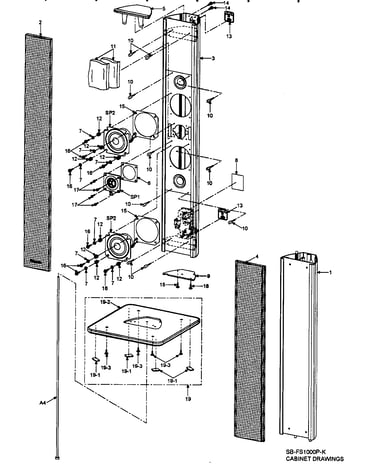

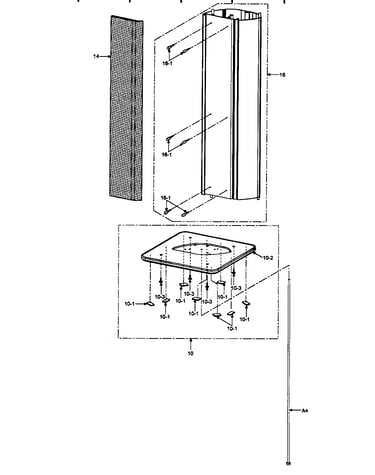

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Capacitor ECQE1225KF
#NI

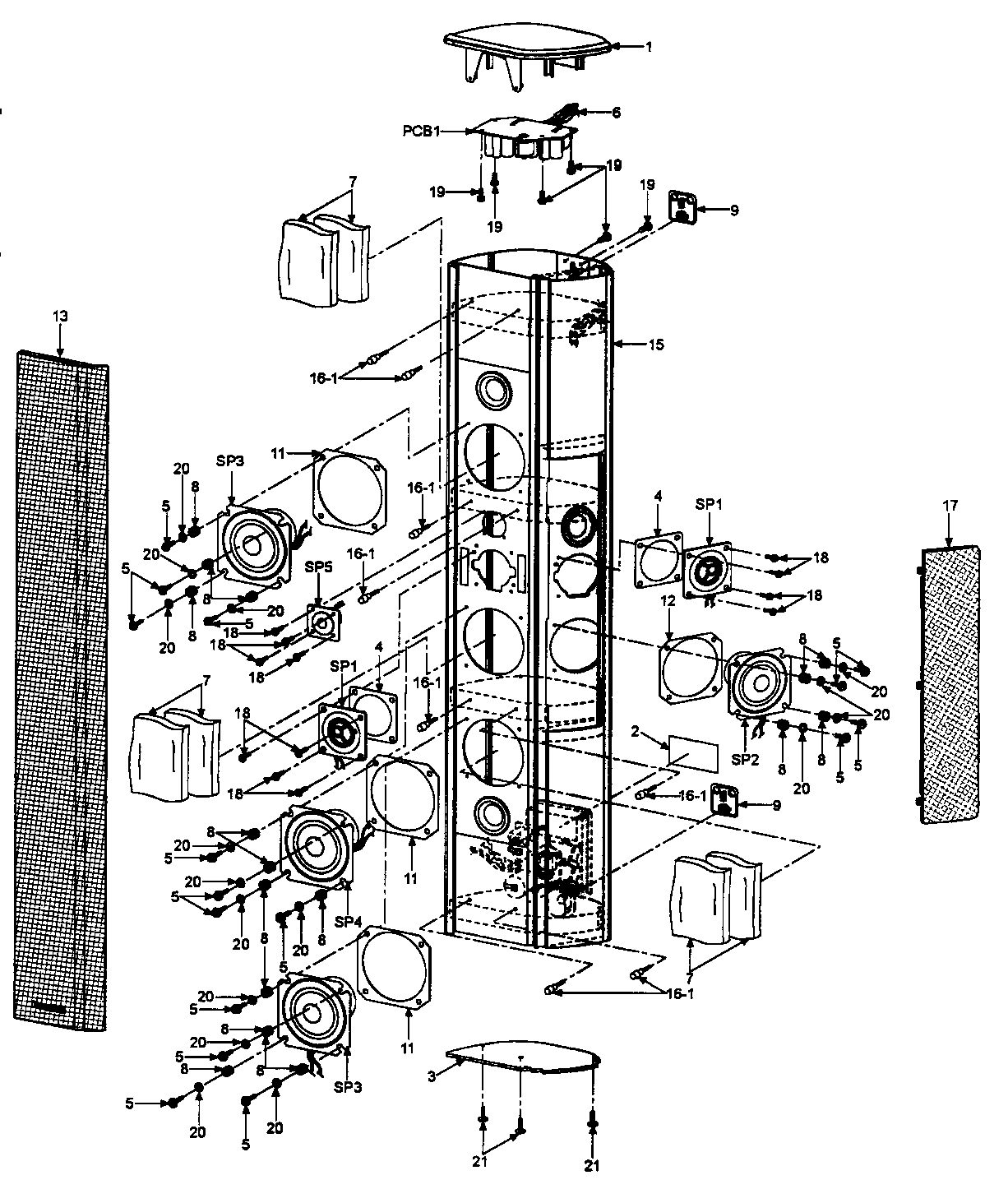

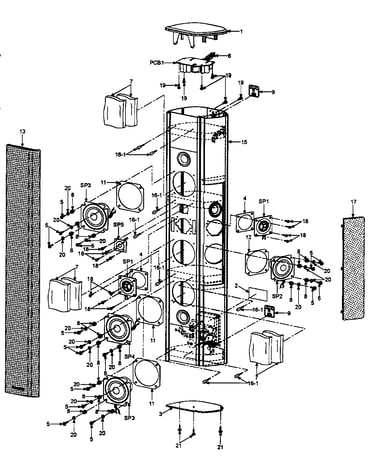

Speaker 1 diagram

Capacitor

Part #ECQE1225KF

The manufacturer no longer makes this part, and there's no substitute part

Transformer G4C6BFD00002
#NI

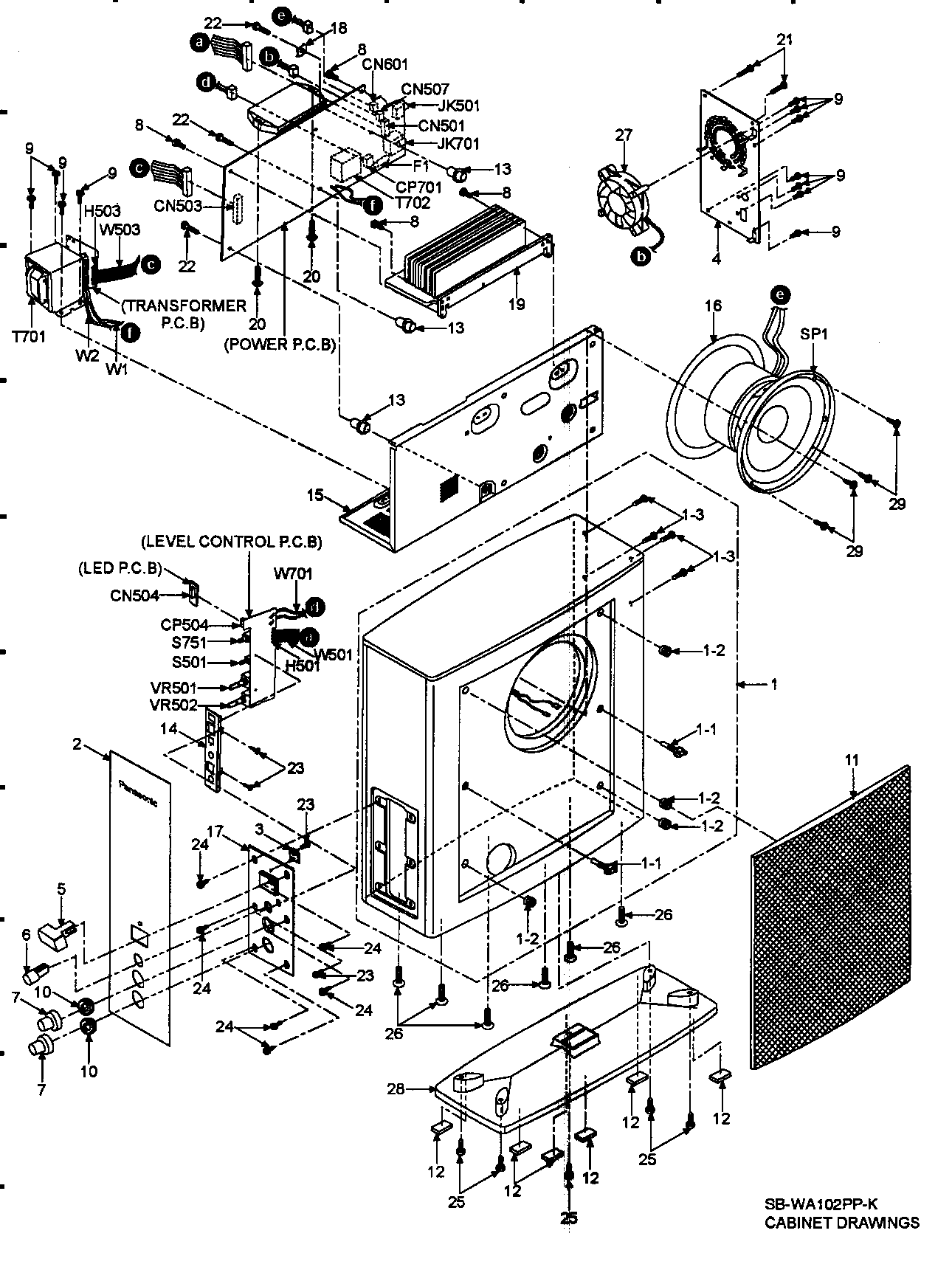

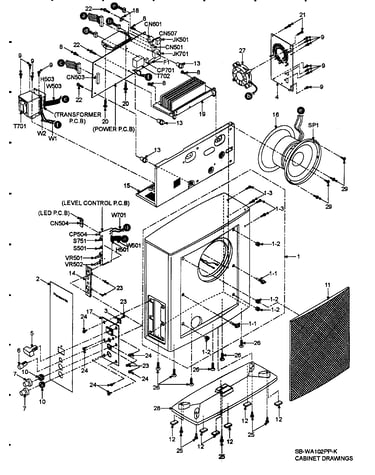

Speaker 4 diagram

Transformer

Part #G4C6BFD00002

The manufacturer no longer makes this part, and there's no substitute part

Res ERX5SJ120
#NI

Speaker 1 diagram

Res

Part #ERX5SJ120

The manufacturer no longer makes this part, and there's no substitute part

Diode ERZV10V511CS
#NI

Speaker 4 diagram

Diode

Part #ERZV10V511CS

The manufacturer no longer makes this part, and there's no substitute part

Knob RGU2182A-K
#5

Speaker 4 diagram

Knob

Part #RGU2182A-K

The manufacturer no longer makes this part, and there's no substitute part

Midrange EAS65PM134A
#SP2

Speaker 1 diagram

Midrange

Part #EAS65PM134A

The manufacturer no longer makes this part, and there's no substitute part

Capacitor ECQE1105JF
#NI

Speaker 1 diagram

Capacitor

Part #ECQE1105JF

The manufacturer no longer makes this part, and there's no substitute part

Vr Volume D2BDB14B0006
#NI

Speaker 4 diagram

Vr volume

Part #D2BDB14B0006

The manufacturer no longer makes this part, and there's no substitute part

Relay K6B1AEA00003
#NI

Speaker 4 diagram

Relay

Part #K6B1AEA00003

The manufacturer no longer makes this part, and there's no substitute part

Ps Cover RMG0700-K
Ps cover

Part #RMG0700-K

The manufacturer no longer makes this part, and there's no substitute part
