GE
Side-By-Side Refrigerator

Model # TFG25PAYAWW Official GE refrigerator - y series

Here are the diagrams and repair parts for Official GE TFG25PAYAWW refrigerator - y series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 242 parts  |
Refrigerator Filter Dryer WR86X96
#740

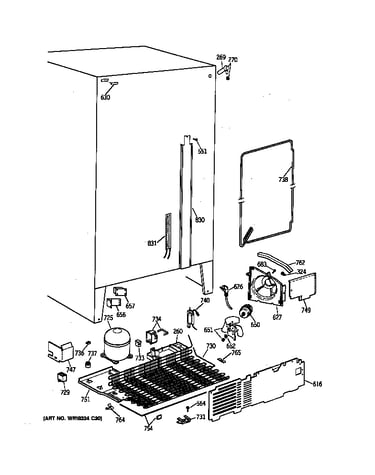

Unit parts diagram

Refrigerator filter dryer

Part #WR86X96

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X96. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces Wr50x0122, Wr50x10014, Wr50x128) WR50X122
#240

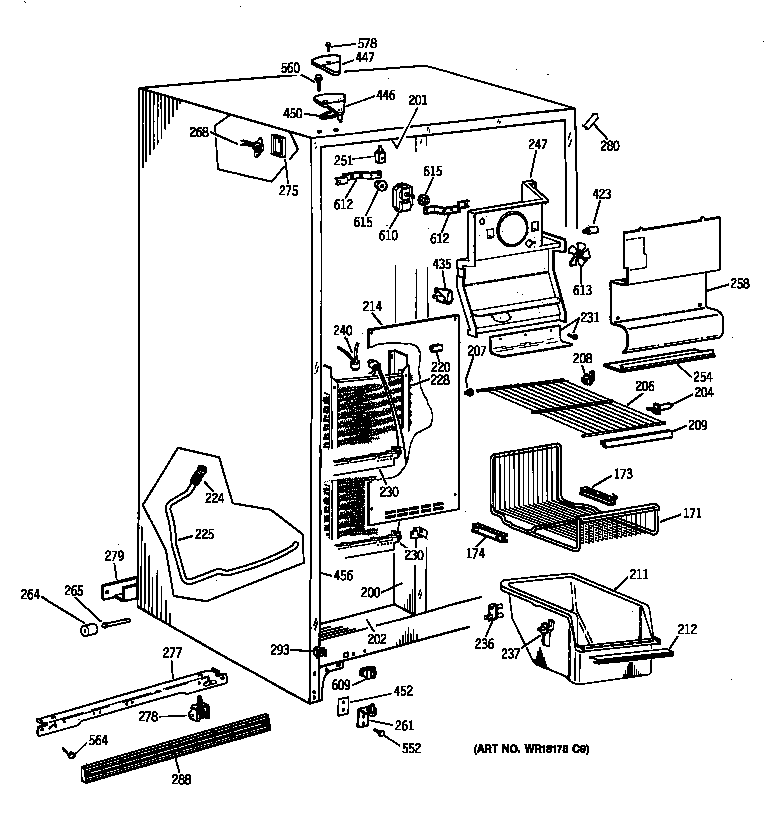

Freezer section diagram

Refrigerator defrost bi-metal thermostat (replaces wr50x0122, wr50x10014, wr50x128)

Part #WR50X122

BEST SELLER
$37.61 |
14% OFF Phone Price : $43.61
In Stock
Door Hinge Pin, Lower WR13X750
#451

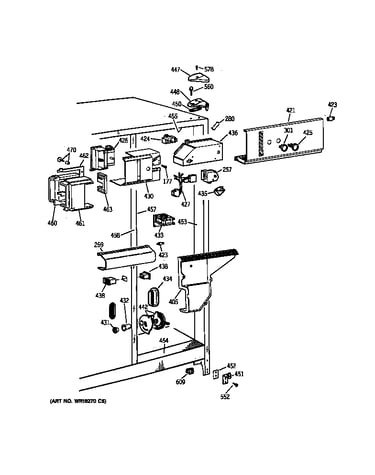

Fresh food section diagram

Door hinge pin, lower

Part #WR13X750

Replaced by #WR13X10020

?
Manufacturer substitution
This part replaces WR13X750. Substitute parts can look different from the original.
BEST SELLER
$29.26 |
17% OFF Phone Price : $35.26
In Stock
Door Hinge Pin, Lower WR13X751
#261

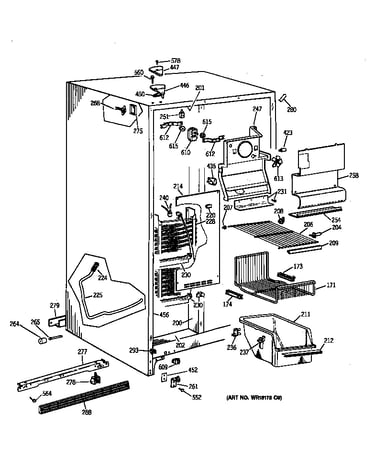

Freezer section diagram

Door hinge pin, lower

Part #WR13X751

Replaced by #WR13X10020

?
Manufacturer substitution
This part replaces WR13X751. Substitute parts can look different from the original.
BEST SELLER
$29.26 |
17% OFF Phone Price : $35.26
In Stock
Refrigerator Drawer Slide Rail (replaces Wr1x2049, Wr72x0240) WR72X240
#479B

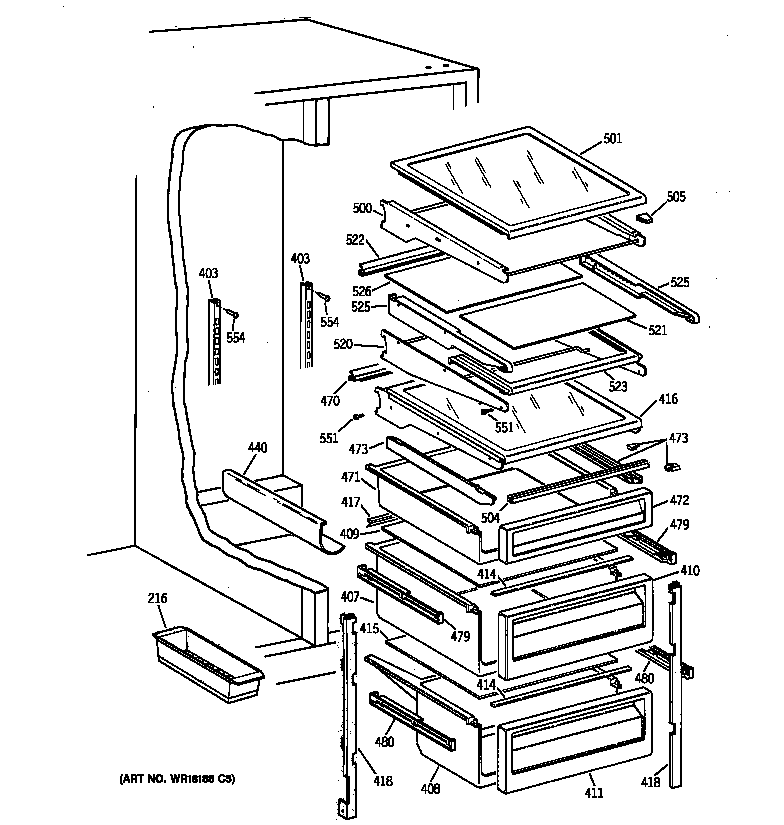

Fresh food shelves diagram

Refrigerator drawer slide rail (replaces wr1x2049, wr72x0240)

Part #WR72X240

BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
Refrigerator Slide Bearing WR1X2049
#473A

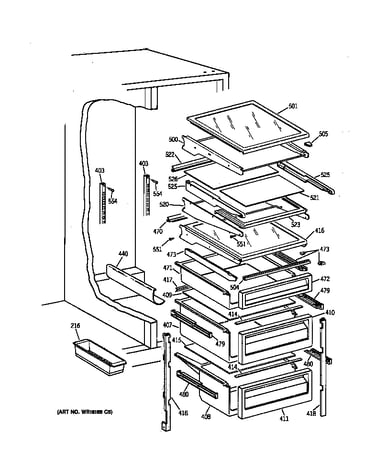

Fresh food shelves diagram

Refrigerator slide bearing

Part #WR1X2049

Replaced by #WR72X240

?
Manufacturer substitution
This part replaces WR1X2049. Substitute parts can look different from the original.
BEST SELLER
$37.72 |
14% OFF Phone Price : $43.72
In Stock
Refrigerator Light Switch WR23X359
Refrigerator light switch

Part #WR23X359

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X359. Substitute parts can look different from the original.
$8.11
In Stock
Refrigerator Freezer Wire Shelf (replaces Wr71x10723) WR71X1936
#206

Freezer section diagram

Refrigerator freezer wire shelf (replaces wr71x10723)

Part #WR71X1936

$61.08 |
9% OFF Phone Price : $67.08
In Stock
Refrigerator Hinge Cam WR2X9421
#16

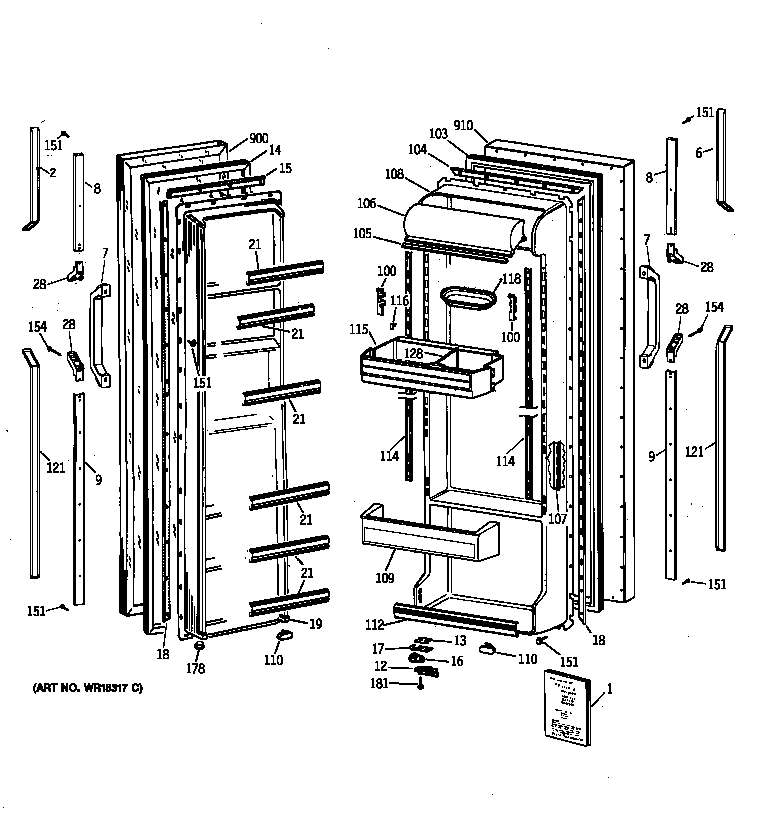

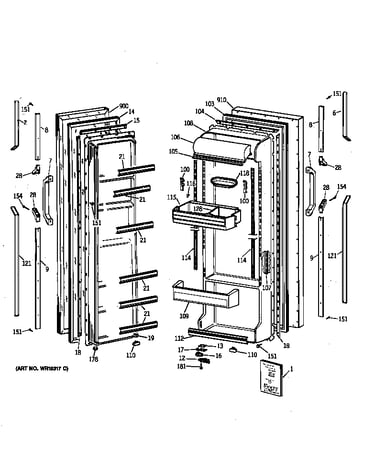

Doors diagram

Refrigerator hinge cam

Part #WR2X9421

Replaced by #WR02X10140

?
Manufacturer substitution
This part replaces WR2X9421. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Roller WR2X3594
#264

Freezer section diagram

Refrigerator roller

Part #WR2X3594

This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
