Model # DTS18ZBRVRWW Official GE refrigerator - r series
Here are the diagrams and repair parts for Official GE DTS18ZBRVRWW refrigerator - r series, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM

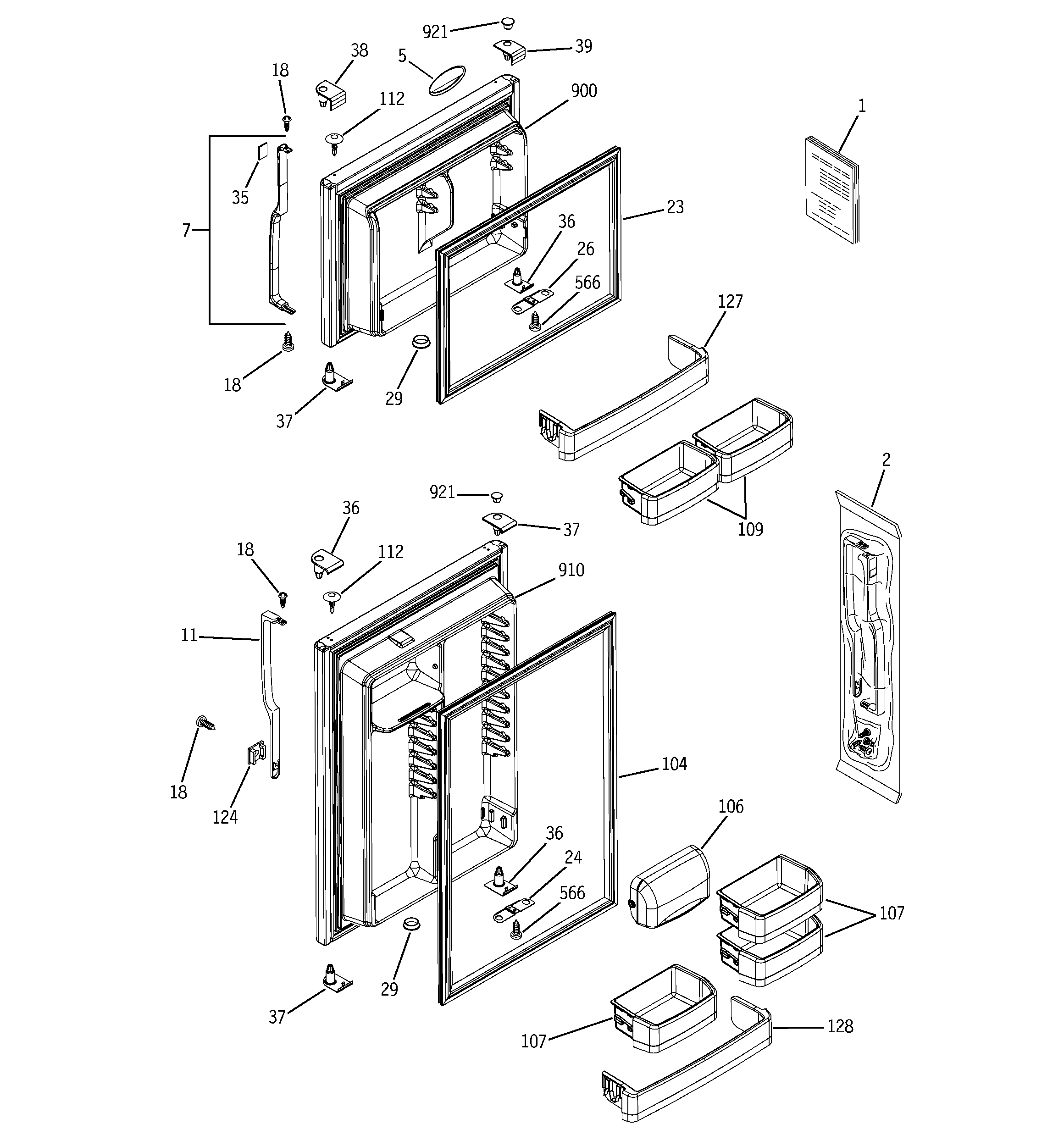

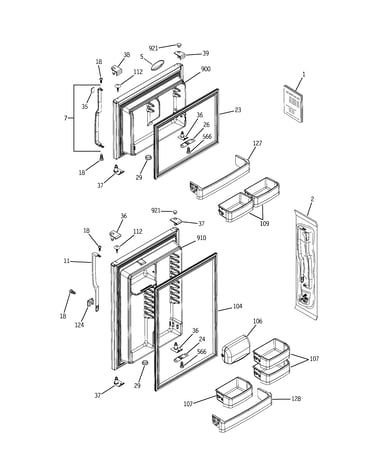

Browse Parts forDTS18ZBRVRWW Refrigerators
- #740

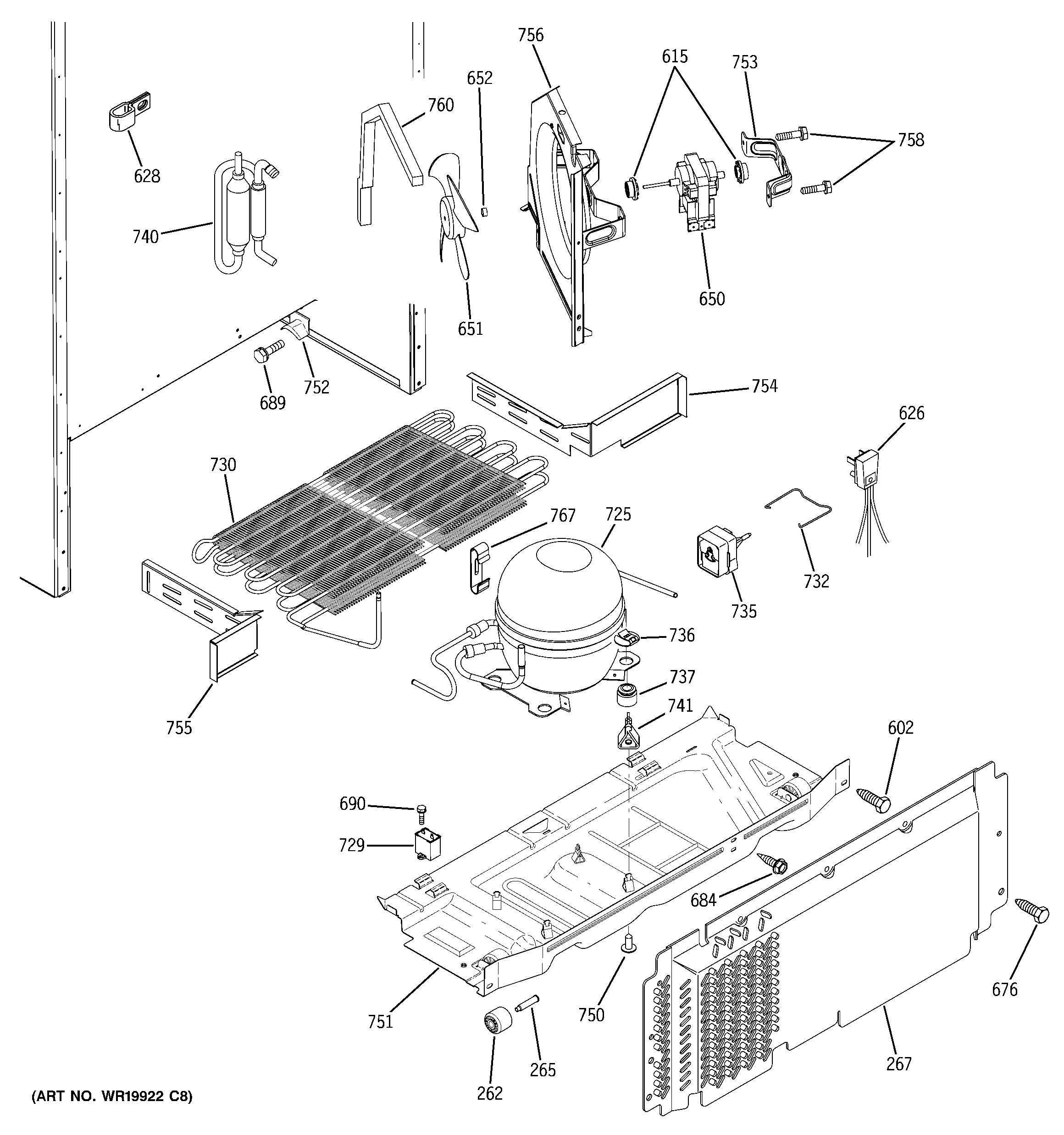

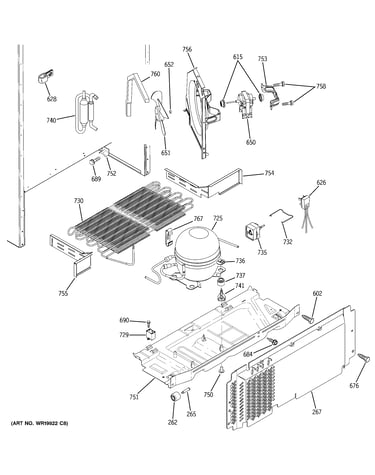

Unit parts diagram
Dryer filterPart #WR86X0096
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - 40a15/22
Part #STD372402
Replaced by #40A15
?Manufacturer substitutionThis part replaces STD372402. Substitute parts can look different from the original.$14.62 |12% OFF Phone Price : $16.62In Stock - #725
Unit parts diagram
Refrigerator compressorPart #WR87X10085
Replaced by #WR87X10224
?Manufacturer substitutionThis part replaces WR87X10085. Substitute parts can look different from the original.$479.77 |$12.00 OFF Phone Price : $491.77In Stock - #651
Unit parts diagram
Refrigerator condenser fan bladePart #WR60X10207
This item is not returnable$10.51 |16% OFF Phone Price : $12.51In Stock - #618

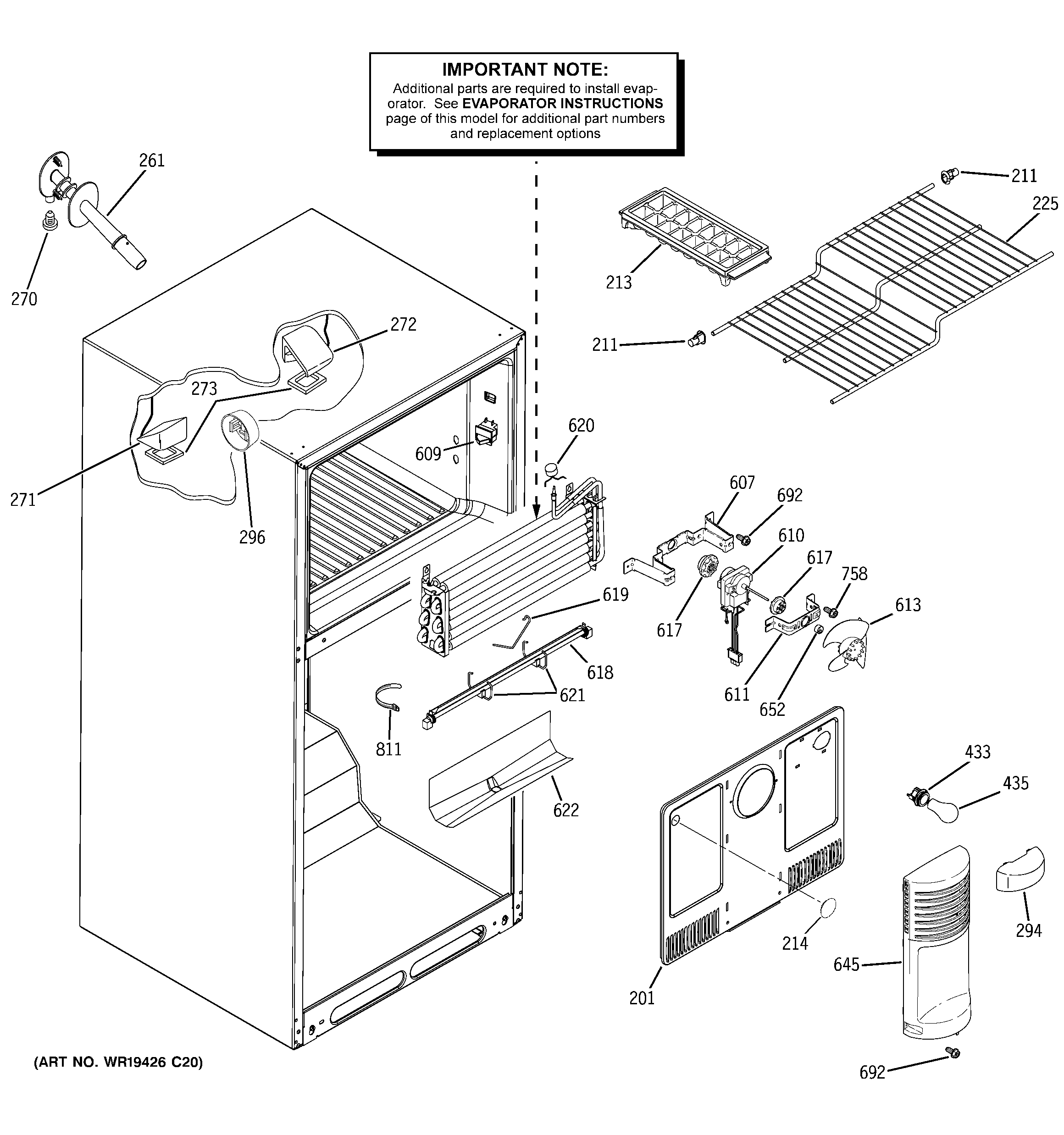

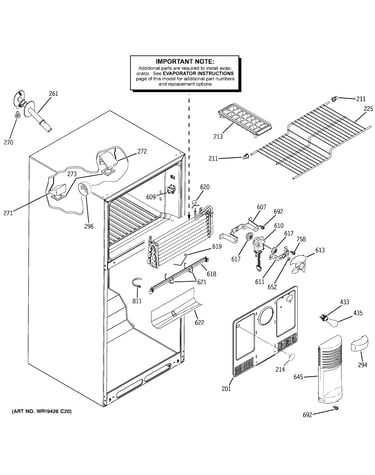

Freezer section diagram
Refrigerator defrost heaterPart #WR51X10038
$66.79 |8% OFF Phone Price : $72.79In Stock - #615
Unit parts diagram
Refrigerator evaporator fan motor grommetPart #WR02X10098
This item is not returnable$8.70 |10% OFF Phone Price : $9.70In Stock - #613
Freezer section diagram
Refrigerator evaporator fan bladePart #WR60X10205
$15.87 |11% OFF Phone Price : $17.87In Stock - Refrigerator fan blade retainer ring
Part #WR02X12149
This item is not returnable$7.95 |11% OFF Phone Price : $8.95In Stock - #610
Freezer section diagram
Refrigerator evaporator fan motorPart #WR60X10172
$56.20 |10% OFF Phone Price : $62.20In Stock - #242

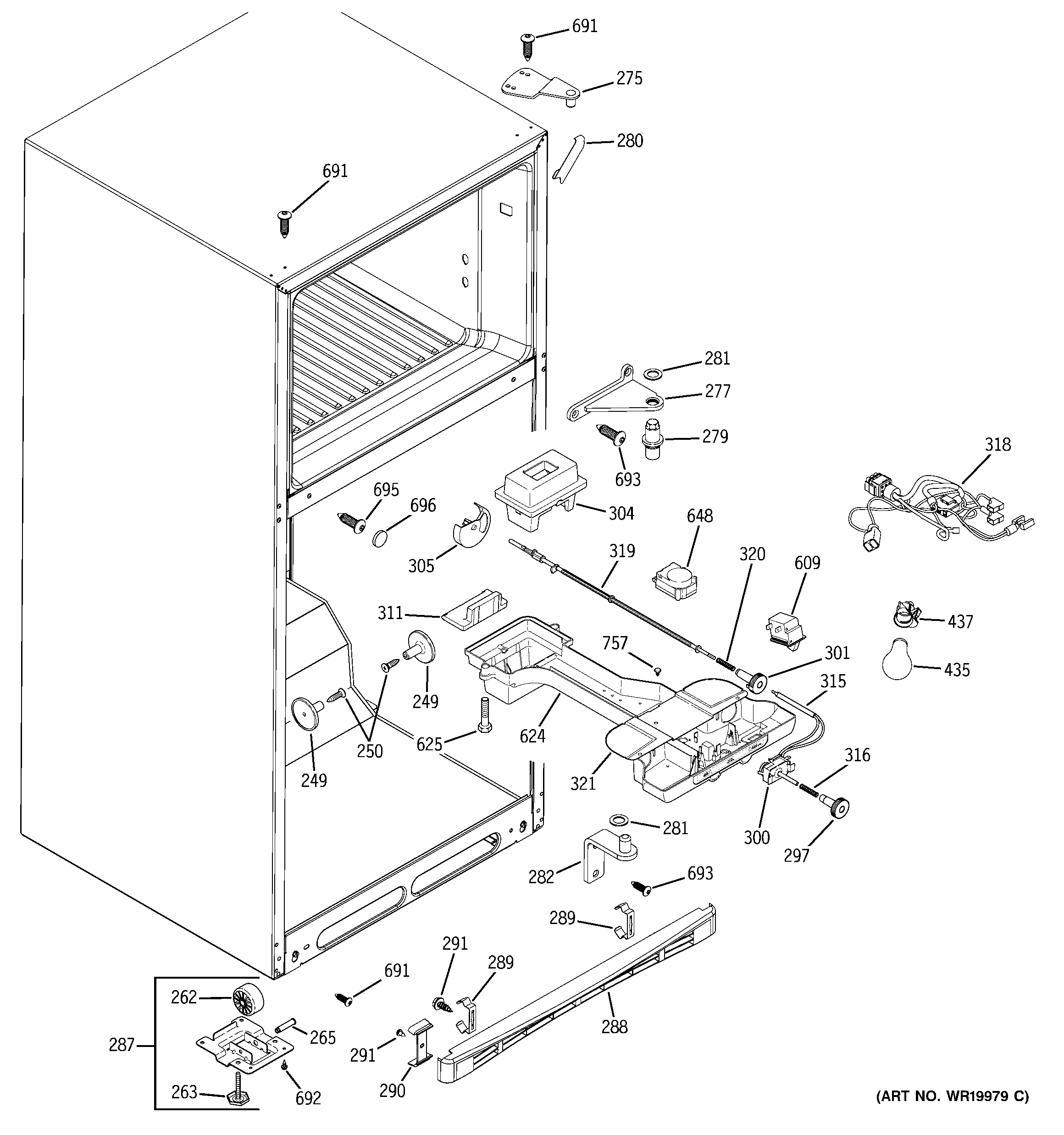

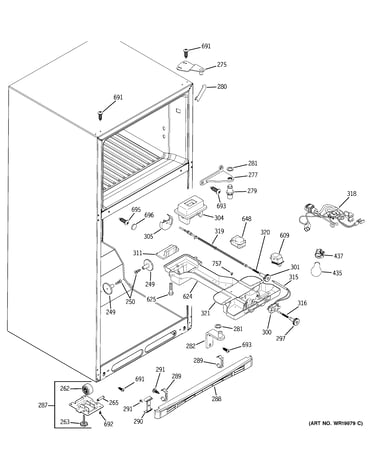

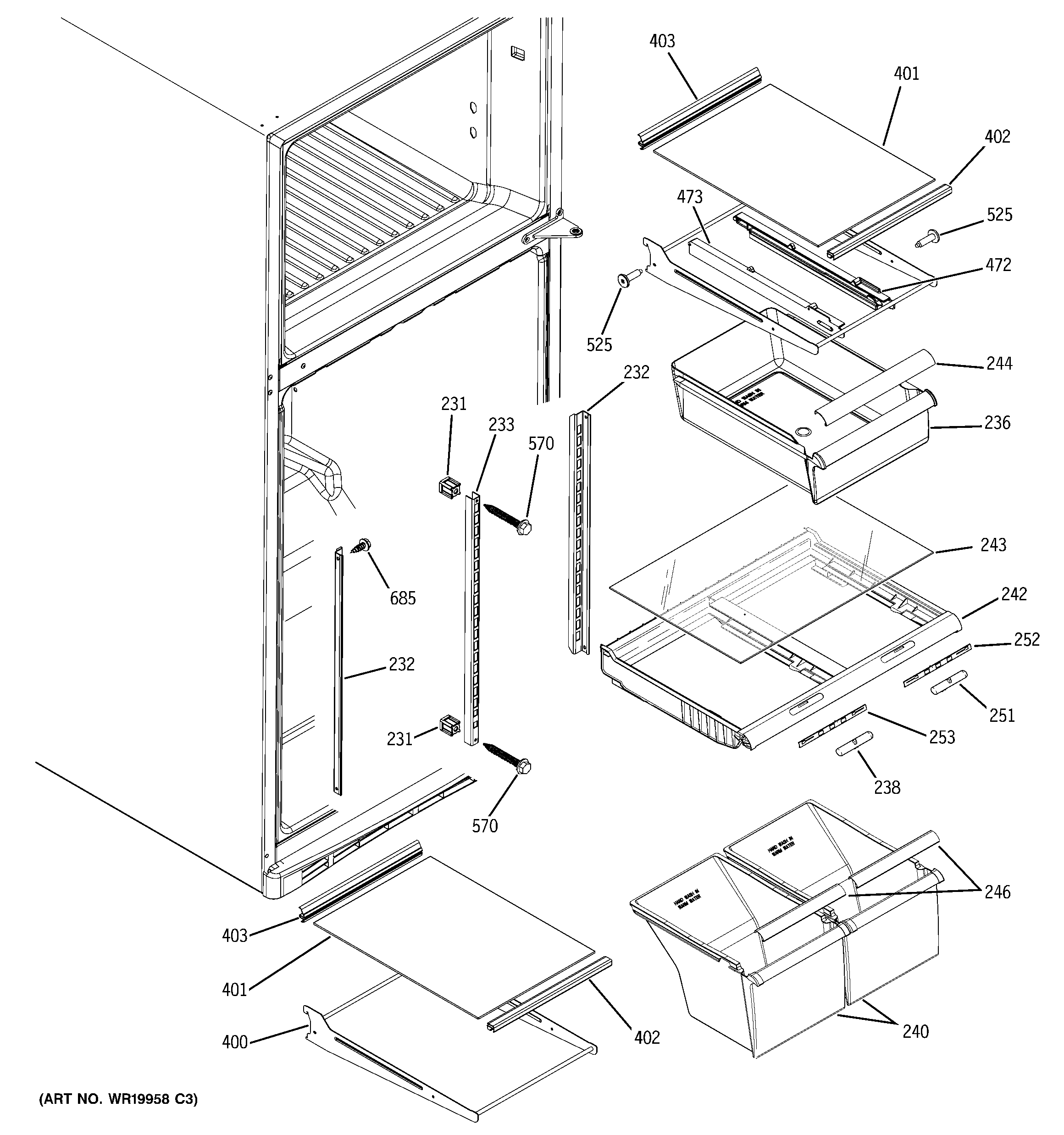

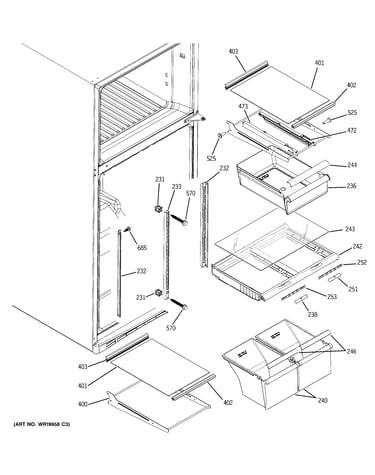

Fresh food shelves diagram
Refrigerator crisper drawer cover framePart #WR32X10539
Replaced by #WR32X10537
?Manufacturer substitutionThis part replaces WR32X10539. Substitute parts can look different from the original.$90.32 |6% OFF Phone Price : $96.32In Stock
