Model # 580321520 Official Craftsman portable alternator

Here are the diagrams and repair parts for Official Craftsman 580321520 portable alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

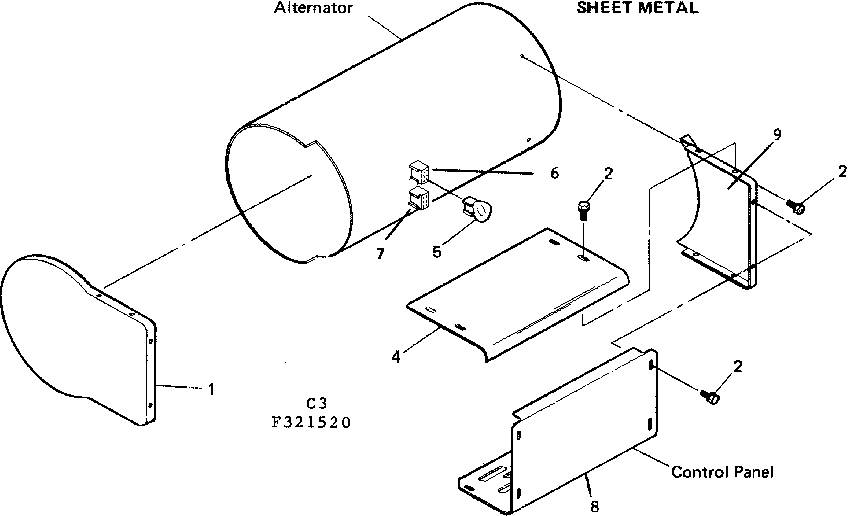

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Binding Post 25367
#8

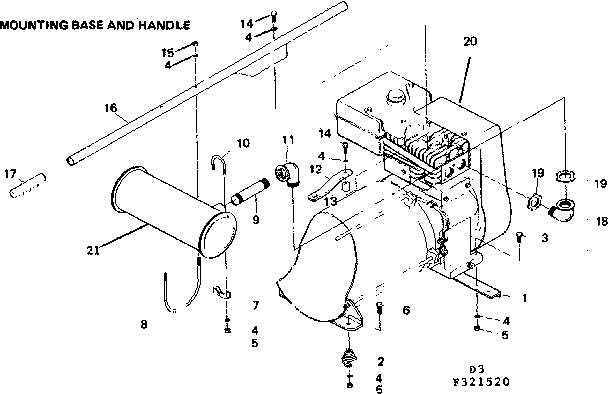

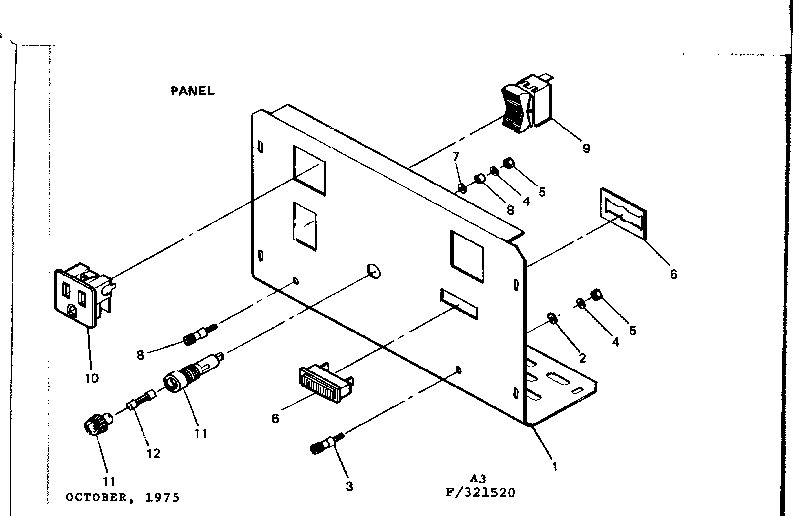

Panel diagram

Binding post

Part #25367

Replaced by #25367GS

?
Manufacturer substitution
This part replaces 25367. Substitute parts can look different from the original.
$31.71
In Stock
Fan Cover 44357
#17

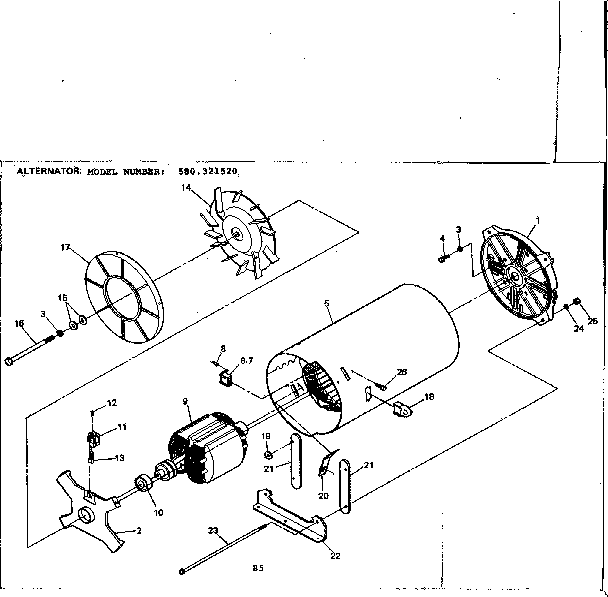

Alternator diagram

Fan cover

Part #44357

Replaced by #44357GS

?
Manufacturer substitution
This part replaces 44357. Substitute parts can look different from the original.
$25.89 |
19% OFF Phone Price : $31.89
In Stock
Screw 24421
#16

Alternator diagram

Screw

Part #24421

Replaced by #24421GS

?
Manufacturer substitution
This part replaces 24421. Substitute parts can look different from the original.
$26.36
In Stock
Housing 22694
Housing

Part #22694

Replaced by #22694GS

?
Manufacturer substitution
This part replaces 22694. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Washer 22145
#19

Alternator diagram

Washer

Part #22145

Replaced by #STD551025

?
Manufacturer substitution
This part replaces 22145. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Recptle Hsng 43994
Recptle hsng

Part #43994

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 22693
#10

Panel diagram

Receptacle

Part #22693

The manufacturer no longer makes this part, and there's no substitute part

Rivet 44959
#8

Alternator diagram

Rivet

Part #44959

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 22097
#24

Alternator diagram

Lock washer

Part #22097

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly A-24044-A
#13

Alternator diagram

Brush assembly

Part #A-24044-A

The manufacturer no longer makes this part, and there's no substitute part
