Model # 153339760 Official Kenmore gas water heater
Here are the diagrams and repair parts for Official Kenmore 153339760 gas water heater, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
153339760 Water Heaters
#13

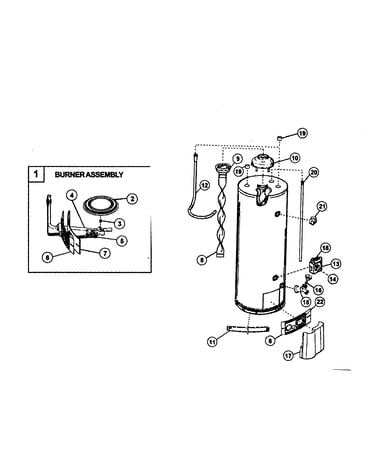

Water heater diagram
Water heater gas valve assembly
Part #F145-1278
The manufacturer no longer makes this part, and there's no substitute part
#14
Water heater diagram
Water heater gas control valve knob
Part #F145-1280
The manufacturer no longer makes this part, and there's no substitute part
#8
Water heater diagram
Baffle
Part #9003497
$17.49
In Stock
#2
Water heater diagram
Burner head
Part #9003421
Replaced by #100109225
?
Manufacturer substitution
This part replaces 9003421. Substitute parts can look different from the original.
$64.44
In Stock
#3
Water heater diagram
Orifice
Part #9003494
Replaced by #100109267
?
Manufacturer substitution
This part replaces 9003494. Substitute parts can look different from the original.
$27.78
In Stock
#19
Water heater diagram
Nipple
Part #9000948
Replaced by #9002564
?
Manufacturer substitution
This part replaces 9000948. Substitute parts can look different from the original.
$19.19 |
9% OFF Phone Price : $21.19
In Stock
#1
Water heater diagram
Water heater burner assembly (replaces 183222-008)
Part #9003383
Replaced by #100109204
?
Manufacturer substitution
This part replaces 9003383. Substitute parts can look different from the original.
$219.09
In Stock
#4
Water heater diagram
Water heater burner tube
Part #9003389
Replaced by #100109207
?
Manufacturer substitution
This part replaces 9003389. Substitute parts can look different from the original.
$71.11
In Stock
#18
Water heater diagram
Water heater igniter (replaces 183798, 183798-000)
Part #9003410
Replaced by #100109221
?
Manufacturer substitution
This part replaces 9003410. Substitute parts can look different from the original.
$37.25
In Stock
#NI
Water heater diagram
Mag erad
Part #23600
Replaced by #23600
?
Manufacturer substitution
This part replaces 23600. Substitute parts can look different from the original.
$35.19
In Stock
Most common symptoms to help you fix your water heaters
Choose a symptom to see related water heater repairs.
Main causes: water supply needs chlorine treatment, anode rod too reactive…
Main causes: broken heating element, thermostat failure, excessive tank sediment, tank size too small, burner valve asse…
Main causes: lack of power, no gas supply, thermostat limit switch tripped, bad element, bad thermostat, gas valve failu…
Main causes: thermostat temperature set too high, thermostats need adjustment, faulty thermostat, shorted heating elemen…
Main causes: faulty pressure relief valve, water is overheating…
Main causes: thermostats need adjustment, water heater capacity too low, bad heating element, thermostat failure, excess…
Main causes: loose water pipe fittings, leaky drain valve, bad temperature-pressure relief valve, leaky heating element,…
Effective articles & videos to help repair your water heaters
Use the advice and tips in these articles and videos to get the most out of your water heater.
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Find out what’s wrong with your appliance by following a circuit.…
Read about some water heater repairs that you can easily do yourself.…
