Model # IMTL15991 Official Image 10.6qi treadmill

Here are the diagrams and repair parts for Official Image IMTL15991 10.6qi treadmill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

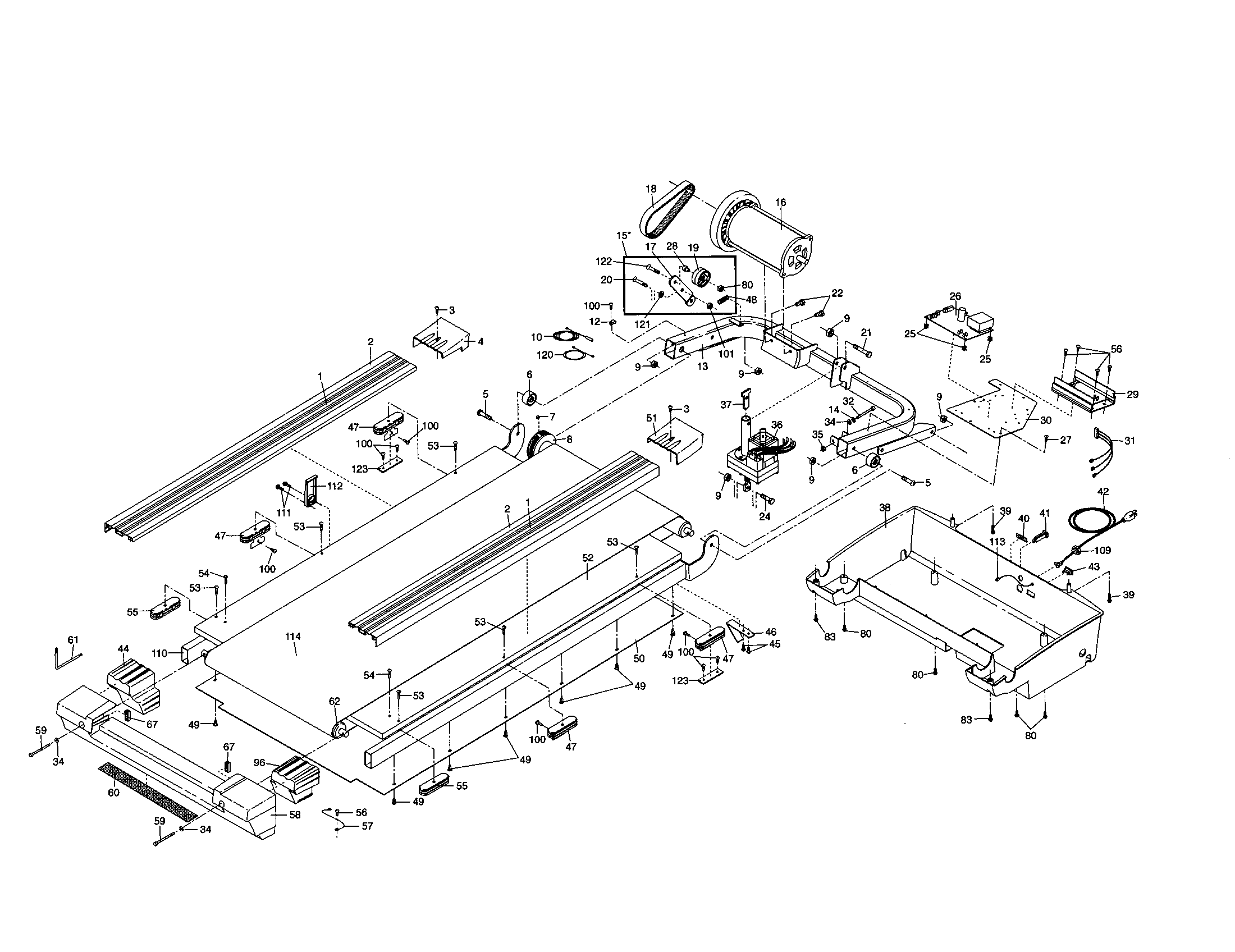

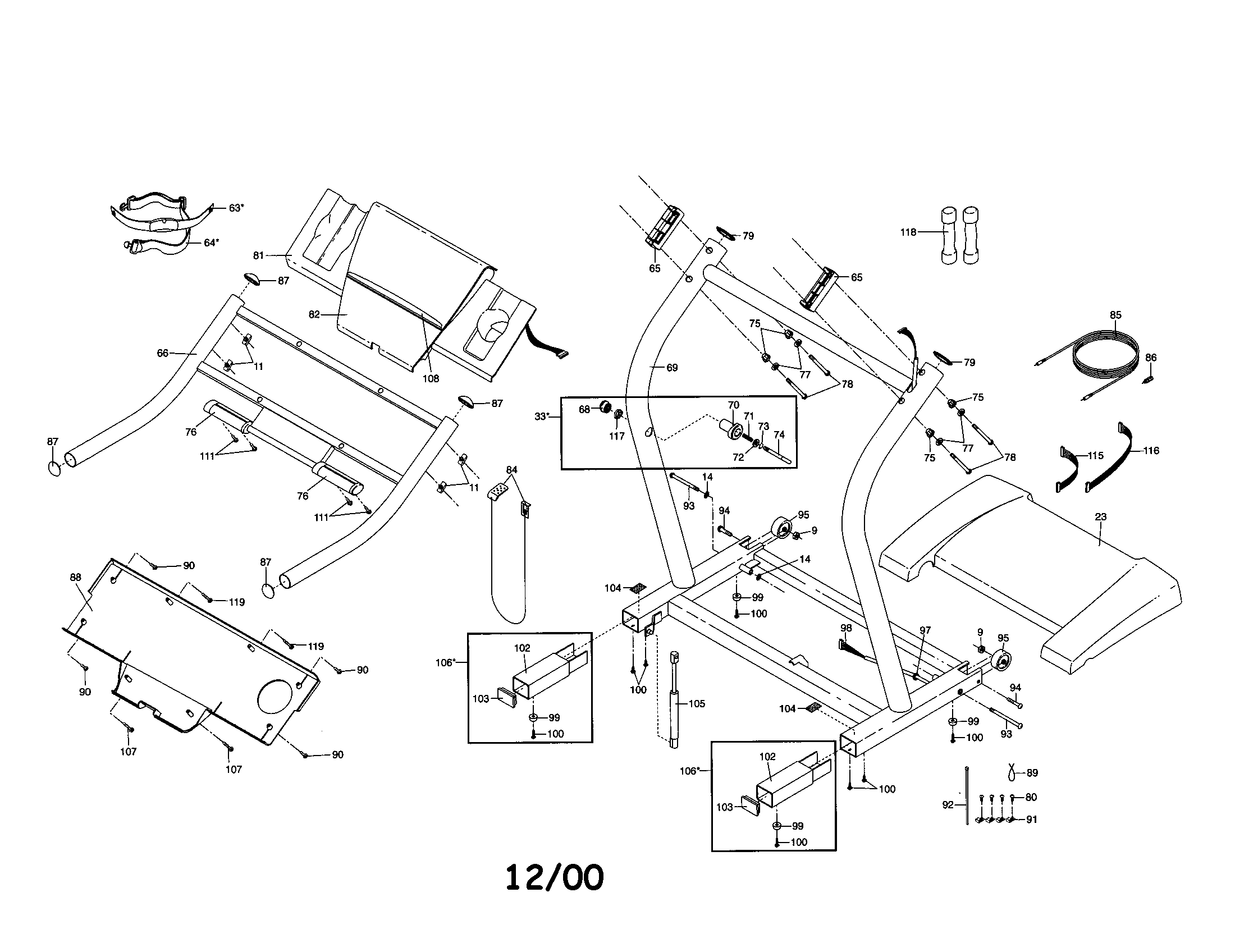

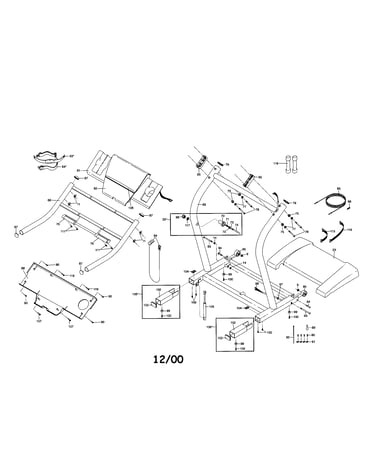

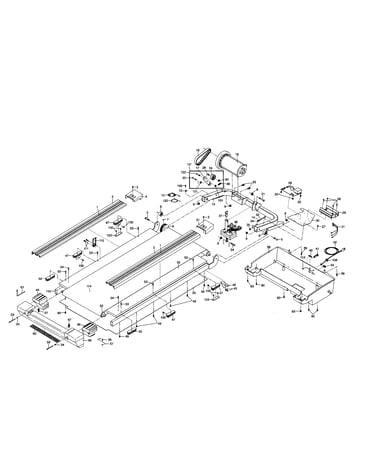

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 167 parts  |
Treadmill Safety Key (replaces 125589, 153017) 119038

#82

All parts diagram

Treadmill safety key (replaces 125589, 153017)

Part #119038

BEST SELLER
This item is not returnable
$3.14 |
24% OFF Phone Price : $4.14
In Stock
Treadmill Circuit Breaker, 15-amp (replaces 031103, 127202, 173322) 109382

#101

All parts diagram

Treadmill circuit breaker, 15-amp (replaces 031103, 127202, 173322)

Part #109382

This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Magnet,rnd,m 100498

#12

All parts diagram

Magnet,rnd,m

Part #100498

Replaced by #113842

?
Manufacturer substitution
This part replaces 100498. Substitute parts can look different from the original.
This item is not returnable
$2.16
Back Order
Black & Decker Exercise Equipment Reed Switch 157504

#17

All parts diagram

Black & decker exercise equipment reed switch

Part #157504

This item is not returnable
$10.99
In Stock
Weslo Exercise Equipment Screw 130659

#26

All parts diagram

Weslo exercise equipment screw

Part #130659

This item is not returnable
$2.16
In Stock
Lifestyler Exercise Equipment Screw 013607

#40

All parts diagram

Lifestyler exercise equipment screw

Part #013607

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Treadmill Retainer Clip 100488

#71

All parts diagram

Treadmill retainer clip

Part #100488

This item is not returnable
$2.16
In Stock
Exercise Equipment Screw 013501

#78

All parts diagram

Exercise equipment screw

Part #013501

This item is not returnable
$2.16
In Stock
Screw,abphth 144780

#75

All parts diagram

Screw,abphth

Part #144780

This item is not returnable
$2.16
In Stock
Warning Decal 163889

#NI

All parts diagram

Warning decal

Part #163889

This item is not returnable
$2.16
In Stock
