Model # 5KSB4027GVB0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 5KSB4027GVB0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |

Screw 3400814
#15

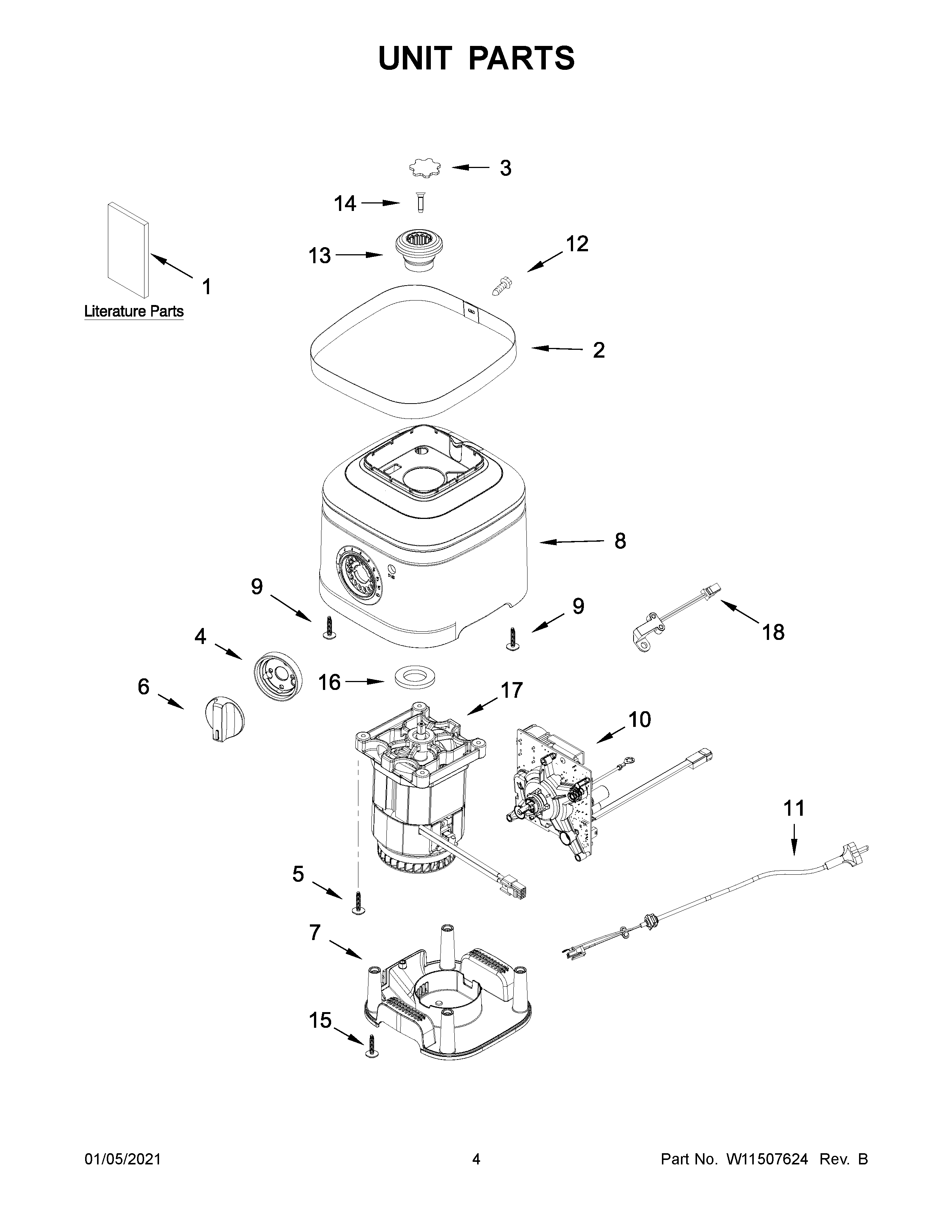

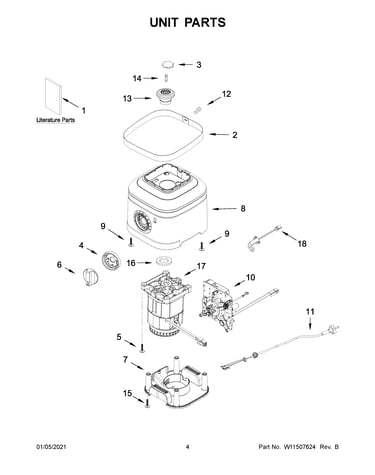

Unit parts diagram

Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Plug, Coupler W11219397
#3

Unit parts diagram

Plug, coupler

Part #W11219397

Replaced by #W11486757

?
Manufacturer substitution
This part replaces W11219397. Substitute parts can look different from the original.
This item is not returnable
$4.19
19% OFF Phone Price : $5.19
In Stock
Upper Base (candy Apple) W11328602
#8

Unit parts diagram

Upper base (candy apple)

Part #W11328602

In Stock
Screw 3400617
#12

Unit parts diagram

Screw

Part #3400617

This item is not returnable
$5.09
16% OFF Phone Price : $6.09
In Stock
Upper Base (matte Vintage Blue) W11245952
#8A

Unit parts diagram

Upper base (matte vintage blue)

Part #W11245952

In Stock
Seal - Motor W11211960
#16

Unit parts diagram

Seal - motor

Part #W11211960

$15.39
12% OFF Phone Price : $17.39
In Stock
Trimband W11354596
#2

Unit parts diagram

Trimband

Part #W11354596

In Stock
Lid Assembly W11279604
#1

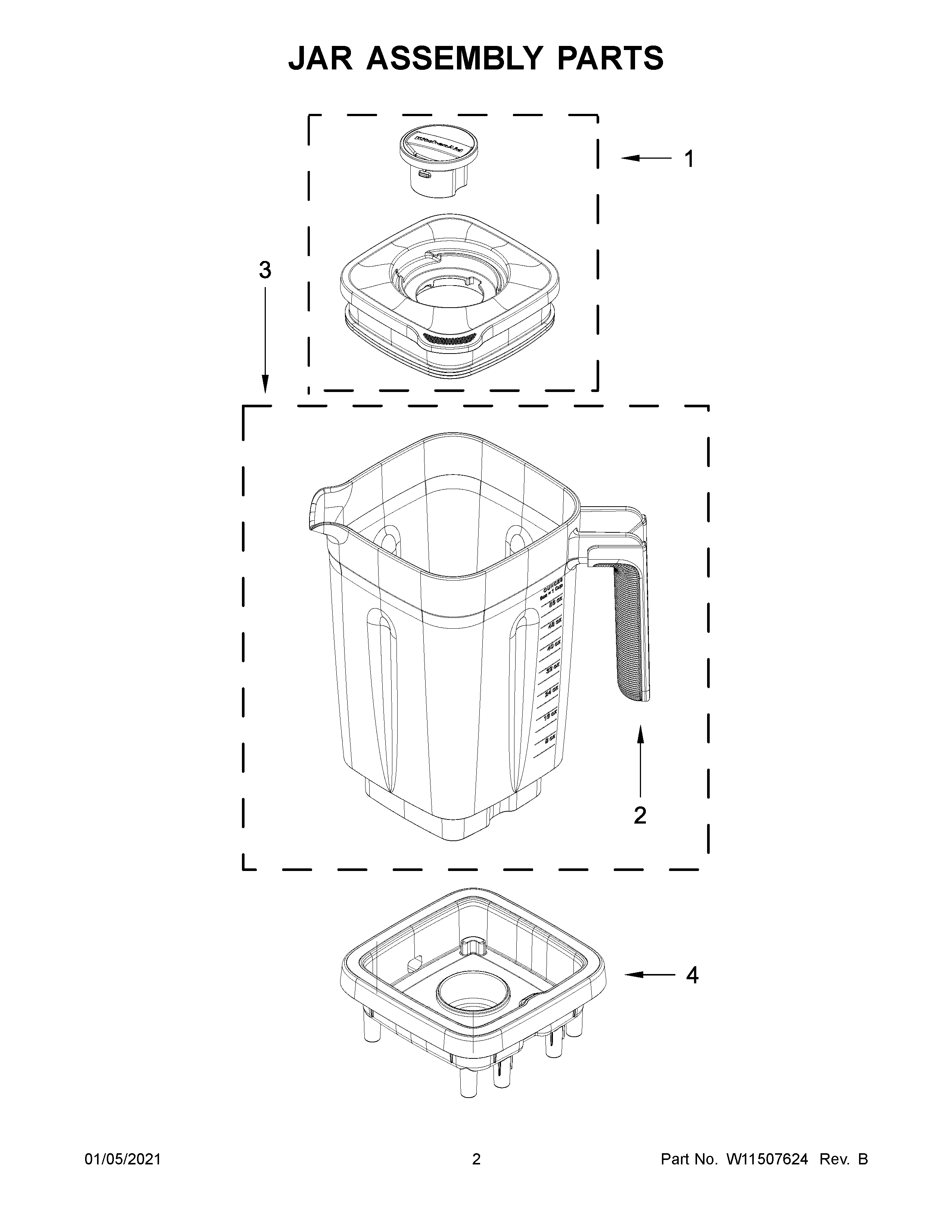

Jar assembly parts diagram

Lid assembly

Part #W11279604

In Stock
Andromeda Po W11392826
#11

Unit parts diagram

Andromeda po

Part #W11392826

In Stock
Jar Assembly W11387671
#3

Jar assembly parts diagram

Jar assembly

Part #W11387671

Replaced by #W11433177

?
Manufacturer substitution
This part replaces W11387671. Substitute parts can look different from the original.
In Stock
