Whirlpool
Compact Refrigerator

Model # EL5WTRXMS00 Official Whirlpool compact refrigerator

Here are the diagrams and repair parts for Official Whirlpool EL5WTRXMS00 compact refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Drier Tube 4312496
#5

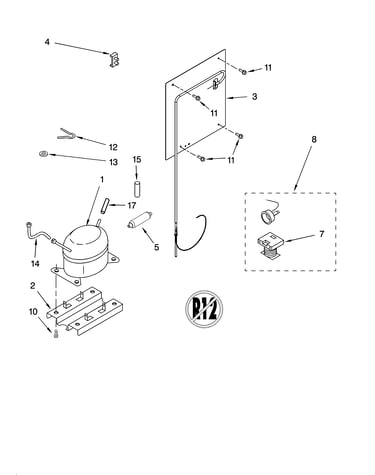

Unit parts diagram

Drier tube

Part #4312496

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 4312496. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Screw 4312464
#10

Unit parts diagram

Screw

Part #4312464

Replaced by #WP4312464

?
Manufacturer substitution
This part replaces 4312464. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Refrigerator Separator 8209205
#15

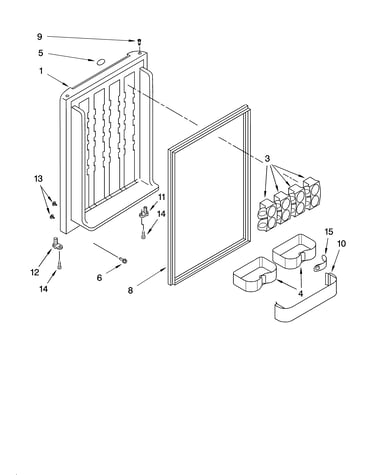

Door parts diagram

Refrigerator separator

Part #8209205

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Support 8209182
#19

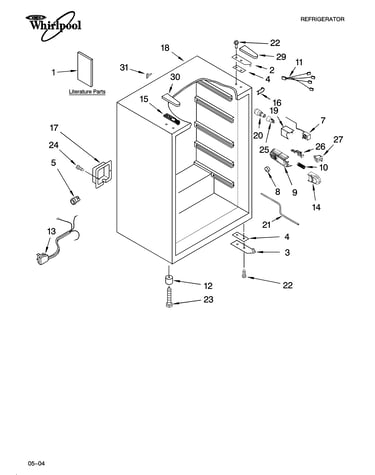

Cabinet parts diagram

Refrigerator support

Part #8209182

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Hinge 4312747
#2

Cabinet parts diagram

Refrigerator door hinge

Part #4312747

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 4312465
#12

Unit parts diagram

Cotter pin

Part #4312465

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Beverage Holder 4312788
#3

Door parts diagram

Refrigerator beverage holder

Part #4312788

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Screw 4312771
#11

Unit parts diagram

Refrigerator screw

Part #4312771

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Socket 4312677
#25

Cabinet parts diagram

Refrigerator socket

Part #4312677

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Spring 8209198
#10

Cabinet parts diagram

Refrigerator spring

Part #8209198

The manufacturer no longer makes this part, and there's no substitute part
