Frigidaire
Electric Range

Model # FEF314AUA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FEF314AUA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

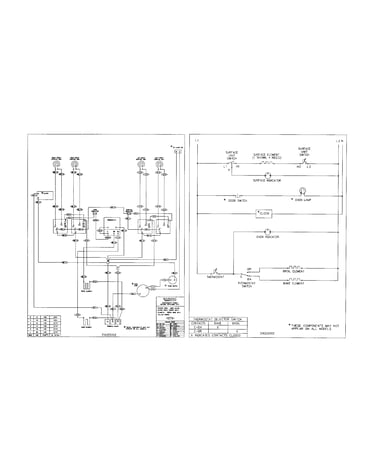

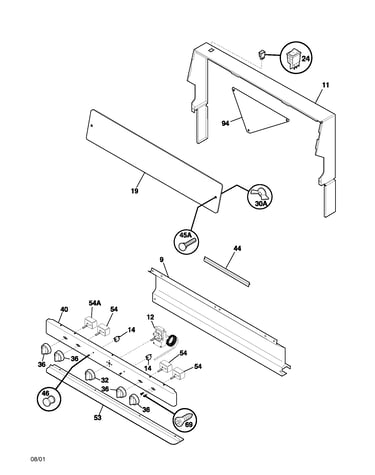

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
Galaxy Range Bake Element (replaces 316075104) 316075103
#67

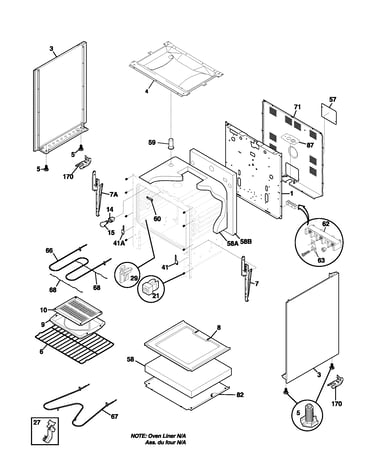

Body diagram

Galaxy range bake element (replaces 316075104)

Part #316075103

BEST SELLER
$27.06 |
18% OFF Phone Price : $33.06
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Block 5303912666
#27

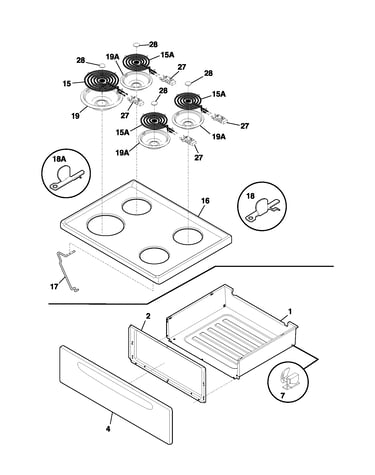

Top/drawer diagram

Block

Part #5303912666

Replaced by #5303935058

?
Manufacturer substitution
This part replaces 5303912666. Substitute parts can look different from the original.
BEST SELLER
$8.60 |
10% OFF Phone Price : $9.60
In Stock
Pan Element 318067055
#19

Top/drawer diagram

Pan element

Part #318067055

Replaced by #316048413

?
Manufacturer substitution
This part replaces 318067055. Substitute parts can look different from the original.
BEST SELLER
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Burner 3051450
#15

Top/drawer diagram

Burner

Part #3051450

Replaced by #316442300

?
Manufacturer substitution
This part replaces 3051450. Substitute parts can look different from the original.
BEST SELLER
$27.33 |
18% OFF Phone Price : $33.33
In Stock
Range Drawer Glide (replaces 08067822, 3012699) 3051163
#7

Top/drawer diagram

Range drawer glide (replaces 08067822, 3012699)

Part #3051163

BEST SELLER
This item is not returnable
$4.69 |
18% OFF Phone Price : $5.69
In Stock
Sm Top Elem 3051449
#15A

Top/drawer diagram

Sm top elem

Part #3051449

Replaced by #318372210

?
Manufacturer substitution
This part replaces 3051449. Substitute parts can look different from the original.
BEST SELLER
$26.22 |
19% OFF Phone Price : $32.22
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

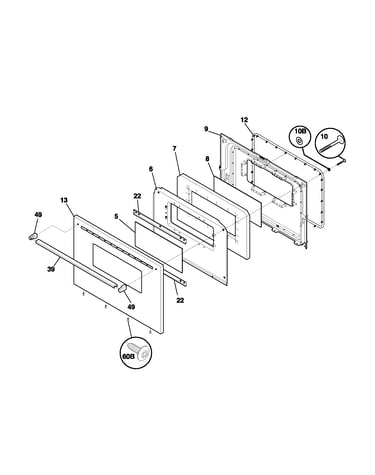

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
