Model # SS630PER0 Official Whirlpool gas range

Here are the diagrams and repair parts for Official Whirlpool SS630PER0 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

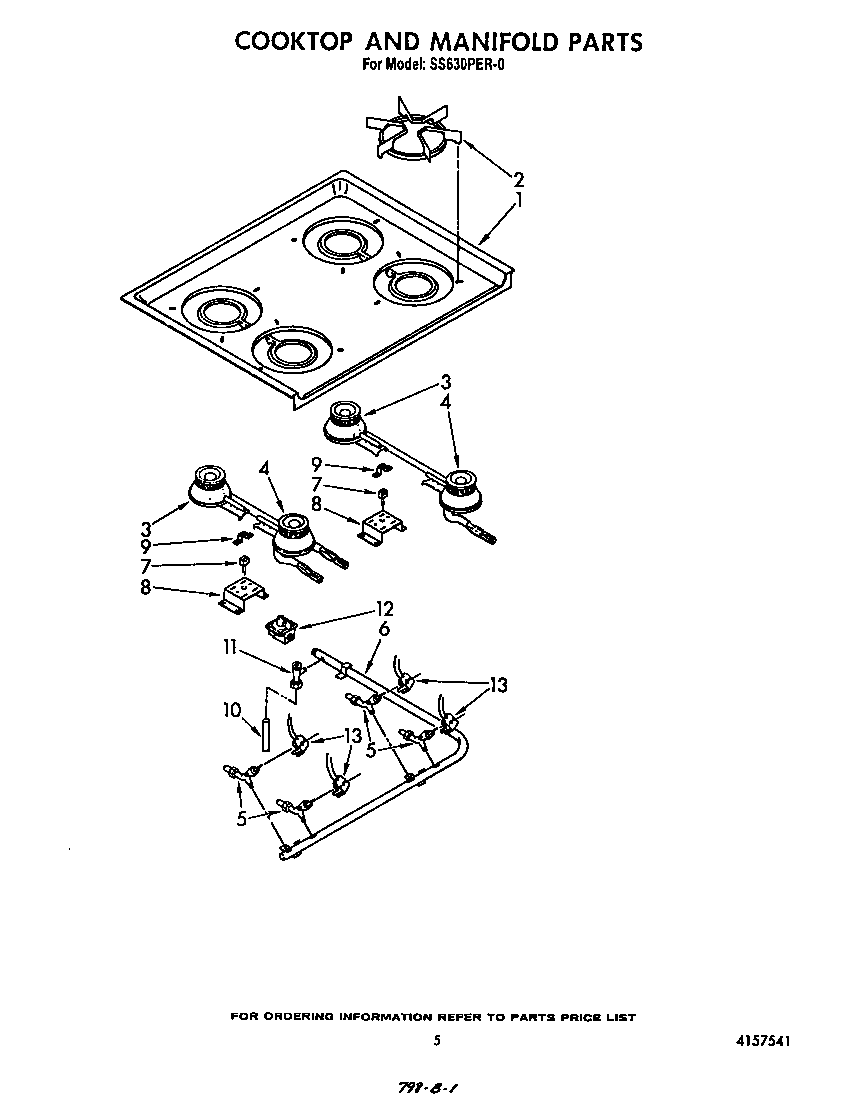

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Light Bulb 786742
#4

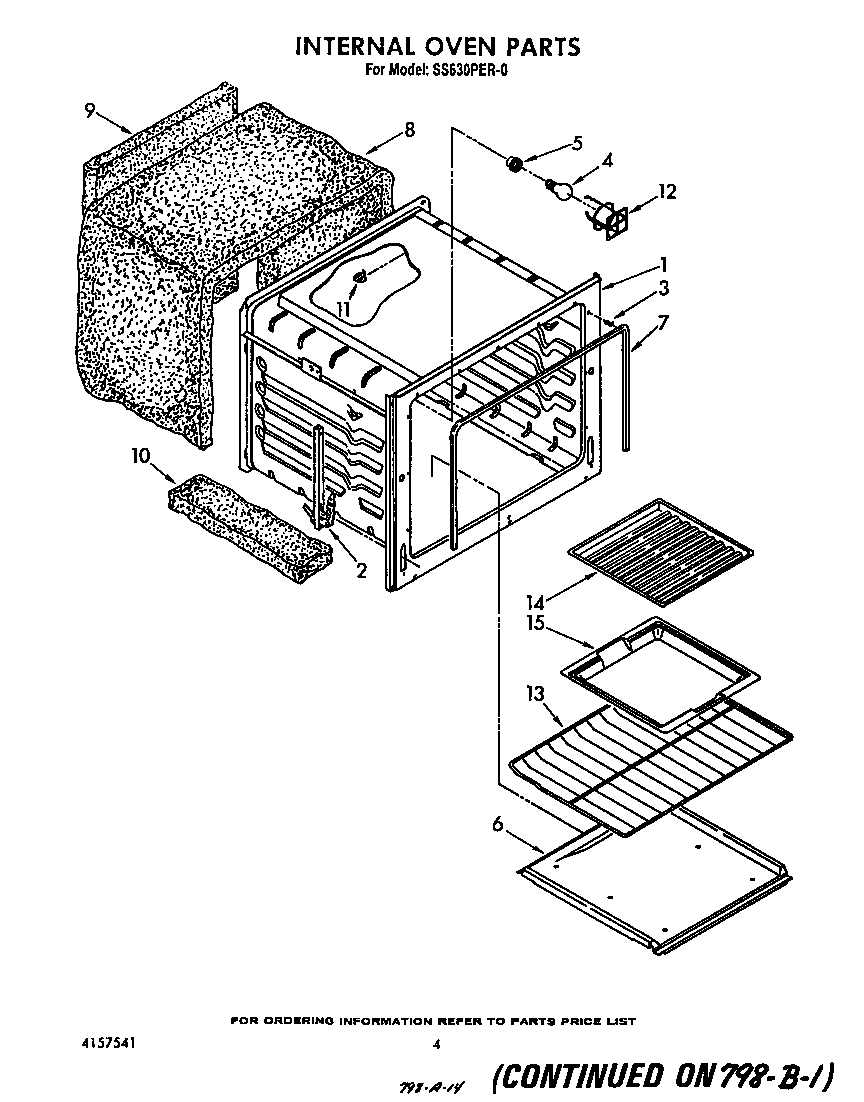

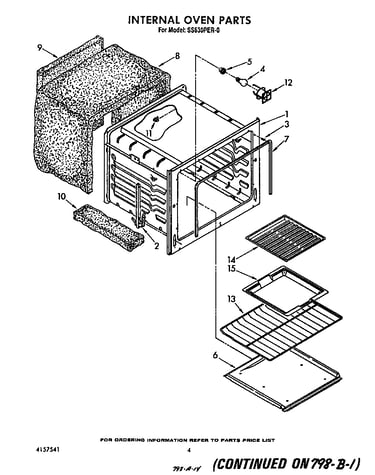

Internal oven diagram

Light bulb

Part #786742

Replaced by #40A15

?
Manufacturer substitution
This part replaces 786742. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 4157466
#31C

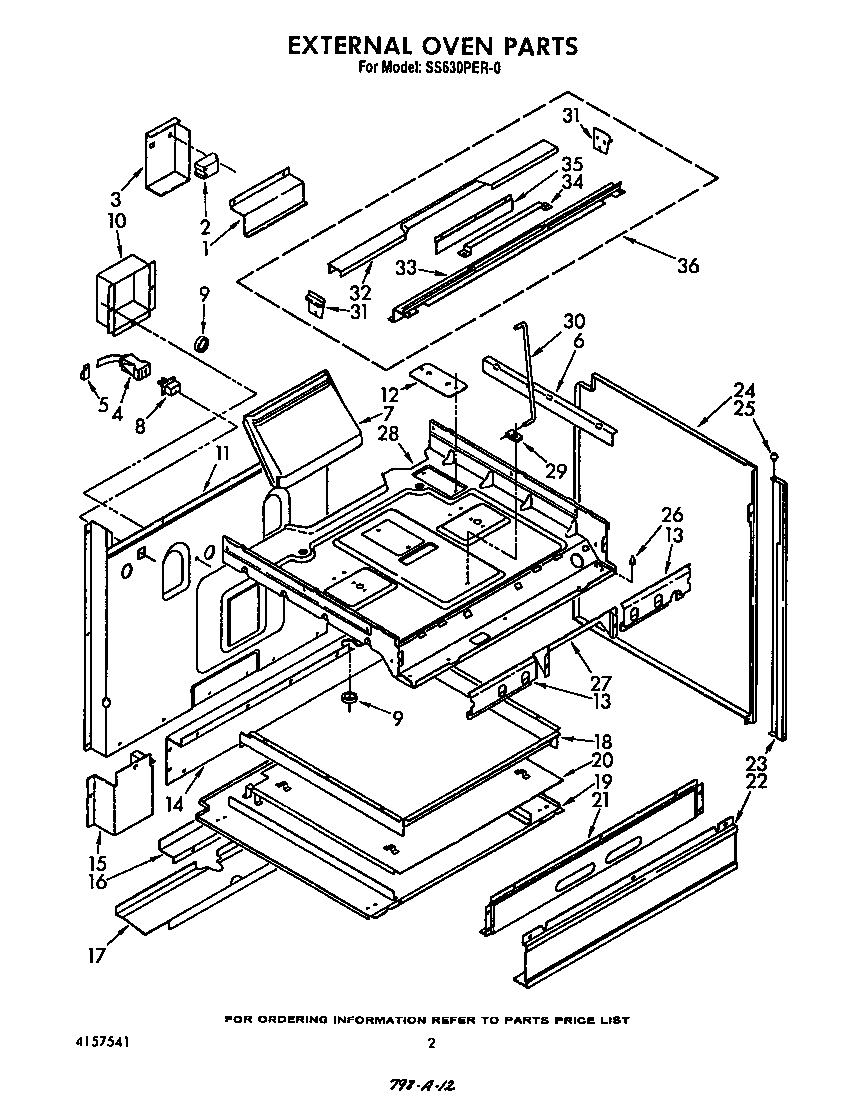

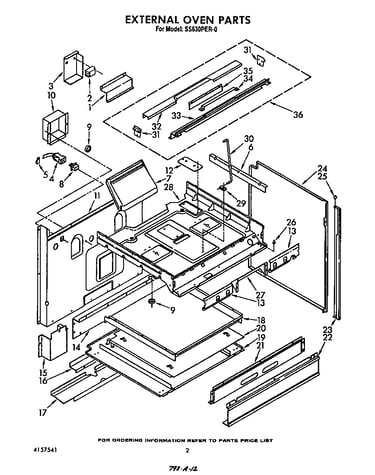

External oven diagram

Screw

Part #4157466

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 4157466. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Oven Igniter 4157446
#1

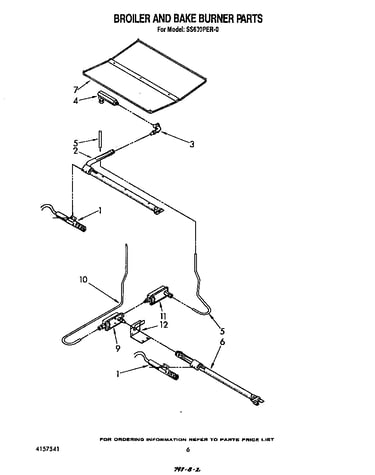

Broiler and bake burner diagram

Oven igniter

Part #4157446

Replaced by #4342528

?
Manufacturer substitution
This part replaces 4157446. Substitute parts can look different from the original.
BEST SELLER
$35.33 |
15% OFF Phone Price : $41.33
In Stock
Screw 786227
Screw

Part #786227

Replaced by #WP313808

?
Manufacturer substitution
This part replaces 786227. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw 786261
Screw

Part #786261

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 786261. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Tube Clamp 4157407
#29

External oven diagram

Tube clamp

Part #4157407

Replaced by #WP488366

?
Manufacturer substitution
This part replaces 4157407. Substitute parts can look different from the original.
This item is not returnable
$8.39 |
11% OFF Phone Price : $9.39
In Stock
Insulation 4157400
#9

Internal oven diagram

Insulation

Part #4157400

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4157400. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Insulation 4157399
#8

Internal oven diagram

Insulation

Part #4157399

Replaced by #WPW10208653

?
Manufacturer substitution
This part replaces 4157399. Substitute parts can look different from the original.
$38.42 |
14% OFF Phone Price : $44.42
In Stock
Nut 4157432
#1C

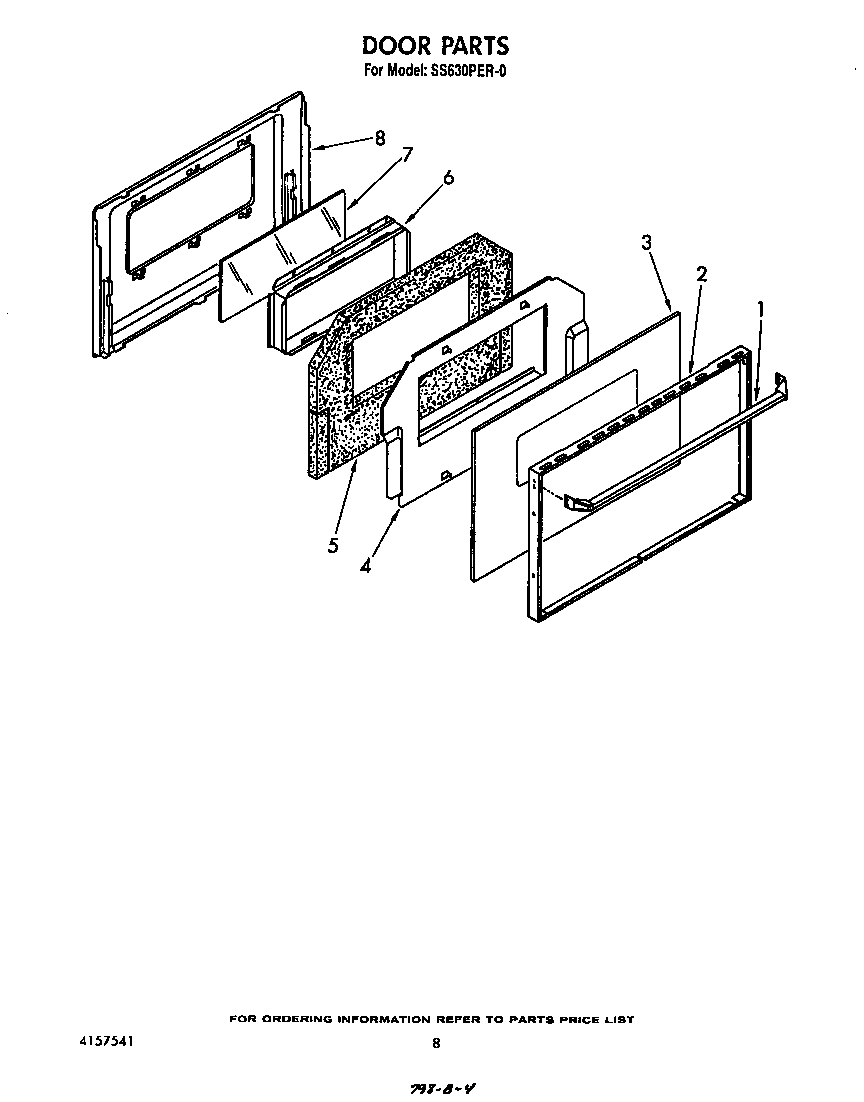

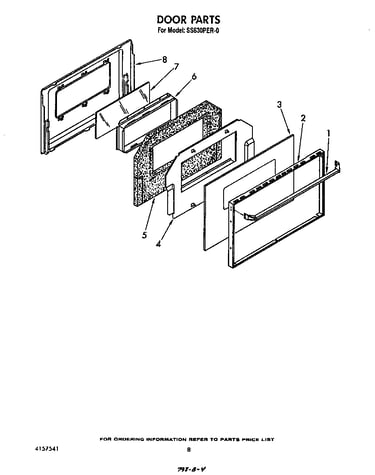

Door diagram

Nut

Part #4157432

Replaced by #WP98234

?
Manufacturer substitution
This part replaces 4157432. Substitute parts can look different from the original.
This item is not returnable
$7.55 |
12% OFF Phone Price : $8.55
In Stock
Connector 4157447
#1A

Broiler and bake burner diagram

Connector

Part #4157447

Replaced by #353424

?
Manufacturer substitution
This part replaces 4157447. Substitute parts can look different from the original.
This item is not returnable
$18.89 |
10% OFF Phone Price : $20.89
In Stock
