Model # MT3100SHB0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT3100SHB0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

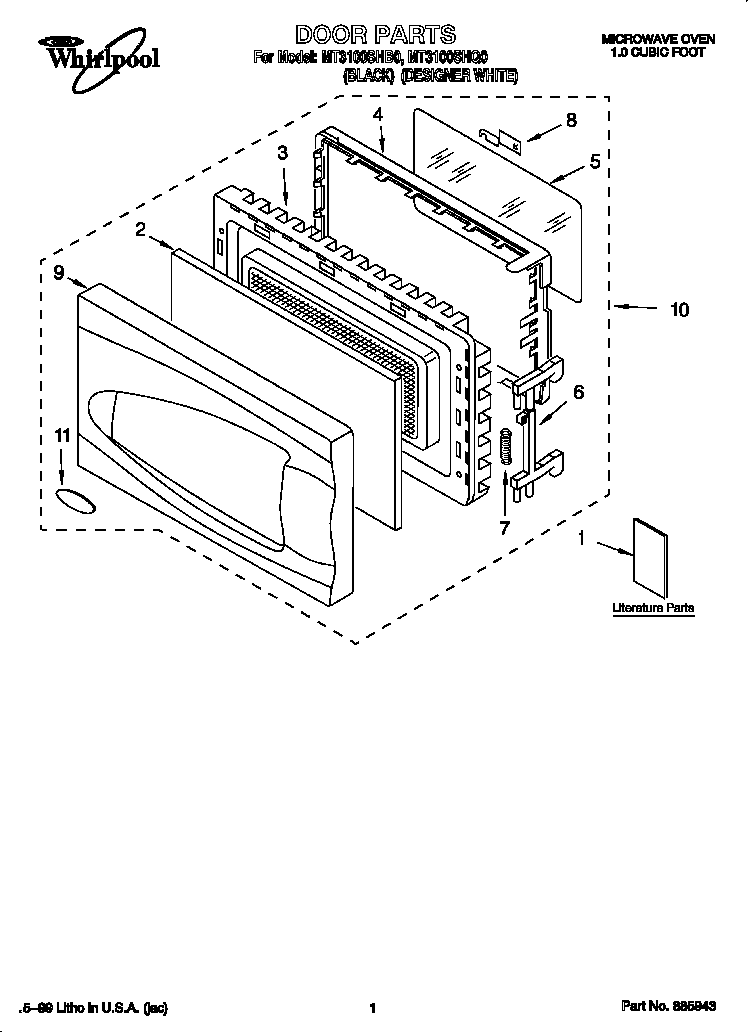

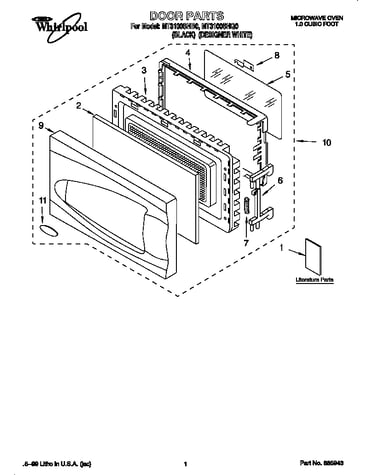

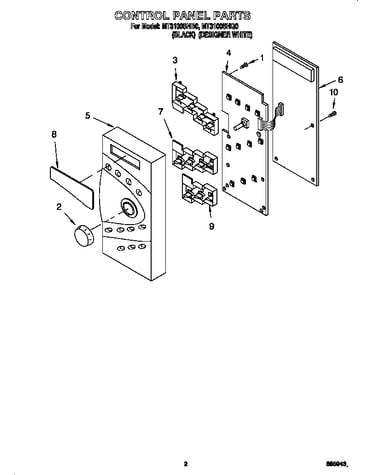

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Voltage Wire 8171879
#8

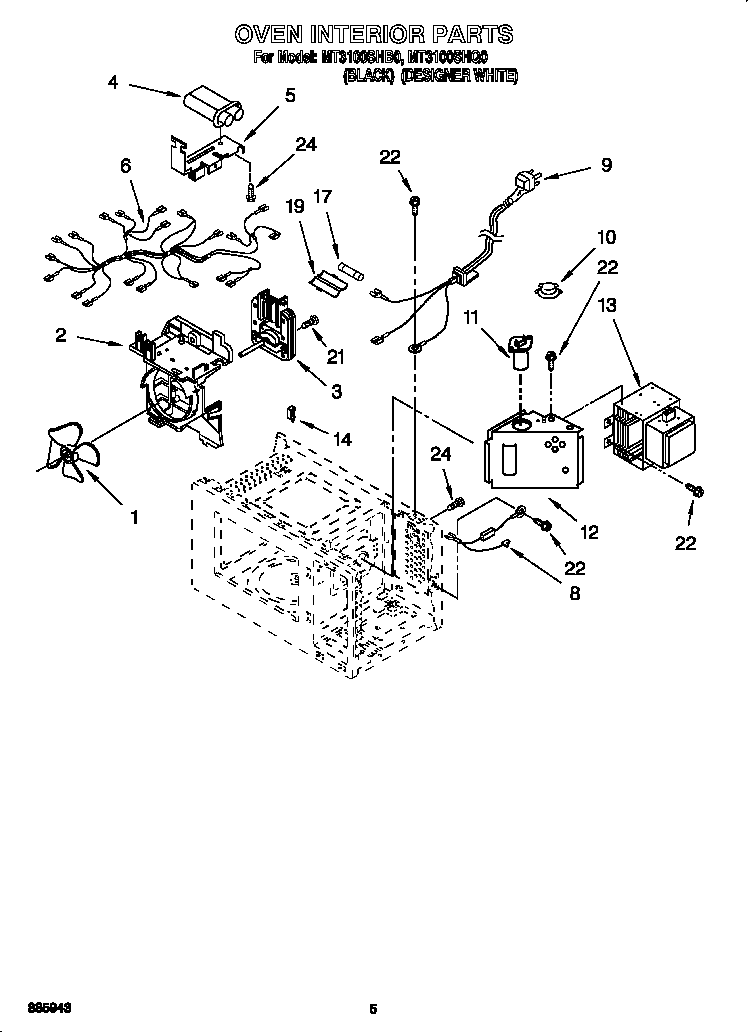

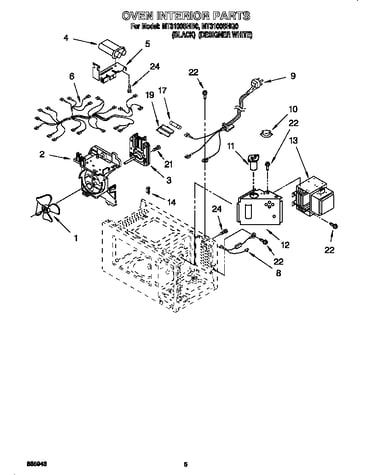

Oven interior diagram

Voltage wire

Part #8171879

Replaced by #WP8205489

?
Manufacturer substitution
This part replaces 8171879. Substitute parts can look different from the original.
$32.49 |
16% OFF Phone Price : $38.49
In Stock
Fuse 4359121
#17

Oven interior diagram

Fuse

Part #4359121

Replaced by #WP8183507

?
Manufacturer substitution
This part replaces 4359121. Substitute parts can look different from the original.
This item is not returnable
$14.39 |
12% OFF Phone Price : $16.39
In Stock
Switch 4158769
#5

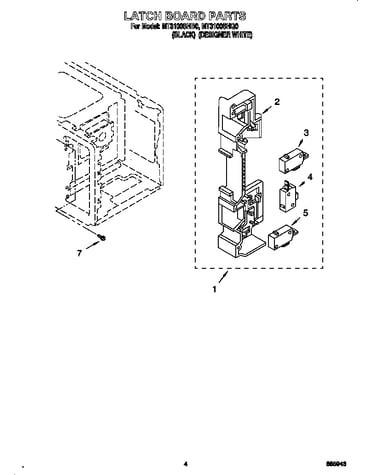

Latch board diagram

Switch

Part #4158769

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158769. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Microwave Screw 4358489
Microwave screw

Part #4358489

Replaced by #4344826

?
Manufacturer substitution
This part replaces 4358489. Substitute parts can look different from the original.
$12.49
In Stock
Screw 4358192
#5

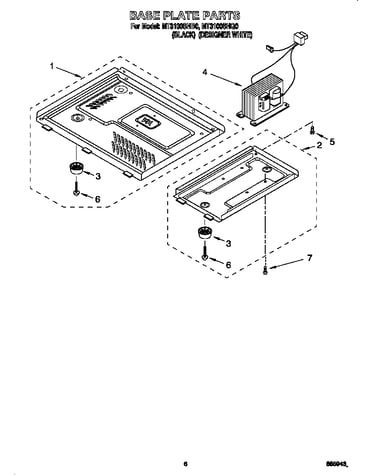

Base plate diagram

Screw

Part #4358192

Replaced by #W11380570

?
Manufacturer substitution
This part replaces 4358192. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Stirrer Rivet 4359508
#3

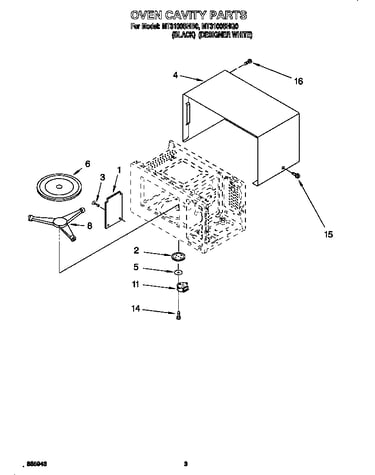

Oven cavity diagram

Stirrer rivet

Part #4359508

Replaced by #WP4359508

?
Manufacturer substitution
This part replaces 4359508. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Screw 8171862
#16

Oven cavity diagram

Screw

Part #8171862

Replaced by #8169474

?
Manufacturer substitution
This part replaces 8171862. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Screw 8171876
#15B

Oven cavity diagram

Screw

Part #8171876

Replaced by #8169474

?
Manufacturer substitution
This part replaces 8171876. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Switch 4158941
#4

Latch board diagram

Switch

Part #4158941

Replaced by #4392027

?
Manufacturer substitution
This part replaces 4158941. Substitute parts can look different from the original.
$69.11 |
8% OFF Phone Price : $75.11
In Stock
Fan Blade 4158758
#1

Oven interior diagram

Fan blade

Part #4158758

Replaced by #8184292

?
Manufacturer substitution
This part replaces 4158758. Substitute parts can look different from the original.
$36.16
In Stock
