Model # DSC-W570G Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W570G digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

Sony Cabinet Up X25608871
#60

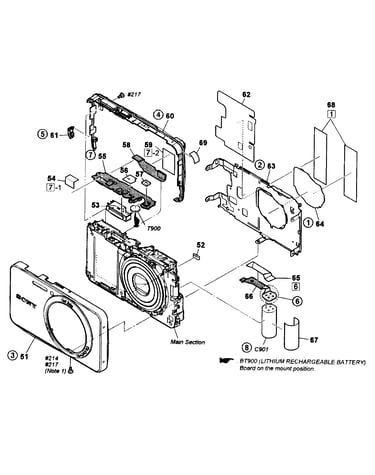

Front section diagram

Sony cabinet up

Part #X25608871

In Stock
Ring Ornament 418770731
#155

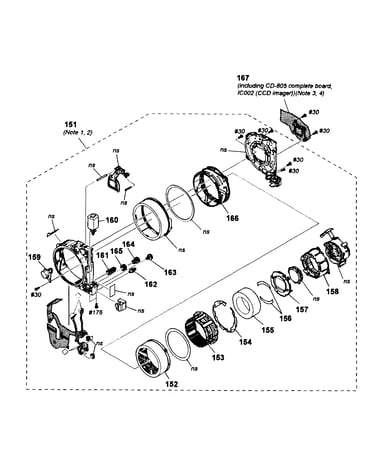

Lens block diagram

Ring ornament

Part #418770731

In Stock
Filter Blo A1820254A
#167

Lens block diagram

Filter blo

Part #A1820254A

In Stock
Gasket 426550801
#52

Front section diagram

Gasket

Part #426550801

In Stock
Insulation Sheet 426550001
#65

Front section diagram

Insulation sheet

Part #426550001

This item is not returnable
In Stock
Rein Sheet 426549601
#105

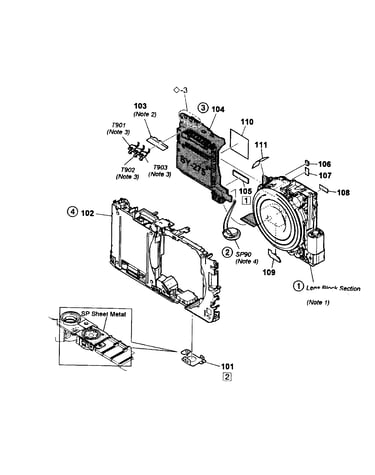

Main section diagram

Rein sheet

Part #426549601

In Stock
Gear A1799619A
#161

Lens block diagram

Gear

Part #A1799619A

This item is not returnable
In Stock
Sheet 426550501
#109

Main section diagram

Sheet

Part #426550501

In Stock
Frame,grou 418767001
#158

Lens block diagram

Frame,grou

Part #418767001

This item is not returnable
In Stock
Lcd Module 180298411
#LCD9

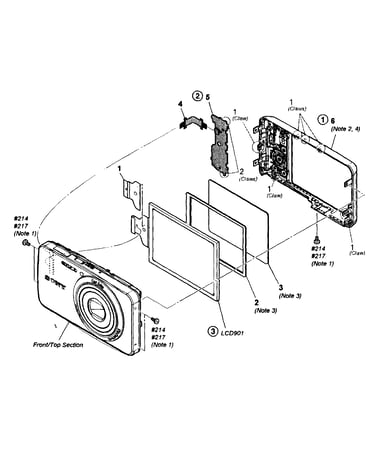

Rear section diagram

Lcd module

Part #180298411

In Stock
