Bosch
Power Drill

Model # 1021VSR Official Bosch 3/8" drill

Here are the diagrams and repair parts for Official Bosch 1021VSR 3/8" drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

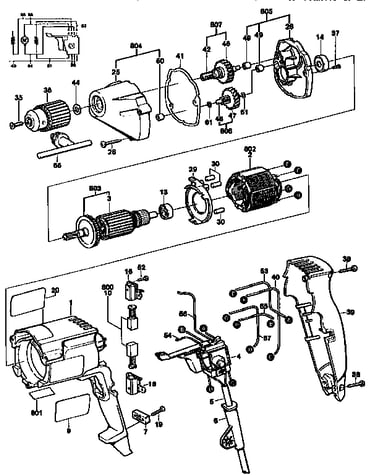

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Cable 3604448502
#54

Unit diagram

Cable

Part #3604448502

The manufacturer no longer makes this part, and there's no substitute part

Cable 3604448501
#53

Unit diagram

Cable

Part #3604448501

The manufacturer no longer makes this part, and there's no substitute part

Dremel Cord Clamp 2601035001
#7

Unit diagram

Dremel cord clamp

Part #2601035001

The manufacturer no longer makes this part, and there's no substitute part

Gasket 3601016502
#41

Unit diagram

Gasket

Part #3601016502

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 3601119718
#801

Unit diagram

Nameplate

Part #3601119718

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 3608571506
#A66.2

Unit diagram

Chuck key

Part #3608571506

The manufacturer no longer makes this part, and there's no substitute part

Cable 3604448503
#55

Unit diagram

Cable

Part #3604448503

The manufacturer no longer makes this part, and there's no substitute part

Cover 3605133521
#39

Unit diagram

Cover

Part #3605133521

The manufacturer no longer makes this part, and there's no substitute part

Skil Power Tool Power Cord 3604460555
#5

Unit diagram

Skil power tool power cord

Part #3604460555

The manufacturer no longer makes this part, and there's no substitute part

Buffer 3602391503
#30

Unit diagram

Buffer

Part #3602391503

The manufacturer no longer makes this part, and there's no substitute part
