Kenmore
Faucet Water Filter

Model # 625340220 Official Kenmore deluxe iron removal filter

Here are the diagrams and repair parts for Official Kenmore 625340220 deluxe iron removal filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Switch 9001800
Switch

Part #9001800

Replaced by #7030713

?
Manufacturer substitution
This part replaces 9001800. Substitute parts can look different from the original.
BEST SELLER
$27.97 |
18% OFF Phone Price : $33.97
In Stock
Water Softener Ferrule Nut (replaces 7031450, Ws03x10017, Ws3x10017) 1202600
Water softener ferrule nut (replaces 7031450, ws03x10017, ws3x10017)

Part #1202600

BEST SELLER
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Gravel 501782
#10

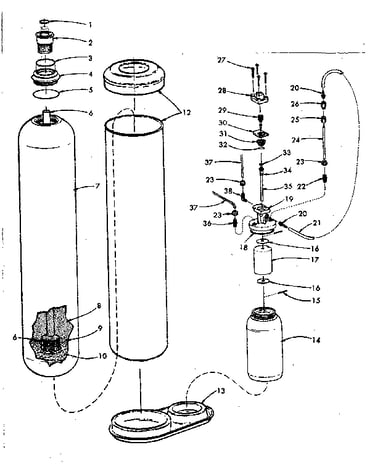

Tank assembly, feeder valve assembly, nozzle & venturi diagram

Gravel

Part #501782

Replaced by #7124415

?
Manufacturer substitution
This part replaces 501782. Substitute parts can look different from the original.
$30.58 |
16% OFF Phone Price : $36.58
In Stock
Water Filtration System Filtering Sand, 10-lb 501783
#9

Tank assembly, feeder valve assembly, nozzle & venturi diagram

Water filtration system filtering sand, 10-lb

Part #501783

Replaced by #0501783

?
Manufacturer substitution
This part replaces 501783. Substitute parts can look different from the original.
$30.59 |
16% OFF Phone Price : $36.59
In Stock
Flow Washer 1110800
#119

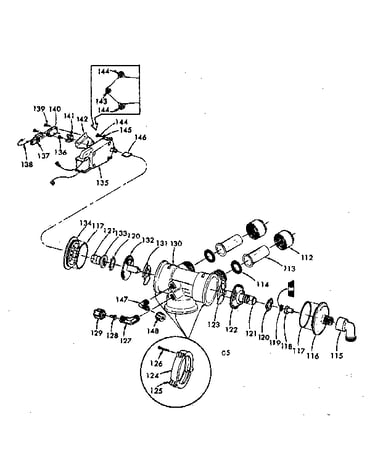

Valve assembly diagram

Flow washer

Part #1110800

Replaced by #0509537

?
Manufacturer substitution
This part replaces 1110800. Substitute parts can look different from the original.
$15.71
In Stock
Ring 900287
#90

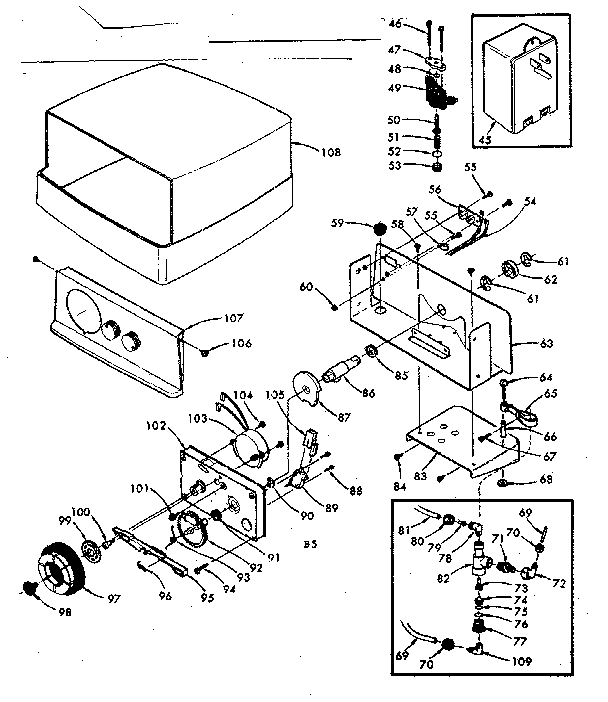

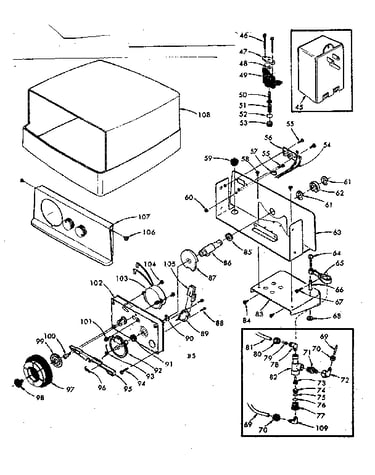

Timer assembly, face plate and safety shut-off diagram

Ring

Part #900287

This item is not returnable
$2.99
In Stock
Spring 1234900
#96

Timer assembly, face plate and safety shut-off diagram

Spring

Part #1234900

This item is not returnable
$2.99
In Stock
Bushing 9004900
#59

Timer assembly, face plate and safety shut-off diagram

Bushing

Part #9004900

This item is not returnable
$2.29
In Stock
O-ring 9001000
O-ring

Part #9001000

This item is not returnable
$4.62
In Stock
Screw 9006024
#139

Valve assembly diagram

Screw

Part #9006024

This item is not returnable
$2.16
In Stock
