Horizon
Exercise Cycle

Model # 2.0B Official Horizon exercise bike

Here are the diagrams and repair parts for Official Horizon 20B exercise bike, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Wheel MB0102003
#L02

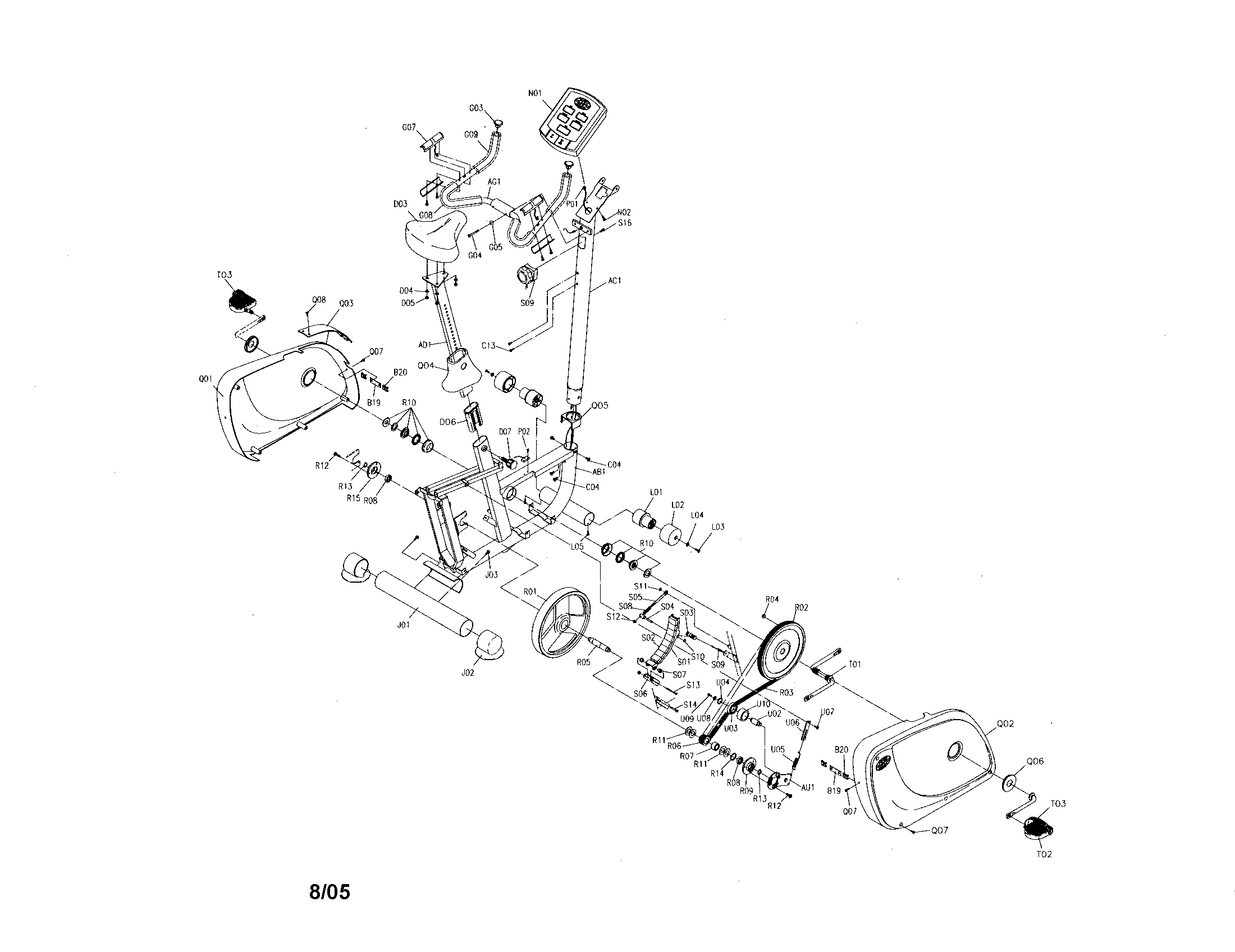

Bike assembly diagram

Wheel

Part #MB0102003

Replaced by #000014-00

?
Manufacturer substitution
This part replaces MB0102003. Substitute parts can look different from the original.
$7.76
In Stock
Bolt MZE0112046
#G04

Bike assembly diagram

Bolt

Part #MZE0112046

Replaced by #004735-00

?
Manufacturer substitution
This part replaces MZE0112046. Substitute parts can look different from the original.
This item is not returnable
$2.21
In Stock
Motor Dc SW0307003A
#AS2

Bike assembly diagram

Motor dc

Part #SW0307003A

$65.82
In Stock
Bearing Set MD0113001
#R10

Bike assembly diagram

Bearing set

Part #MD0113001

Replaced by #003879-00

?
Manufacturer substitution
This part replaces MD0113001. Substitute parts can look different from the original.
This item is not returnable
$7.37
In Stock
Left Pedal MD0402048A
#T02

Bike assembly diagram

Left pedal

Part #MD0402048A

Replaced by #014708-A

?
Manufacturer substitution
This part replaces MD0402048A. Substitute parts can look different from the original.
$18.85
In Stock
C-clip MZE0902006
#R13

Bike assembly diagram

C-clip

Part #MZE0902006

Replaced by #005361-00

?
Manufacturer substitution
This part replaces MZE0902006. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Pulley Set SZRB51PUL
#T01A

Bike assembly diagram

Pulley set

Part #SZRB51PUL

Replaced by #016008-Z

?
Manufacturer substitution
This part replaces SZRB51PUL. Substitute parts can look different from the original.
$22.39
In Stock
Bearing MD0502001
#R07

Bike assembly diagram

Bearing

Part #MD0502001

Replaced by #004090-00

?
Manufacturer substitution
This part replaces MD0502001. Substitute parts can look different from the original.
$16.46
In Stock
Bolt ME0112024
#J03

Bike assembly diagram

Bolt

Part #ME0112024

Replaced by #004796-00

?
Manufacturer substitution
This part replaces ME0112024. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw MZE0108004
#P02

Bike assembly diagram

Screw

Part #MZE0108004

Replaced by #004648-00

?
Manufacturer substitution
This part replaces MZE0108004. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
