Model # 11624130 Official Kenmore powermate vacuum attachment
Here are the diagrams and repair parts for Official Kenmore 11624130 powermate vacuum attachment, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for
11624130 Vacuum Cleaners
#9

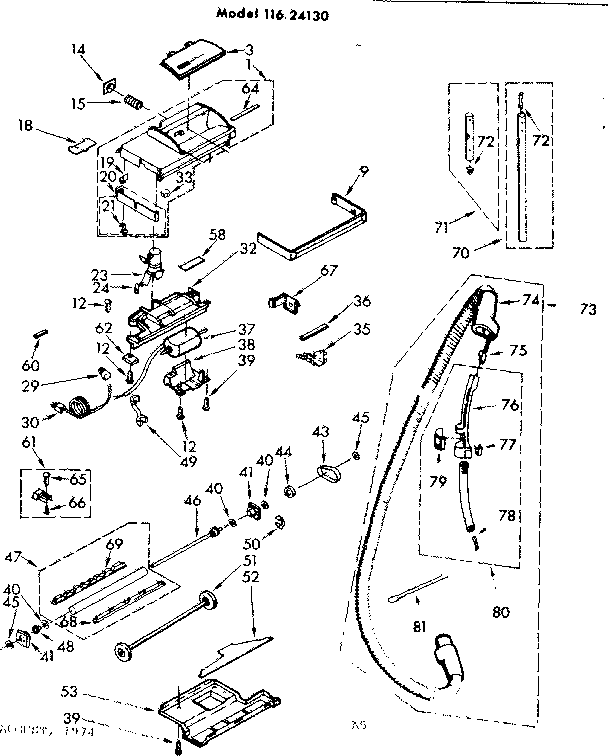

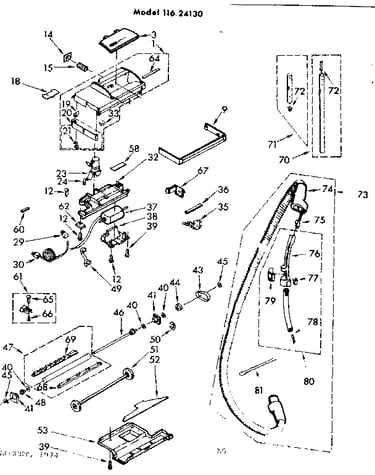

Power mate diagram
Guard
Part #722917
The manufacturer no longer makes this part, and there's no substitute part
Plug
Part #569622
The manufacturer no longer makes this part, and there's no substitute part
Cover kit
Part #569624
The manufacturer no longer makes this part, and there's no substitute part
#3
Power mate diagram
Hood
Part #725304
The manufacturer no longer makes this part, and there's no substitute part
#36A
Power mate diagram
Gasket
Part #725088
The manufacturer no longer makes this part, and there's no substitute part
Yoke
Part #725296
The manufacturer no longer makes this part, and there's no substitute part
#4

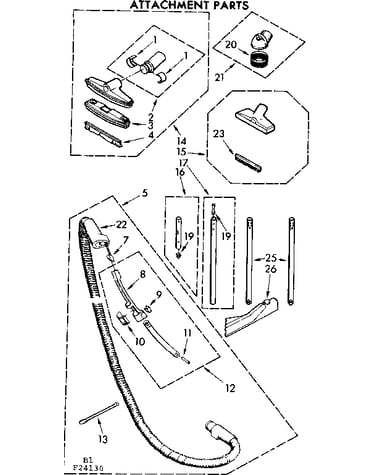

Attachment parts diagram
Vacuum brush
Part #721458
The manufacturer no longer makes this part, and there's no substitute part
#36
Power mate diagram
(not serviced, use old ) screw, motor brush
Part #N/P
The manufacturer no longer makes this part, and there's no substitute part
#48
Power mate diagram
End
Part #724394
The manufacturer no longer makes this part, and there's no substitute part
#61
Power mate diagram
Cover kit
Part #569764
The manufacturer no longer makes this part, and there's no substitute part
