Hoover
Upright Vacuum

Model # S5680 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover S5680 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |

Vacuum Conical Washer 21347003
#300

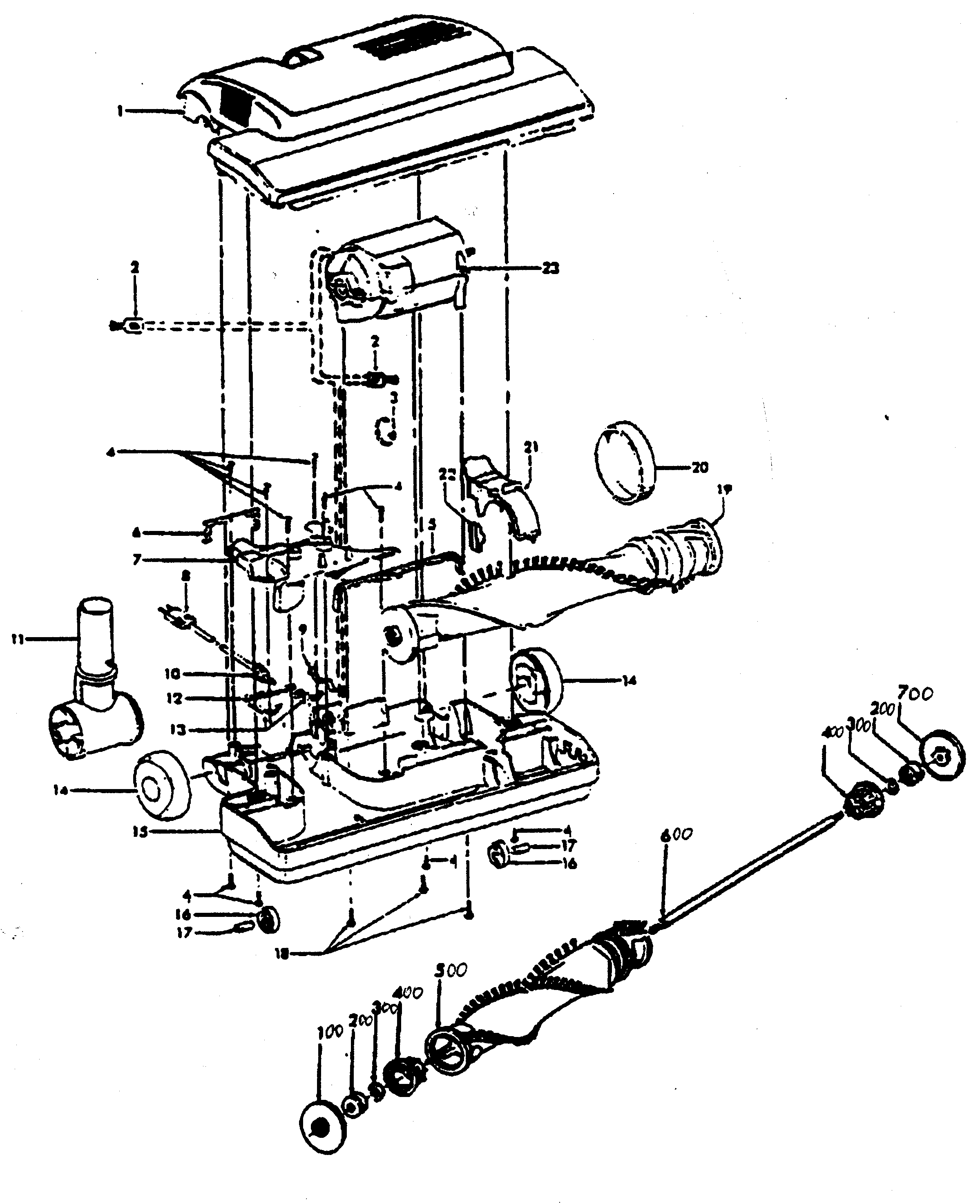

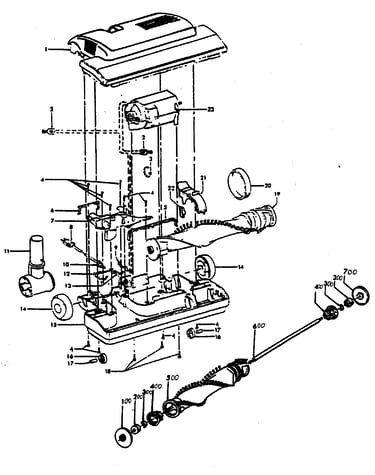

Tools standard kit diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Seal-12 Pk 34122014
#13

Tools standard kit diagram

Seal-12 pk

Part #34122014

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Crevice Tool 38617024
#9

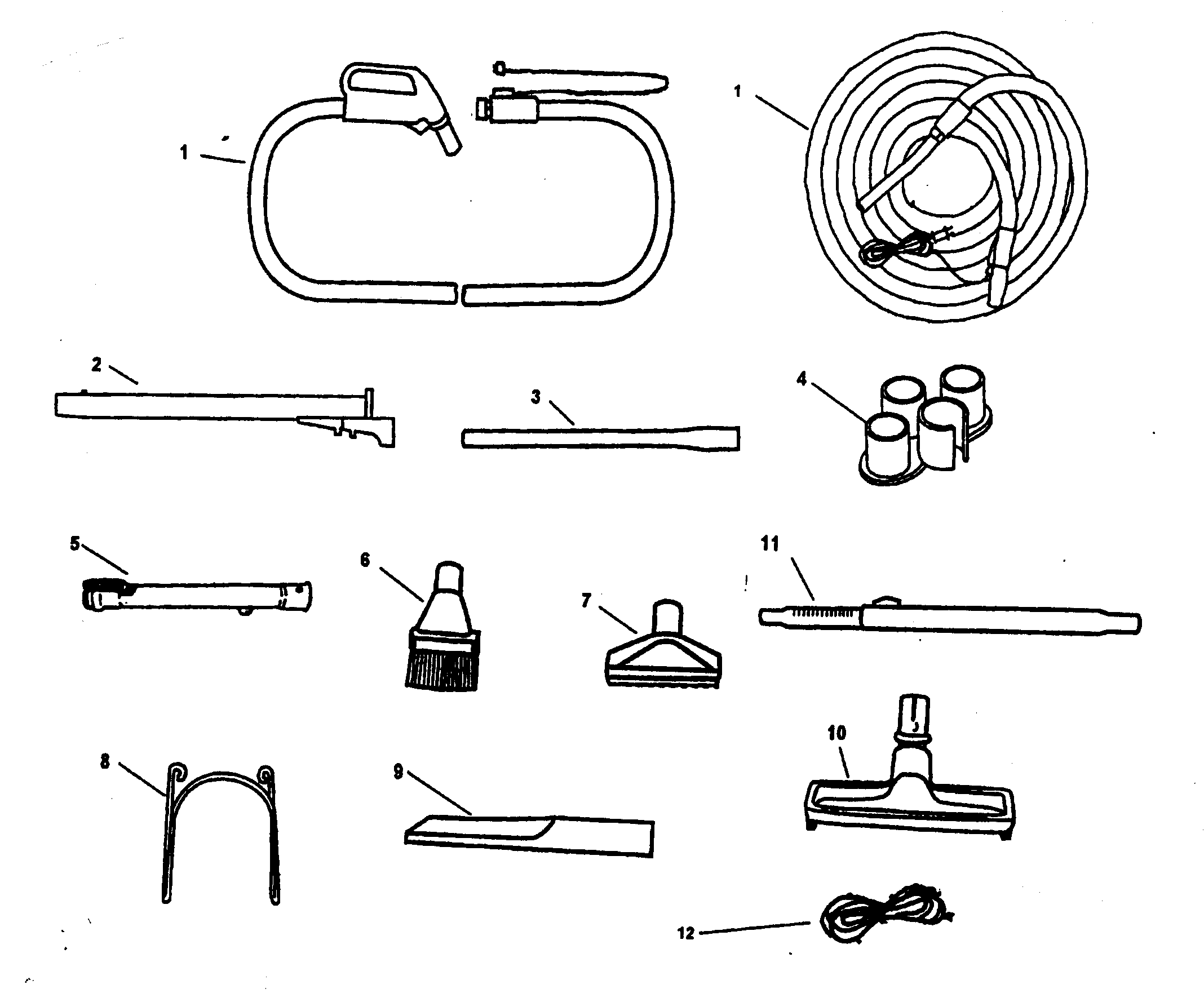

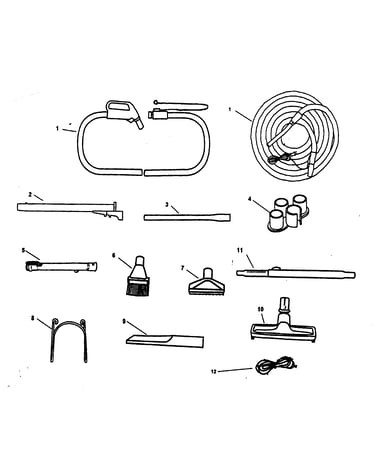

Accessorys diagram

Kenmore crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Left 36423017
#700

Tools standard kit diagram

Vacuum beater bar housing end cap, left

Part #36423017

The manufacturer no longer makes this part, and there's no substitute part

Detent Spring 35276008
#9

Tools standard kit diagram

Detent spring

Part #35276008

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Wheel 32761001
#16

Tools standard kit diagram

Kenmore vacuum wheel

Part #32761001

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Right 36423016
#100

Tools standard kit diagram

Vacuum beater bar housing end cap, right

Part #36423016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Bearing 43267002
#200

Tools standard kit diagram

Vacuum beater bar bearing

Part #43267002

The manufacturer no longer makes this part, and there's no substitute part

Wire Tie 27479307
#3

Tools standard kit diagram

Wire tie

Part #27479307

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Vacuum Beater Bar Belt 38528011
#20

Tools standard kit diagram

Kenmore vacuum beater bar belt

Part #38528011

The manufacturer no longer makes this part, and there's no substitute part
