Model # 758178512 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 758178512 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |

Adapter 18459
#30

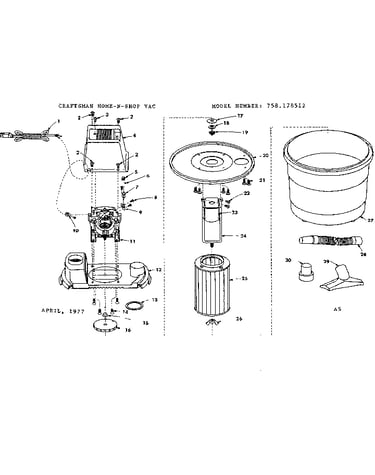

Base assembly diagram

Adapter

Part #18459

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Rect 20791
#29

Base assembly diagram

Nozzle rect

Part #20791

The manufacturer no longer makes this part, and there's no substitute part

Filter Assembly 20774
#25

Base assembly diagram

Filter assembly

Part #20774

The manufacturer no longer makes this part, and there's no substitute part

Hose 24689
#28

Base assembly diagram

Hose

Part #24689

The manufacturer no longer makes this part, and there's no substitute part

Gasket 20866
#13

Base assembly diagram

Gasket

Part #20866

The manufacturer no longer makes this part, and there's no substitute part

Bushing 13949
#10

Base assembly diagram

Bushing

Part #13949

The manufacturer no longer makes this part, and there's no substitute part

Frame 24859-01
#1

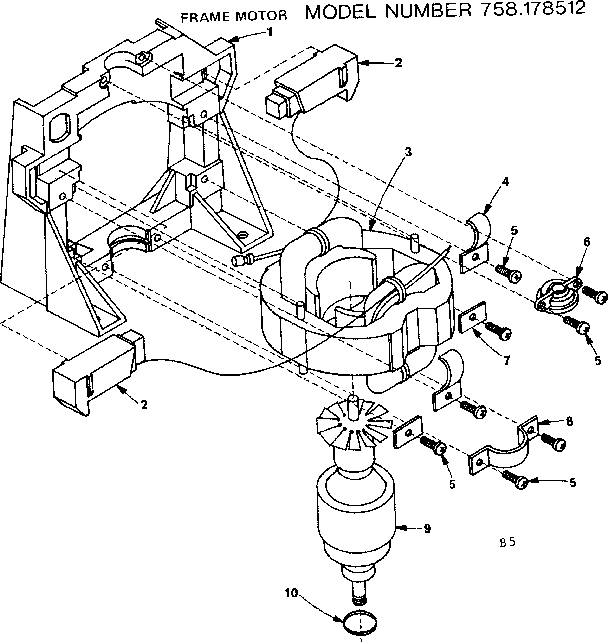

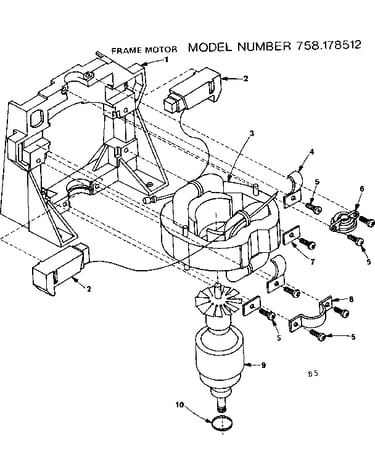

Frame motor diagram

Frame

Part #24859-01

The manufacturer no longer makes this part, and there's no substitute part

Screw STD600802
#8

Base assembly diagram

Screw

Part #STD600802

The manufacturer no longer makes this part, and there's no substitute part

Lid 25952
#20

Base assembly diagram

Lid

Part #25952

The manufacturer no longer makes this part, and there's no substitute part

Gasket 21786
#5

Base assembly diagram

Gasket

Part #21786

The manufacturer no longer makes this part, and there's no substitute part
