Model # QP130BL Official Broan range hood

Here are the diagrams and repair parts for Official Broan QP130BL range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Range Hood Fan Motor And Light Switch Kit 97017730
#2

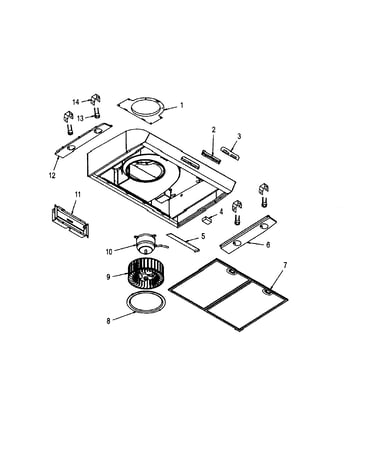

Mower assy diagram

Range hood fan motor and light switch kit

Part #97017730

This item is not returnable
$38.94 |
13% OFF Phone Price : $44.94
In Stock
Range Hood Light Bulb Suction Cup Tool 99526707
#NI

Mower assy diagram

Range hood light bulb suction cup tool

Part #99526707

This item is not returnable
$10.29 |
16% OFF Phone Price : $12.29
In Stock
Range Hood Filter 97017720
#7

Mower assy diagram

Range hood filter

Part #97017720

$207.00 |
5% OFF Phone Price : $219.00
In Stock
Motor Kit 97017732
#10

Mower assy diagram

Motor kit

Part #97017732

$107.88
In Stock
Capacitor 97017736
#4

Mower assy diagram

Capacitor

Part #97017736

Replaced by #S97017736

?
Manufacturer substitution
This part replaces 97017736. Substitute parts can look different from the original.
$25.71
In Stock
Diode 97018234
#NI

Mower assy diagram

Diode

Part #97018234

Replaced by #S97018234

?
Manufacturer substitution
This part replaces 97018234. Substitute parts can look different from the original.
$7.75
In Stock
Duct Plate-round 7in 97017727
#1

Mower assy diagram

Duct plate-round 7in

Part #97017727

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket 97017731
#13

Mower assy diagram

Lamp socket

Part #97017731

The manufacturer no longer makes this part, and there's no substitute part

Light Panel Lh 97017759
#12

Mower assy diagram

Light panel lh

Part #97017759

The manufacturer no longer makes this part, and there's no substitute part

Damper/duct Connector 97017728
#11

Mower assy diagram

Damper/duct connector

Part #97017728

The manufacturer no longer makes this part, and there's no substitute part
