York
Heating & Cooling Combined Unit

Model # D1NA060N09058A Official York heating & cooling unit

Here are the diagrams and repair parts for Official York D1NA060N09058A heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

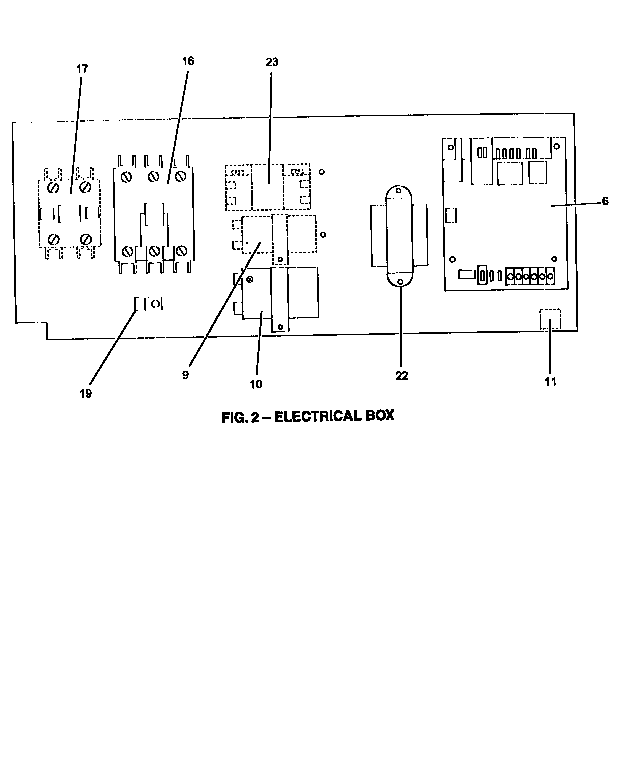

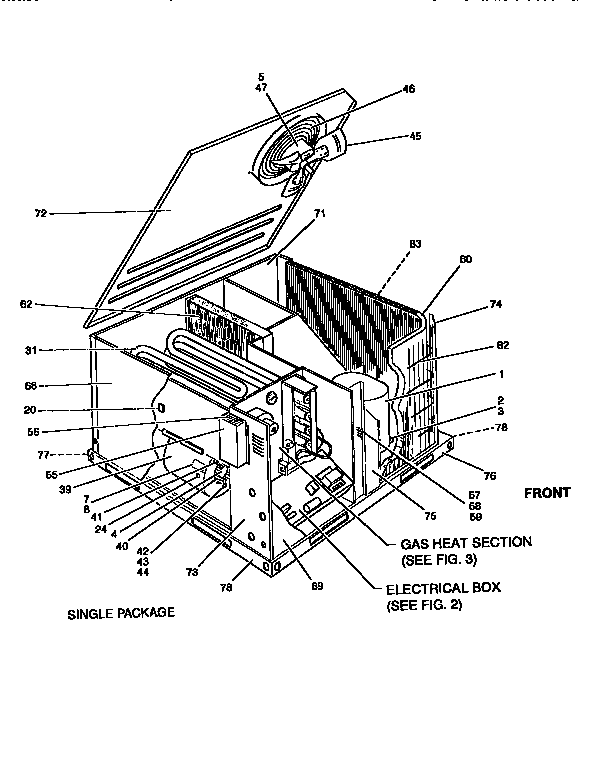

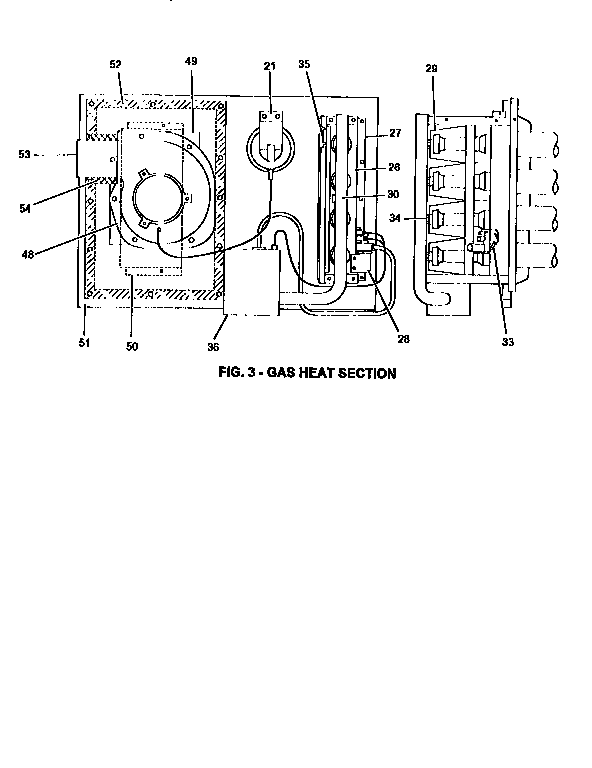

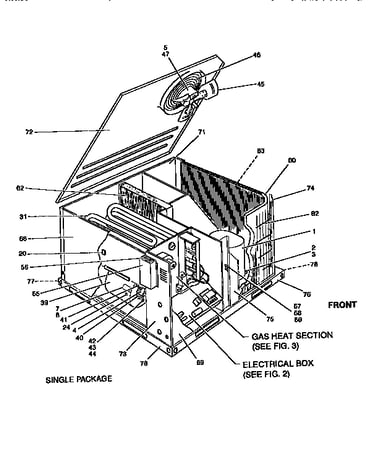

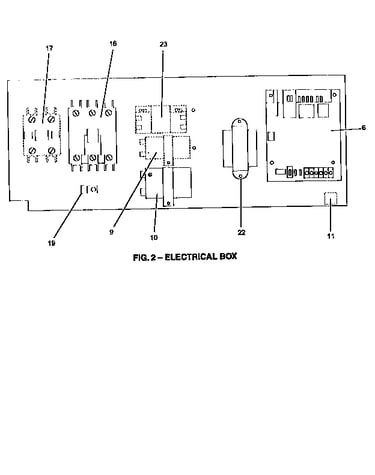

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Air Pressure 024-25975-000

#21

All parts diagram

Air pressure

Part #024-25975-000

The manufacturer no longer makes this part, and there's no substitute part

Vent Motor 026-33999-001

#48

All parts diagram

Vent motor

Part #026-33999-001

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 025-30859-000

#36

All parts diagram

Gas valve

Part #025-30859-000

Replaced by #SV9501M2528

?
Manufacturer substitution
This part replaces 025-30859-000. Substitute parts can look different from the original.
$641.87
In Stock
Capacitor 024-20043-000

#10

All parts diagram

Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Burner, Gas (1-per Burner) 029-21198-000

#30

All parts diagram

Burner, gas (1-per burner)

Part #029-21198-000

The manufacturer no longer makes this part, and there's no substitute part

Rail, Base (front) 073-14855-000

#77

All parts diagram

Rail, base (front)

Part #073-14855-000

The manufacturer no longer makes this part, and there's no substitute part

Coil, Condenser (formed) (includes Distributor Assembly And Header) 373-17015-050

#60A

All parts diagram

Coil, condenser (formed) (includes distributor assembly and header)

Part #373-17015-050

The manufacturer no longer makes this part, and there's no substitute part

Gasket 028-11648-000

#54

All parts diagram

Gasket

Part #028-11648-000

The manufacturer no longer makes this part, and there's no substitute part

Post Corner (front R/h) 073-14851-002

#74

All parts diagram

Post corner (front r/h)

Part #073-14851-002

The manufacturer no longer makes this part, and there's no substitute part

Bolt 021-16803-000

#3

All parts diagram

Bolt

Part #021-16803-000

The manufacturer no longer makes this part, and there's no substitute part
