Craftsman
Gas Walk-Behind Mower

Model # 917371800 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917371800 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

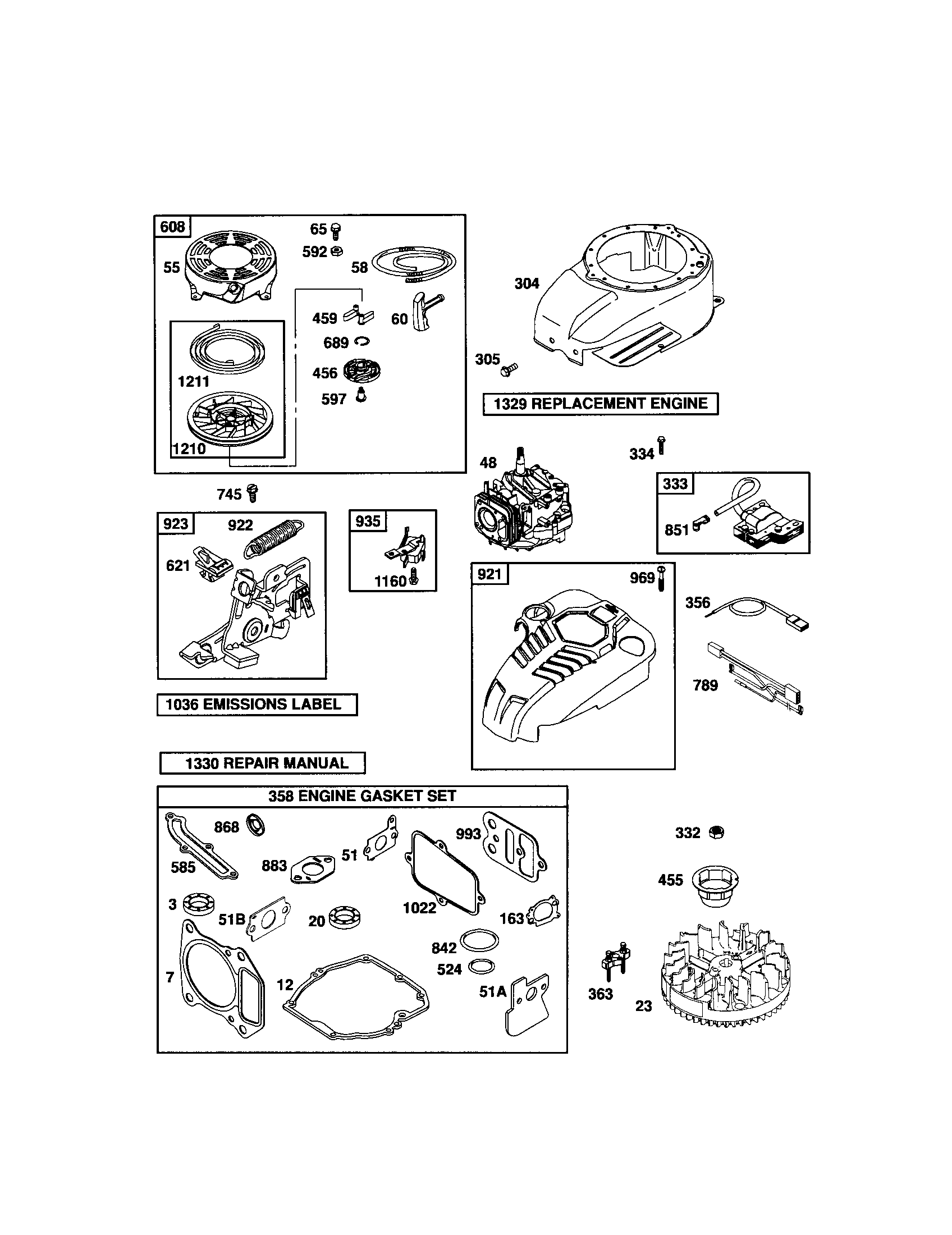

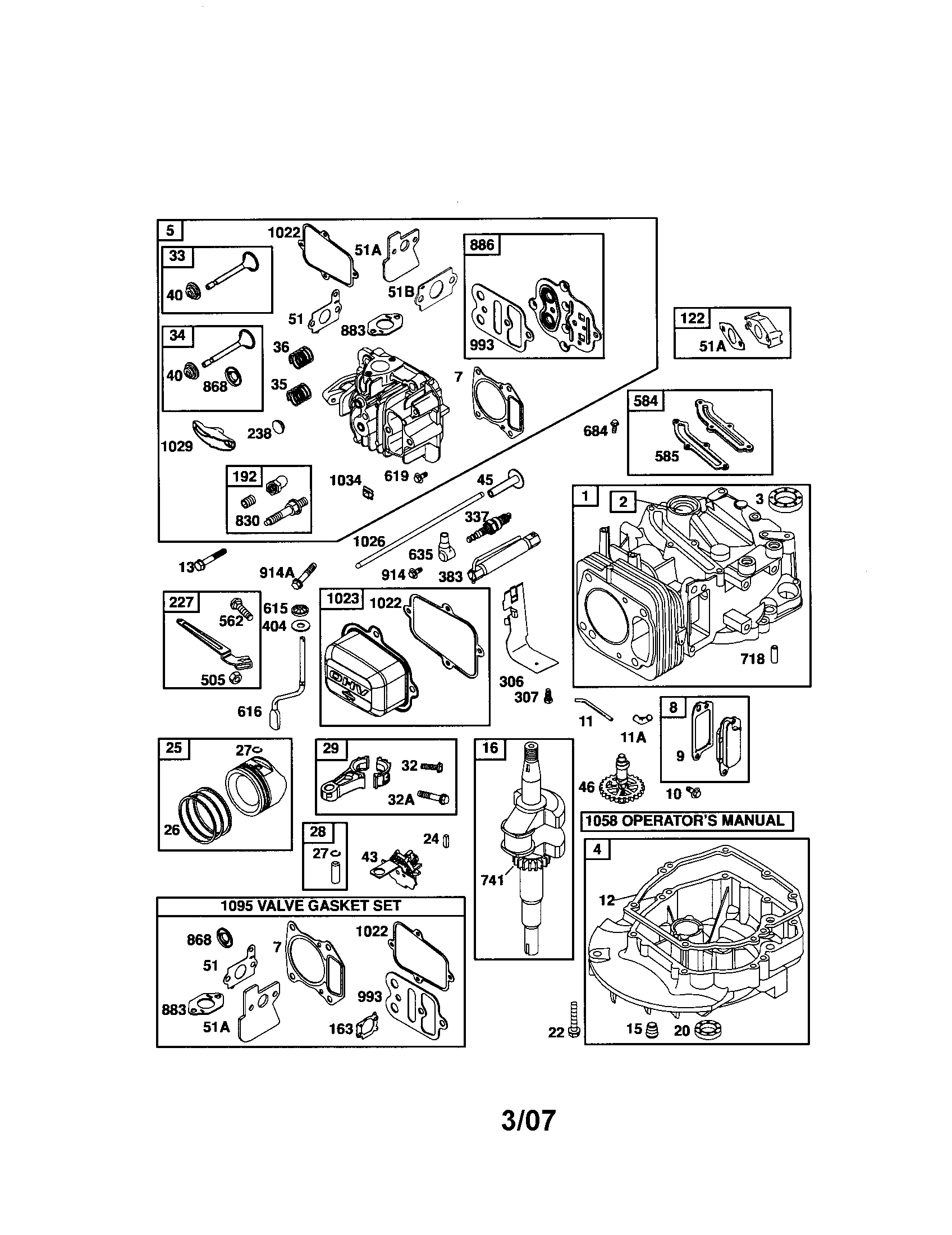

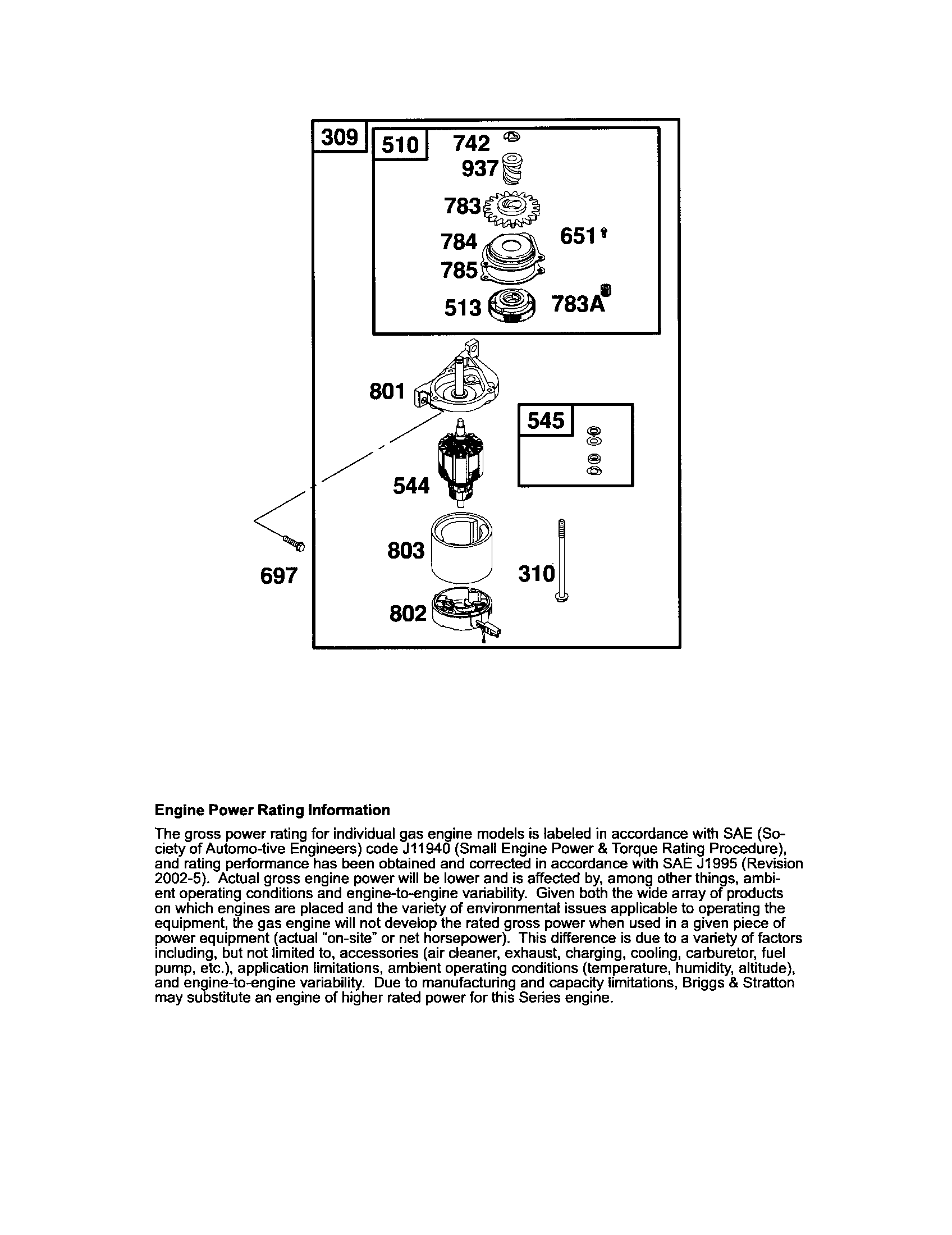

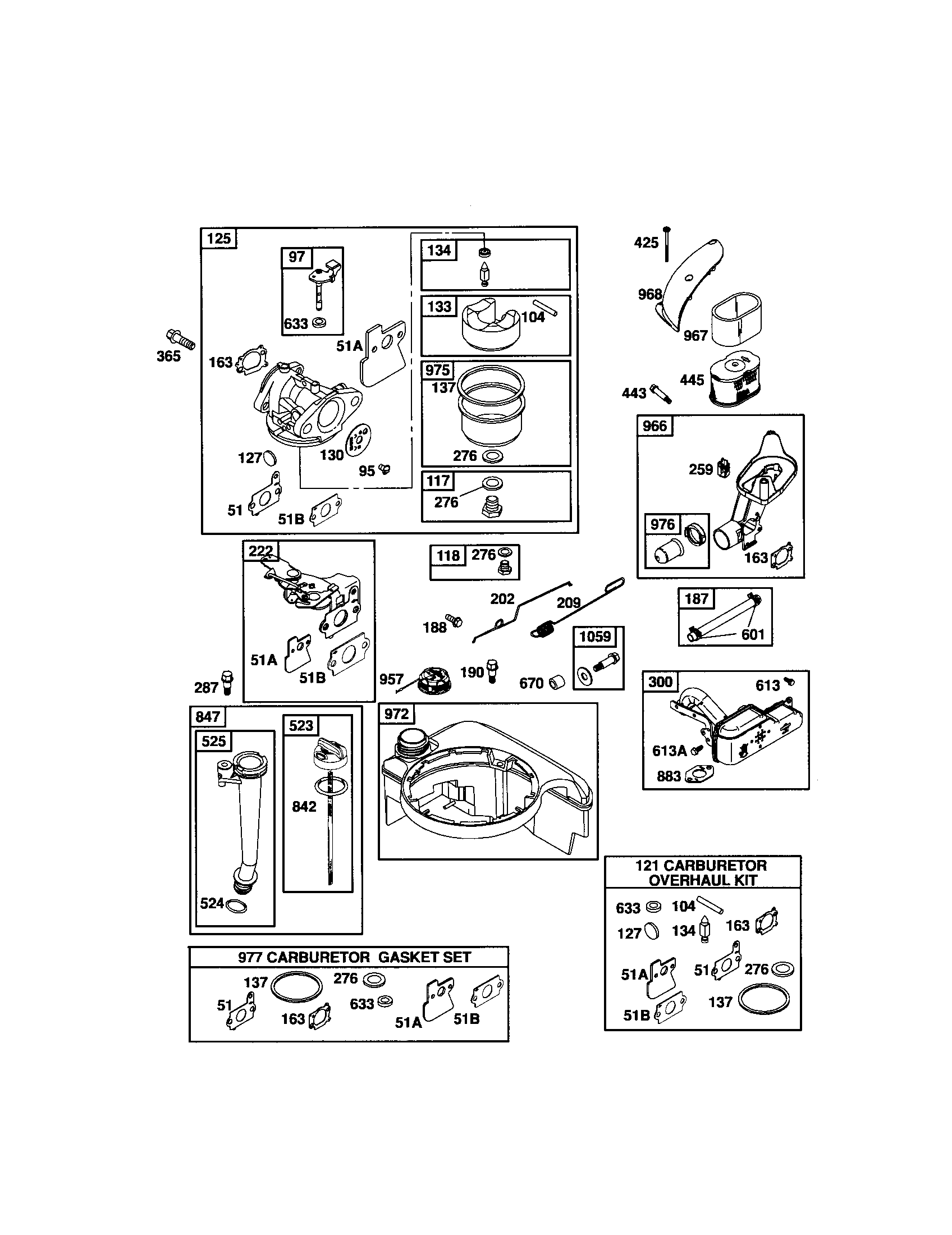

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 298 parts  |
Husqvarna Lawn Mower 21-in Deck Mulching Blade (replaces 187183, 33273, 33364, 532159267) 159267
#16

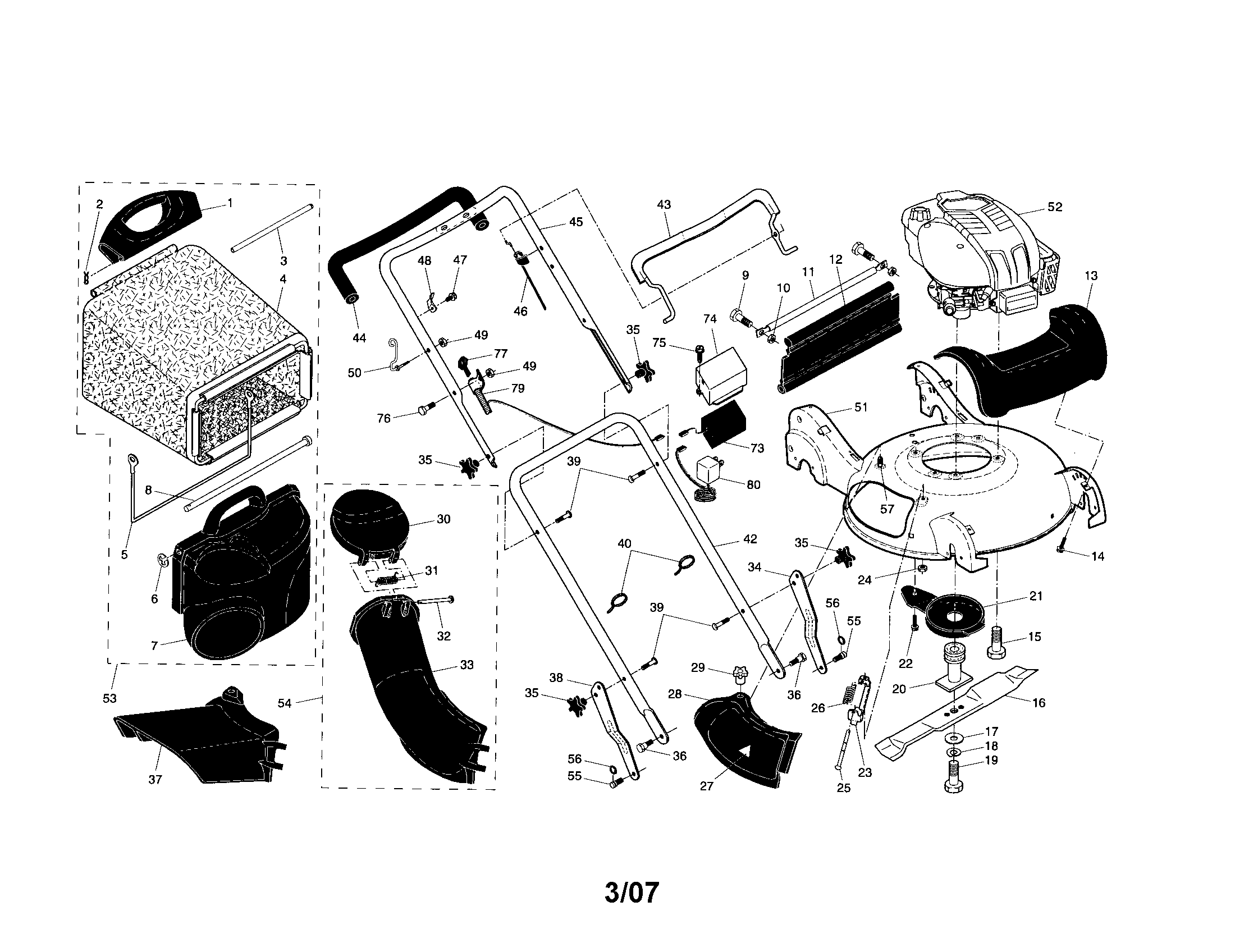

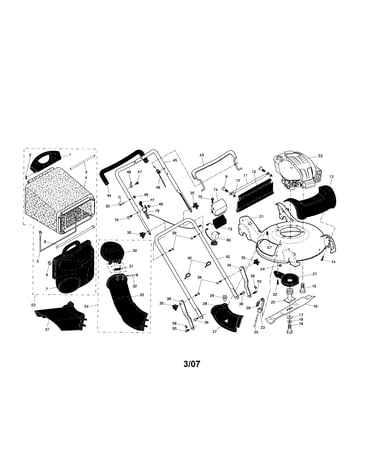

Engine/housing/handle/grassbag diagram

Husqvarna lawn mower 21-in deck mulching blade (replaces 187183, 33273, 33364, 532159267)

Part #159267

BEST SELLER

Get free shipping with Automatic Reorder

$8.93 |
10% OFF Phone Price : $9.93
In Stock
Spring 188291
#36

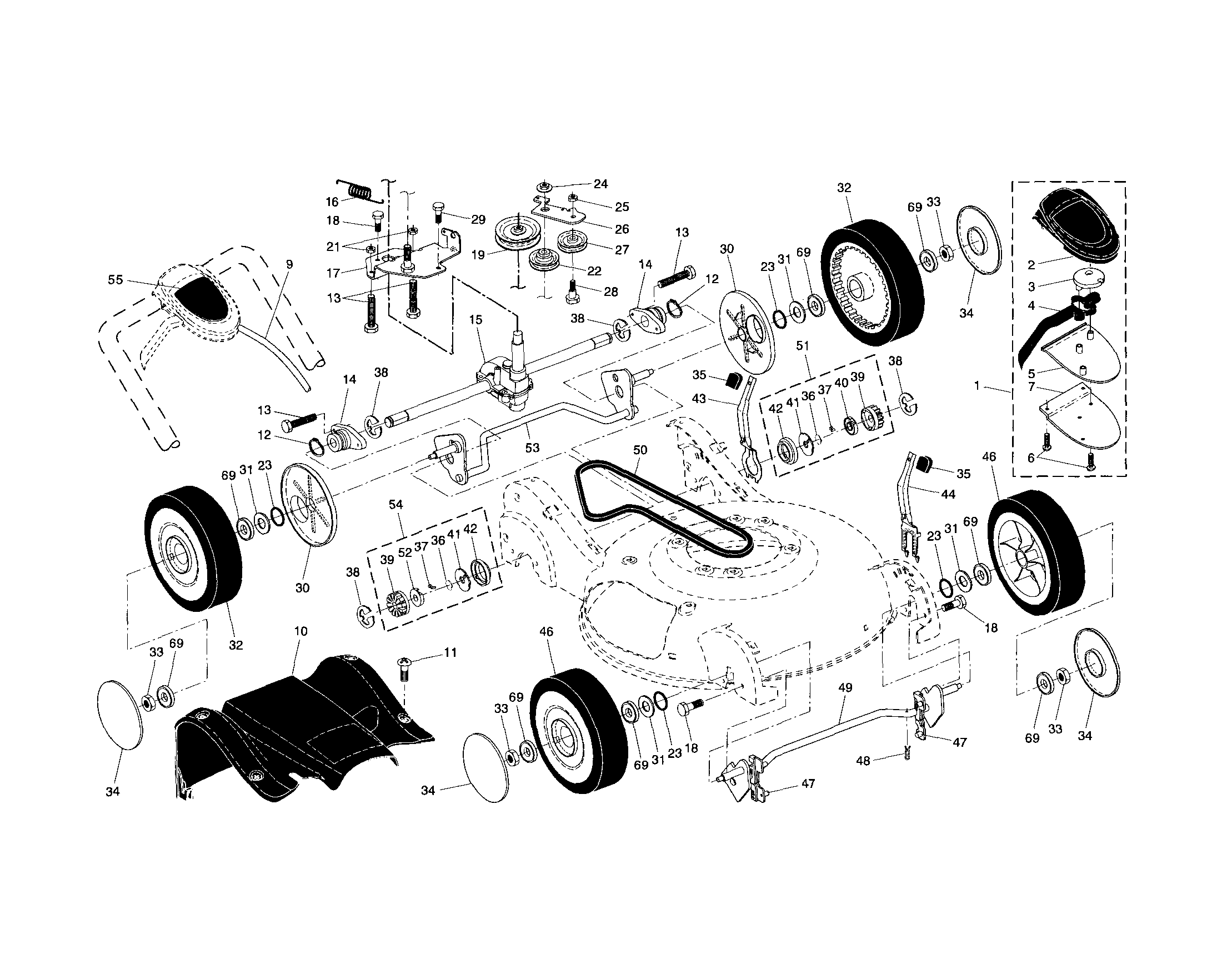

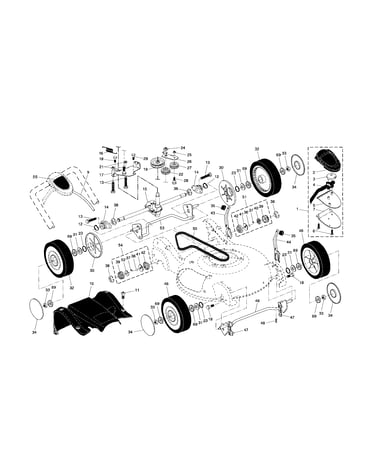

Drive control/gear case/wheels diagram

Spring

Part #188291

Replaced by #532188291

?
Manufacturer substitution
This part replaces 188291. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Nut 132004
Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#10

Engine/housing/handle/grassbag diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Handle Knob 182398
#35

Engine/housing/handle/grassbag diagram

Handle knob

Part #182398

Replaced by #532182398

?
Manufacturer substitution
This part replaces 182398. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Chute 188498X428
#7

Engine/housing/handle/grassbag diagram

Chute

Part #188498X428

Replaced by #583708701

?
Manufacturer substitution
This part replaces 188498X428. Substitute parts can look different from the original.
$37.98 |
14% OFF Phone Price : $43.98
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Bolt 72140405
#9

Engine/housing/handle/grassbag diagram

Bolt

Part #72140405

Replaced by #872140405

?
Manufacturer substitution
This part replaces 72140405. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Grass Bag 412613
#4

Engine/housing/handle/grassbag diagram

Lawn mower grass bag

Part #412613

Replaced by #583338801

?
Manufacturer substitution
This part replaces 412613. Substitute parts can look different from the original.
$55.37 |
10% OFF Phone Price : $61.37
In Stock
Chute 188504X428
#33

Engine/housing/handle/grassbag diagram

Chute

Part #188504X428

Replaced by #583708901

?
Manufacturer substitution
This part replaces 188504X428. Substitute parts can look different from the original.
This item is not returnable
$30.64 |
16% OFF Phone Price : $36.64
In Stock
