Dynasty
Gas Grill

Model # DKC36A Official Dynasty gas grill

Here are the diagrams and repair parts for Official Dynasty DKC36A gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Hood 70001312
#6

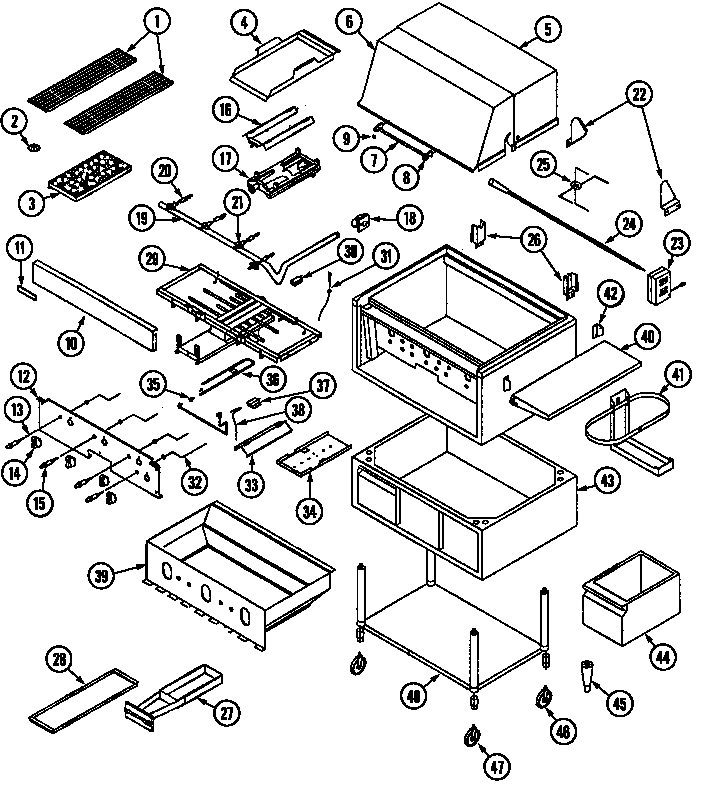

Body diagram

Hood

Part #70001312

The manufacturer no longer makes this part, and there's no substitute part

Radiant Burner 70001330
#16

Body diagram

Radiant burner

Part #70001330

The manufacturer no longer makes this part, and there's no substitute part

Panel 70001319
#10A

Body diagram

Panel

Part #70001319

The manufacturer no longer makes this part, and there's no substitute part

Igniter, Smo 70001367
#38

Body diagram

Igniter, smo

Part #70001367

The manufacturer no longer makes this part, and there's no substitute part

Pan, Drip (w 70001349
#48A

Body diagram

Pan, drip (w

Part #70001349

The manufacturer no longer makes this part, and there's no substitute part

Door Cabinet 70001375
#43

Body diagram

Door cabinet

Part #70001375

The manufacturer no longer makes this part, and there's no substitute part

Pan, Drip (w 70001350
#48B

Body diagram

Pan, drip (w

Part #70001350

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie Motor 70001343
#23

Body diagram

Rotisserie motor

Part #70001343

The manufacturer no longer makes this part, and there's no substitute part

Frame Assembly 70001356
#29A

Body diagram

Frame assembly

Part #70001356

The manufacturer no longer makes this part, and there's no substitute part

Knob (red Ma 70001328
#14

Body diagram

Knob (red ma

Part #70001328

The manufacturer no longer makes this part, and there's no substitute part
