Model # WCCB2050T5WC Official GE washer

Here are the diagrams and repair parts for Official GE WCCB2050T5WC washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

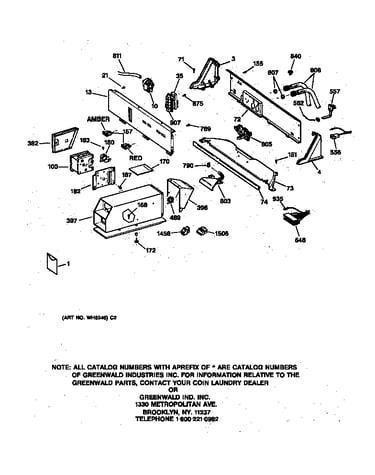

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Washer Hub Nut (replaces Wh02x1193) WH2X1193
#325

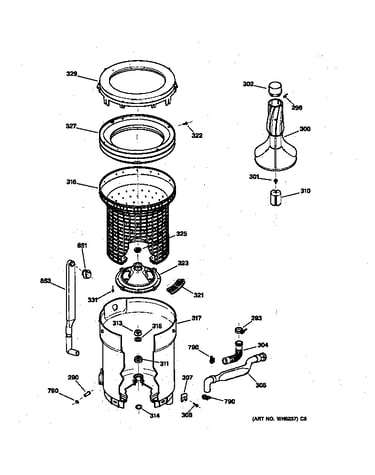

Tub, basket & agitator diagram

Washer hub nut (replaces wh02x1193)

Part #WH2X1193

BEST SELLER
$8.64 |
10% OFF Phone Price : $9.64
In Stock
Split Ring WH2X1195
#313

Tub, basket & agitator diagram

Split ring

Part #WH2X1195

Replaced by #WH02X10265

?
Manufacturer substitution
This part replaces WH2X1195. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Seal WH2X1196
#311

Tub, basket & agitator diagram

Seal

Part #WH2X1196

Replaced by #WH02X10383

?
Manufacturer substitution
This part replaces WH2X1196. Substitute parts can look different from the original.
BEST SELLER
$10.51 |
16% OFF Phone Price : $12.51
In Stock
Washer Tub Bearing Washer (replaces Wh02x1197) WH2X1197
#314

Tub, basket & agitator diagram

Washer tub bearing washer (replaces wh02x1197)

Part #WH2X1197

BEST SELLER
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
Washer Dampening Strap (replaces Wh01x2727) WH1X2727
#370

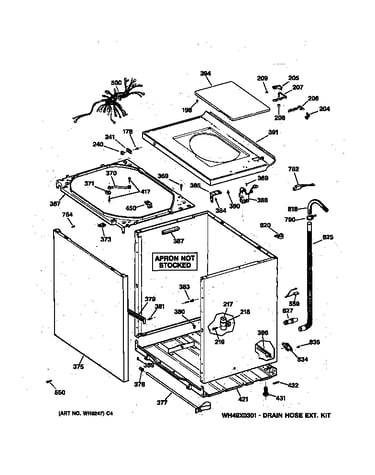

Cabinet, cover & front panel diagram

Washer dampening strap (replaces wh01x2727)

Part #WH1X2727

BEST SELLER
$10.16 |
16% OFF Phone Price : $12.16
In Stock
Coupl Agit WH43X137
#310

Tub, basket & agitator diagram

Coupl agit

Part #WH43X137

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH43X137. Substitute parts can look different from the original.
BEST SELLER
$21.12 |
22% OFF Phone Price : $27.12
In Stock
Screw WH2X1200
#301

Tub, basket & agitator diagram

Screw

Part #WH2X1200

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH2X1200. Substitute parts can look different from the original.
BEST SELLER
$21.12 |
22% OFF Phone Price : $27.12
In Stock
Washer Transmission Pulley Nut WH2X1203
#411

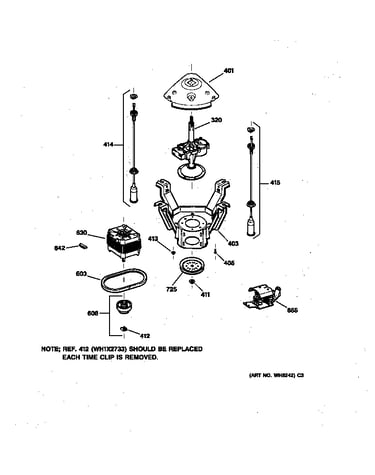

Suspension, pump & drive components diagram

Washer transmission pulley nut

Part #WH2X1203

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Washer Tub-to-pump Hose WH41X371
#304

Tub, basket & agitator diagram

Washer tub-to-pump hose

Part #WH41X371

Replaced by #WH41X22935

?
Manufacturer substitution
This part replaces WH41X371. Substitute parts can look different from the original.
This item is not returnable
$15.53 |
11% OFF Phone Price : $17.53
In Stock
Washer Screw WH2X1194
#322

Tub, basket & agitator diagram

Washer screw

Part #WH2X1194

$7.88 |
11% OFF Phone Price : $8.88
In Stock
