Model # PVWN600LT1 Official Whirlpool personal valet

Here are the diagrams and repair parts for Official Whirlpool PVWN600LT1 personal valet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

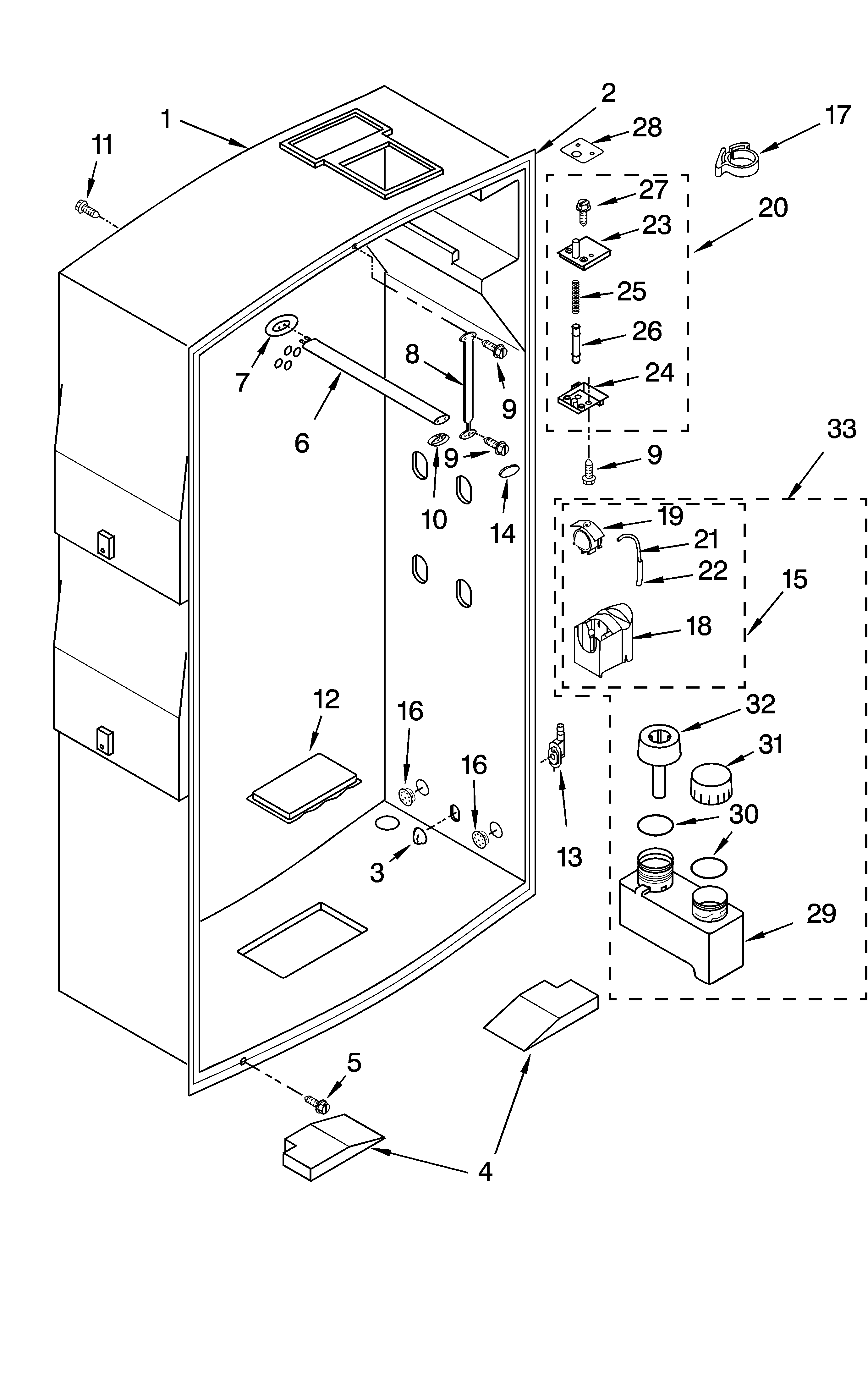

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 144 parts  |
Hose Clamp 8055019
#21

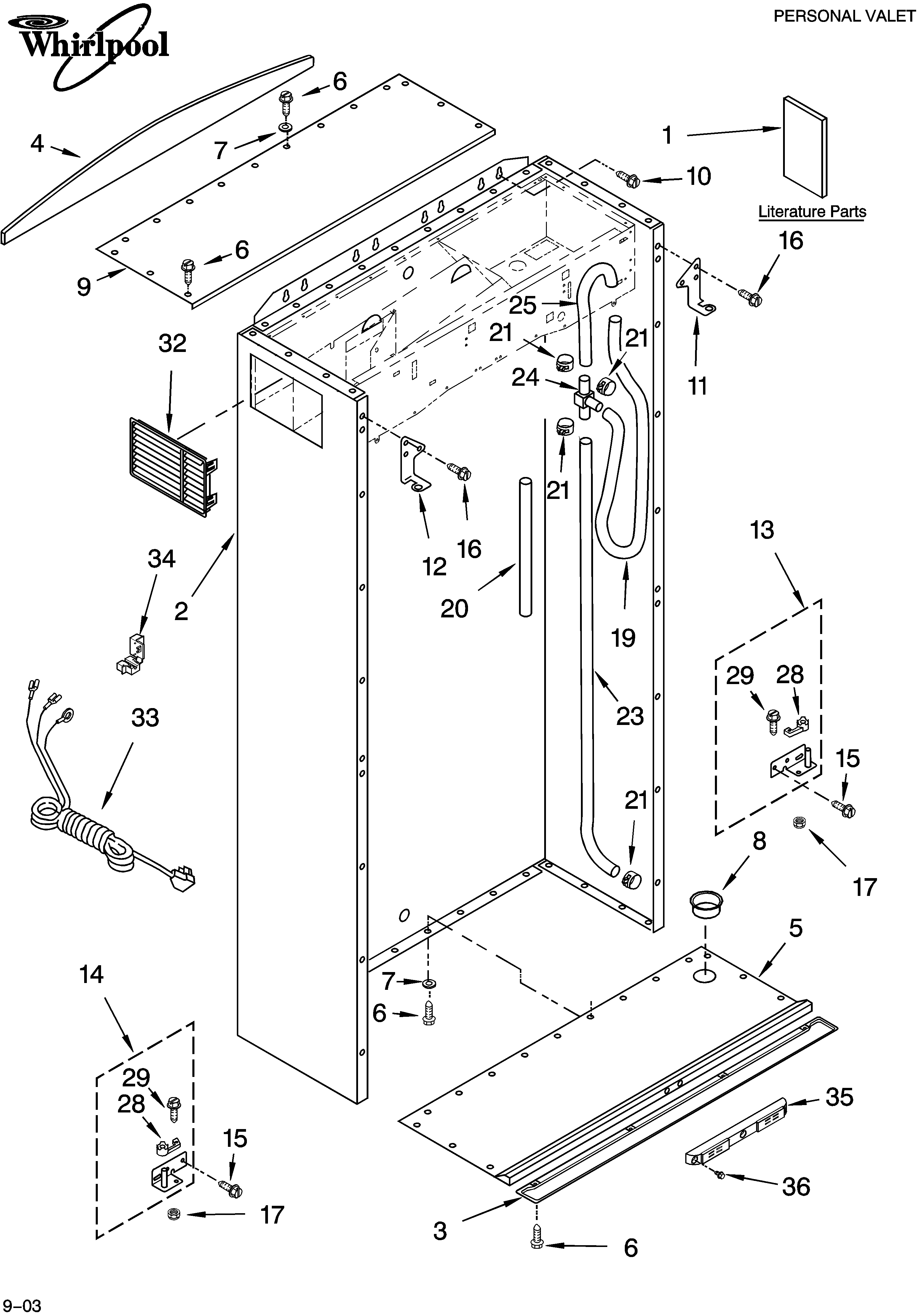

Cabinet parts diagram

Hose clamp

Part #8055019

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 8055019. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017
#NI

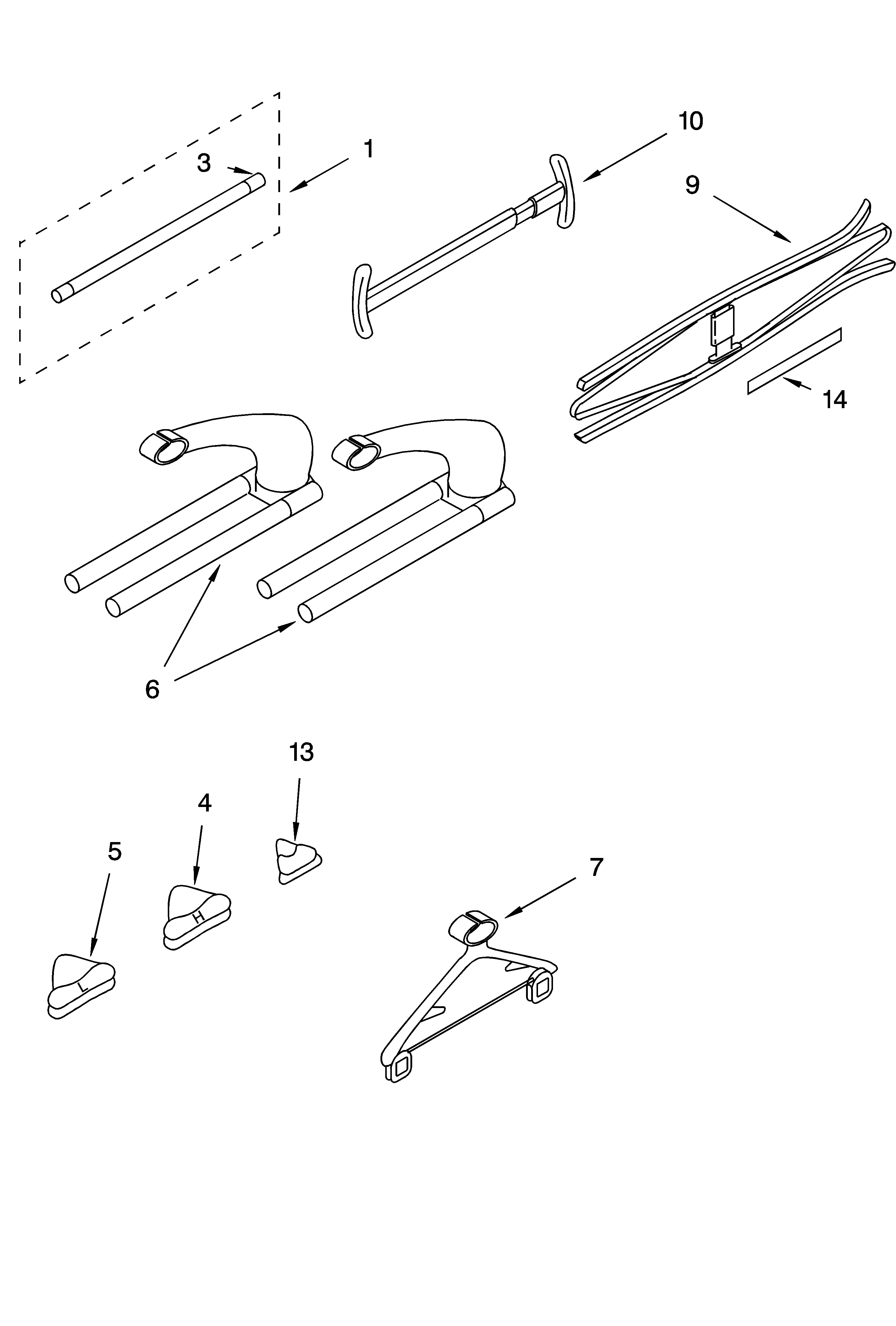

Accessory parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Appliance Spray Paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, A0050702, F94566-010, Y057937, Y350930) 350930
#NI

Accessory parts diagram

Appliance spray paint (white) (replaces 094566-64, 206923, 2780-0001, 4395978, 5303203125, 66208, 788343, 799343, 799433, 99343, a0050702, f94566-010, y057937, y350930)

Part #350930

BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Screw 3367670
#7

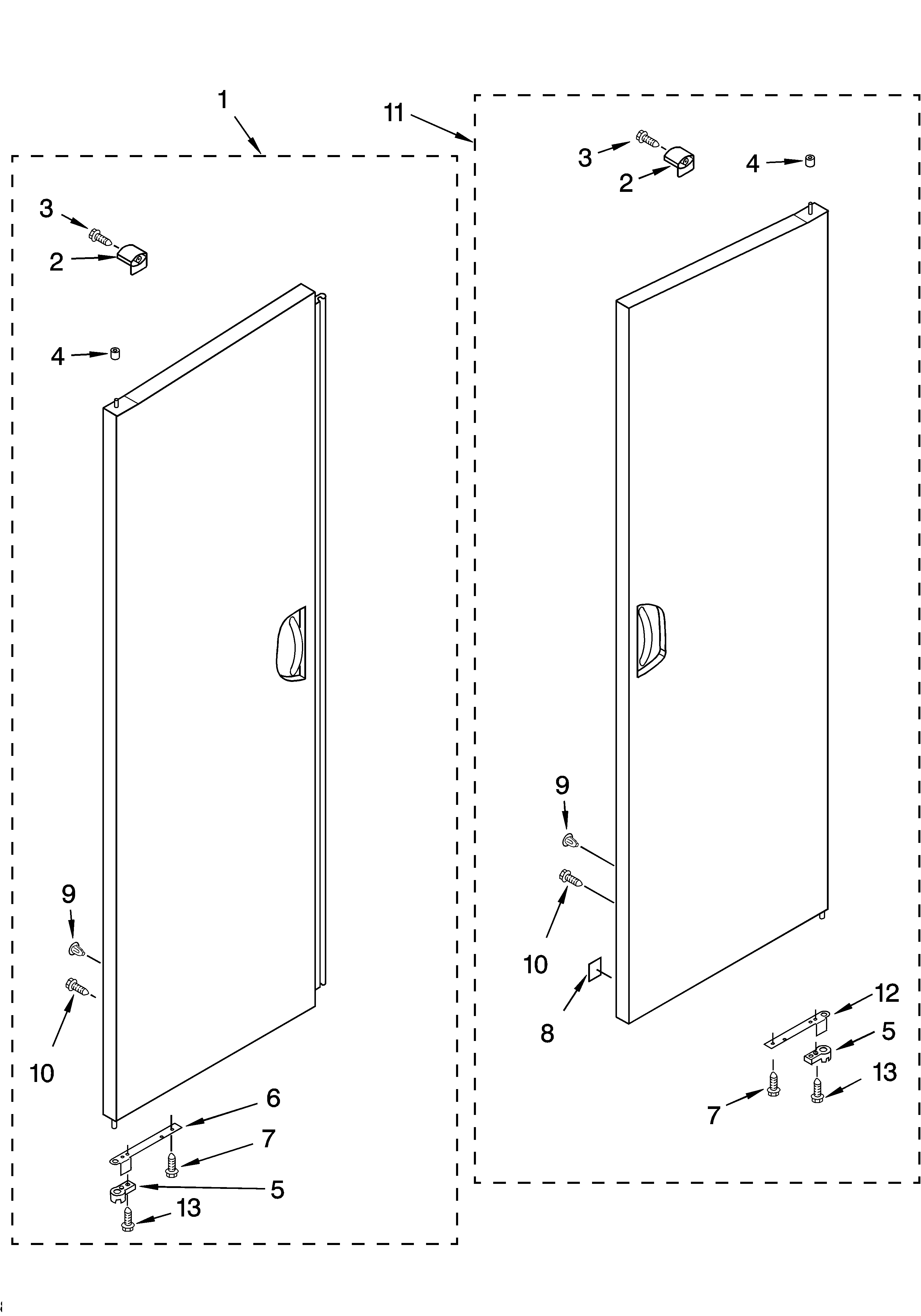

Door parts diagram

Screw

Part #3367670

Replaced by #WP308685

?
Manufacturer substitution
This part replaces 3367670. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Appliance Touch-up Paint, 0.6-oz (biscuit) (replaces 22002900, 4392899r, R9900463, W10831386) 4392899
#NI

Accessory parts diagram

Appliance touch-up paint, 0.6-oz (biscuit) (replaces 22002900, 4392899r, r9900463, w10831386)

Part #4392899

This item is not returnable
$15.38 |
12% OFF Phone Price : $17.38
In Stock
Appliance Spray Paint (biscuit) (replaces 22002901) 4392901
#NI

Accessory parts diagram

Appliance spray paint (biscuit) (replaces 22002901)

Part #4392901

This item is not returnable
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Appliance Spray Paint (gray Primer) (replaces 10955, 350338) 350938
#NI

Accessory parts diagram

Appliance spray paint (gray primer) (replaces 10955, 350338)

Part #350938

$31.19 |
16% OFF Phone Price : $37.19
In Stock
Grommet 8526350
#21

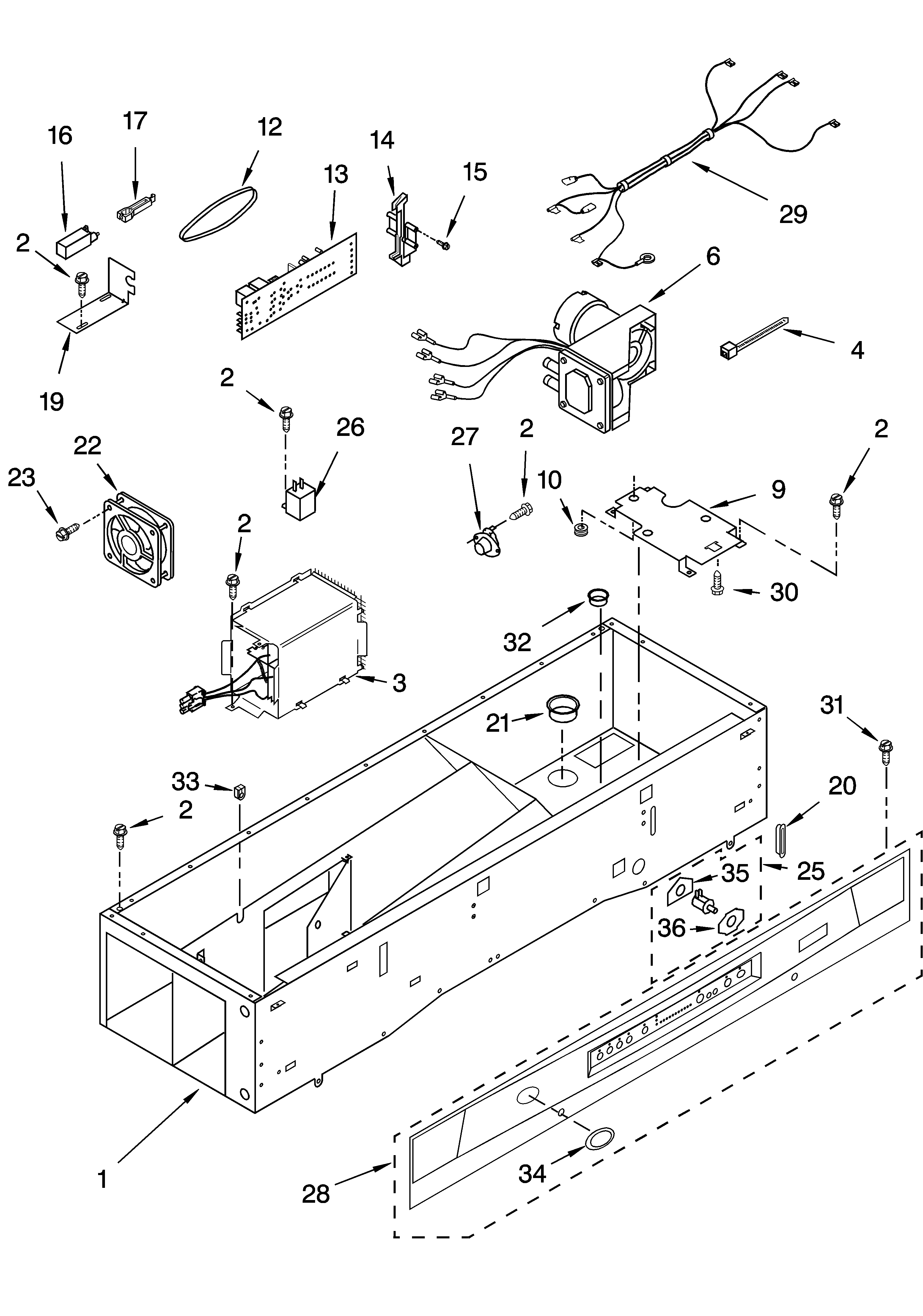

Top box parts diagram

Grommet

Part #8526350

$20.36
In Stock
Grommet 8526412
#32

Top box parts diagram

Grommet

Part #8526412

$8.73
In Stock
Pad 8527268
#NI

Cabinet parts diagram

Pad

Part #8527268

$52.27
In Stock
