GE
Electric Wall Oven

Model # JKP70SP3SS Official GE electric wall oven

Here are the diagrams and repair parts for Official GE JKP70SP3SS electric wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

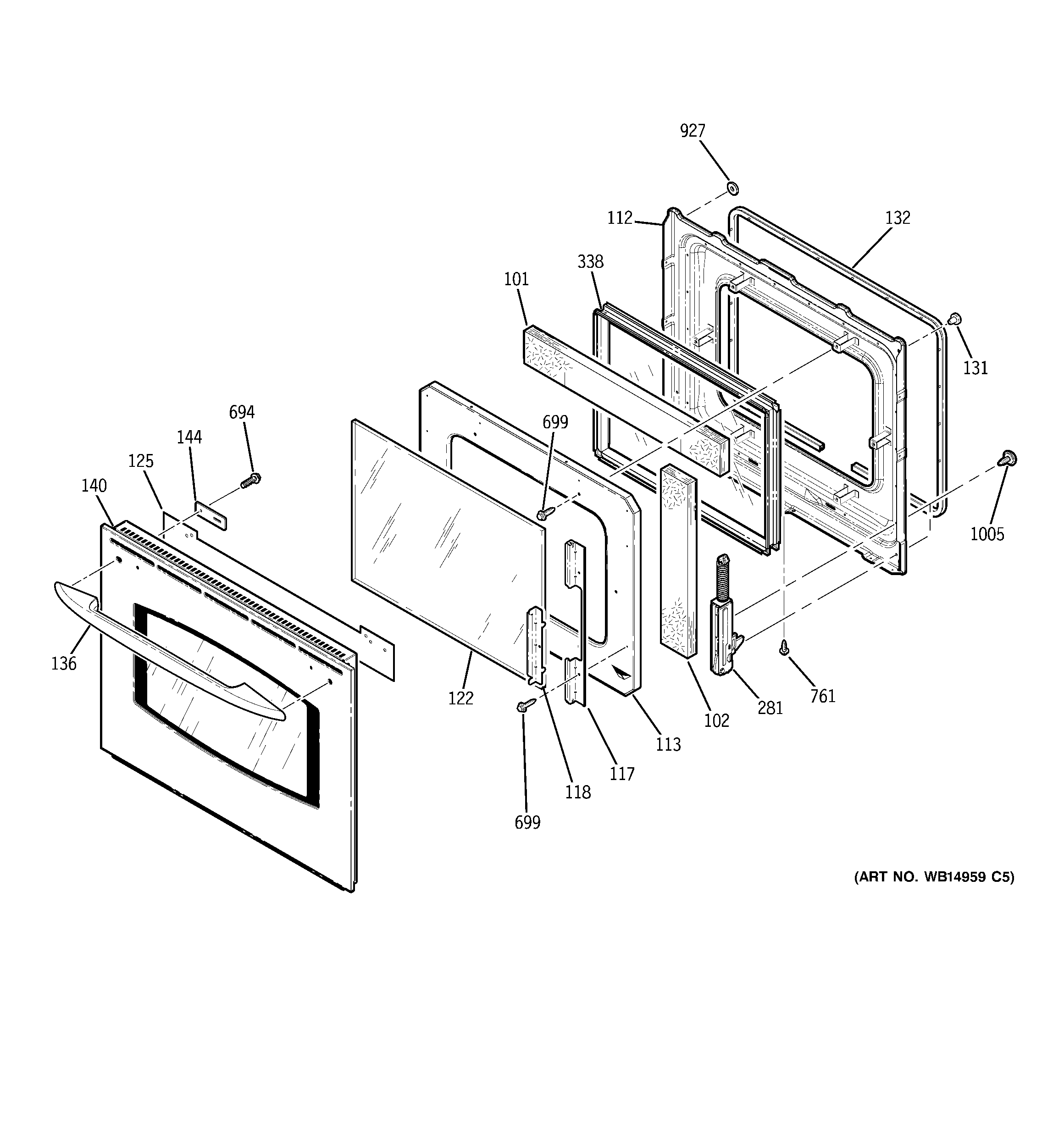

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Nut WB02T10017
#977

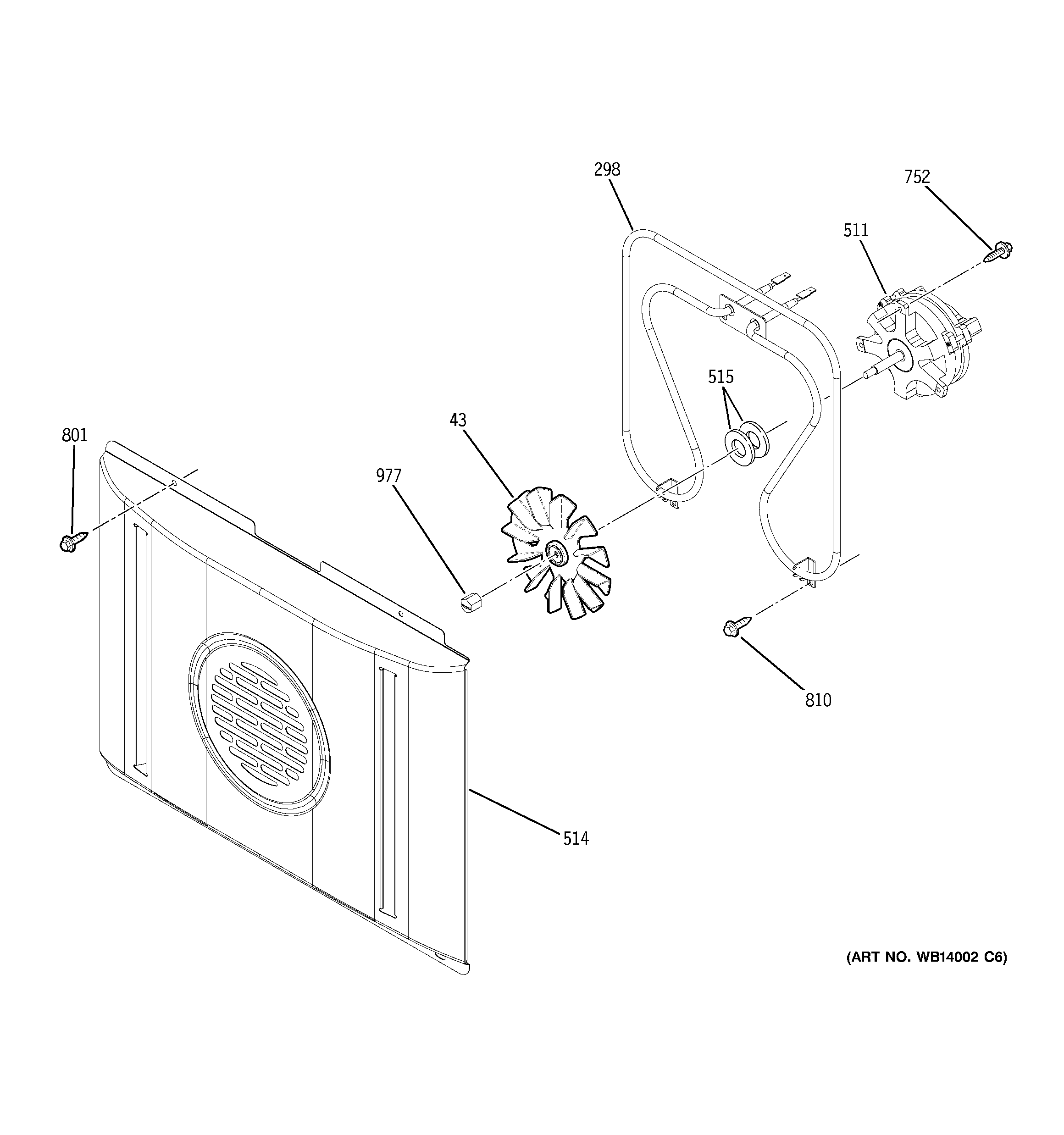

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Wall Oven High-limit Thermostat WB24T10081
#157

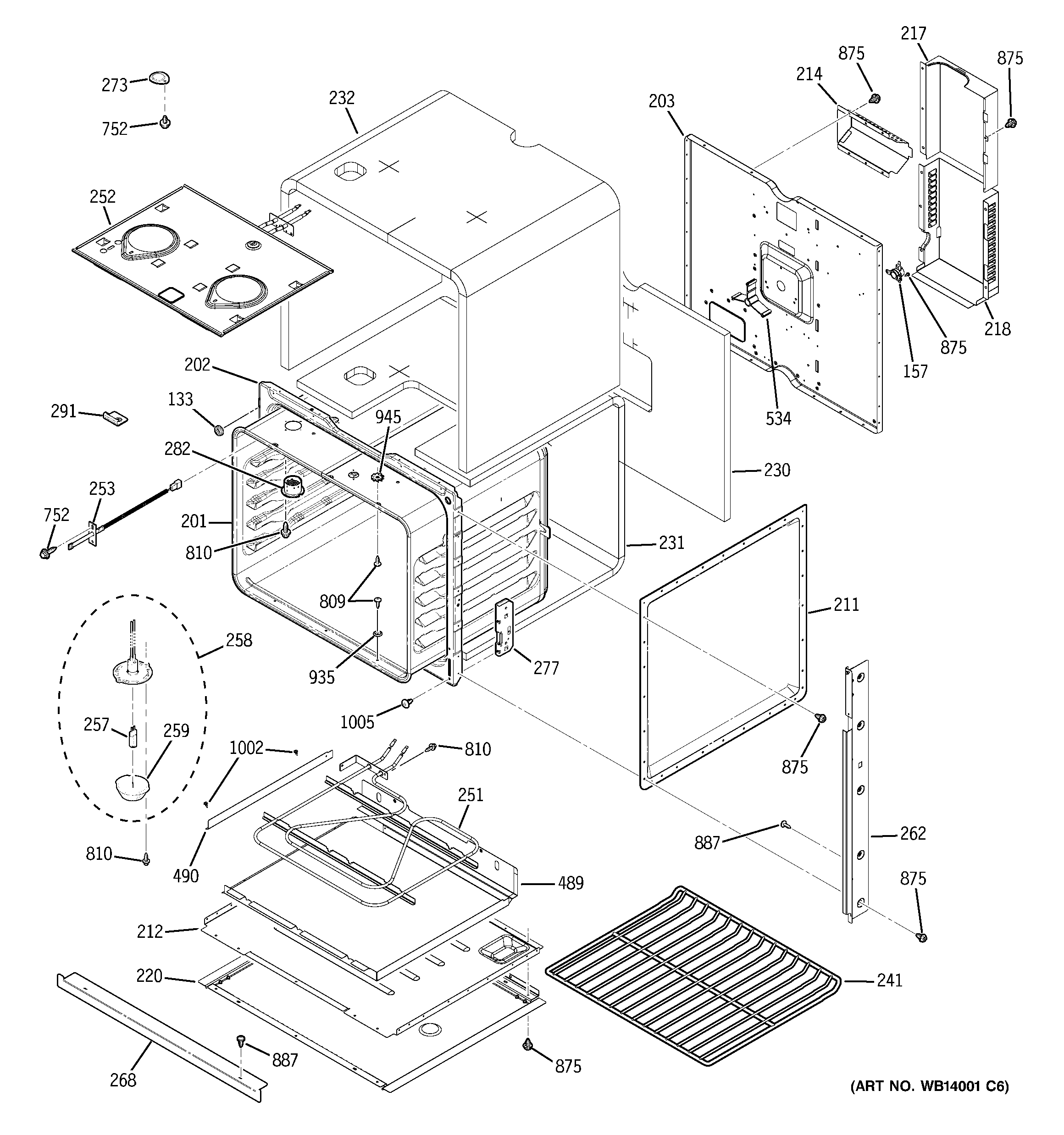

Body parts diagram

Wall oven high-limit thermostat

Part #WB24T10081

This item is not returnable
$22.54 |
21% OFF Phone Price : $28.54
In Stock
Range Broil Element WB44T10099
#252

Body parts diagram

Range broil element

Part #WB44T10099

$87.54 |
6% OFF Phone Price : $93.54
In Stock
Screw WB01M0001
#809

Body parts diagram

Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01K5150
Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Range Convection Fan Motor Start Capacitor WB27T10662
#578

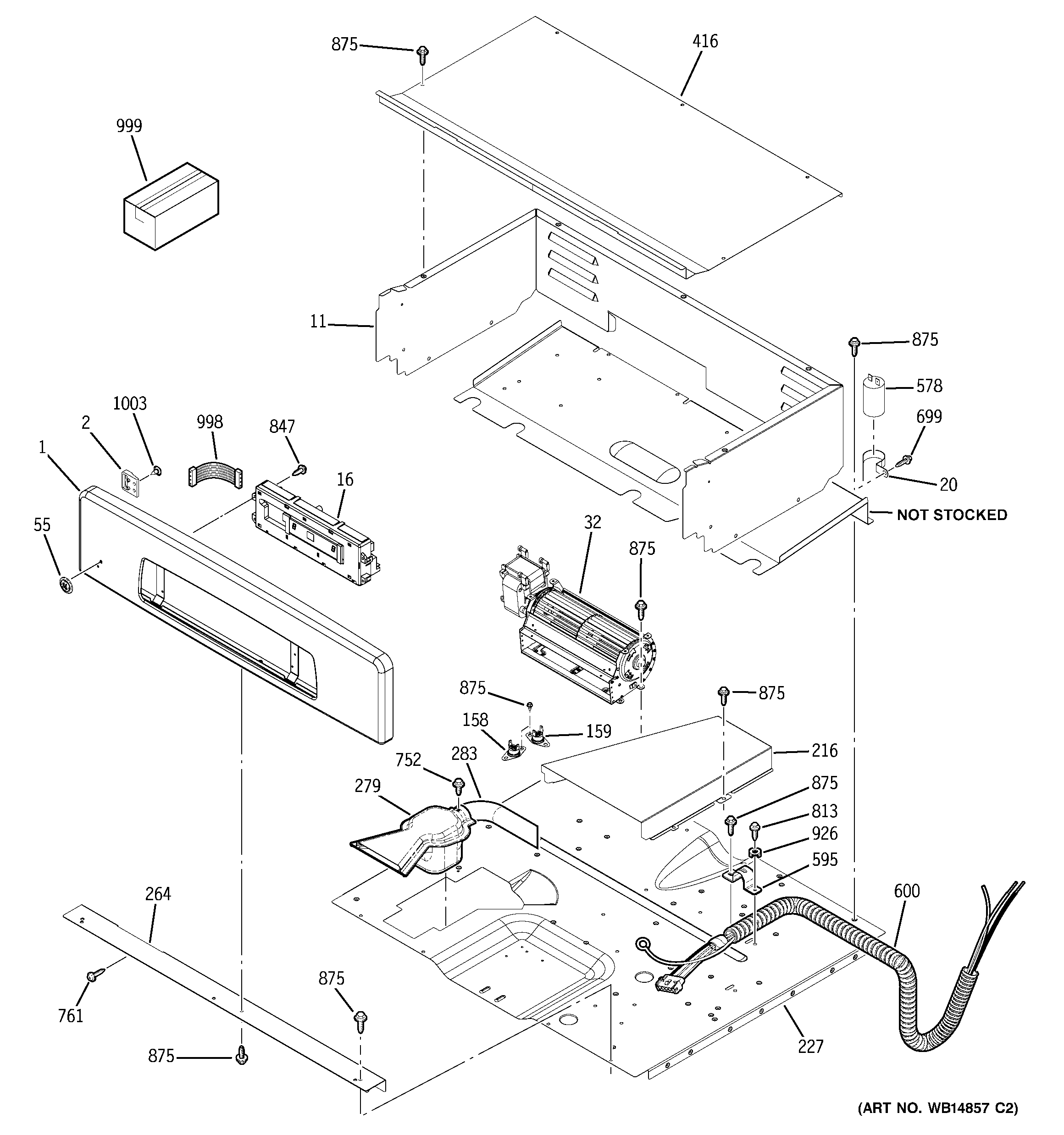

Control panel diagram

Range convection fan motor start capacitor

Part #WB27T10662

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Wall Oven Convection Fan Motor WB26T10043
#511

Convection fan diagram

Wall oven convection fan motor

Part #WB26T10043

$176.33 |
6% OFF Phone Price : $188.33
In Stock
Wall Oven Thermal Fuse (replaces Wb24k5034) WB24K5085
#159

Control panel diagram

Wall oven thermal fuse (replaces wb24k5034)

Part #WB24K5085

$48.47 |
11% OFF Phone Price : $54.47
In Stock
Screw WB01K5200
Screw

Part #WB01K5200

Replaced by #WB1K5200

?
Manufacturer substitution
This part replaces WB01K5200. Substitute parts can look different from the original.
This item is not returnable
$8.11
In Stock
