Coleman
Air Compressor

Model # B09J500-20 Official Coleman 5-hp air compressor

Here are the diagrams and repair parts for Official Coleman B09J500-20 5-hp air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

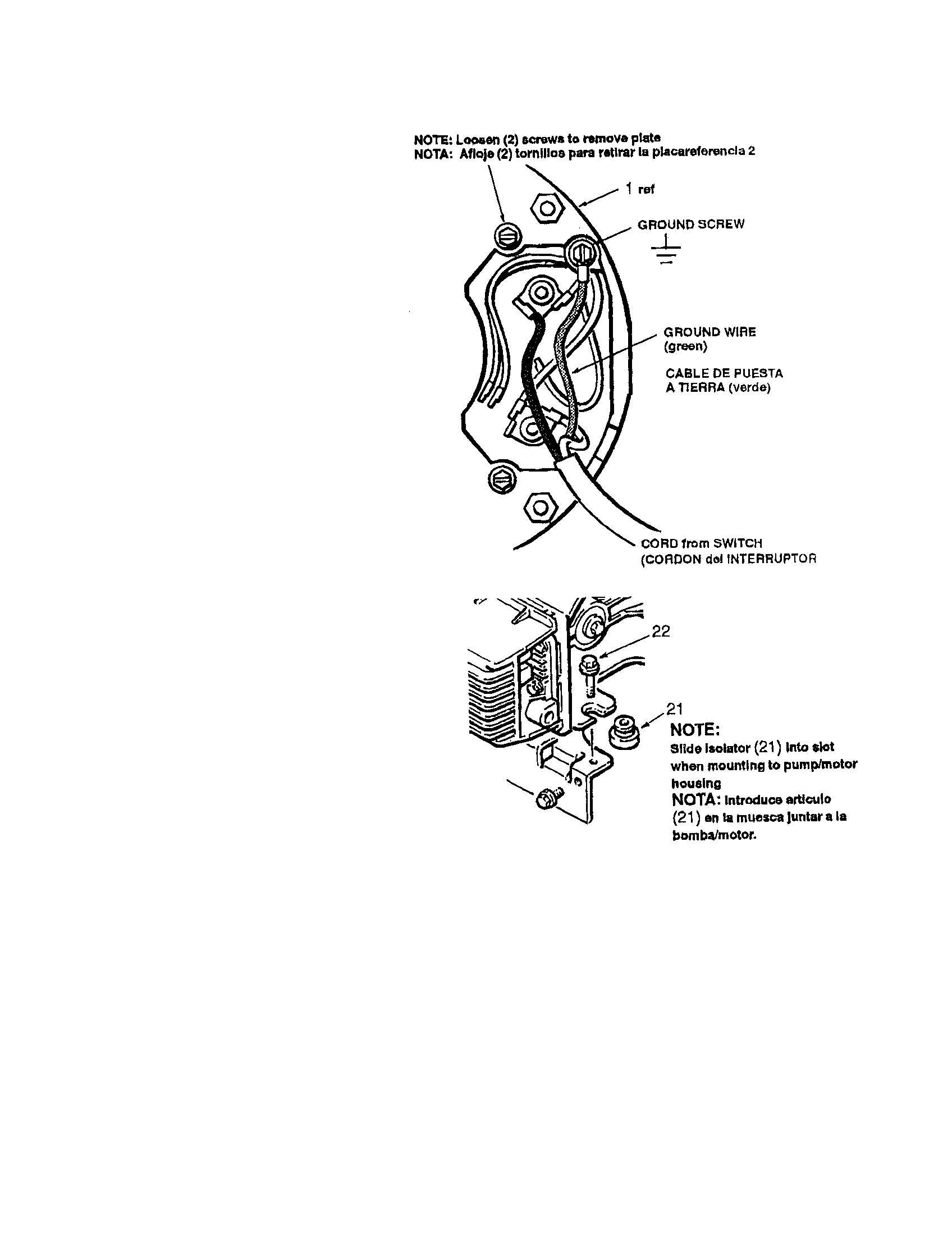

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Check Valve 031-0037
#11

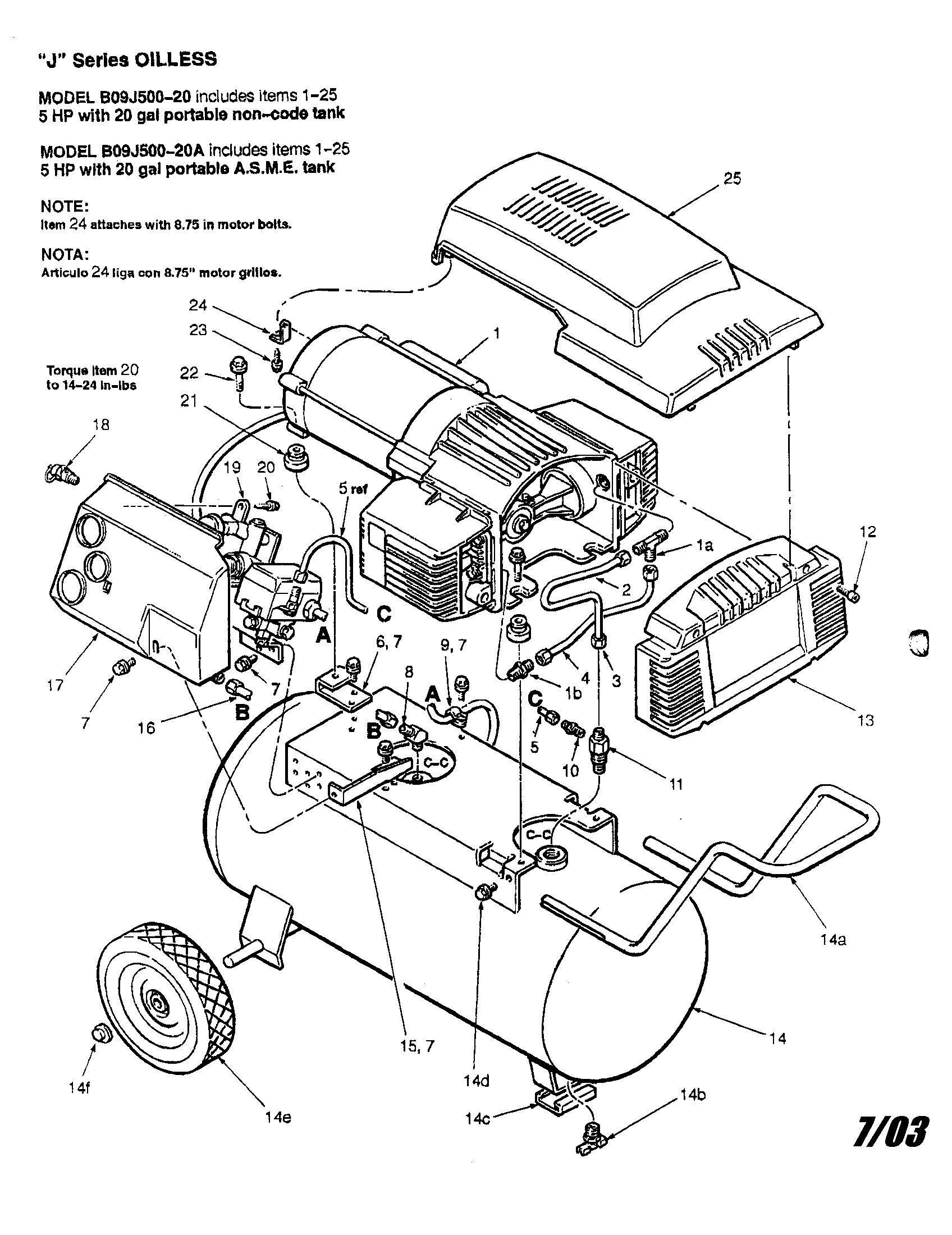

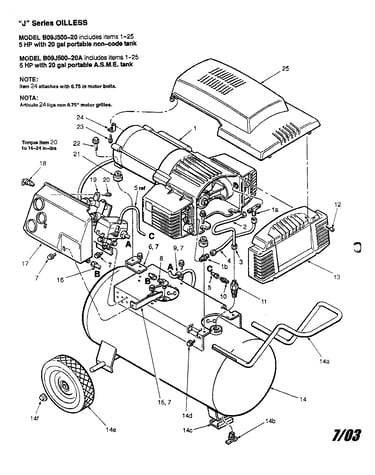

Tank/pump/motor/shroud diagram

Check valve

Part #031-0037

The manufacturer no longer makes this part, and there's no substitute part

Nipple, Pipe, 1/4" 065-0031
#10

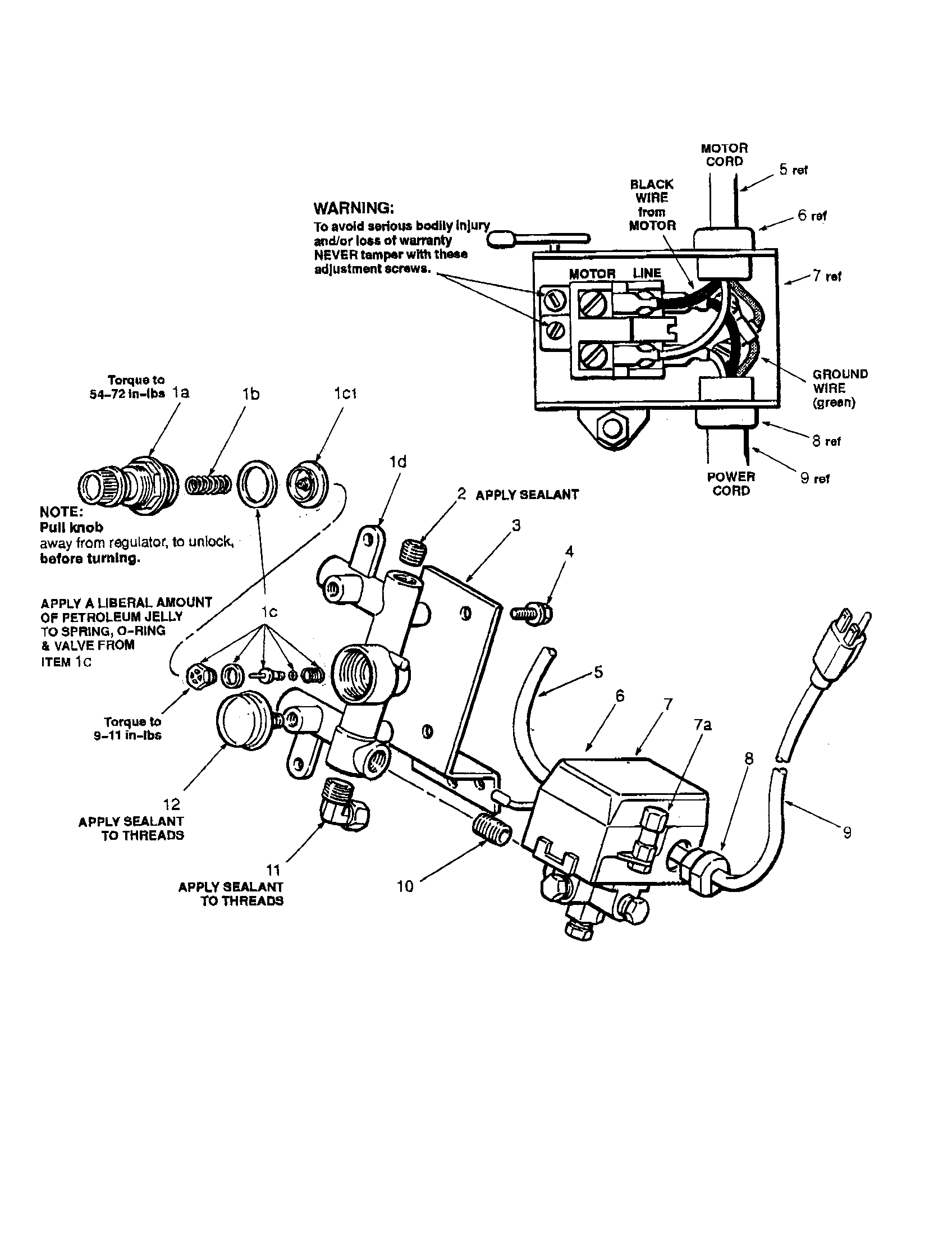

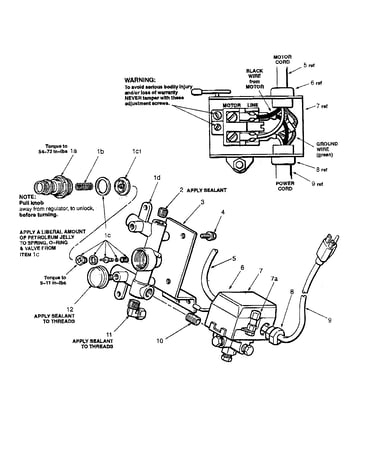

Manifold/switch assembly diagram

Nipple, pipe, 1/4"

Part #065-0031

The manufacturer no longer makes this part, and there's no substitute part

Valve 072-0001
#14B

Tank/pump/motor/shroud diagram

Valve

Part #072-0001

The manufacturer no longer makes this part, and there's no substitute part

Tank Assembly, 20 Gallon Includes Items 14a-14f 130-0038
#14

Tank/pump/motor/shroud diagram

Tank assembly, 20 gallon includes items 14a-14f

Part #130-0038

The manufacturer no longer makes this part, and there's no substitute part

Elbow, 45?, Male, Includes 1 Of Item 3 064-0051
#8

Tank/pump/motor/shroud diagram

Elbow, 45?, male, includes 1 of item 3

Part #064-0051

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly Must Be Purchased As Complete Pump/motor/bearing Assembly Includes Item 14a And Item 7 (4) 040-0218
#14

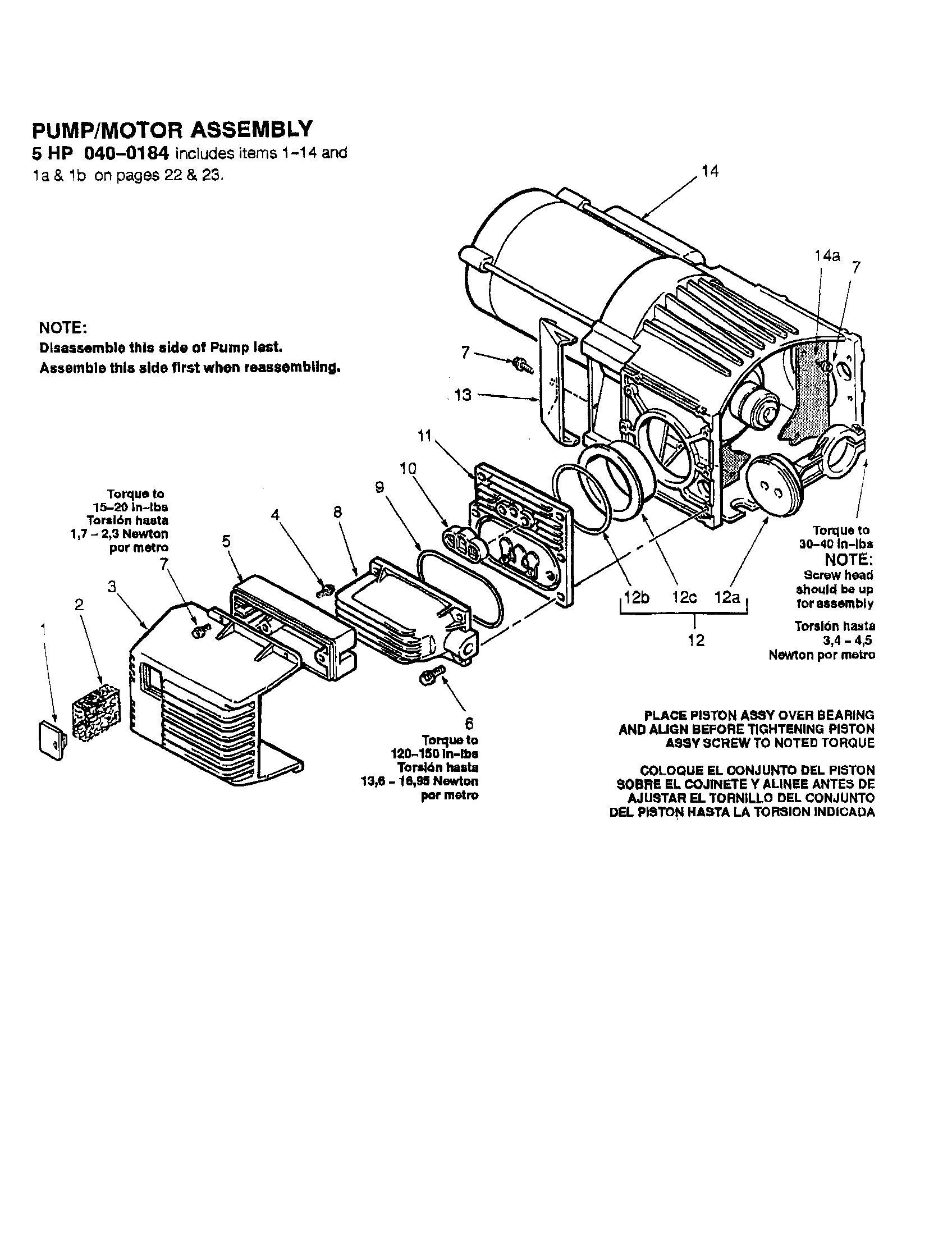

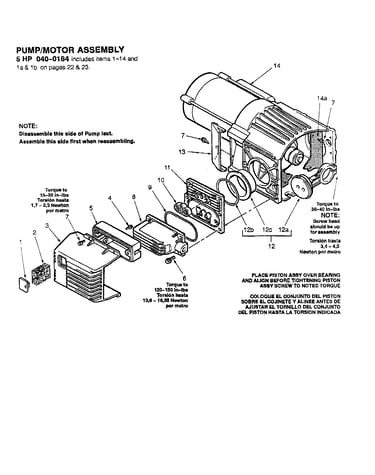

Pump and motor assembly diagram

Motor assembly must be purchased as complete pump/motor/bearing assembly includes item 14a and item 7 (4)

Part #040-0218

The manufacturer no longer makes this part, and there's no substitute part

Gauge, 160 Psi (2) 032-0001
#12

Manifold/switch assembly diagram

Gauge, 160 psi (2)

Part #032-0001

The manufacturer no longer makes this part, and there's no substitute part

Deflector, Air (2) 056-0037
#13

Pump and motor assembly diagram

Deflector, air (2)

Part #056-0037

The manufacturer no longer makes this part, and there's no substitute part

Nut Sleeve 058-0007
#3

Tank/pump/motor/shroud diagram

Nut sleeve

Part #058-0007

The manufacturer no longer makes this part, and there's no substitute part

Cord Interconnect 026-0221
#5

Manifold/switch assembly diagram

Cord interconnect

Part #026-0221

The manufacturer no longer makes this part, and there's no substitute part
