Model # PCFG3078AFC Official Frigidaire free standing gas range

Here are the diagrams and repair parts for Official Frigidaire PCFG3078AFC free standing gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

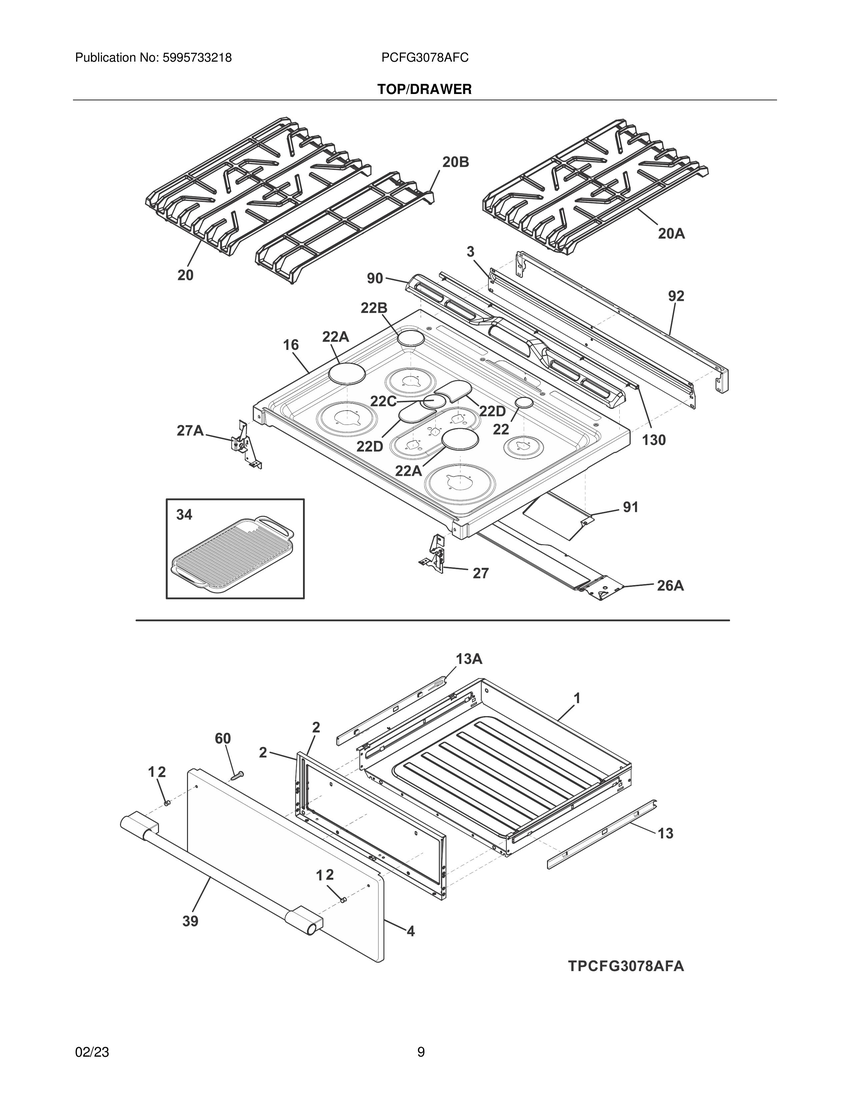

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 181 parts  |
Bake Igniter 5304508786
#19

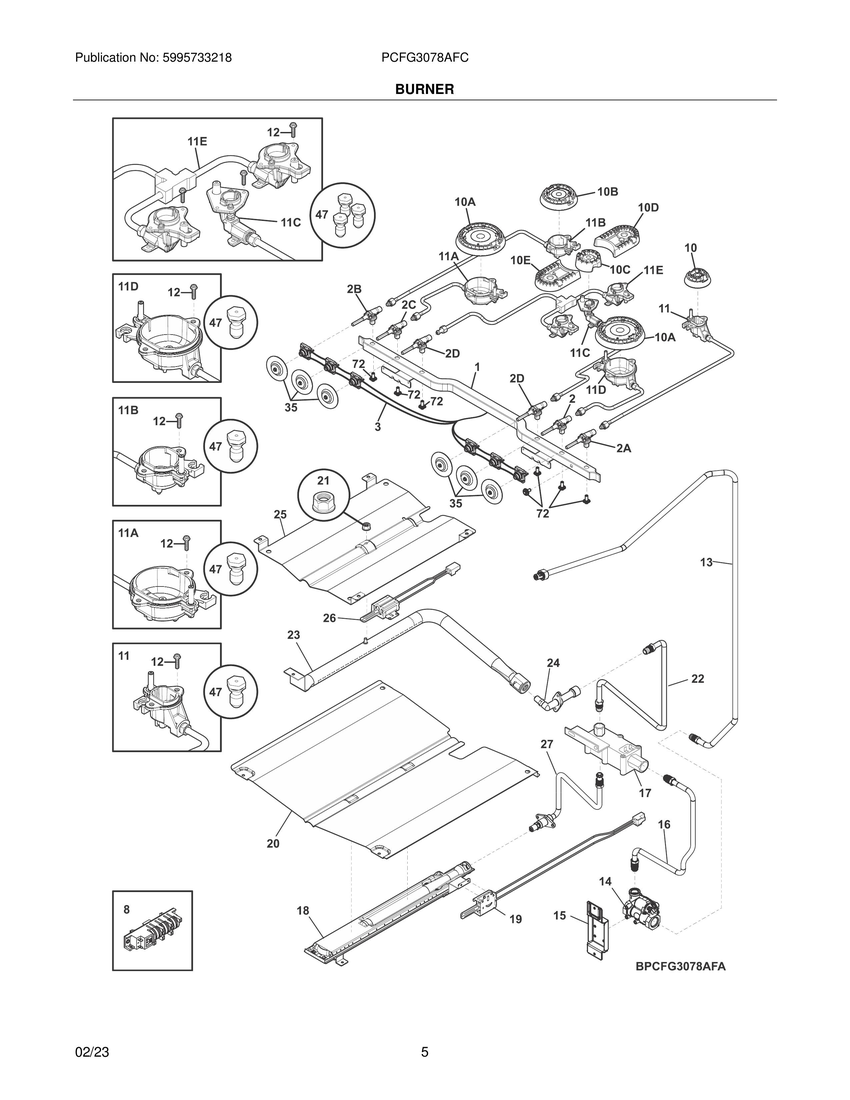

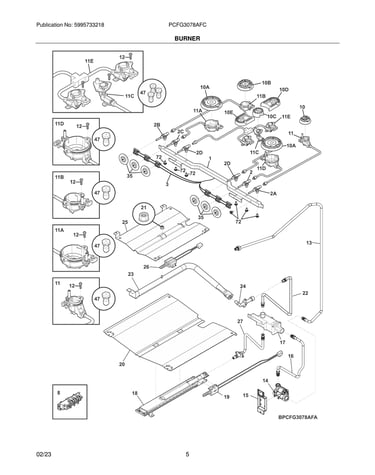

Burner diagram

Bake igniter

Part #5304508786

Replaced by #316489403

?
Manufacturer substitution
This part replaces 5304508786. Substitute parts can look different from the original.
BEST SELLER
$116.21 |
9% OFF Phone Price : $128.21
In Stock
Universal/multiflex (frigidaire) Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

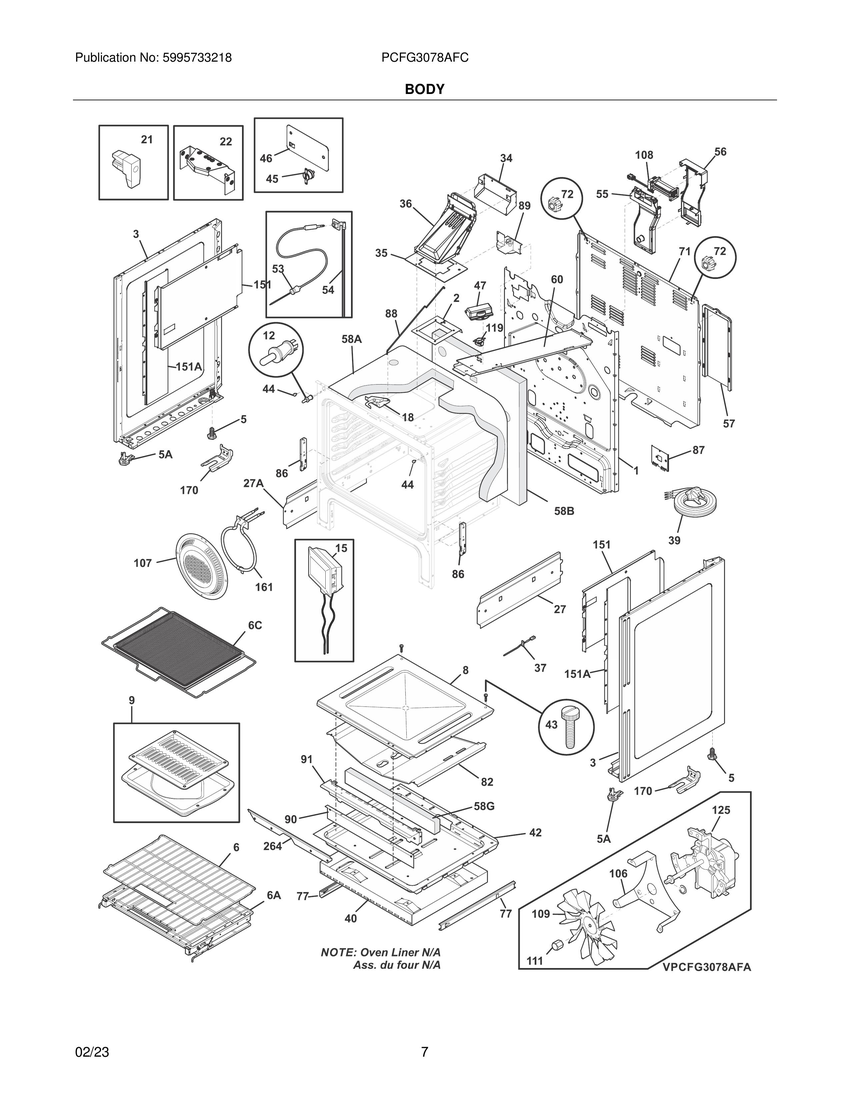

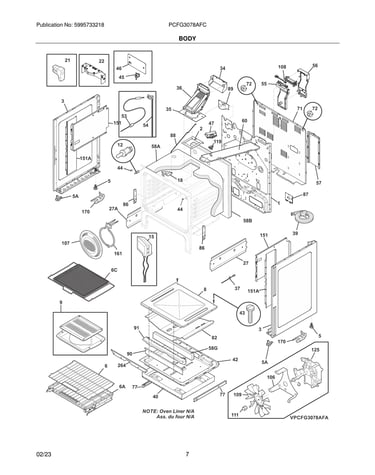

Body diagram

Universal/multiflex (frigidaire) range oven temperature sensor (replaces 316490003)

Part #316490000

BEST SELLER
$33.05 |
15% OFF Phone Price : $39.05
In Stock
Range Broil Igniter (replaces 316489404) 5304506545
#26

Burner diagram

Range broil igniter (replaces 316489404)

Part #5304506545

BEST SELLER
$78.03 |
7% OFF Phone Price : $84.03
In Stock
Glass,oven Door ,inner 316117506
#8

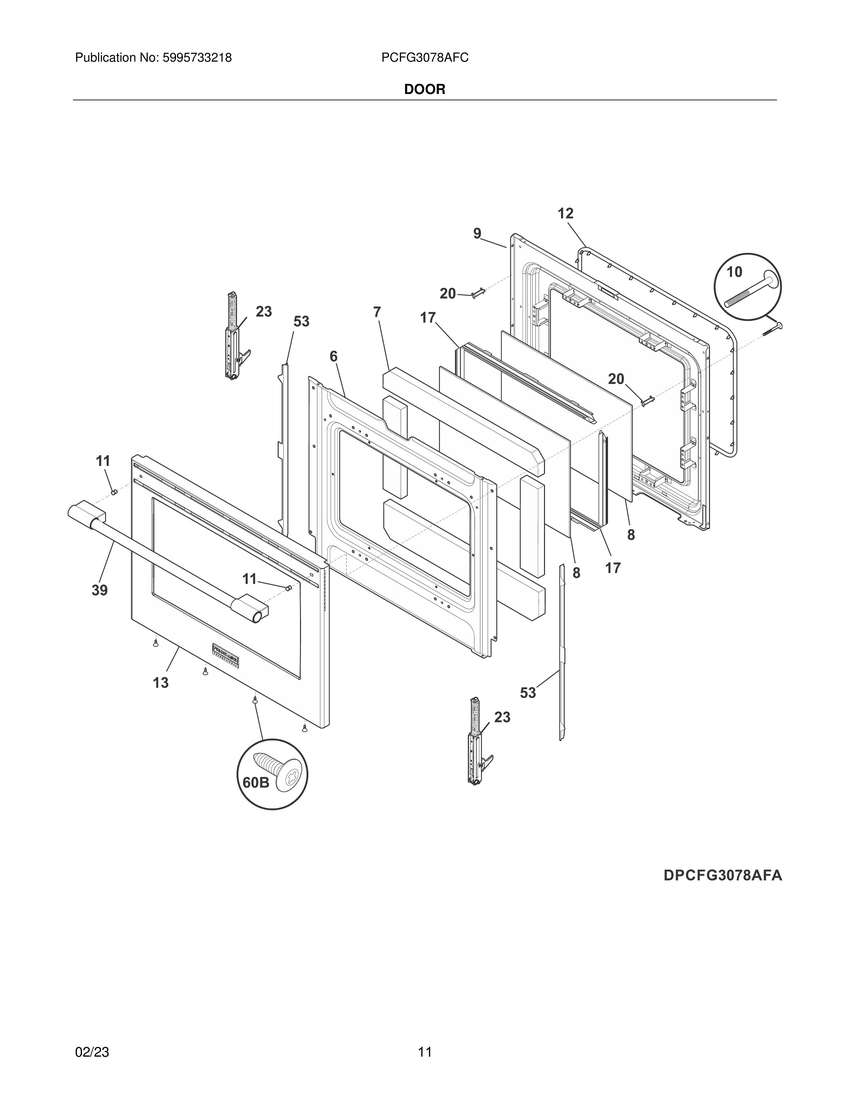

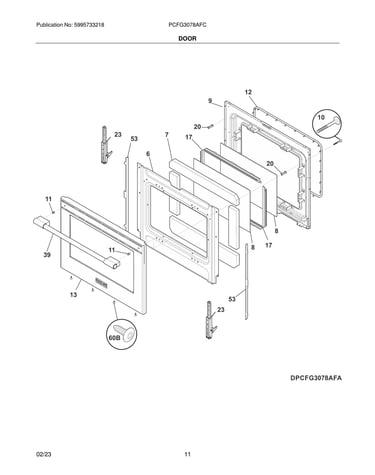

Door diagram

Glass,oven door ,inner

Part #316117506

Replaced by #5304503232

?
Manufacturer substitution
This part replaces 316117506. Substitute parts can look different from the original.
BEST SELLER
$74.27 |
7% OFF Phone Price : $80.27
In Stock
Range Screw (replaces 316518100, 7316540900) 316540900
Range screw (replaces 316518100, 7316540900)

Part #316540900

BEST SELLER
$15.36 |
12% OFF Phone Price : $17.36
In Stock
Kenmore Pro Range High-limit Thermostat (replaces 318578501) 318578506
#119

Body diagram

Kenmore pro range high-limit thermostat (replaces 318578501)

Part #318578506

BEST SELLER
$37.66 |
14% OFF Phone Price : $43.66
In Stock
Range Oven Relay Control Board 5304516862
#97

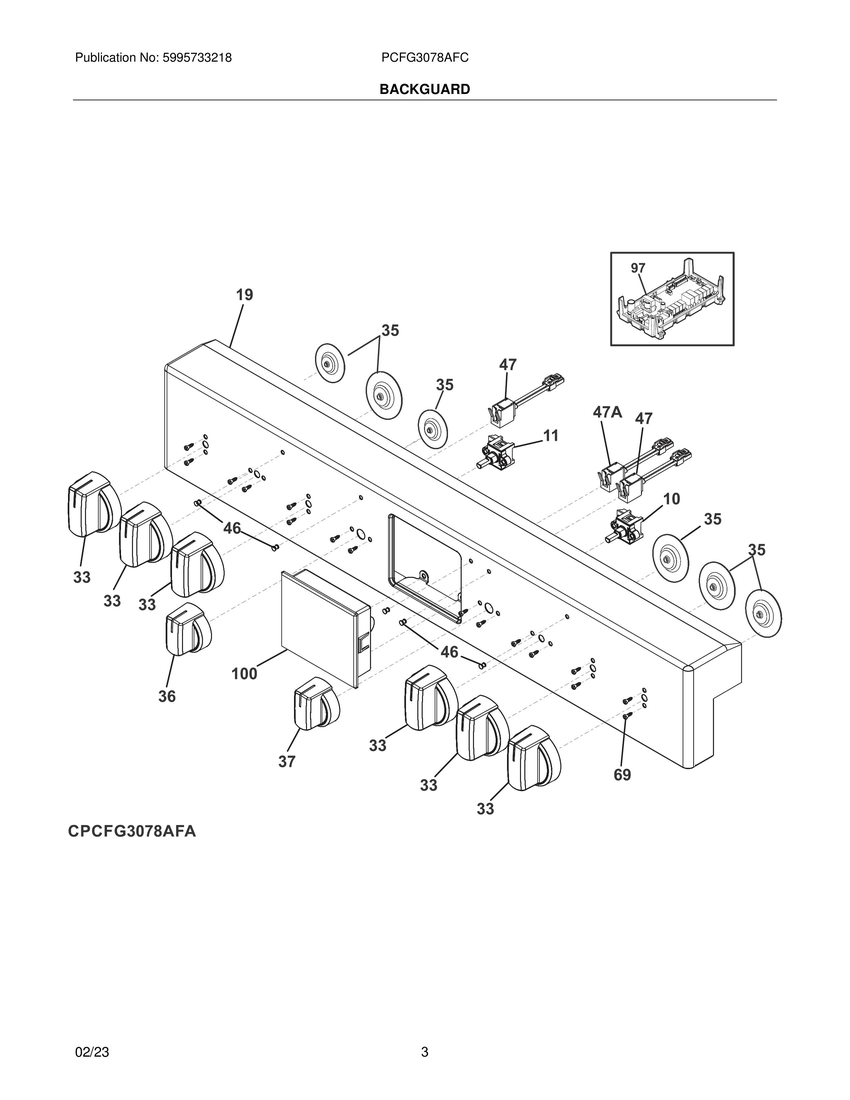

Backguard diagram

Range oven relay control board

Part #5304516862

BEST SELLER
This item is not returnable
$208.13 |
5% OFF Phone Price : $220.13
In Stock
Range Oven Door Lock Motor And Switch Assembly (replaces 316464300) 5304528973
#89

Body diagram

Range oven door lock motor and switch assembly (replaces 316464300)

Part #5304528973

BEST SELLER
$41.22 |
13% OFF Phone Price : $47.22
In Stock
Range Oven Rack 316498003
#6

Body diagram

Range oven rack

Part #316498003

Replaced by #316496201

?
Manufacturer substitution
This part replaces 316498003. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$86.40 |
6% OFF Phone Price : $92.40
In Stock
Range Oven Door Switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, P351140) 316445501
#12

Body diagram

Range oven door switch (replaces 3016298, 316407101, 318089900, 318089915, 318089917, 5303311157, 7316445501, p351140)

Part #316445501

BEST SELLER
$63.47 |
9% OFF Phone Price : $69.47
In Stock
