Model # 167FS643-6 Official Sears swimming pool pump & filter

Here are the diagrams and repair parts for Official Sears 167FS643-6 swimming pool pump & filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Tape 59001
#48

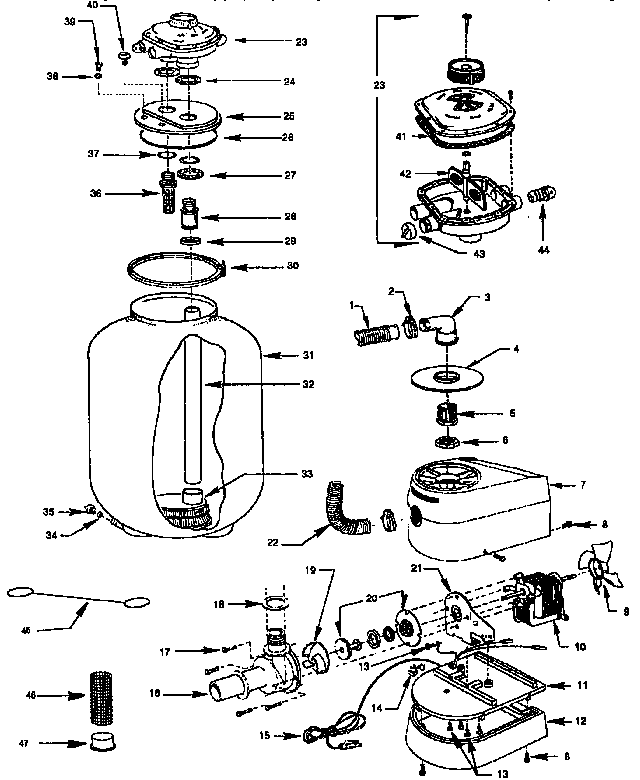

Replacement parts diagram

Tape

Part #59001

The manufacturer no longer makes this part, and there's no substitute part

Hose 49022
#22

Replacement parts diagram

Hose

Part #49022

The manufacturer no longer makes this part, and there's no substitute part
