Model # 110358795 Official Kenmore gearcase & superstructure

Here are the diagrams and repair parts for Official Kenmore 110358795 gearcase & superstructure, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Shaft Seal 356427
#91

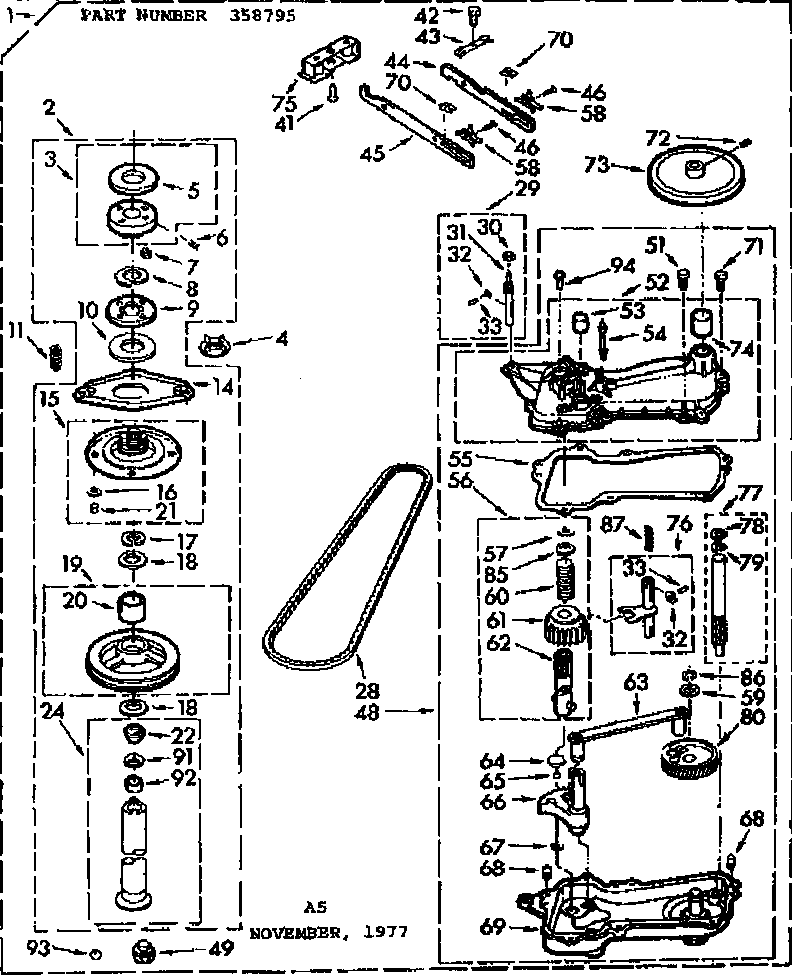

Gearcase/transmission diagram

Shaft seal

Part #356427

Replaced by #WP356427

?
Manufacturer substitution
This part replaces 356427. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.30 |
12% OFF Phone Price : $8.30
In Stock
Shaft Seal 91939
#22

Gearcase/transmission diagram

Shaft seal

Part #91939

Replaced by #WP91939

?
Manufacturer substitution
This part replaces 91939. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Ring 90368
#17

Gearcase/transmission diagram

Ring

Part #90368

Replaced by #W11033823

?
Manufacturer substitution
This part replaces 90368. Substitute parts can look different from the original.
This item is not returnable
$8.53 |
10% OFF Phone Price : $9.53
In Stock
Washer Gear Case Oil (replaces 89122) 350572

#NI

All parts diagram

Washer gear case oil (replaces 89122)

Part #350572

$37.22 |
14% OFF Phone Price : $43.22
In Stock
Washer Gear Case Brake Line And Guide 350522
#3

Gearcase/transmission diagram

Washer gear case brake line and guide

Part #350522

$23.84
In Stock
Bearing 16018
#64

Gearcase/transmission diagram

Bearing

Part #16018

Replaced by #285205

?
Manufacturer substitution
This part replaces 16018. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Washer Drive Belt 95405
#28

Gearcase/transmission diagram

Washer drive belt

Part #95405

Replaced by #WP95405

?
Manufacturer substitution
This part replaces 95405. Substitute parts can look different from the original.
This item is not returnable
$12.18 |
14% OFF Phone Price : $14.18
In Stock
Ball 85529
#65

Gearcase/transmission diagram

Ball

Part #85529

Replaced by #285205

?
Manufacturer substitution
This part replaces 85529. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Gear Case 358795
#1

Gearcase/transmission diagram

Gear case

Part #358795

The manufacturer no longer makes this part, and there's no substitute part

Cam Bar Guide 95462
#70

Gearcase/transmission diagram

Cam bar guide

Part #95462

The manufacturer no longer makes this part, and there's no substitute part
