Charcoal Grill

Model # 2581029190 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581029190 gas outdoor grill, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
2581029190 Outdoor Grills
Wood Handle 10338-134
#3

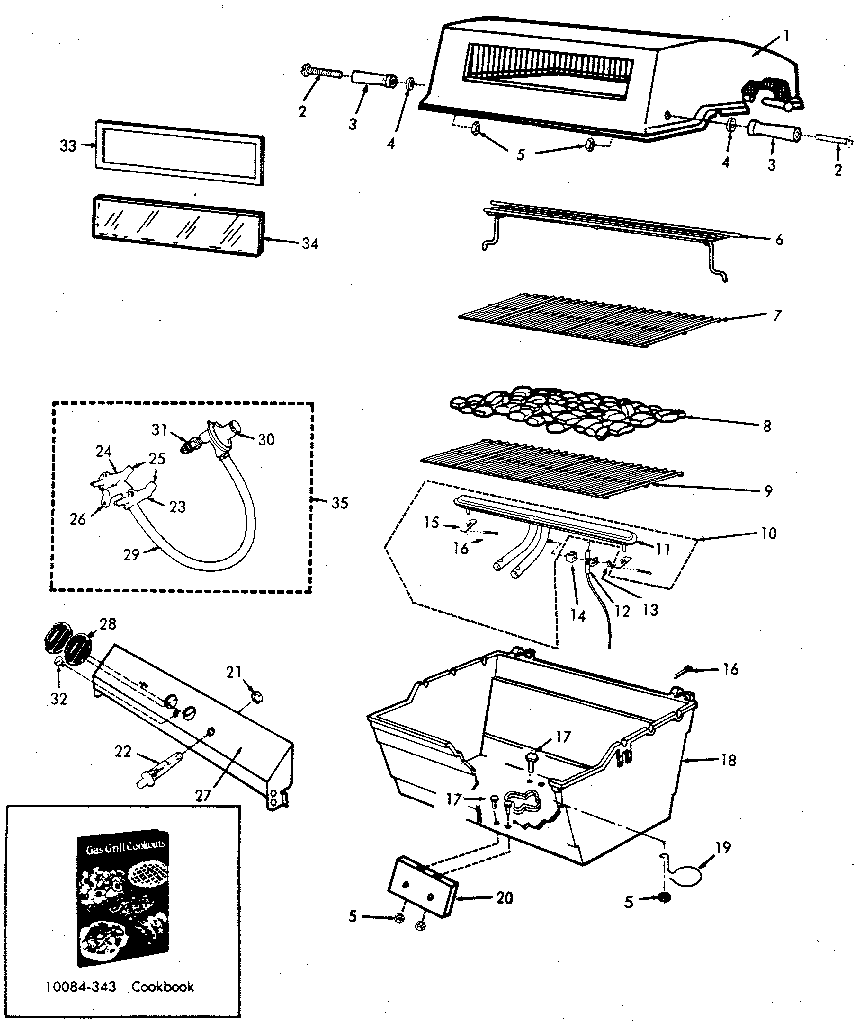

Grill and burner section diagram

Wood handle

Part #10338-134

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut STD541110
#13

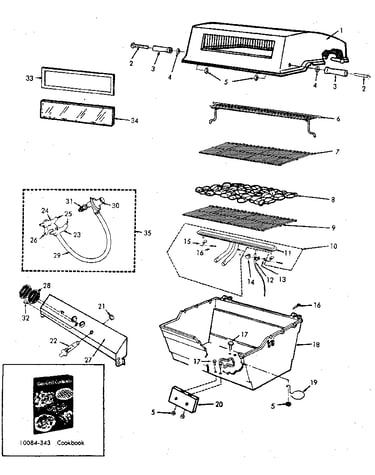

Grill and burner section diagram

Hex nut

Part #STD541110

The manufacturer no longer makes this part, and there's no substitute part

Nut Y-12879
#63

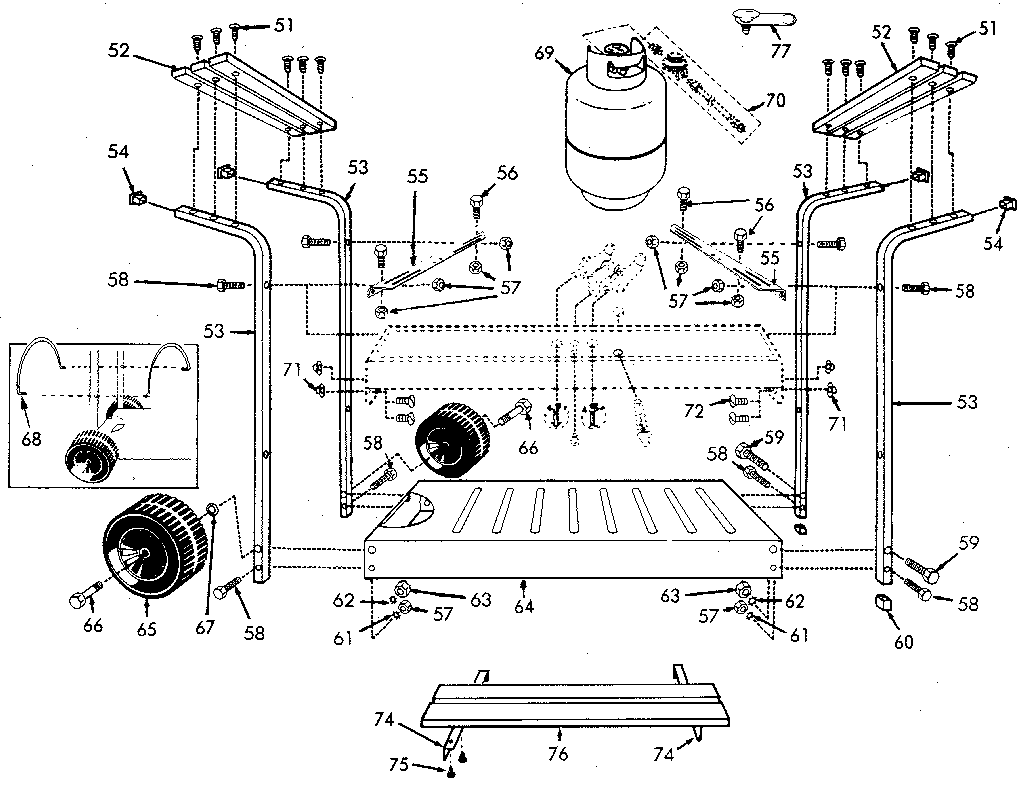

Cart diagram

Nut

Part #Y-12879

The manufacturer no longer makes this part, and there's no substitute part

Cooking Rack 10225-267
#6

Grill and burner section diagram

Cooking rack

Part #10225-267

The manufacturer no longer makes this part, and there's no substitute part

Conversion Label 10084-450

#NI

All parts diagram

Conversion label

Part #10084-450

The manufacturer no longer makes this part, and there's no substitute part

Handle 10338-142-1
#53

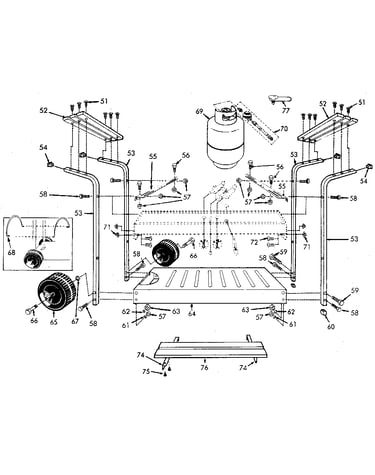

Cart diagram

Handle

Part #10338-142-1

The manufacturer no longer makes this part, and there's no substitute part

Control Panel 10550-102-4
#27

Grill and burner section diagram

Control panel

Part #10550-102-4

The manufacturer no longer makes this part, and there's no substitute part

Support 10184-296
#68

Cart diagram

Support

Part #10184-296

The manufacturer no longer makes this part, and there's no substitute part

Screw Y-12873
#51

Cart diagram

Screw

Part #Y-12873

The manufacturer no longer makes this part, and there's no substitute part

Natural Gas Orifice 10403-13

#NI

All parts diagram

Natural gas orifice

Part #10403-13

The manufacturer no longer makes this part, and there's no substitute part
